Summary of Contents for Doka Xsafe edge protection Z

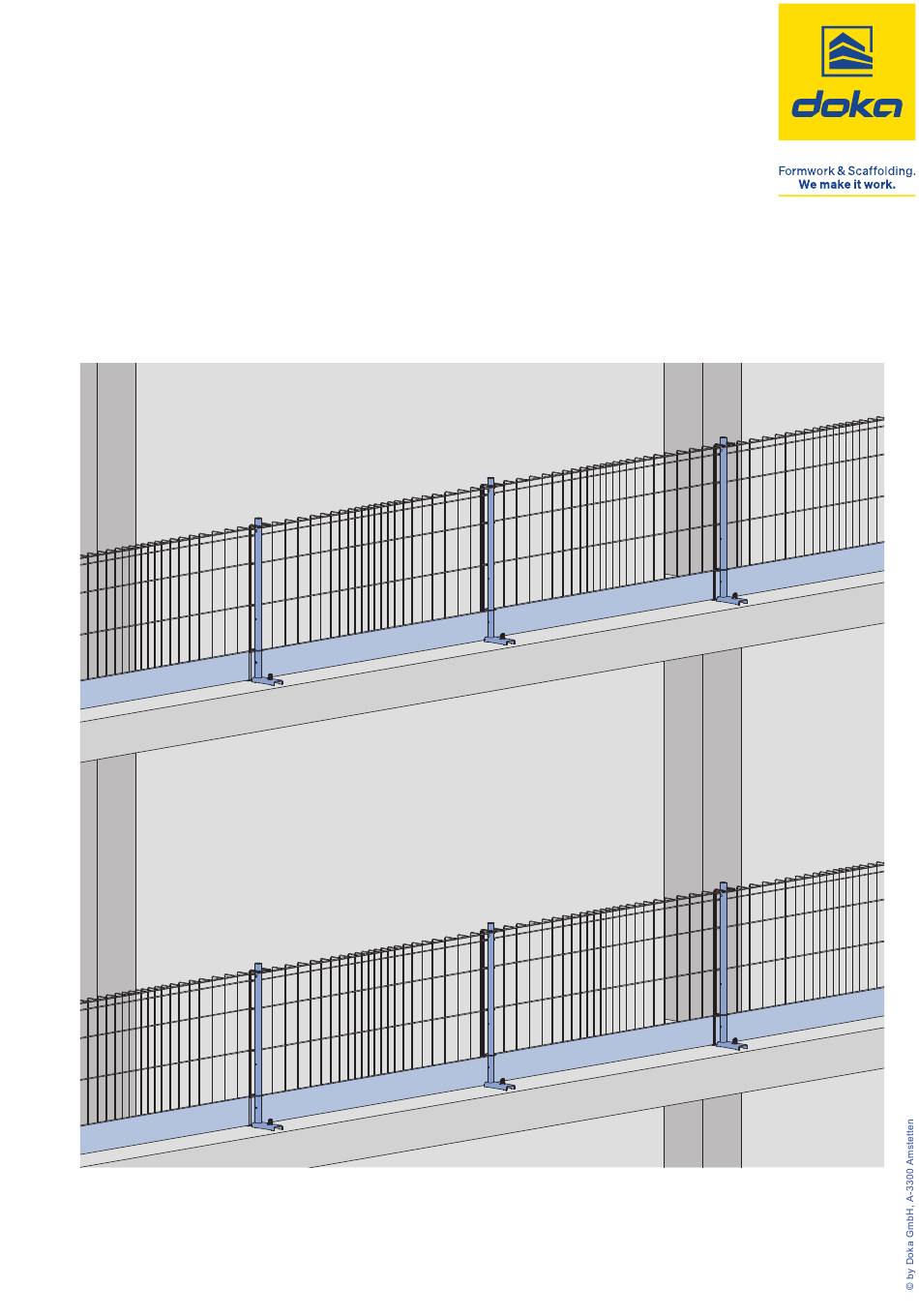

- Page 1 999819602 02/2025 en-GB Xsafe edge protection Z User Information Instructions for assembly and use (Method statement) © by Doka GmbH, A-3300 Amstetten 98196-203-01...
- Page 2 User Information Xsafe edge protection Z 999819602 - 02/2025...
-
Page 3: Table Of Contents
User Information Xsafe edge protection Z Contents Introduction Elementary safety warnings System description Edge protection - railing height up to 1.20 m Installing Handrail post Z 1.20m and safety barrier Installing Handrail post XP and safety barrier Practical examples Structural design Edge protection - railing height up to 1.80 m... -
Page 4: Introduction
This booklet is aimed at all persons who will be work- This document can be used as general Instructions ing with the Doka product or system that it describes. for Assembly and Use (Method Statement) or be It contains information on the standard design for... - Page 5 ▪ It is strictly forbidden to weld Doka products – in par- ticular anchoring/tying components, suspension components, connector components and castings etc. – or otherwise subject them to heating.
- Page 6 The following symbols are used in this document: Observe all country-specific regulations applying to the handling of formwork and scaffolding. For system formwork the Doka slinging means stated in this DANGER booklet must be used – this is a mandatory require- This is a notifier drawing attention to an ment.
-
Page 7: System Description
User Information Xsafe edge protection Z Introduction System description Xsafe edge protection Z leads to a safe and economical solution at the structure edge. The optimised design makes this edge protection system light but at the same time strong. It corresponds to EN 13374 class A and supports productive and safe working on the structure shell. -
Page 8: Edge Protection - Railing Height Up To 1.20 M
Edge protection - railing height up to 1.20 m User Information Xsafe edge protection Z Edge protection - railing height up to 1.20 m with Handrail post Z 1.20m with Handrail post XP Safety barriers Note: Protective barrier Z 2.50x1.20m Protective barrier Z 1.25x1.20m... - Page 9 User Information Xsafe edge protection Z Edge protection - railing height up to 1.20 m Bridge-deck clamp XP Trench box adapter XP TR1274-204-01 98196-209-01 The protective barrier must be additionally secured against lift-out with Velcro® strips or cable ties. Multi precast connector XP...
-
Page 10: Installing Handrail Post Z 1.20M And Safety Barrier
98196-216-01 Structural design. a ... distance from edge min. 15 cm (with Doka express anchor 16x125mm) Follow the 'Doka express anchor 16x125mm' A Handrail post Z User Information booklet or the fitting instruc-... - Page 11 User Information Xsafe edge protection Z Edge protection - railing height up to 1.20 m Installing the safety barriers Variant with scaffold tubes Installing the Protective barrier Z 1.20m ➤ Push the safety bow upwards until it hits the stop.
-
Page 12: Installing Handrail Post Xp And Safety Barrier
How to install, for example with the Handrail-post with Handrail post XP 1.20m shoe XP: ➤ ➤ Secure the handrail-post shoe to the slab with Doka Hang the Protective barrier Z 1.20m into place in all express anchor 16x125mm and Doka coil 16mm. 4 railing shackles. ➤... - Page 13 User Information Xsafe edge protection Z Edge protection - railing height up to 1.20 m with Handrail post XP flex 1.60m with Toeboard holder XP 1.20m For detailed information about the Handrail with Railing holder XP flex post XP flex 1.60m and Toeboard holder XP see the ‘Xsafe edge protection XP’...
-
Page 14: Practical Examples
Edge protection - railing height up to 1.20 m User Information Xsafe edge protection Z Practical examples Protective barrier Z 2.50x1.20m 98196-217-01 a ... spacing (span) between handrail posts max. 2.40 m c ... railing height 1.17 m A Handrail post Z 1.20m, Handrail post XP 1.20m,... -
Page 15: Structural Design
The span is the distance between the hand- with toeboard 5 x 20 cm rail posts. ▪ The permitted influence width of a handrail Actual tensile force in the Doka express anchor: post is stated in the respective tables. = 6.9 kN (F = 4.6 kN) perm. -
Page 16: Edge Protection - Railing Height Up To 1.80 M
Edge protection - railing height up to 1.80 m User Information Xsafe edge protection Z Edge protection - railing height up to 1.80 m Safety barriers Protective barrier Z 2.50x1.20m Protective barrier Z 1.25x1.20m Protective barrier Z 2.50x0.60m Protective barrier Z 1.25x0.60m Scaffold tube 48.3mm... -
Page 17: Extending Height Of Edge Protection To Barrier Height 1.80 M
Edge protection - railing height up to 1.80 m Extending height of edge protection to barrier height 1.80 m ➤ Xsafe edge protection Z with railing height 1.20 m Use the safety plate to fix the Protective barrier Z already installed (see the section headed Installing 0.60m to the bottom Protective barrier Z 1.20m. - Page 18 Edge protection - railing height up to 1.80 m User Information Xsafe edge protection Z Variant with scaffold tubes 98196-223-01 a ... max. 47.0 cm A Handrail post Z 1.20m B Handrail post Z 0.60m C Scaffold tube 48.3mm D Swivel coupler or Normal coupler 48mm E Toeboard holder XP 0.60m...
-
Page 19: Structural Design
The span is the distance between the hand- with toeboard 5 x 20 cm rail posts. ▪ Actual tensile force in the Doka express anchor: The permitted influence width of a handrail = 13.5 kN (F = 9.0 kN) post is stated in the respective tables. - Page 20 Edge protection - railing height up to 1.80 m User Information Xsafe edge protection Z 999819602 - 02/2025...
-
Page 21: General
NOTICE be used for affixing customer stickers (B) . ▪ It is only allowed to fit signboards to 1.20 m For more information, please contact your Doka techni- high Protective barriers Z. cian. ▪ Size of signboard (width x height): max. -
Page 22: Transporting, Stacking And Storing
General User Information Xsafe edge protection Z Transporting, stacking and storing NOTICE Utilise the benefits of Doka multi-trip packaging ▪ on your site. The type plate must be in place and clearly legible. Multi-trip packaging such as containers, stacking pal-... - Page 23 ▪ Load the items centrically. ▪ Reposition the pallet only with the shaped tube correctly installed. ▪ Use a suitable crane lifting tackle (e.g. Doka 4-part chain 3.20m). Do not exceed the permitted working load limit. 98196-202-04 ▪ Sling angle β max. 30°.
- Page 24 Storage and transport device for small items. To make the Doka skeleton transport box easier to load and unload, one of its sidewalls can be opened. Permitted load-bearing capacity: 700 kg (1540 lbs)
- Page 25 Permitted imposed stacking load: 7850 kg (17300 lbs) NOTICE ▪ Multi-trip packaging items must be lifted Different items in the Doka multi-trip transport box can individually. be kept separate with the Multi-trip transport box par- ▪ Only lift the boxes when their sidewalls are titions 1.20m or 0.80m.
- Page 26 General User Information Xsafe edge protection Z Bolt-on castor set B Doka multi-trip transport box 1.20x0.80mx0.41m The Bolt-on castor set B turns multi-trip packaging items into fast and manoeuvrable transport devices. Suitable for drive-through access openings > 90 cm. The Bolt-on castor set B can be mounted to the follow- ing multi-trip packaging items: ▪...
- Page 27 User Information Xsafe edge protection Z General 999819602 - 02/2025...
-
Page 28: Article List
Article list User Information Xsafe edge protection Z [kg] Article N° [kg] Article N° Article list [kg] Article N° Protective barrier Z 2.50x1.20m 13.3 586642000 Handrail post XP flex 1.60m 4.8 586494000 Protective barrier Z 1.25x1.20m 7.3 586643000 Geländersteher XP flex 1,60m... - Page 29 User Information Xsafe edge protection Z Article list [kg] Article N° [kg] Article N° Multi precast connector XP 3.0 586493000 Swivel coupler 48mm 1.5 582560000 Multi-Fertigteilanschluss XP Drehkupplung 48mm Galvanised Galvanised Height: 20 cm Width-across: 22 mm Parapet adapter XP 2.9 586469000...
- Page 30 Article list User Information Xsafe edge protection Z [kg] Article N° [kg] Article N° Protective barrier Z pallet 0.60m 71.4 586647000 Palette Schutzgitter Z 0,60m Galvanised Length: 134.4 cm Width: 82.4 cm Height: 127.6 cm Doka skeleton transport box 1.70x0.80m 87.0 583012000...
- Page 31 User Information Xsafe edge protection Z Article list 999819602 - 02/2025...
- Page 32 Doka GmbH | Josef Umdasch Platz 1 | 3300 Amstetten | Austria | T +43 7472 605-0 | F +43 7472 66430 | info@doka.com | www.doka.com 999819602 - 02/2025...
