Bosch MFQ3010 Manual

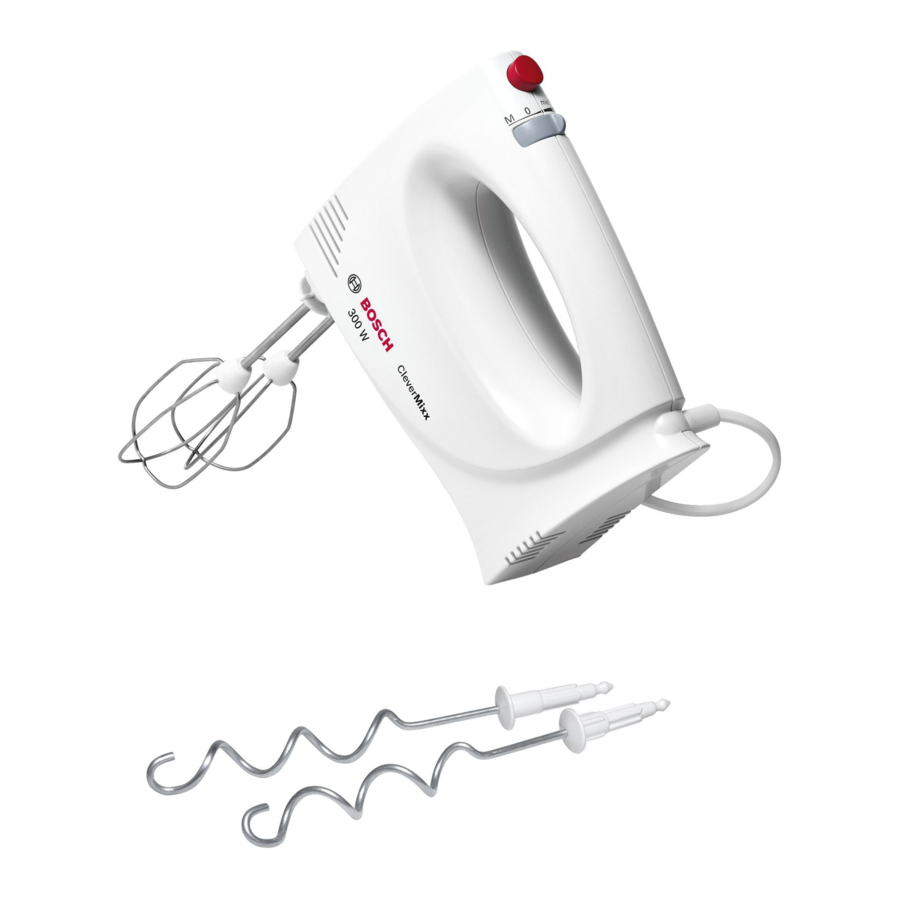

Overview

Fig. A
Overview

Base unit

Ejector button
For removing the tools
Switch + fast and continuous operation (for some models)
For switching the appliance on and off and adjusting theoperating speed.
0/off = switched off
min/1 = slowest speed
max/4 = fastest speed
M = Instantaneous switching (maximum speed) press to the left and hold in place
Power cord
Apertures for inserting the tools

Tools

Stirrer
Kneading hook
some models:
Universal cutter (separate operating instructions)

If the universal cutter is not included with the hand blender, it can be ordered from customer service.

Operation

Base unit with tools
An especially good result is achieved if the tools are used for the following applications:

Stirrers for...
... sauces, beaten egg white, mashed potatoes, crème fraîche, mayonnaise, cream and light dough, e.g. cake mixture. Stirrers are not suitable for processing heavy dough.

Kneading hook for...
... stiff mixtures such as short pastry, yeast dough and potato dough as well as for mixing heavy mincemeat dough, pasta or bread dough.

The maximum processing quantity is 500 g of flour and ingredients.

Risk of injury from rotating drive!

Never grip the rotating tools.

Do not attach or remove tools until the appliance is at a standstill – when switched off, the appliance continues running briefly.

Protect long hair or loose items of clothing to prevent them from becoming caught in the rotating tools.

Before using the appliance for the first time, clean base unit and tools.

Fig. B
Operation

Completely unwind the power cord. Place the required tool on the base unit and depress until it locks into position. Note the shape of the plastic parts to prevent mixing them up (see Fig. B-1)!
Insert the mains plug.
Place the food in a suitable receptacle.
Insert tools into the receptacle and switch on the appliance at the required setting.
Settings min/1, 2: for working in and mixing in.
Settings max/3, 4:
for kneading and beating.
After working, set the switch to 0/off and release and remove the tools with the ejector button.

Attention:
The ejector button cannot be actuated unless the switch is in the 0/off position.

information Note:
Always switch off the base unit before taking it out of the blended food.

After using the appliance/cleaning

The appliance requires no maintenance. Thorough cleaning protects the appliance from damage and keeps it functional.

Never immerse the base unit in water and do not clean in the dishwasher.

Do not use a steam cleaner!

Remove mains plug.
Wipe the base unit with a damp cloth and then wipe dry.
Clean the tools in the dishwasher or with a brush under running water.

information Note: If processing e.g. red cabbage, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil.

The power cord can be wound up to facilitate storage of the appliance (Fig. C).

Optional accessories

A universal cutter can be ordered from customer service quoting order no. 642828.

Recipes

Whipped cream

100 g–500 g

Whip cream with the stirrer for ½ to 5 minutes at setting max/4 (depending on the quantity and properties of the cream).

Egg white

1 to 5 egg whites

Using the stirrer, beat egg whites for 2 to 5 minutes at setting max/4.

Sponge mixture

Basic recipe
2 eggs
2–3 tbs. hot water
100 g sugar
1 packet of vanilla sugar
70 g flour
70 g cornflour
Baking powder if required

Beat the ingredients (except flour and cornflour) with the stirrer for approx. 3–4 minutes at setting 4 (max) until frothy.
Switch appliance to setting 1 (min), mix sifted flour and cornflour by the spoonful within approx. ½ to 1 minute.

Maximum quantity: 2 x basic recipe

Cake mixture

Basic recipe

2 eggs
125 g sugar
1 pinch of salt
1 packet of vanilla sugar or peel from ½ lemon
125 g butter or margarine (room temperature)
250 g flour
1 packet of baking powder
60 ml of milk

Using the stirrer, process all ingredients for approx. ½ minute at setting 1 (min), then for approx. 3–4 minutes at setting 4 (max). Maximum quantity: 2 x basic recipe

Short pastry

Basic recipe

125 g butter (room temperature)
100–125 g sugar
1 egg
1 pinch of salt
A little lemon peel or vanilla sugar
250 g flour
Baking powder if required

Using the kneading hook, process all ingredients for approx. ½ minute at setting 1 (min), then for approx. 3–4 minutes at setting 4 (max).

Maximum quantity: 2 x basic recipe

Base for fruit flan

Basic recipe

2 eggs
125 g sugar
125 g ground hazelnuts
50 g breadcrumbs

Beat eggs and sugar for 3 to 4 minutes at setting 4 (max) until frothy.
Switch appliance to setting 1 (min), add hazelnuts and breadcrumbs and process for ½ minute with the stirrer.

Maximum quantity: 2 x basic recipe

Plaited bun

Basic recipe

250 g flour
1 packets of dry yeast
110 ml warm milk
1 egg
1 pinch of salt
40 g sugar
30 g melted and cooled fat
Graded rind of half a lemon

Using the kneading hook, process all ingredients for approx. ½ minute at setting 1 (min), then for approx. 3–4 minutes at setting 4 (max).

Maximum quantity: 2 x basic recipe

Pizza dough

Basic recipe

250 g flour
1 packets of dry yeast
1 tsp. sugar
1 pinch of salt
3 tbs. oil
125 ml warm water

Using the kneading hook, process all ingredients for approx. ½ minute at setting 1 (min), then for approx. 3–4 minutes at setting 4 (max).

Maximum quantity: 2 x basic recipe

Bread dough

Basic recipe

300 g flour
8 g sugar
8 g margarine
4 g salt
1 packets of dry yeast
150 ml water

Using the kneading hook, process all ingredients for approx. ½ minute at setting 1 (min), then for approx. 3–4 minutes at setting 4 (max).

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance. If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded. This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications. Nonindustrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings. Use the appliance for processing normal quantities of food for domestic use. The hand mixer is suitable for mixing doughy or liquid foods or for whipping cream. It must not be used for processing other objects or substances. Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions.

General safety instructions

Electric shock risk
The appliance must not be used by children. The appliance and its power cord must be kept away from children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Connect and operate the appliance only in accordance with the specifications on the rating plate. Only use indoors. Do not use the appliance if the power cord and/or appliance are damaged. Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning. Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person. Only our customer service may repair the appliance.

Safety instructions for this appliance

warning Risk of injury
Electric shock risk
If the power is interrupted, the appliance remains switched on and restarts when the power is restored. Switch off the appliance immediately. Never immerse the base unit in liquids and do not clean in the dishwasher. Do not use a steam cleaner! Caution when processing hot liquids. Liquids may splash during processing.

Do not use the appliance with damp hands.

Risk of injury from rotating drive!

Never grip the rotating tools.

Do not attach or remove tools until the appliance is at a standstill – when switched off, the appliance continues running briefly. Protect long hair or loose items of clothing to prevent them from becoming caught in the rotating tools.

Do not operate the appliance at no-load. Operate the appliance with original accessories only. Insert tools of one type only (e.g. kneading hook).

Recommendation: Never switch on the appliance for longer as you need to processing the ingredients.

The blender jug is not suitable for use in the microwave.

These operating instructions refer to various models.
