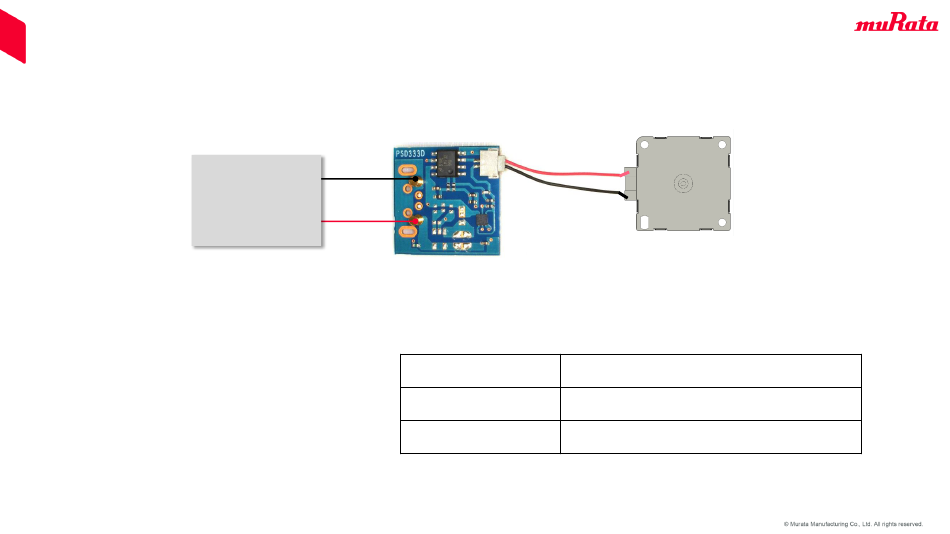

Driver circuit connections
DC Power Supply
•
Please use IC clips or lead wires when connecting DC power supply to drive circuit
•
Care should be taken when soldering lead wires, avoid touching soldering iron directly to the body of the
microblower.
•
Soldering iron parameters
Follow the recommended soldering iron
parameters
V1.3
Vdc input（GND）
Vdc input（＋）
Driver Circuit
(p/n MZBD002)
Temperature of iron Max：350℃
Contact time Within 3 second/each terminal
Note Less than 3 cycles (350℃, 3 sec max/cycle)
MicroBlower
(p/n MZB1001T02)
