VERSA DESK

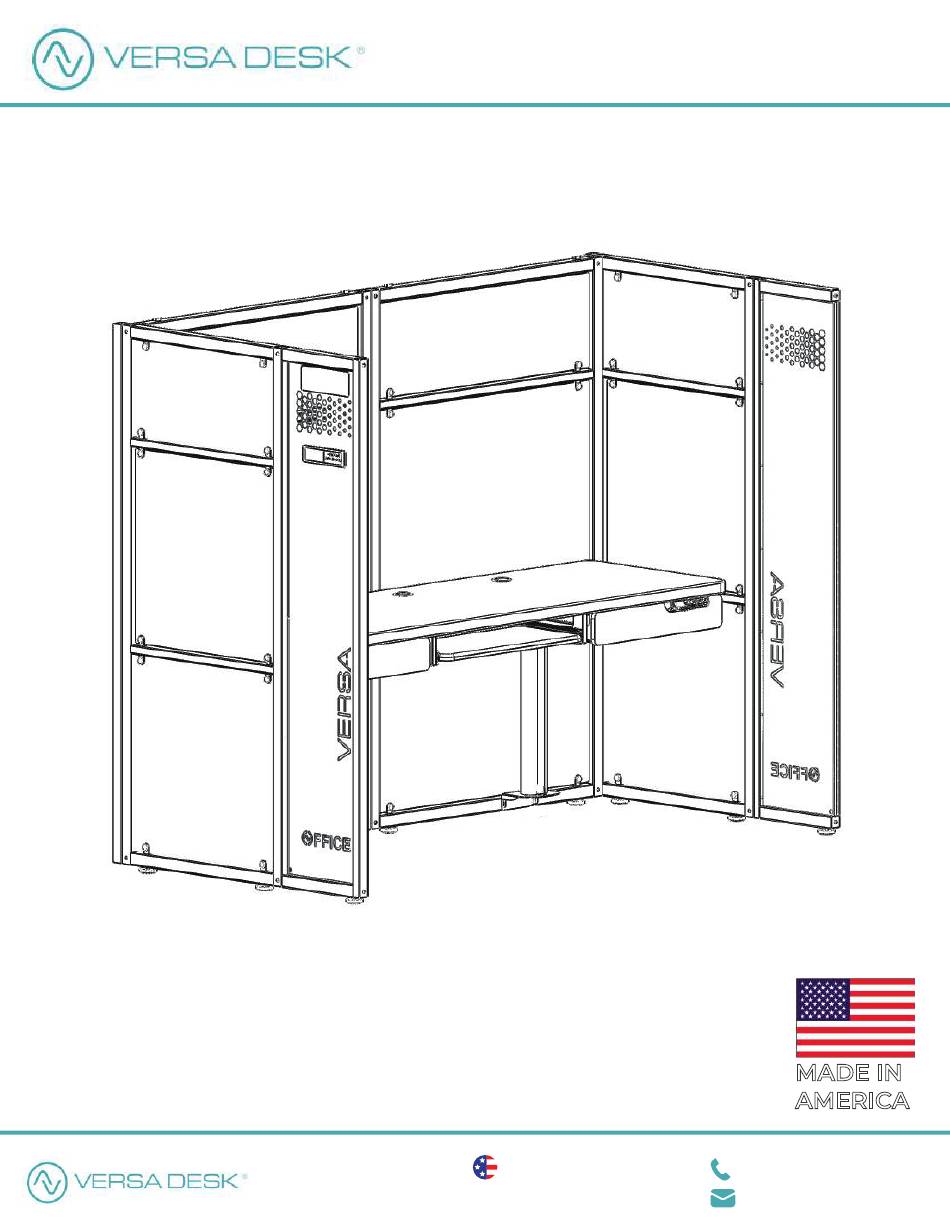

WorkNest - Floating Surface Standing Desk
FSSD
How can we improve our assembly instructions?
Your comments and suggestions are important to us.
Please e-mail us at: support@versaproducts.com
VERSA DESK
®
American Manufacturing
®
Protected by US Patent No. 10,485,336 & 10,849,424
Assembly Instructions
Lifetime Warranty
REV. 07252024
MADE IN
AMERICA
1 (800) 465-1660
support@versadesk.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Versa Desk WorkNest FSSD
Summary of Contents for Versa Desk WorkNest FSSD
- Page 1 VERSA DESK Assembly Instructions ® WorkNest - Floating Surface Standing Desk REV. 07252024 FSSD How can we improve our assembly instructions? MADE IN Your comments and suggestions are important to us. AMERICA Please e-mail us at: support@versaproducts.com 1 (800) 465-1660...
- Page 2 VERSA DESK Assembly Instructions ® Parts Surface and Frame Assembly Upper Bracket Bottom Bracket (if equipped) Lifting Column Keyboard Assembly (if equipped) Drawer w/ Switch Cutout (if equipped) Drawer 1 (800) 465-1660 American Manufacturing Lifetime Warranty VERSA DESK ® support@versadesk.com...
- Page 3 VERSA DESK Assembly Instructions ® Right Sliding Bracket Left Sliding Bracket Control Switch (if equipped) (if equipped) Hardware M6 x 1.0 x 25mm 1/4-20 x 20mm Furniture Bolt Leg Lock Bracket 10A x 3/4 M6 x 12mm Screw Wood Screw...
- Page 4 VERSA DESK Assembly Instructions ® Slide in (1) Upper Bracket through (1) Lifting Column then align (1) Bottom Bracket with the Lifting Column as shown. Attach the Bottom Bracket using (4) M6 x 1.0 x 25mm bolts. Repeat for the other Column...
- Page 5 VERSA DESK Assembly Instructions ® Insert (2) M6 x 12mm Screws into each side of both Lifting Columns (8 Screws in total). The red circles indicate where to place the screws. M6 x 12mm Screw Note: Only Insert the Screw Halfway...
- Page 6 VERSA DESK Assembly Instructions ® 1. Fully insert the side wiithout the handle of the Leg Lock Bracket into the opening shown in red. 2. Slide over the Leg Lock Bracket to insert the other side into the opposing opening.
- Page 7 VERSA DESK Assembly Instructions ® Connect both lifting columns to the Extension Cord as shown Attach the Control Switch to the Surface using (2) 8A x 5/8” Wood Screws as shown. 10A x 3/4 Wood Screw 1 (800) 465-1660 American Manufacturing...
- Page 8 VERSA DESK Assembly Instructions ® Accessories (Sold Seperately) Align the left and right brack- ets with the predrilled holes on the Surface as shown. Attach the brackets to the Surface using a total of (24) 10A x 3/4” Wood Screws.
- Page 9 VERSA DESK Assembly Instructions ® Connect the surface to a near by outlet. The Assembly is now complete! 1 (800) 465-1660 American Manufacturing Lifetime Warranty VERSA DESK ® support@versadesk.com Protected by US Patent No. 10,485,336 & 10,849,424...
- Page 10 VERSA DESK Assembly Instructions ® Control Switch Operation Instructions Display Set Memory Setting Up Down M1 M2 M3 LED Light Control 1 (800) 465-1660 American Manufacturing Lifetime Warranty VERSA DESK ® support@versadesk.com Protected by US Patent No. 10,485,336 & 10,849,424...
