ASSEMBLY INSTRUCTIONS

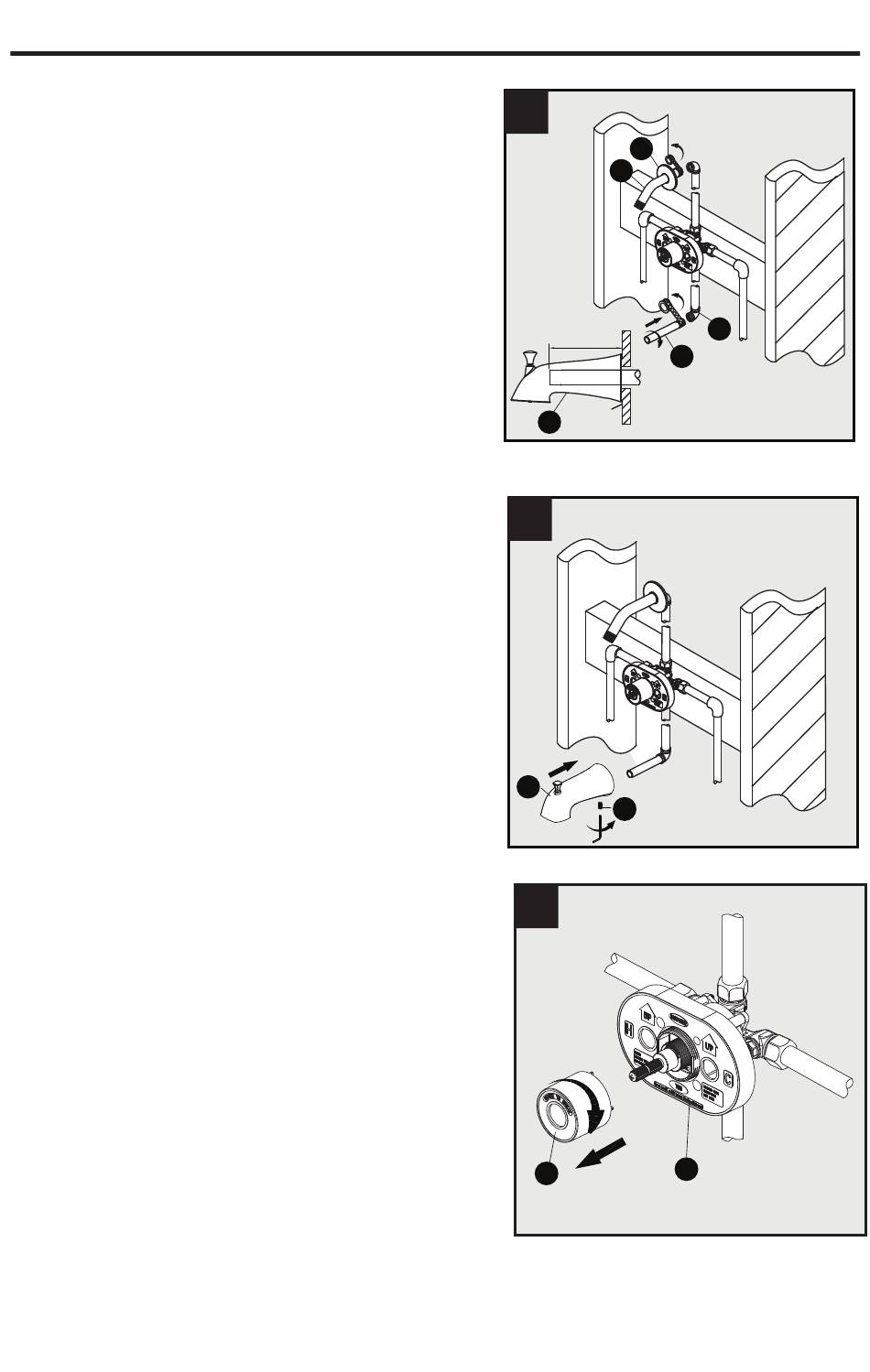

7. Install the shower arm (B):
a. Insert the long end of the shower arm (B) through
the flange (A), then wrap thread sealant tape
around long end of the shower arm (B) in a
clockwise direction, as shown.
b. Install the long end of the shower arm (B) into the
pipe elbow inside the wall. Tighten the shower
arm (B), do not over tighten.
c. Wrap thread sealant tape around the pipe threads
of the tub spout outlet (1, not included) in a clockwise
direction, as shown. Connect the tub spout outlet
pipe (the tub spout outlet pipe should project
1-1/2 in. to 2 in. from the finished wall) to the
lower pipe elbow (2, not included). Tighten the elbow
and tub spout outlet pipe connections with a wrench.
8. Install the tub spout (H):
Install tub spout. Place the tub spout (H) onto
quick connection until the spout becomes flush
with the finished wall and tighten screw (1) with
Allen wrench (Hex: 2.5mm).
9. Before installing the escutcheon, remove the plastic
cap (1) from the valve body (D) by twisting the cap
in a clockwise direction.
7
1-1/2 in. to
2 in.
Wall
1
8
H
9
1
6
A
B
2
1
1
D
