Translated from Spanish to English - www.onlinedoctranslator.com

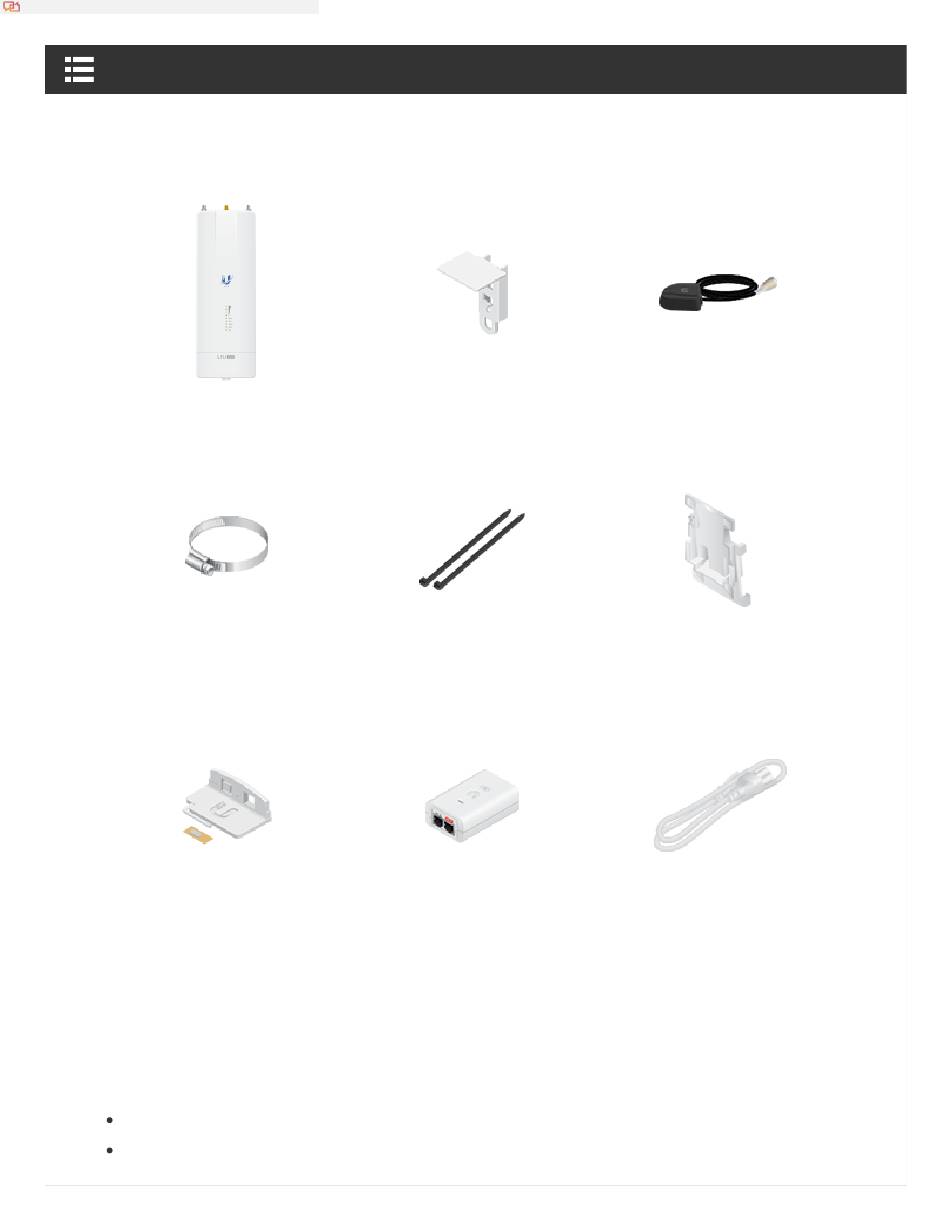

Package content
LTU-Rocket
metal strip
IP67 upgrade kit
(vent and gasket)
Antenna compatibility
The LTU-Rocket is designed for use with the following Ubiquiti® airMAX®
Sector antenna models* for Point-to-Multipoint (PtMP) mode:
AM-5AC21-60
AM-5AC22-45
LTU-Rocket Quick Start Guide
GPS antenna support
Flanges (qty: 2)
Gigabit PoE (24V, 1A) with
Mounting bracket
External GPS antenna
Universal support
Power cord

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTU-Rocket and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti LTU-Rocket

Summary of Contents for Ubiquiti LTU-Rocket

  • Page 1 Flanges (qty: 2) Universal support IP67 upgrade kit Power cord Gigabit PoE (24V, 1A) with (vent and gasket) Mounting bracket Antenna compatibility The LTU-Rocket is designed for use with the following Ubiquiti® airMAX® Sector antenna models* for Point-to-Multipoint (PtMP) mode: AM-5AC21-60 AM-5AC22-45...

  • Page 2: Installation Requirements

    AM-V5G-Ti LTU-Rocket Quick Start Guide AM-M-V5G-Ti AM-5G16-120 AM-5G17-90 AM-5G19-120 AM-5G20-90 AP-5AC-90-HD * Requires the universal mount (included). installation requirements Clear line of sight between LTU™ AP and stations It must be installed without obstacles in the upper part, for the correct operation of the...

  • Page 3: Device Overview

    LTU-Rocket Quick Start Guide * Shown without antenna. Device Overview...
  • Page 4 LTU-Rocket Quick Start Guide LTU antenna connectors Used to connect RF antenna cables (not included).
  • Page 5 LTU-Rocket quickstart Used to connect the GPS antenna. LED signal indicators Each LED will light when the wireless signal strength is equal to or greater than the threshold value set for the LED corresponding to the current channel width setting.

  • Page 6: Installation Overview

    Gigabit PoE port to manage user traffic and power the device. Default IP address: 192.168.1.20 Installation Overview We recommend configuring the LTU-Rocket radio prior to installation. The following sections provide detailed installation instructions. Follow these instructions in the order listed.
  • Page 7 LTU-Rocket Quick Start Guide WARNING:Use only the included adapter, model POE-24V-5X-HD. Failure to do so may damage the unit and void the product warranty.
  • Page 8 LTU-Rocket. You can choose to configure settings such as Link Name, Duty Cycle, Channel Bandwidth, and Frequency. PTMP stations will scan and find the LTU-Rocket without having to set any kind of frequency as long as the same channel bandwidth and link name have been set.
  • Page 9 If necessary, change the options for Channel Bandwidth, Frequency, Output LTU-Rocket Quick Start Guide Power (EIRP), Antenna Gain, and Max TX Modulation. The channel bandwidth must be the same for all devices on the PtMP link. b. In the Security Key field, enter a combination of alphanumeric characters (0-9, AZ, or az).
  • Page 10 LTU-Rocket Quick Start Guide Update for IP67 compatibility To protect the LTU-Rocket and prevent water, dust or insects from entering, we recommend installing the IP67 upgrade kit (included): Note:Do not damage or remove the port cover post.
  • Page 11 LTU-Rocket Quick Start Guide...
  • Page 12 LTU-Rocket Fast Installation of a ground wire 3. At the installation site, secure the other end of the ground wire to an earth ground, pole, or ground bar. WARNING:Improper connection will void your warranty. Note:The ground wire should be as short as possible and no longer than one...
  • Page 13 TU-Rocket Mounting on an an dude went The LTU-Rocket is designed to mount directly to the Ubiquiti antennas listed in the sectionAntenna Compatibility . The airMAX Sector AM-5AC21-60 antenna is shown in this section: Mounting to an external GPS antenna...
  • Page 14 Locate a point of mo either what either heaven and may it be either as high up and as far away from the LTU-Rocket as possible. EITHER...
  • Page 15 LTU-Rocket Quick Start Guide Power over Ethernet connection EITHER...
  • Page 16 Note:If the IP67 upgrade kit is installed, first apply dielectric grease to the cable connector and port. WARNING:The LTU-Rocket must receive 15 W minimum. Make sure the voltage range of the PoE source is within these limits: 4-pair operation: 18-54 V 2-pair...

  • Page 17: Installer Compliance Responsibility

    LTU-Rocket Quick Start Guide WARNING:Use only the included adapter, model POE-24V-5X-HD. Failure to do so may damage the unit and void the product warranty. Optional Installer Compliance Responsibility Devices must be professionally installed and it is the responsibility of the professional installer to ensure that the device is operational in accordance with country specific regulatory requirements.

  • Page 18: Specifications

    LTU-Rocket Quick Start Guide Antenna Select your antenna from the list. If the option to calculate EIRP is enabled, the transmission output power is automatically adjusted to comply with the applicable country regulations. In a custom antenna setup, the antenna gain is entered manually.
  • Page 19 LTU-Rocket either Dimensions 244 x 82 x 48mm (9.61 x 3.23 x 1.89") 0.468kg (1.03lb) Weight Radio frequency connectors (2) RP-SMA Waterproof (CH0, CH1) (1) SMA Waterproof (GPS) magnetic external base gps antenna Power supply...

  • Page 20: Safety Instructions

    LTU-Rocket Getting Started Guide wireless modes Access point Radio Maximum transmit power 23dBm frequency accuracy <2ppm Channel Bandwidth 10/20/30/40/50 MHz selectable Duty Cycles with uplinks and programmable descenders Operating frequency (MHz) All over the world 4800 - 6200...

  • Page 21: Limited Warranty

    2. This equipment contains no operator-serviceable parts. Only a qualified service technician went or fast from LTU-Rocket should provide 3. This equipment is supplied with a detachable power cord that has an integral safety ground wire designed to be connected to a safety ground.
  • Page 22 This equipment complies with radiation exposure limits set forth for an uncontrolled LTU-Rocket Quick Start Guide environment. This equipment should be installed and used with a minimum distance of 130 cm between the radiator and your body. This transmitter must not be co-located or used in conjunction with any other antenna or transmitter.

  • Page 23: Declaration Of Conformity

    Declaration of cu either and LTU-Rocket either uí Declaration of conformity online resources © 2021 Ubiquiti Inc. All rights reserved.
