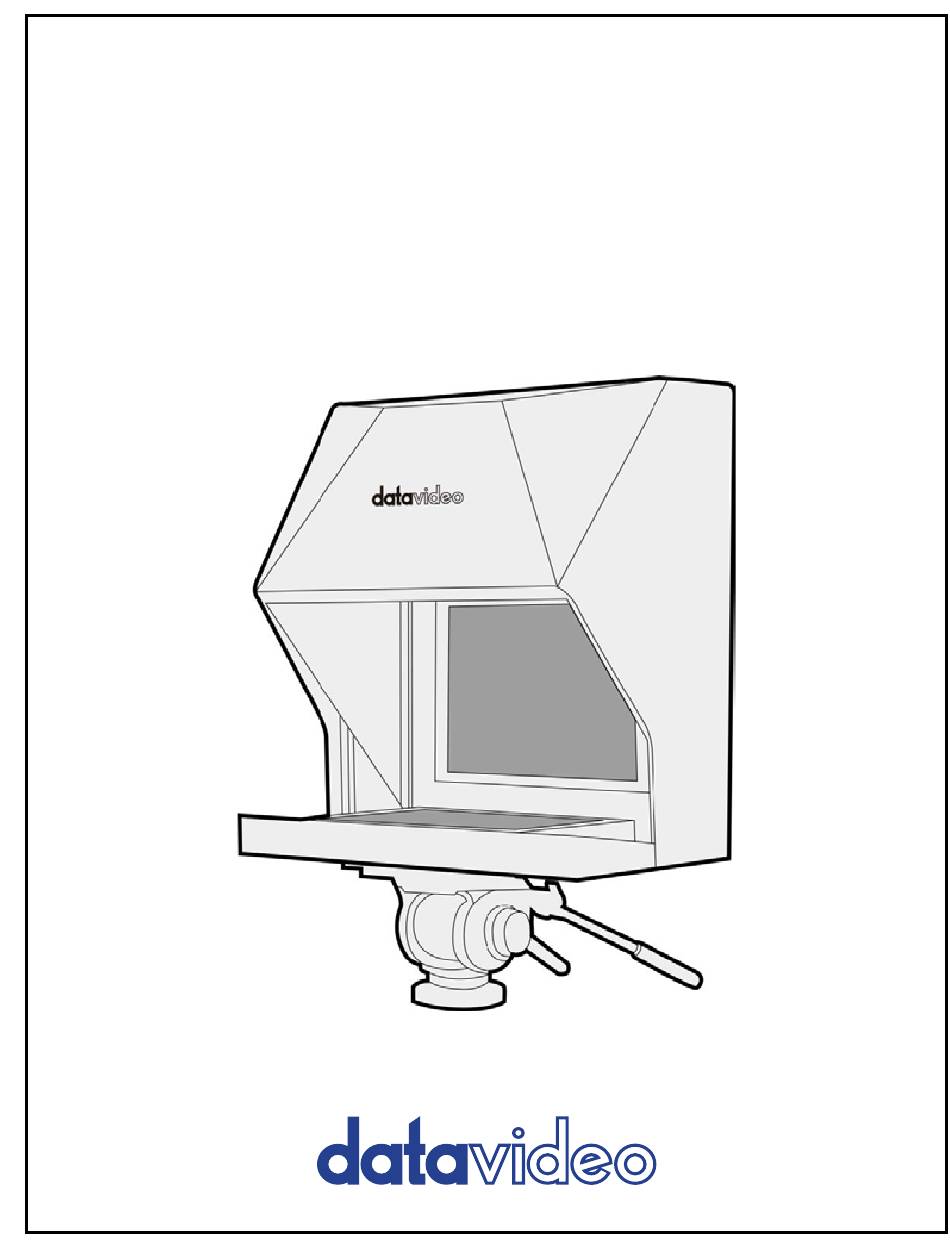

- Page 1 Quick Start Guide PTZ Presentation Prompter TP-900 www.datavideo.com...
- Page 2 5m Ethernet Cable caps 3.5mm input adapter for WR-500 remote control 250mm PTZ lift extrusions with both end caps TP-900 metal base tray with tripod plate 70/30 mirror glass 150 x 150 PTZ Scissor Lift Glass support bar Cloth Hood...
- Page 3 TP-900 Quick Start Guide Grab 4x 565mm vertical extrusions (Item P) and 4x M6 14mm screws (Item M) Grab TP-900 metal base tray (Item F) and lay flat on surface such as a table. NOTE: Make sure screw opening closest to the end is facing away from metal base tray (Item F).
- Page 4 TP-900 Quick Start Guide Grab 2x 325mm glass support extrusions with sing end caps (Item R) and 4x M6 40mm screws Use M4 CRV hex tool (Item L) (Item I) to attach screws to the vertical extrusions Grab 2x 325mm glass support extrusions 9.Use M4 CRV hex tool (Item I) to attach screws...
- Page 5 TP-900 Quick Start Guide Remove squared black plastic end caps from 1 & 2 extrusion. Remove squared black plastic cap from 1 & 2 extrusion for PTZ Insert the 150 x 150 PTZ scissor lift (Item G) Ensure that adjustment knob is facing the rear in between the extrusion (1 &...
- Page 6 With the PTZ Scissor Lift locked, now lay on flat table. Attach / screw quick release plate of your tripod to on to the bottom of the TP-900 metal base plate (Item F) Grab glass support bar (Item U) and 2x M6...
- Page 7 TP-900 Quick Start Guide Grab 70/30 mirror glass (Item T). Carefully remove plastic covering. Place mirror glass carefully in the center. Fasten the space between glass support bar NOTE: You will see a RED DOTS and GREEN (Item U) and glass support extrusion (Item R) with DOTS on the mirror glass.
- Page 8 9mm long ¼ thumb screw with red Now bring the PTZ scissor lift down (Item G). dot (Item J) through the slot in the TP-900 metal base tray with tripod plate(Item F). Grab your PTZ camera. (camera not included) and turn upside down to install onto the PTZ scissor lift (Item G).
- Page 9 TP-900 Quick Start Guide Install the Cloth Hood, Item H. The hood is secured to the inside of the TP-900 metal base tray with tripod plate, Item F and Glass support bar, Item U via integral magnets. The rear of the hood can be expanded if the PTZ Grab cloth cover (Item H).
