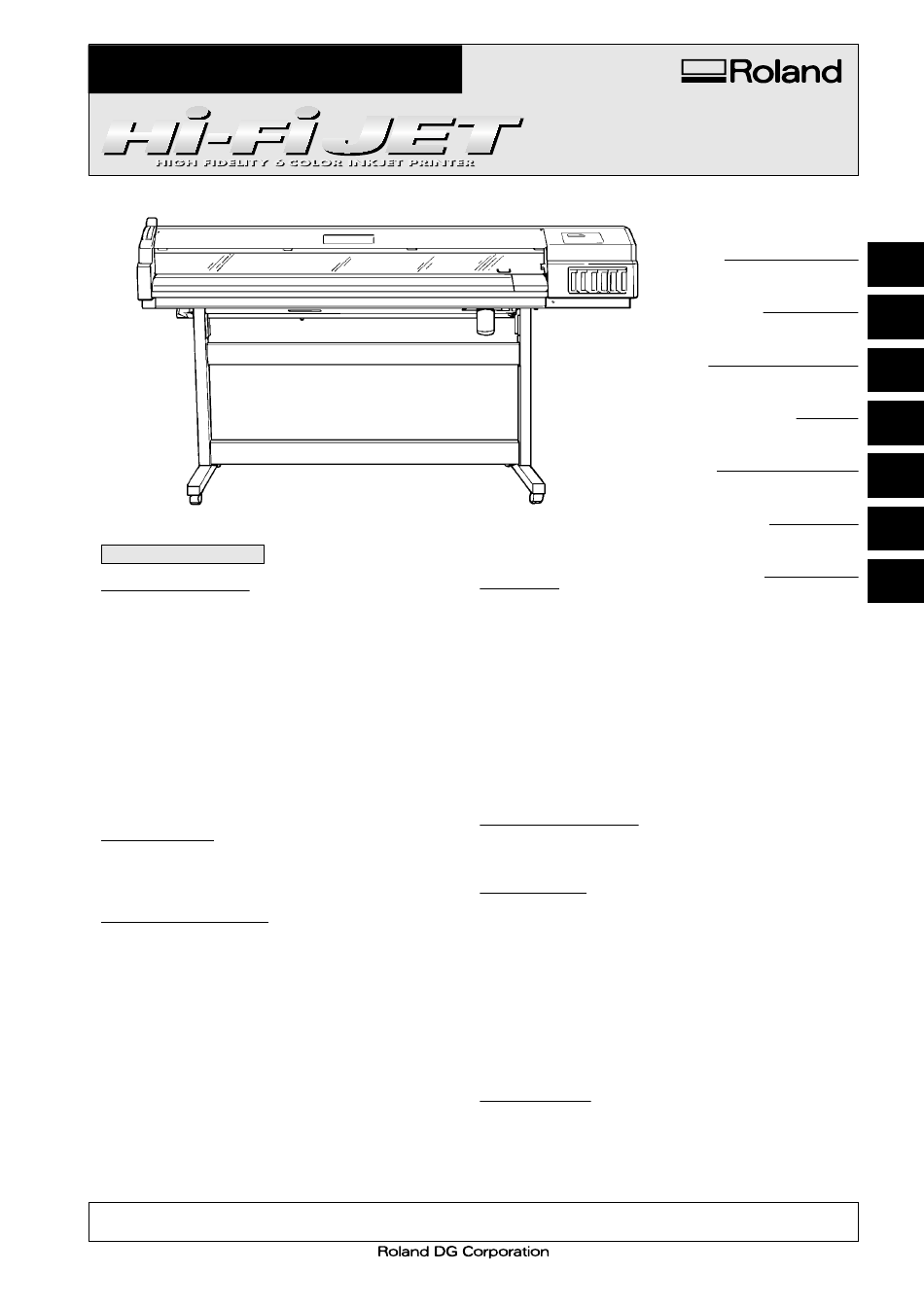

SERVICE NOTES
Contents
1-1 COVERS ....................................................................................... 1
1-2 FRAME .......................................................................................... 2
1-3 DRIVE UNIT .................................................................................. 4
1-4 BASE FRAME ............................................................................... 5
1-5 CHASSIS ...................................................................................... 6
1-6 PINCH ROLLER ............................................................................ 7
1-7 AUTO CUTTER ............................................................................. 7
1-8 INK SYSTEM ................................................................................ 8
1-9 PUMP SYSTEM ............................................................................ 9
1-10 INK JET CARRIAGE ................................................................... 10
1-11 ACCESSORIES .......................................................................... 12
1-12 STAND (PNS-52/42) ................................................................... 13
1-13 TUC-60/70_CONTROL BOX ...................................................... 14
1-14 TUC-60/70_OTHERS .................................................................. 15
1-15 TUC-60/70_ACCESSORIES ....................................................... 16
1-16 TU-500/400 ................................................................................. 16
2-1 WIRING MAP .............................................................................. 17
2-2 MAIN BOARD ASS'Y .................................................................. 18
2-3 SUB BOARD ASS'Y .................................................................... 28
2-4 ELECTRIC MAINTENANCE PART ............................................. 30
3-1 HEAD_REPLACEMENT ............................................................. 31
3-2 CLEANING WIRE_REPLACEMENT .......................................... 36
3-3 CAPPING ASSEMBLY_REPLACEMENT ................................... 37
3-4 MAIN BOARD_REPLACEMENT ................................................ 39
3-5 BATTERY_REPLACEMENT ....................................................... 40
3-6 ENCODER SCAL_REPLACEMENT ........................................... 43
3-7 CARRIAGE WIRE_REPLACEMENT .......................................... 45
3-8 ASS'Y,MOTOR Y_REPLACEMENT ........................................... 50
Windows and MS-DOS are registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
Macintosh is registered trademark or trademark of Apple Computer, Inc. in the USA and/or other countries.
Unauthorized copying or transferral, in whole or in part, of this manual is prohibited.
Printed in Japan
FJ-52 / 42
4-1 Special Tool ................................................................................ 55
4-2 Service Mode .............................................................................. 56
4-3 HOW TO UPDATE FIRMWARE ................................................. 69
4-4 HEAD RANK SETTING ............................................................... 70
4-5 HEAD ALIGNMENT .................................................................... 72
4-6 CAPPING POSITION ADJUSTMENT ......................................... 78
4-7 FLUSHING ADJUSTMENT ......................................................... 81
4-8 PAPER SIDE SENSOR ADJUSTMENT ..................................... 82
4-9 LIMIT POSITION INITIALIZE ...................................................... 85
4-10 LINEAR ENCODER SETUP ....................................................... 86
4-11 CUT DOWN POSITION ADJUSTMENT ..................................... 87
4-12 MOTOR BALANCE ADJUSTMENT ............................................ 88
4-13 HEAD CARRIAGE HEIGHT ADJUSTMENT ............................... 91
4-14 CALIBRATION (FEEDING DIRECTION) .................................... 94
4-15 CARRIAGE WIRE TENSION ADJUSTMENT ............................. 96
5-1 OPERATIONAL SEQUENCE ..................................................... 98
5-2 SENSOR MAP .......................................................................... 100
5-3 MANUAL HEAD CLEANING ..................................................... 101
6-1 PRINTING PROBLEM .............................................................. 113
6-1-3 DOESN'T PRINT AT ALL ..................................................... 119
6-1-4 SHIFTING IN PRINTING POSITION .................................... 121
6-1-5 INK DROP ON MEDIA .......................................................... 122
6-2 ERROR MESSAGE .................................................................. 124
6-2-1 MOTOR ERROR ................................................................... 124
6-2-2 PRINT ERROR ..................................................................... 126
6-2-3 CAPPING ERROR ................................................................ 127
6-3 OTHERS ................................................................................... 128
6-3-1 FILLING INK PROBLEM ....................................................... 128
6-3-2 MEDIA SKEWING ................................................................. 130
7-1 INSTALLATION CHECK LIST .................................................. 131
7-2 MAINTENANCE CHECK LIST .................................................. 140
7-3 SPECIFICATIONS .................................................................... 145
Copyright © 2000 ROLAND DG CORPORATION
Structure & Spare Parts
Electrical Section
Replacement of Main Parts
Adjustment
Supplemental Information
Troubleshooting
Service Activities
Second Edition
FJ-52/42 '00.Dec
5205-01
1
2
3
4
5
6
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hi-Fi JET FJ-52 and is the answer not in the manual?

Questions and answers

Summary of Contents for Roland Hi-Fi JET FJ-52

  • Page 1: Table Of Contents

    Macintosh is registered trademark or trademark of Apple Computer, Inc. in the USA and/or other countries. FJ-52/42 '00.Dec Unauthorized copying or transferral, in whole or in part, of this manual is prohibited. Copyright © 2000 ROLAND DG CORPORATION 5205-01 Printed in Japan...
  • Page 2: Revision Record

    Revision Record Revision Date Description of Changes Approval Issued by 2000.5.19 First Edition Inagaki Kaneko 1-15 : CARRIAGE WIRE TENSION ADJUSTMENT 2000.12.29 Nozawa Kawai has been changed. 1-3 : Size of WASHER FLAT has been changed. 1-3 : A WASHER FLAT has been added in the picture.
  • Page 3: About The Symbols

    To Ensure Safe Work To Ensure Safe Work About Notices WARNING CAUTION Used for instructions intended to alert the operator to the risk of death or WARNING severe injury should the unit be used improperly. Used for instructions intended to alert the operator to the risk of injury or material damage should the unit be used improperly.
  • Page 4 About the Labels Affixed to the Unit WARNING Turn off the primary power SW before servicing. Power SW still supplied even secondary SW is turned off. Do not recharge, short-circuit, disassemble the lithium battery, nor put it into fire. It may cause heat, explosion and fire. Do not use the lithium battery by mixing the new one with the old one nor mixing the different types...
  • Page 5: About The Labels Affixed To The Unit

    About the Labels Affixed to the Unit These labels are affixed to the body of this product. The following figure describes the location. Electric charge. Do not touch when power is on. In addition to the symbols, the symbols shown below are also used. CAUTION WARNING : Tips and advice before the adjustment.
  • Page 6 - MEMO -...
  • Page 7: Structure & Spare Parts

    Structure & Spare Parts 1 Structure & Spare Parts 1-1 COVERS FJ-42 FJ-52 PARTS LIST-Main Parts- Parts No. Parts Name 22535134 LABEL,CAUTION COVER FJ50 #LA14 22535220 22095105 APRON,B FJ-40 LABEL,CORPORATE LOGOTYPE #LA79 15029402 LCD RCM2065R-A 16*2 22095106 APRON,B FJ-50 PANEL BOARD ASS'Y FJ-52 28 7468240010 22095104 APRON,F FJ-40...
  • Page 8: Frame

    Structure & Spare Parts 1-2 FRAME...
  • Page 9 Structure & Spare Parts FJ-42 FJ-52 PARTS LIST -Main Parts- Parts No. Parts Name 22715165 STAY,LINEAR SCALE FJ-40 21905134 ADAPTER,RAIL FJ-50 22715164 STAY,LINEAR SCALE FJ-50 22165129 AL SPACER 22715163 STAY,LINEAR SPRING FJ-50 22805312 ASS'Y,GRIT ROLLER FJ-40 22715158 STAY,RAIL L FJ-50 22805311 ASS'Y,GRIT ROLLER FJ-50 22715157...
  • Page 10: Drive Unit

    Structure & Spare Parts 1-3 DRIVE UNIT Revised FJ-42 FJ-52 PARTS LIST -Main Parts- 22175134 SPRING,A CJ-70 Parts No. Parts Name 22175160 SPRING,LOCK FJ-50 22805310 ASS'Y,MOTOR X FJ-50 22035136 STAND,PULLEY FJ-50 22805309 ASS'Y,MOTOR Y FJ-50 22715161 STAY,MOTOR FJ-50 22805209 ASS'Y,PULLEY HD48.46S16 CJ-70 21945123 WIRE,Y FJ-40 11869103...
  • Page 11: Base Frame

    Structure & Spare Parts 1-4 BASE FRAME CHASSIS FJ-42 FJ-52 PARTS LIST -Supplemental Parts- PARTS LIST -Main Parts- Parts Name Parts No. Parts Name 21985120 BRACKET,INK CATCH TANK FJ-50 SCREW "HIPICK"(WHITE) 3X10 23505420 CABLE-ASS'Y POWER FJ-50 SCREW W-SEMS BC 3X6 SCREW W-SEMS SUS 3X8 23505423...
  • Page 12: Chassis

    Structure & Spare Parts 1-5 CHASSIS FJ-42 PARTS LIST -Main Parts- FJ-52 PARTS LIST -Supplemental Parts- Parts No. Parts Name Parts Name 13429746 AC INLET SUP-J3G-E+FILTER BUSH SQUARE SB-4025 15009101 BATTERY CR2032 CLAMP WIRE PLWS-1U 23505462 CABLE-ASSY JUNBI A FJ-50 CLIP FLAT CABLE MFC-1000 SCREW BINDING HEAD...
  • Page 13: Pinch Roller

    Structure & Spare Parts 1-6 PINCH ROLLER FJ-42 FJ-52 PARTS LIST -Main Parts- PARTS LIST -Supplemental Parts- Parts No. Parts Name Parts Name PIN PARALLEL SUS 2X15H7 22805313 ASS'Y,P-ROLLER FJ-50 RING E-RING ETW-2 22145433 LEVER,PINCH FJ-50 22055361 PLATE,PINCH FJ-50 21505108 ROLLER,PINCH FJ-50 22295173 SHAFT,PINCH 18 FJ-50...
  • Page 14: Ink System

    Structure & Spare Parts 1-8 INK SYSTEM FJ-42 PARTS LIST -Main Parts- FJ-52 PARTS LIST -Supplemental Parts- Parts No. Parts Name Parts Name 11909133 ADAPTER,SCREW 2FAI FJ-50 SCREW BINDING HEAD S-TIGHT Cr 3X6 23505422 CABLE-ASSY INKTANK-SENS FJ-50 SCREW W-SEMS BC 3X6 12029300 COVER,HOLDER I/C FJ-50 SCREW W-SEMS...
  • Page 15: Pump System

    Structure & Spare Parts 1-9 PUMP SYSTEM FJ-42 FJ-52 PARTS LIST -Main Parts- PARTS LIST -Supplemental Parts- Parts No. Parts Name Parts Name 12809269 ASS'Y PUMP FJ-50 BINDER T-18S 80MM 12809268 ASS'Y,CAP FJ-50 SCREW SOCKET SET WP Cr 3X3 SCREW W-SEMS BC 3X10 22355663 BASE,CAP FJ-50...
  • Page 16: Ink Jet Carriage

    Structure & Spare Parts 1-10 INK JET CARRIAGE...
  • Page 17 Structure & Spare Parts FJ-42 FJ-52 PARTS LIST -Main Parts- PARTS LIST -Supplemental Parts- Parts Name Parts No. Parts Name 22805301 ASS'Y,CABLE-CARD 24P1 220L BB BINDER T-18L 204MM 22355664 BASE,AUTO CUT FJ-50 CLAMP WIRE PLWS-1U 22355659 BASE,CARRIAGE FJ-50 CUSHION FELT W=35MM 23475153 RING E-RING...
  • Page 18: Accessories

    Structure & Spare Parts 1-11 ACCESSORIES (240V) (100V) (117V) (240VE) (230V) JAPANESE ENGLISH RCC REF. U S E R ' S U S E R ' S MANUAL MANUAL SOFT USE SOFT_Win SOFT_Mac CLEANING KIT MANUAL 9, 10 FJ-42 FJ-52 PARTS LIST-Main Parts- Parts No.
  • Page 19: Stand(Pns-52/42)

    Structure & Spare Parts 1-12 STAND(PNS-52/42) 13, 14 16, 17 1, 2 8, 9 PNS-42 PNS-52 PARTS LIST -Main Parts- PARTS LIST -Supplemental Parts- Parts No. Parts Name Parts Name 22805370 ASS'Y,STAND PNS-52 CASTER DESIGN CASTER DN-50-B 22805369 ASS'Y,STAND PNS-42 PIN SNAP PIN SNAP 22805302...
  • Page 20: Tuc-60/70_Control Box

    Structure & Spare Parts 1-13 TUC-60/70_ CONTROL BOX PARTS LIST -Main Parts- Parts No. Parts Name 22715133 STAY,INLET TUC-60/70 22135336 STOPPER,ADAPTOR TUC-60/70 22445659 AC ADAPTER DCP-301A (100V) 13119304 SW MJ3J-13AS 22445660 AC ADAPTER DCP-302A (117V) 13119305 SW MJ3J-18AS 22445661 AC ADAPTER DCP-303A (230V) BOSS NUT #592 22445662 AC ADAPTER DCP-304A (240VA)
  • Page 21: Tuc-60/70_Others

    Structure & Spare Parts 1-14 TUC-60/70_ OTHERS PARTS LIST -Main Parts- PARTS LIST -Supplemental Parts- Parts No. Parts Name Parts Name 22805231 ASS'Y,ARM TUC-60/70 LABEL DO NOT KICK IDNo.753 22805227 ASS'Y,MIRROR TUC-60/70 PIN SNAP 22805230 ASS'Y,SCREW TUC-60/70 RING TYPE C SCREW BINDING HEAD BC 3X6 22805228...
  • Page 22: Tuc-60/70_Accessories

    Structure & Spare Parts 1-15 TUC-60/70_ ACCESSORIES PARTS LIST -Main Parts- PARTS LIST -Supplemental Parts- Parts No. Parts Name Parts Name 22605275 CARTON,TUC-60/70 CLAMP CABLE CLAMP FCN-3010 21995106 FLANGE,GUIDE 2 PNS-70 CLAMP CORD KEEP K-106G 26015157 MANUAL,USE JP/EN TU-70/60 SCREW HEXAGONAL CAP BC 4X6 21935130 TOOL,HEXAGON 3 ZN...
  • Page 23: Electrical Section

    2 Electrical Section 2 Electrical Section 2-1 WIRING MAP...
  • Page 24: Main Board Ass'y

    2 Electrical Section 2-2 MAIN BOARD ASS'Y DESCRIPTION Indicates revision of the circuit board. DIP SW FJ-52 FJ-42...
  • Page 25 2 Electrical Section MAIN BOARD_1/9 Circuit Diagram...
  • Page 26 2 Electrical Section MAIN BOARD_2/9 Circuit Diagram...
  • Page 27 2 Electrical Section MAIN BOARD_3/9 Circuit Diagram...
  • Page 28 2 Electrical Section MAIN BOARD_4/9 Circuit Diagram...
  • Page 29 2 Electrical Section MAIN BOARD_5/9 Circuit Diagram...
  • Page 30 2 Electrical Section MAIN BOARD_6/9 Circuit Diagram...
  • Page 31 2 Electrical Section MAIN BOARD_7/9 Circuit Diagram...
  • Page 32 2 Electrical Section MAIN BOARD_8/9 Circuit Diagram...
  • Page 33 2 Electrical Section MAIN BOARD_9/9 Circuit Diagram...
  • Page 34: Sub Board Ass'y

    2 Electrical Section 2-3 SUB BOARD ASS'Y SUB BOARD_1/2 Circuit Diagram...
  • Page 35 2 Electrical Section SUB BOARD_2/2 Circuit Diagram...
  • Page 36: Electric Maintenance Part

    2 Electrical Section 2-4 ELECTRIC MAINTENANCE PART MAIN BOARD IC.No. Parts No. Description Function IC10 15269234 SN74LS245NS Head I/F Buffer IC36 15189105 MTD2005 Pump Motor Driver IC43 15199952 L6203 Carriage Motor Driver IC67 15199952 L6203 Grit Motor Driver IC47 15199112 LM2576HVT-ADJLB03 Regulator (+27V) IC48...
  • Page 37: Replacement Of Main Parts

    3 Replacement of Main PartsÅ@ 3 Replacement of Main Parts Following table describes the necessary adjustment after the replacement of each parts. Replacement Parts Necessary Adjustments Replacement Parts Necessary Adjustments HEAD 1. HEAD RANK SETTING CAPPING ASSEMBLY 1. CAPPING POSITION ADJUSTMENT 2.
  • Page 38 3 Replacement of Main Parts Remove the HEAD CARRIAGE COVER. HEAD CARRIAGE COVER SCREWS Remove the INK DAMPER COVER. INK DAMPER COVER HEAD CARRIAGE_TOP VIEW Disconnect the INK DAMPER from the HEAD. INK DAMPER Do not hold the sides of the INK DAMPER. It could break.
  • Page 39 3 Replacement of Main PartsÅ@ Remove the SCREW and WASHER fixing the HEAD. 1. Be careful not to lose the WASHER. 2. Don't touch the HEAD where the INK DAMPER is connected. WASHER SCREW Remove the SPRING. Be careful not to lose the SPRING. WASHER Pull the HEAD towards the front and then pull it up to remove it together with the CABLE.
  • Page 40 3 Replacement of Main Parts Connect the CABLE to the new HEAD. Fix the new HEAD and the SPRING on the HEAD CABLE CARRIAGE. Make sure that the CABLE will go behind the SHAFT of the HEAD CARRIAGE. It is easier to fix the SPRING on the HEAD first. SPRING SCREW WASHER...
  • Page 41 3 Replacement of Main PartsÅ@ Turn on the sub power switch while pressing [ ], [ ] and ] keys to enter the SERVICE MODE. [ ], [ ], [ ] + POWER ON [MENU] key MENU SERVICE MENU Select [HEAD RANK] menu. SERVICE MENU HEAD RANK HEAD RANK...
  • Page 42: Cleaning Wire_Replacement

    3 Replacement of Main Parts 3-2 CLEANING WIPER_REPLACEMENT Remove the PUMP COVER. GUIDE RAIL COVER PUMP COVER Set the CLEANING LEVER to the rear side. CLEANING LEVER PUMP UNIT_TOP VIEW Unhook the CLEANING WIPER and replace it with new CLEANING WIPER one.
  • Page 43: Capping Assembly_Replacement

    3 Replacement of Main PartsÅ@ 3-3 CAPPING ASSEMBLY_REPLACEMENT Remove the PUMP COVER and then the GUIDE RAIL COVER. GUIDE RAIL COVER PUMP COVER Disconnect the 2 TUBEs connected to the CAPPING CAPPING ASSEMBLY ASSEMBLY from the PUMP UNIT. TUBE PUMP UNIT_TOP VIEW Remove the 2 screws fixing the CAPPING PLATE and CAPPING ASSEMBLY remove the CAPPING ASSEMBLY by sliding it to the right...
  • Page 44 3 Replacement of Main Parts Fix the new CAPPING ASSEMBLY to the PUMP UNIT. CAPPING ASSEMBLY SCREW PUMP UNIT_TOP VIEW Make sure that the TUBEs won't go underneath the CAPPING ASSEMBLY. TUBES CAPPING ASSEMBLY_SIDE VIEW Connect the 2 TUBEs from the PUMP UNIT to the CAPPING ASSEMBLY CAPPING ASSEMBLY.
  • Page 45: Main Board_Replacement

    3 Replacement of Main PartsÅ@ 3-4 MAIN BOARD_REPLACEMENT Turn off the main power switch. Remove the PLATE behind the RIGHT SIDE COVER. PLATE MAIN POWER SWITCH Remove the BATTERY from the current MAIN BOARD and install it on the new MAIN BOARD. SOCKET BATTERY MAIN BOARD...
  • Page 46: Battery_Replacement

    3 Replacement of Main Parts 3-5 BATTERY_REPLACEMENT CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. ATTENTION II y a danger d’explosion s’il y a remplacement incorrect de la batterie. Remplacer uniquement avec une batterie du même type ou d’un type équivalent recommandé...
  • Page 47: Clock Check

    3 Replacement of Main PartsÅ@ Turn off the main power switch. Remove the PLATE behind the RIGHT SIDE COVER. PLATE Remove the BATTERY on the MAIN BOARD by pushing it down and tilting towards the right. SOCKET MAIN BOARD Replace the BATTERY to the new one. SOCKET Be careful with the direction of the BATTERY.
  • Page 48 3 Replacement of Main Parts Dispose the BATTERY. FOLLOWING MAY CAUSE EXPLOSION OF BATTERY. RECHARGE, SHORT-CIRCUIT, DISASSEMBLY, HEATING, PUTTING INTO FIRE. DON'T PUT BATTERY WITH OTHER METAL OR BATTERY. DISPOSE BATTERY WITHOUT INSULATION.
  • Page 49: Encoder Scal_Replacement

    3 Replacement of Main PartsÅ@ 3-6 ENCODER SCALE_REPLACEMENT Turn off the main power switch. Remove the PUMP COVER and then the GUIDE RAIL COVER. GUIDE RAIL COVER PUMP COVER Remove the ENCODER SCALE. ENCODER SCALE SCREW FRONT VIEW Fix the SPRING PLATE to the end of the new ENCODER SCALE where there is no black dot written on it.
  • Page 50 3 Replacement of Main Parts Make sure that the ENCODER SCALE is placed above the ENCODER SCALE ENCODER MODULE center of two holes of the ENCODER MODULE. If not, adjust the position of the ENCODER MODULE. HOLE ENCODER MODULE ENCODER SCALE HOLE Move the HEAD CARRIAGE in a whole distance and make sure that the ENCODER SCALE doesn't rub against the...
  • Page 51: Carriage Wire_Replacement

    3 Replacement of Main PartsÅ@ 3-7 CARRIAGE WIRE_REPLACEMENT Turn off the main power switch. Remove the PUMP COVER and then the GUIDE RAIL COVER. GUIDE RAIL COVER PUMP COVER Remove the PANEL COVER. PANEL COVER 1. 2 screws fixing the PANEL COVER from the front are located at the CARTRIDGE HOLDER part.
  • Page 52 3 Replacement of Main Parts Loosen the 2 screws fixing the HEAD CARRIAGE to the CARRIAGE WIRE. WIRE SCREW Loosen SCREW A and SCREW B located at the left side of the unit in order. SCREW B SCREW A Remove the CARRIAGE WIRE as shown in the figure. CARRIAGE WIRE Loose the 4 screws fixing the CARRIAGE MOTOR.
  • Page 53 3 Replacement of Main PartsÅ@ Remove the SHAFT STAY. SHAFT STAY SCREWS Remove the DRIVE PULLEY. DRIVE PULLEY SCREW Loosen the SCREW A and pull out the CARRIAGE WIRE and replace it with new one. CARRIAGE WIRE SCREW A Fix the DRIVE PULLEY to the MOTOR BASE. MOTOR BASE DRIVE PULLEY...
  • Page 54 3 Replacement of Main Parts Tighten the SCREW A until the PULLEY SHAFT makes contact with the SHAFT STAY. Then, tighten SCREW B. SCREW A PULLEY SHAFT Wind the CARRIAGE WIRE around the DRIVE PULLEY from the bottom to the top. DRIVE PULLEY Make sure that the CARRIAGE WIRE doesn't cross over.
  • Page 55: Carriage Motor

    3 Replacement of Main PartsÅ@ Fix the CARRIAGE MOTOR so that there is no looseness CARRIAGE MOTOR or too much load. SCREWS Move the HEAD CARRIAGE in a whole distance of the GUIDE RAIL to remove the slack in the CARRIAGE WIRE.
  • Page 56: Ass'y,Motor Y_Replacement

    3 Replacement of Main Parts 3-8 ASS'Y , MOTOR Y_REPLACEMENT Turn off the main power switch. TOP COVER Remove the TOP COVER and the I/C COVER. 1. 2 screws fixing the TOP COVER from the front are located at the CARTRIDGE HOLDER part. 2.
  • Page 57 3 Replacement of Main PartsÅ@ Remove the FLANGE,MOTER from the BASE,MOTOR Y with (TOP VIEW) the Hexagonal Wrench. FLANGE , MOTOR BASE, MOTOR Y SCREWS Remove the Y MOTOR ASS'Y from the FLANGE,MOTOR with the Hexagonal Wrench. FLANGE , MOTOR Cut the INSULOCK TIES and remove the CABLE-ASSY C CABLE -ASSY C ENCORDER FJ-50 ENCORDER and the CABLE-ASSY C POWER from the Y...
  • Page 58 3 Replacement of Main Parts Connect the CABLE-ASSY C POWER to the Y MOTOR ASS'Y and fix them together with the Y MOTOR CABLE with the INSULOCK TIE. CABLE-ASSY C POWER Make sure to connect the Red and Black connector INSULOCK correctly.
  • Page 59 3 Replacement of Main PartsÅ@ (REAR VIEW) Connect the CABLE-ASSY C POWER and the CABLE-ASSY C POWER to the CN11 and CN1 on the MAIN BOARD. CABLE -ASSY C POWER FJ-50 CABLE -ASSY C ENCORDER FJ-50 Connect the Cables to the MAIN BOARD. (REAR VIEW) Loop the Cables with the FILTER(E).
  • Page 60 3 Replacement of Main Parts Carry out the following adjustment. 1. MOTOR BALANCE ADJUSTMENT...
  • Page 61: Adjustment

    AdjustmentÅ@ 4 Adjustment 4-1 Special Tool Table shows a list of special tools recommended by Roland DG Corp. Tool No. ST-011 Tool name TENSION METER WIRE TENSION ADJUSTMENT Purpose Tool No. 21755102 Tool name CLEANING LIQUID, 500ML CJ-70 HEAD WASH Purpose Tool No.
  • Page 62: Service Mode

    4 Adjustment 4-2 Service Mode [ ], [ ], [ ] + POWER ON [MENU] key SERVICE MENU FRSOCP KCMcmY [KCMcmY] SENSOR CHECK ** * Displays the status of the sensors. When the sensor is ON, * will be displayed. Alphabet in the first menu stands for Front Paper Sensor, Rear Paper Sensor, Paper Side Sensor, Origin Sensor, Cover Sensor and Pinch Roller Sensor from the left.
  • Page 63 AdjustmentÅ@ From last Page. SERVICE MENU PAPERSIDE SENS Min0.1V Max1.2V PAPER SIDE SENS OUTPUT LEVEL [0.7V] PAPERSIDE SENS SENSOR AUTOTEST SENSOR AUTOTEST 0.5V NOISE=1 This menu is used for adjusting the Paper Side Sensor. Refer to section 4 [PAPER SIDE SENSOR ADJUSTMENT] for details.
  • Page 64 4 Adjustment From last Page. SERVICE MENU FAN CHECK FAN CHECK FAN CHECK HIGH FAN CHECK This menu is used for checking the FAN. OFF / HIGH / LOW can be selected. SERVICE MENU CLOCK CHECK CLOCK CHECK CLOCK CHECK 0y00d00h00m00s CLEAR BAT FLAG This menu is used for checking the REAL TIME CLOCK.
  • Page 65 AdjustmentÅ@ From last Page. SERVICE MENU HEAD ADJUST BIAS TEST HEAD ADJUST BIAS TEST TEST PRINT HEAD ADJUST HORIZ. TEST HORIZ. TEST TEST PRINT HORIZ. TEST ADJUST ADJUST HEAD ADJUST BI-DIR.DEFAULT BI-DIR.DEFAULT TEST PRINT BI-DIR.DEFAULT ADJUST ADJUST BI-DIR.DEFAULT ADJUST(HS) HEAD ADJUST ADJUST(HS) TEST PRINT This menu is for aligning the head position.
  • Page 66: Vertical Lines

    4 Adjustment From last Page. SERVICE MENU TEST PATTERN TEST PATTERN FILL PATTERN TEST PATTERN VERT. LINE TEST PATTERN FEED COMPENS FILL PATTERN (100% SOLID COLORS) Following test pattern will be printed in a whole width of media. Printing mode is 360dpi / 4pass / Unidirection. 25mm Lm / Gr Lc / Or...
  • Page 67 AdjustmentÅ@ From last Page. SERVICE MENU SYSTEM SWITCH SYSTEM SWITCH SYSTEM SWITCH PAGE1:00000000 PAGE4:00000000 bit# [87654321] This menu is for selecting the function modes. It is not necessary to change any switches normally. Each bit can be selected with [ ] and [ ] keys and it can be changed with [ ] and [ ] keys. There are 4 pages of 8bit System Switch. Bit# Contents Settings...
  • Page 68 4 Adjustment Roland Hi-Fi JET [ SYSTEM REPORT ] Serial No. Model FJ-52 Sheet type : Opaque Version 2.00 Auto sheet cut : Enable Print Quality : 720dpi 8pass bi Page margin 10 mm Over print None Sleep 15 min Head adjust bi-dir.
  • Page 69 AdjustmentÅ@ Contents of Service Report T I T L E C O N T E N T S UNIT R E F E R E N C E Number of times being powered times POWER ON COUNT Total time being powered on. hours POWER ON TIME Total time the machine has...
  • Page 70 4 Adjustment T I T L E C O N T E N T S UNIT R E F E R E N C E dots (increment of DOT CNT Y Number of dots fired from Y. 1000 dots) Number of times the auto CLEAN AUTO times cleaning has been performed.
  • Page 71: Over Print

    AdjustmentÅ@ T I T L E C O N T E N T S UNIT R E F E R E N C E Total page printed with pages ditto OVER PRINT overprint function. Total page printed with less pages ditto Under 10% duty than 10% ink duty.
  • Page 72 4 Adjustment T I T L E C O N T E N T S UNIT R E F E R E N C E Total page printed with pages ditto 1440dpi 16pass 1440dpi, 16pass, uni-direction. Total page printed with pages ditto 1440dpi 16pass B...
  • Page 73 AdjustmentÅ@ T I T L E C O N T E N T S UNIT R E F E R E N C E Total page printed with 540dpi, pages ditto 540dpi 6pass B 6pass, bi-direction. Total page printed with 540dpi, pages ditto 540dpi 3pass...
  • Page 74: Other Function Mode

    4 Adjustment Other Function Mode EEPROM INITIALIZE PRINTING SERVICE REPORT All data inside the EEPROM will be Service Report will be printed. initialized. Turn on the sub power Turn on the sub power switchwhile pressing [ENTER], ] and[ ] keys. switch while pressing [ ] key.
  • Page 75: How To Update Firmware

    AdjustmentÅ@ 4-3 HOW TO UPDATE FIRMWARE Connect the PC and FJ with PARALLEL CABLE. It is necessary to prepare the followings to update the firmware. 1. FIRMWARE DISK 2. PC with MS-DOS 3. PARALLEL CABLE Turn on the sub power switch while pressing [ ], [ and [ ] keys.
  • Page 76: Head Rank Setting

    4 Adjustment 4-4 HEAD RANK SETTING Necessary when ..HEAD RANK is necessary to set the proper voltage for each heads. If it is not set correctly for each head, ink can not be fired with the proper amount, i.e. too much ink or too less ink. The symptom on the printing would be dark printing, light printing and misaligned dot.
  • Page 77 AdjustmentÅ@ Set the HEAD RANK by selecting the digit with [ ] and ] keys, and changing the parameters with [ ] and [ keys. Press the [ENTER] key to save the settings. HEAD RANK L20112 R19215 LEFT HEAD RIGHT HEAD [ENTER] key...
  • Page 78: Head Alignment

    4 Adjustment 4-5 HEAD ALIGNMENT Necessary when ..HEAD ALIGNMENT is necessary to obtain the good printing quality. If the heads are not aligned, printing problem could occur, such as banding appears in printing, white gap between the bands, gap between the colors.
  • Page 79 AdjustmentÅ@ Select the [BIAS TEST] menu under the [HEAD ADJUST] SERVICE MENU menu and press the [ENTER] key. HEAD ADJUST HEAD ADJUST BIAS TEST BIAS TEST TEST PRINT [ENTER] TEST PATTERN shown in the right figure will be printed. [BIAS ADJUSTMENT] Loosen the screws fixing the HEAD.
  • Page 80 4 Adjustment MAGENTA/YELLOW lines will move to the FRONT side when LEVER is turned to the LEFT side, and they will Turn to the RIGHT move to the REAR side when the LEVER is turned to the RIGHT side. MG/YE BK/Lc/Or Shifting of each color (BLACK and MAGENTA, and Lc/Or and YELLOW) within 1/2 dot is in the...
  • Page 81 AdjustmentÅ@ Lc/Or lines will move to the FRONT side when the LEVER is turned to the FRONT side, and to the REAR side when Turn to the REAR side LEVER is turned to the REAR. Lc / Or Shifting of MAGENTA lines and Lc/Or lines within 1/2 dot is in tolerance.
  • Page 82 4 Adjustment TEST PATTERN shown at the right will be printed. Check the number which has the Lc/Or line alinged to the BLACK line. Lc/Or LINE BLACK LINE Go into [ADJUST] menu under the [HEAD ADJUST] menu HEAD ADJUST and change the number confirmed at 16 with [ ] and HORIZ.
  • Page 83 AdjustmentÅ@ TEST PATTERN shown at the right will be printed. The upper part is the number for HIGH SPEED MODE and (HIGH SPEED MODE) the lower part is the number for NORMAL MODE. Check the number which has the TOP PART and BOTTOM PART matched perfectly.
  • Page 84: Capping Position Adjustment

    4 Adjustment 4-6 CAPPING POSITION ADJUSTMENT Necessary when ..There are 2 main purposes for the CAPPING POSITION ADJUSTMENT. It is necessary for protecting the head from drying up and also to maintain good ink suction. If the capping position is not adjusted, head could cause misfiring of ink or cause ink suction problem. Remove the PUMP COVER and then the GUIDE RAIL COVER.
  • Page 85 AdjustmentÅ@ Loosen the 4 screws for fixing the PUMP UNIT. SCREWS SCREWS PUMP UNIT_TOP VIEW Adjust the position of the PUMP UNIT so that the centers of the HEAD HOLDER PLATE and the CAPPING BAR are aligned. Tighten the 4 screws for fixing the PUMP UNIT. HEAD CARRIAGE HEAD HOLDER...
  • Page 86 4 Adjustment Adjust the position of the LOCKING ASSEMBLY so that 2.0 mm—2.5 mm the clearance "X" at the VALVE part will be 2.0—2.5 mm. TUBE VALVE Tighten the screws fixing the LOCKING ASSEMBLY. LOCKING ASSEMBLY Carry out the following adjustments. 1.
  • Page 87: Flushing Adjustment

    AdjustmentÅ@ 4-7 FLUSHING POSITION ADJUSTMENT Necessary when ..FLUSHING POSITION must be kept at the correct position to have the ink fired inside the capping during the flushing. If not, ink will be fired outside the cap and stain the pump unit with ink. And in the worst case, media could be stained with ink.
  • Page 88: Paper Side Sensor Adjustment

    4 Adjustment 4-8 PAPER SIDE SENSOR ADJUSTMENT Necessary when ..This is for adjusting the sensitivity of the PAPER SIDE SENSOR, which is for detecting the width of the media. If it is not adjusted, media width could not be detect correctly. Remove the PUMP COVER and then the GUIDE RAIL COVER.
  • Page 89: Carriage Board

    AdjustmentÅ@ Adjust the VR on the CARRIAGE BOARD so that the CARRIAGE BOARD [OUTPUT LEVEL] will be 0.5—0.7V. Select the [SENSOR AUTOTEST] menu under the [PAPERSIDE SENS] menu. SERVICE MENU Press the [ENTER] key to carry out the test and make sure PAPER SIDE SENS that the voltage is 0.5—1.0V and the noise is 0.
  • Page 90 4 Adjustment If the voltage is more than 1.0V, decrease the voltage for 0.1V in the [OUTPUT LEVEL] menu and carry out the [SENSOR AUTOTEST] for checking. Repeat 3 — 8 until the voltage and the noise are in the range.
  • Page 91: Limit Position Initialize

    AdjustmentÅ@ 4-9 LIMIT POSITION INITIALIZE Necessary when ..This is necessary to correct the offset of the origin sensor and the capping positions. When the LIMIT POSITION has not been initialized, error message [INITIALIZE THE LIMIT] will appear. Move the HEAD CARRIAGE to the locking position. HEAD CARRIAGE Turn on the sub power switch while pressing the [ ], [...
  • Page 92: Linear Encoder Setup

    4 Adjustment 4-10 LINEAR ENCODER SETUP Necessary when ..LINEAR ENCODER SETUP is necessary for the machine to recongnize the width by the software coordinates. It is also necessary for checking whether the enoder module can read the scale correctly in the whole width.
  • Page 93: Cut Down Position Adjustment

    AdjustmentÅ@ 4-11 CUT DOWN POSITION ADJUSTMENT Necessary when ..This adjustment is to set the Cut Down Position. If the adjustment hasn't been carried out, the problem related to the sheet cutter, such as the sheet cutter doesn't move down, will occur. Make sure that the LIMIT POSITION has been initialized.
  • Page 94: Motor Balance Adjustment

    4 Adjustment 4-12 MOTOR BALANCE ADJUSTMENT Servo Motor feeds back to the CPU the actual rotation corresponds to the instruction. Motor tries to follow the instruction from the CPU. Command Difference between the actual rotation and the instruction could be adjusted with the Motor balance (GAIN) Adjustment.
  • Page 95 AdjustmentÅ@ [SCANNING DIRECTION] Turn on the sub power switch while pressing the [ ], [ and [ ] keys to enter the SERVICE MODE. [ ], [ ], [ ] + POWER ON [MENU] key MENU SERVICE MENU Select [SCAN WITH INK] menu under the [AGING] menu and press the [ENTER] key to start.
  • Page 96 4 Adjustment [FEEDING DIRECTION] Select [FEED] menu under the [AGING] menu and press the [ENTER] key to start. SERVICE MENU AGING AGING FEED [ENTER] Adjust VR3 on the MAIN BOARD so that the difference of the absolute values displayed in the middle will be less than MAIN BOARD FEED +288 +290 +292...
  • Page 97: Head Carriage Height Adjustment

    AdjustmentÅ@ 4-13 HEAD CARRIAGE HEIGHT ADJUSTMENT Necessary when ..HEAD CARRIAGE HEIGHT must be set to have the ink fired as straight as possible and also to protect the heads from getting rubbed against the media. If this adjustment is not done correctly, printing problem, such as blurry printing and banding, could occur. Turn off the main power switch.
  • Page 98: Head Carriage

    4 Adjustment Lower the PINCH ROLLER and move the HEAD CARRIAGE to the position where [H] mark is written on the BED. HEAD CARRIAGE Lower the HEAD to the lowest position with the LEVER on the HEAD CARRIAGE. LEVER Loosen the screws for fixing the LEFT and RIGHT ARM PLATE.
  • Page 99 AdjustmentÅ@ Tighten the screws for fixing the LEFT and RIGHT ARM LOCK PLATEs while pushing down the HEAD CARRIAGE against the THICKNESS GAUGE. SCREWS Check and make sure that the 1.1 mm THICKNESS GAUGE can be put in between the both HEADs and the BED.
  • Page 100: Calibration (Feeding Direction)

    4 Adjustment 4-14 CALIBRATION (FEEDING DIRECTION) Necessary when ..CALIBRATION is for adjusting the feeding amount of the GRIT ROLLER. Carry out this adjustment, in case of having problem to print in the correct length in the media feeding direction. Calibration is done by using the PET-G-1050 in the Factory.
  • Page 101 AdjustmentÅ@ Select the [FEED COMPENS] menu under the [FEED COMPENS] menu and press the [ENTER] key. SERVICE MENU TEST PATTERN ] Key TEST PATTERN FEED COMPENS [ENTER] Key TEST PATTERN will be printed. Calibrating amount can be calculated with the formula shown at 6 based on the printing result.
  • Page 102: Carriage Wire Tension Adjustment

    4 Adjustment 4-15 CARRIAGE WIRE TENSION ADJUSTMENT Remove PUMP COVER and then the GUIDE RAIL COVER. GUIDE RAIL COVER PUMP COVER Loosen the SCREWS A on the left side of the machine. SCREW A Measure the wire tension with the TENSION METER (ST- 011) at the connecting part of 2 LM GUIDES.
  • Page 103 AdjustmentÅ@ Revised After adjusting the wire tension, move the TOOL CARRIAGE back and forth 20 times in a whole distance of the GUIDE RAIL. Check the wire tension again and readjust it if it has changed. Tighten SCREW A after completing the adjustment. SCREW A Check and make sure that the tension is within the range.
  • Page 104: Supplemental Information

    EEPROM ALL DATA INITIALIZE the important data. Initialize EEPROM to False settings in Factory Default the User data. Sub Power SW ON POWER LED blinks Roland FJ-50 Roland FJ-50 Displays Opening Message PIGMENT CMYKLcLm Ver.1.00 INITIALIZE Limit Position is Displays Error Message.
  • Page 105 5 Supplemental Information From Last Page. Press SETUP key. SETUP LED blinks. Detects PINCHROLL ERROR whether PINCH Displays Error Message. ROLLER is UP/DOWN. DOWN PINCHROLL DOWN REAR INVALID SHEET Displays Error Message. PAPER SENSOR is OFF. SET SHEET AGAIN Feeds media until FRONT PAPER SENSOR becomes ON.
  • Page 106: Sensor Map

    5 Supplemental Information 5-2 SENSOR MAP ENCODER MODULE This sensor detects scanning coordinates and also generates printing signal. REAR PAPER SENSOR PINCH ROLLER SENSOR This sensor detects the rear edge ORIGIN SENSOR of the media. This sensor detects whether the PINCH ROLLER is up or down.
  • Page 107: Manual Head Cleaning

    Overview of the Cleaning Method ......103 Performing Cleaning ..........104 Copyright © 2000 ROLAND DG CORPORATION Cleaning using this kit should be carried out when automatic cleaning and forced cleaning from the [HEAD CLEANING] menu fail to correct image drop-out.
  • Page 108: Checking Supplied Items

    5 Supplemental Information Checking Supplied Items The following items are packed with the cleaning kit. Before use, check to make sure they are present. Phillips screwdriver ..1 Cleaning sticks ..10 Cleaning kit user's manual ..1 Tweezers ..1 Sponges (for cleaning hooks) ..
  • Page 109 5 Supplemental Information Overview of the Cleaning Method 1) Switch off the power. 2) Detach the cover. 3) Move the carriage away from standby position. 4) Clean the heads (on the left-hand and right-hand sides) and the hook inside the carriage. Carriage Wipe away soiling on all four sides (the metal areas).
  • Page 110 5 Supplemental Information Performing Cleaning Before starting the procedure, be sure to turn off the main power switch. Also, do not turn on the power while the cover is detached. When you turn on the power and close the front cover, the carriage may move and cause injury.
  • Page 111 5 Supplemental Information Pull out the carriage in the direction shown in the figure. You may need to apply slight force to move it. Carriage Insert a cleaning stick into the space shown in the figure. Cleaning stick Move the carriage to a location where the cleaning stick reaches the left-hand side surface of the left-hand head, and wipe away any grime on the left-hand side surface (the metal area) of the left-hand head.
  • Page 112 5 Supplemental Information NOTICE Do not touch the ink nozzle (at the bottom area of the head). Wipe only the silver-colored metal area. There is no need to apply force when wiping. You can remove dust by simply stroking the surface. Do not use a soiled cleaning stick.
  • Page 113 5 Supplemental Information Bend a cleaning stick as shown in the figure. Cleaning stick Insert the cleaning stick into the space shown in the figure as far as it will go. Cleaning stick Move the carriage to a location where the cleaning stick reaches the back surface of the left-hand head. While holding the tip of the cleaning stick against the back of the head, move the carriage to the left and right to wipe away grime.
  • Page 114 5 Supplemental Information Repeat steps 5 through 11 to clean the right-hand head in the same way. Wipe away soiling on all four sides (the metal areas). Right-hand head Clean the hook (the metal portion) below the right-hand side of the carriage. Hook Pull the carriage by hand to move it to the left-hand side until the black rubber caps, sponges, and tubes can be seen.
  • Page 115 5 Supplemental Information Wipe away any grime adhering to the edges of the left-hand and right-hand rubber caps. Use the tip of the cleaning stick to scrape off grime. Cleaning stick NOTICE Be sure to use one of the included cleaning sticks. If no grime is present, do not touch the sponges inside the rubber caps.
  • Page 116 5 Supplemental Information If ink is oozing from the sponge shown in the figure, replace it with a new sponge. Use the included tweezers to pull it out from above. Sponges (for cleaning hooks) * If the sponge is not oozing ink, it doesn't need to be replaced. Skip ahead to step 20. Orient a new sponge (included with the cleaning kit) as shown in the figure and insert it.
  • Page 117 5 Supplemental Information Return the carriage to standby position. NOTICE If allowed to stand with the carriage remaining away from standby position for a prolonged period, problems such as drying-out of the printing heads or dot drop-out during printing may occur. When finished cleaning, promptly return the carriage to standby position.
  • Page 118 ] key to display the screen shown in the figure. Press the [ENTER] key to start the printing test. HEAD CLEANING TEST PRINT Examine the printing test results to make sure all dots are printed attractively. * If dot drop-out persists, contact your authorized Roland DG Corp. dealer or service center.
  • Page 119: Troubleshooting 6-1

    Troubleshooting 6 Troubleshooting 6-1 PRINTING PROBLEMS 6-1-1. MISSING DOT / WAVY DOT / SCRATCHY PRINTING FLOWCHART Replace the Cleaning Fix the Flange. Wiper. Cleaning Wiper is Loose Flange. wearing out. Go to next page. Entire material should Slack in the media. Missing Dot Test Print stretched taut.
  • Page 120 Troubleshooting Capping Position Replace the Ink Adjustment. Cartridge. Capping is out of Ink Cartridge is position. almost empty. Go to next page. Foreign substance on followings Ink Damper is clogged Replace Ink Damper. Missing Dot • Surface of the Head or broken.
  • Page 121 Troubleshooting Replace the Main Replace the Head. Board. Broken Main Board Broken / life of Head. / R35 • Head Rank Setting Wiper doesn't move correctly Replace the Pump Unit. Missing Dot Improper Head • Bias Adjustment or hits the Head. •...
  • Page 122: Unnecessary Lines In Printing Image

    Troubleshooting 6-1-2. UNNECESSARY LINES IN PRINTING IMAGE FLOWCHART Replace the Cleaning Hold down the Media. Wiper. Cleaning Wiper is Media lifts up wearing out. Go to next page. Unnecessary line Fix the Flange. Loose Flange. Test Print in Printing Image Normal Cleaning Retainer is loose or fixed Foreign substance on followings...
  • Page 123 Troubleshooting Replace the Carriage Replace the Pump Unit. Board. Cleaning Wiper makes contact Broken Carriage Board. with the Head. Go to next page. Colours are mixed Replace the Ink Cartridge Unnecessary line inside the Head and Sponge inside the Cap Replace the Capping and try Powerful Cleaning.
  • Page 124 Troubleshooting Replace the Interface Take GND. Cable. Noise when sending Noise from environment. the data. Check the cables and Unnecessary line Bad contact in FJ. wires in FJ. Broken / life of Head. Replace the Head. in Printing Image Broken Main Board Noise when processing / R35 the data.
  • Page 125: Doesn't Print At All

    Troubleshooting 6-1-3. DOESN'T PRINT AT ALL FLOWCHART Replace Drain Tube. Replace Ink Damper. Ink Damper is clogged Drain Tube is clogged. or broken. Go to next page. Replace the Capping Sponge inside the Cap Doesn't Print at All Ink Cartridge is almost Replace the Ink Assembly.
  • Page 126 Troubleshooting Replace the Main Replace the Head. Board. Broken Main Board Broken / Life of Head. / R35 Replace the Carriage Doesn't Print at All Capping is out of Broken Carriage Board. Board. Capping Position position. Adjustment. Broken Head Broken Ink Tube. Flexible Cable.
  • Page 127: Shifting In Printing Position

    Troubleshooting 6-1-4. SHIFTING IN PRINTING POSITION FLOWCHART • Head Rank Setting • Bias Adjustment • Horizontal Adjustment Setup the Encoder • Bidirection Adjustment Scale. • Head Height Adjustment Problem in setting up Improper Head the Encoder Scale. Adjustment. Paper Side Sensor Shifting in Paper Side Sensor Wrong way of setting...
  • Page 128: Ink Drop On Media

    Troubleshooting 6-1-5. INK DROP ON MEDIA FLOWCHART Capping Position Replace the Ink Damper. Adjustment Capping is out of Ink Damper is broken. position. Go to next page. Incorrect Profile Replace the Capping Sponge inside the Cap • ICC Profile Ink Drop on Media Select the correct Assembly.
  • Page 129 Troubleshooting Flushing Position is Ink Drop on Media Flushing Position not correct. Adjustment. Broken Main Board / R35 Head is broken. Replace the Main Replace the Head. Board. : Symptom : Check Points : Action Number : Checking order CHECKING POINT ACTION R E F E R E N C E O U T L I N E...
  • Page 130: Error Message

    Troubleshooting 6-2 ERROR MESSAGES 6-2-1. MOTOR ERROR FLOWCHART Replace the Switching Replace IC36/43 on Power Supply. the Main Board. Power Supply Voltage for Motor Driver IC is the Motor is not supplied. broken. Go to next page. Motor Error Idle Pulley is broken. Replace the Idle Pulley.
  • Page 131 Troubleshooting Motor Error Motor Controller IC Replace IC36/43 on is broken. the Main Board. Main Board is broken. Replace the Main Board. : Symptom : Check Points : Action Number : Checking order CHECKING POINT ACTION R E F E R E N C E O U T L I N E Motor Controller IC is a chip to control the current that is supplied Motor Controller IC on...
  • Page 132: Print Error

    Troubleshooting 6-2-2. PRINT ERROR FLOWCHART Readjust the Encoder Reconnect the Encoder Module position. Module Wire. Encoder Module is out Disconnection in of position. Encoder Module Wire. Replace the Encoder Encoder Module is Print Error Module. Encoder Scale is dirty. Clean the Encoder broken.
  • Page 133: Capping Error

    Troubleshooting 6-2-3. CAPPING ERROR FLOWCHART Capping Error Limit Position is not Limit Position correct. Initialize Limit Sensor is broken. Replace the Limit Sensor. : Symptom : Check Points : Action Number : Checking order 6-2-3. CAPPING ERROR OUTLINE CHECKING POINT ACTION R E F E R E N C E O U T L I N E...
  • Page 134: Others

    Troubleshooting 6-3 OTHERS 6-3-1. FILLING INK PROBLEM FLOWCHART Replace the Ink Tube. Replace Drain Tube. Drain Tube is Cut in Ink Tube. clogged. Go to next page. Foreign substance on followings • Surface of the Head Reconnect Ink Tube Connection of Ink Tube Filling Ink Problem and Ink Damper.
  • Page 135 Troubleshooting Ink Damper is clogged Filling Ink Problem Replace Ink Damper. or broken. Head is broken. Replace the Head. : Symptom : Check Points : Action Number : Checking order CHECKING POINT ACTION R E F E R E N C E O U T L I N E When Ink Damper is clogged, ink suction can not be maintain.
  • Page 136: Media Skewing

    Troubleshooting 6-3-2. MEDIA SKEWING FLOWCHART Adjust the Head Height to the High position. Use Dancer Roller. Reduce the amount of ink-dot. Thin media, such as PVC-G and Media expands by absorbing YP-M is used. the ink. Clean the Grit Roller. Grit Roller is dirty.
  • Page 137: Service Activities

    7 Service Activities 7 Service Activities 7-1 INSTALLATION CHECK LIST FJ-52/42 Installation Check List Date: Serial Number Date FJ-52 Minimum Space Required User 2.3m (W) X0.8m (L) X1.3m (H) Classification FJ-42 Minimum Space Required Purchase Loan Unit Demo Unit Replacement 2.1m (W) X0.8m (L) X1.3m (H) Accessories •...
  • Page 138 • Check inside Accessory Box FJ-52/42 Power cord X1 Drain bottle X1 Drain-botle cap X1 Screws X2 Replacement blade for separating knife X1 • Check inside vinyl bag User's Manual X1 RCC COLORCHOICE installaion guide X1 Roland COLORCHOICE CD-ROM X1 Cleaning kit X1...
  • Page 139 7 Service Activities Assembly Place the main unit on the stand. FJ52/42 • Use 2pcs. of bolts and washers for both left and right sides. (PNS-52/42) • Use Hexagonal wrench together with pipe to secure the bolts. Remove 3pcs. of Paper tape for securing the Linear Encoder. Remove the clasp and screw (white) for securing the Tool Carriage.
  • Page 140 7 Service Activities Assembly Secure in place with the flange retaining pins. FJ-52/42 Flange retaining pins Pass the two shafts through the holes in the hanger and secure in place with the shaft retaining pins. Shaft retaining pins Move the retainer on the left-hand side to the position shown in the figure, and tighten the screw to secure in place.
  • Page 141 7 Service Activities Connection Connect power cord to power connector on the back side of the unit. Connect either parallel or USB cable to the main unit. • Use PSI Card or USB adapter when using Macintosh. Connect FJ-52/42 to PC. Preparation Insert ink cartridges into the ink-cartridge ports.
  • Page 142 7 Service Activities Setting Installation of Roland COLORCHOICE • Explain to the customer to read the README file. Demo Print Print Demo Print from Roland COLORCHOICE. Print Service Report from the Service Mode. Operation Description of Keys and Display Menu CJ-52/42 •...
  • Page 143 7 Service Activities Operation Feed Correction FJ-52/42 • User's Manual [2-6 Making Corrections for Printing] Remove the Material • User's Manual [2-7 Ending Printing Operations] Height of the Printing Head • User's Manual [4-2 Adjusting the Height of the Printing Head] Maintenance Replacing the Ink Cartridges FJ-52/42...
  • Page 144 7 Service Activities Operation How to send the data from Applications to RCC How to send the data from RCC to FJ52/42 Output Profile and Printing Mode for each media • Refer to [RCC3.00 Profile] for details. Head 2billion dots/nozzle (128billion dots in Service Report) Consumables ( R e f e r e n t i a l...
  • Page 145 7 Service Activities...
  • Page 146: Maintenance Check List

    7 Service Activities 7-2 MAINTENANCE CHECK LIST 3 MONTHS MAINTENANCE CHECK LIST Serial Number User Date FUNCTION CHECK Check Points Service Note 1. Firmware upgrade Adjustment 2. Printing Test Missing/ Wavy Dots/White line Troubleshooting 6-1-1 Prints unnecessary lines Troubleshooting 6-1-2 No printing Troubleshooting 6-1-3...
  • Page 147: Consumable Parts

    - Test Print -Cleaning by [CLEANING] key. -Cleaning by selecting from the menu. (Midium / Powerful) User's Reference Adjusting the Height of the Printing Head Making Corrections for Printing Overprint Printing Area Roland COLORCHOICE Profile Application Software Illustrator, CorelDraw, QuarkExpress Q&A...
  • Page 148 7 Service Activities Service Report Demo Print (for checking Printing Quality) NOTE...
  • Page 149 7 Service Activities 9 MONTHS MAINTENANCE CHECK LIST Serial Number User Date FUNCTION CHECK Check Points Service Note 1. Firmware upgrade Adjustment 2. Printing Test Missing/ Wavy Dots/White line Troubleshooting 6-1-1 Prints unnecessary lines Troubleshooting 6-1-2 No printing Troubleshooting 6-1-3 Print is done at incorrect position Troubleshooting 6-1-4...
  • Page 150 7 Service Activities CONSUMABLE PARTS Consumable Referential Time for Replacement Service Note Head 2 billion dots (128 billion dots in Service Report) Replacement Carriage Motor 1500 hours Replacement Cleaning Wiper Wiping : 3000 times, Rubbing : 500 times Replacement Ink Tube 4000 hours Replacement Capping Assembly...
  • Page 151: Specifications

    (Printing dot resolution) 360 dpi x 720 dpi 180 dpi x 720 dpi Error of less than ±0.3% of distance traveled, or 0.3 mm, whichever is grater (at Roland PET-film, print travel: 1 m (39-3/8 in.)) Distance accuracy Printing heads cleaning...
  • Page 152: Interface Specifications

    7 Service Activities Interface Specifications Standard Bidirectional parallel interface (compliant with IEEE 1284: nibble mode) Input signals STROBE (1BIT), DATA (8BITS), SLCT IN, AUTO FEED, INIT Output signals BUSY (1BIT), ACK (1BIT), FAULT, SLCT, PERROR Level of input output signals TTL level Transmission method Asynchronous...
  • Page 153 - MEMO -...
  • Page 154 FJ-52 / 42...

This manual is also suitable for:

Hi-fi jet fj-42

Table of Contents
