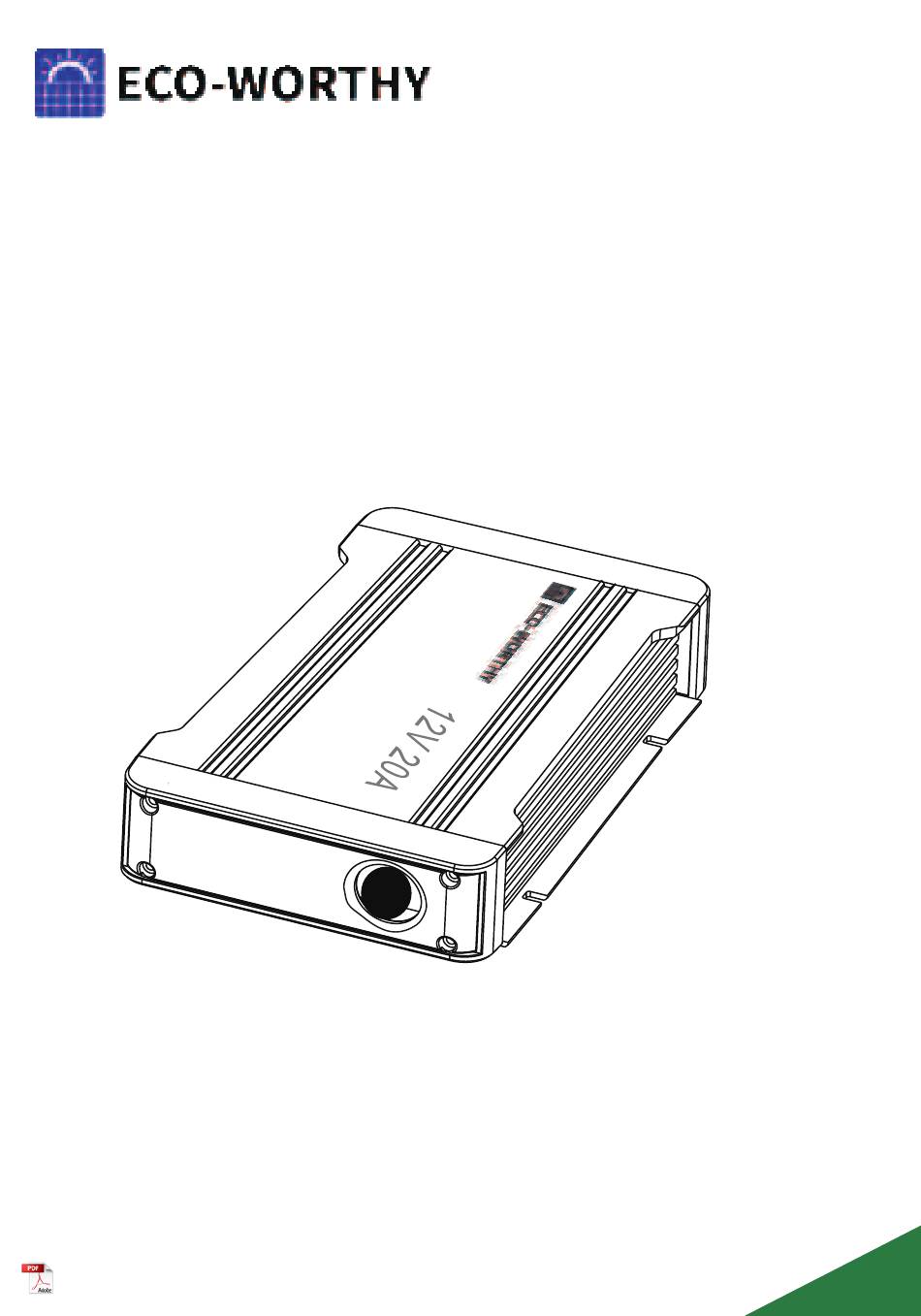

- Page 1 DC to DC Battery Charger User Manual SUPPORT If you are experiencing technical problems and cannot find a solution in this manual,please contact ECO-WORTHY for further assistance. ·Call：1-866 939 8222(US) +44 20 7570 0328(UK) +49 693 1090 113(GE) ·Email：customer.service@eco-worthy.com...
- Page 2 A WARNING! To avoid any personal injury, please read the safety instructions below. This battery charger is not intended for use by children or infirm persons without supervision. FOR AUTOMOTIVE AND RECREATIONAL VEHICLE 12V DEEP CYCLE BATTERY USE ONLY. NOT TO BE USED WITH DRYCELL BATTERIES. •During the charging process, do not use a naked flame near a battery.
-
Page 3: Table Of Contents
Contents ...........1 Key Charger Features ........2 Installation Options/Instructions ..........4 DC-DC Charger Installation ..........4 DC-DC Charger Removal ..........5 Operating The Charger ..............6 Specifications ..............8 Fault Finding .................9 Support... -
Page 4: Key Charger Features
Key Charger Features This DC-DC charger is a sophisticated multi stage charger, utilising switch mode and fully automatic computerised control, designed to charge most 12 Volts AGM/Gel, Lead Acid LION and Calcium batteries. • Heavy duty aluminium case and mounting brackets •... -
Page 5: Installation Options/Instructions
•Thermal overload protection •Solar Eput overload protection •Power cut memory function: once selected, the charger will remain on this battery type until it is changed Installation Options/Instructions Installing the Charger Installation of this unit will require twin core wiring - and suitable cable connectors (not included). - Page 6 •Next, measure required cable length from the main vehicle battery through to the location of the DC-DC charger. •Ensure ALL cabling meets specification and will not be exposed to excessive heat/moving parts or abrasion. •If the charger is located in a camper/caravan we recommend the use of an Anderson style plug between the tow vehicle and the camper/cara- van as shown below.
-
Page 7: Dc-Dc Charger Installation
Suggested fitment to vehicle only Suggested fitment to vehicle with caravan DC-DC Charger Installation: •This DC-DC charger has two modes: DC input and solar input. You can select DC input mode or solar input mode first when installing. •Select the battery type to be charged on the charger panel. •Connect the auxiliary battery to the output port of the DC-DC charger. -
Page 8: Operating The Charger
Operating The Charger CHARGER DISPLAY: Red LED indicates battery is Solar Charge Green LED indicates battery is FULLY CHARGED RED LED indicates the unit is CHARGING Red LED indicates POWER is on The battery chemistry selected is indicated by the BLUE LED 1.DC Battery Once correctly installed, the DC-DC charger is a simple set and forget dual battery switch. -
Page 9: Specifications
•Solar charging requires an input of16to 2 5 volts from solar panels. When available solar panel voltage falls below 16 volts no charge will be delivered to auxiliary battery. Specifications Model: ECO-DCDC1220 Type: Multi Stage Input: DC Battery: 12.4-16.0 Volts Solar Input: 16.0-25.0 Volts... - Page 10 Cable Length/Twin Core 0 -1 Metres: 12AWG 1 - 5 Metres: 8AWG 5 Metres +: 6AWG A WARNING! •Failure to use recommended wiring will severely impact on performance of DC to DC charger. •When the positive and negative poles of the charger are reversely connected to the positive and negative poles of the battery, the charger will beep •When the charger is fully charged for the auxiliary battery, the voltage...
-
Page 11: Fault Finding
Additional Information It is expected that this charger will be used to charge a 'deep cycle7 type auxiliary battery. Deep cycle batteries are designed to provide battery power to run items like fridges and lighting in caravans and campers. An ordinary compressor refrigerator consumes 5 amps, so it uses about 120 amps in 24 hours. -
Page 12: Support
ECO-WORTHY reserves the right to change the manual, the PV products, the specifi- cations, or product information sheets without prior notice. This product is covered by a 1 year warranty provided by ECO-WORTHY Ltd. We will refund or partial refund or replace any products with defects due to our imprudence.
