Nexus NX2600 Installation And Operation Manual

Dual band navtex antenna
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NX2600
- Dual band Navtex Antenna -
Installation and Operation Manual
Installation and Operation Manual
English
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NX2600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nexus NX2600

Summary of Contents for Nexus NX2600

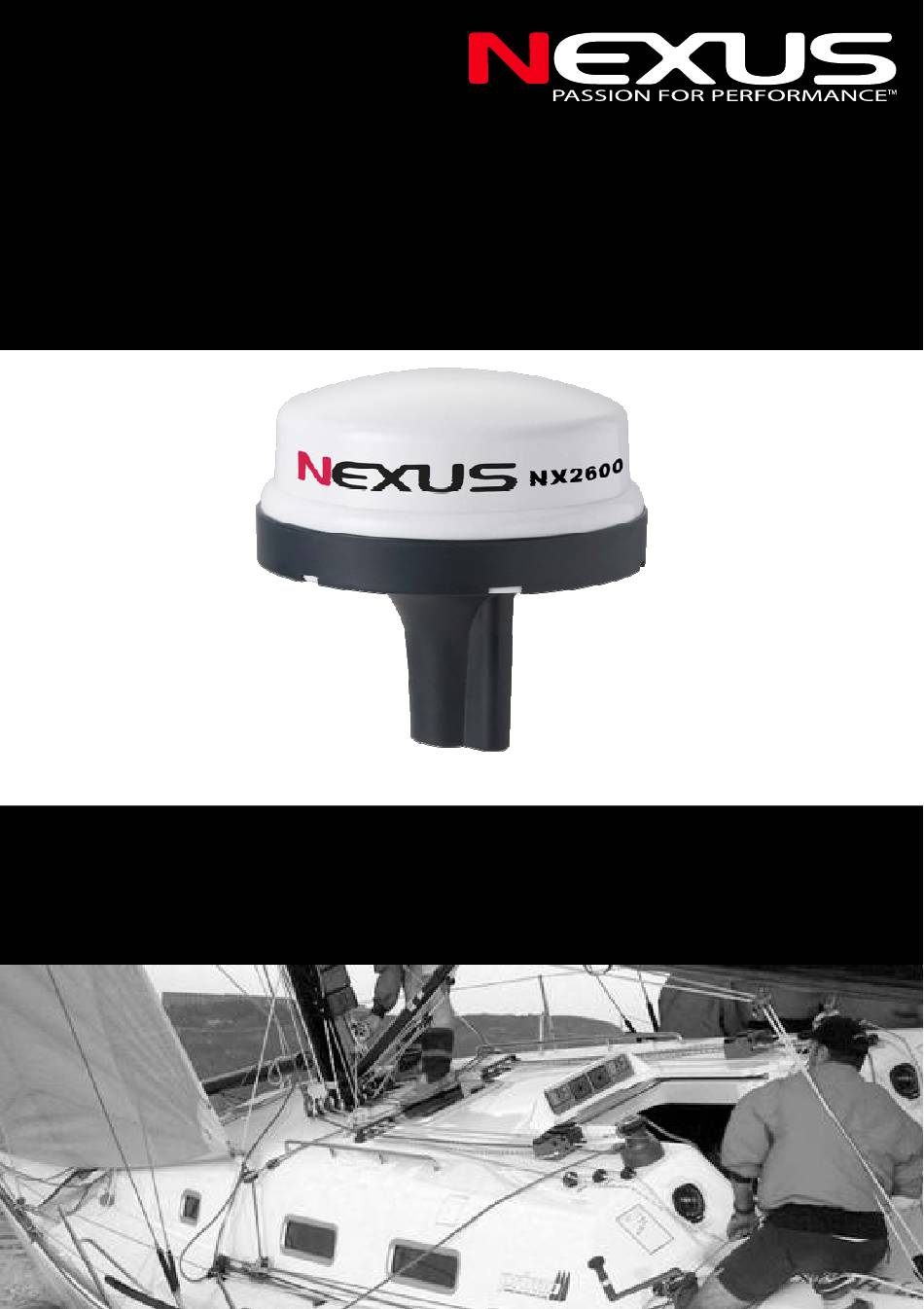

  • Page 1 NX2600 - Dual band Navtex Antenna - Installation and Operation Manual Installation and Operation Manual English English...
  • Page 2 Navtex NX2600...

  • Page 3: Table Of Contents

    What types of message do I wish to receive –......5 INTRODUCTION TO PC KIT............6 INSTALLATION ................6 USING THE NEXUS CUSTOM SOFTWARE ON YOUR PC ..7 Installation, use and uninstall ..........7 Install the software：..................7 How to use the Software ................7 7.2.1...

  • Page 4: Introduction

    This unit outputs data in RS422 format. This can output its data for display on the NEXUS NX2500 VHF radio in its ’NAVTEX mode’ OR on a PC running the NEXUS custom software supplied. Alternatively it may be used by using the Hyperlink or Terminal software supplied with Windows as standard*.
  • Page 5 USING THE NEXUS NAVTEX WITH AN NX2500 VHF RADIO. If you are using the NEXUS NAVTEX antenna in conjunction with the NEXUS NX2500 VHF radio all you need to do is make a simple plug and socket connection. Selection of stations and message types are carried out on screen.

  • Page 6: What Types Of Message Do I Wish To Receive

    Navtex NX2600 What types of message do I wish to receive – Select by letter on the NX2500 or the PC Sw (see appendix 3). It pays to be selective - The more selective you are the less likely you will be swamped with irrelevant information from stations some distance away from your vessel.

  • Page 7: Introduction To Pc Kit

    This unit outputs data in RS422 format. This can output its data for display on the NEXUS NX2500 VHF radio in its ’NAVTEX mode’ OR on a PC running the NEXUS custom software supplied. Alternatively it may be used by using the Hyperlink or Terminal software supplied with Windows as standard*.

  • Page 8: Using The Nexus Custom Software On Your Pc

    1.3NX2600 has the functions to save and delete the message. 1.4 NX2600 has the functions to open and view all the messages that have been stored. 1.5 When you connect the computer with the printer, you can print out the message from the printer.

  • Page 9: There Are Three Options :Open(O),Print(P),Exit(E) In File(F) Menu

    Navtex NX2600 7.2.1 There are three options :Open(O),Print(P),Exit(E) in File(F) menu. a) Open(O) Open the NAVTEX text information which saved in hard disk. Print(P) Print the NAVTEX information. Exit(E) Exit the software. b)There are two options in Setting(S) menu Comport(C) Set the serial port number of PC(default COM1)

  • Page 10: Uninstall The Software

    Navtex NX2600 View and delete the message in left side of the interface, use the mouse to select a message, then click the right key of the mouse, the “View(V)” and “Delete(D)” will flip out, click ”View(V)” to view the message, click “Delete(D)” to delete the message.

  • Page 11: Installation Of Nx2600 And Pc Kit

    Navtex NX2600 The NX2600 PC Kit comes supplied as standard with: 1) Terminal emulator software for use with PC. 2) Converter Box. Installation of NX2600 and PC kit...

  • Page 12: Specifications

    Navtex NX2600 10 SPECIFICATIONS: Dimensions: 150mm(H) X 155mm(dia) Weight: 1000gms Voltage/Power: 12 Volts DC (10-15Volts), 120MA Max (1.44 Watts). Receiver: double superheterodyne 2 channel simultaneity (490 & 518khz). Output: Forward error-corrected (FEC) NAVTEX data as serial ASCII at 9600 baud, 8-bits, no parity, 1 stop bit, no handshake.

  • Page 13: Appendix 1. Navareas: Iuk

    Navtex NX2600 – Appendixes The following information is provided for guidance only – it is not guaranteed to be complete/correct or up to date. Up to date information can be obtained from the appropriate source in your area. Appendix 1. NAVAREAS:...

  • Page 14: Appendix 2. Navtex Stations In Areas I, Ii & Iii: Areas I & Ii: 518Khz

    Navtex NX2600 Appendix 2. NAVTEX stations in areas I, II & III: Areas I & II: 518khz Corsen (Ushant). Portpatrick (Northwest UK). Grimton (Sweden). Imuiden (Holland) Coruna (NW Spain). Malin Head (N Ireland). Cullercoats (Northeast UK). Monsanto (Portugal). Niton (French coast messages).
  • Page 15 Navtex NX2600 SCHEDULE OF NAVTEX TRANSMISSIONS: Transmission Times (UTC/GMT) CAT Khz Station Country Long Comments 00.00 04.00 08.00 12.00 16.00 20.00 A 518 Svalbard Norway 78.04N 13.38E A 518 Corsen France 48.28N 05.03W 00.10 04.10 08.10 12.10 16.10 20.10 B 518...

  • Page 16: Warranty

    Navtex NX2600 12 WARRANTY...
  • Page 17 Navtex NX2600...
  • Page 18 Navtex NX2600...
  • Page 19 Navtex NX2600...
  • Page 20 Navtex NX2600 Copyright ©: Nexus Marine AB Kuskvägen 4, 191 62 Sollentuna, Sweden Tel: +46 -(0) 8 – 506 939 00. Fax: +46 -(0) 8 -506 939 01 www.nexusmarine.se...
