RHINO RH-WV2021 User Instruction

Rhino smart water valve
Hide thumbs

Advertisement

Table of Contents

Model No.:RH-WV2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RH-WV2021 and is the answer not in the manual?

Questions and answers

Related Manuals for RHINO RH-WV2021

Summary of Contents for RHINO RH-WV2021

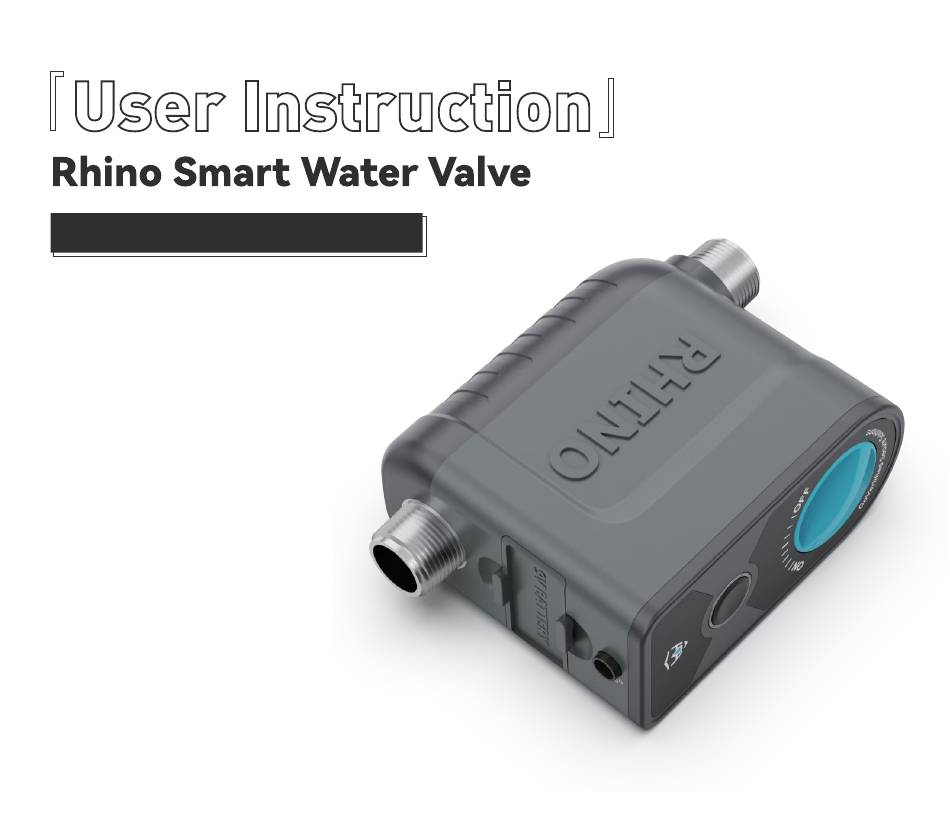

  • Page 1 Model No.:RH-WV2021...
  • Page 2 A. INTRODUCTION 1. CONTENTS IN THE BOX RHINO Water Valve*1 RHINO Water Valve*1 User Manual*1 3/4" inch-NPT thread 3/4" inch-NPT thread 2. PRODUCTS OVERVIEW Outlet AC hole Mechanical button indicator knob Intlet...
  • Page 3 3. FUNCTIONS * Remote control water valve * Three modes on the APP - home/away/disarm mode * Trigger corresponding alarms and actions when preset conditions reached * Manually open/close valve * External backup power * Anti-scaling self-test function * Water leakage alarm * Water pipe leak detection...
  • Page 4 * 3/4" NPT inlet * 3/4" NPT outlet * Product dimensions – L x W x H: 136X65X119.5mm (not include inlet/outlet screw) * Operating voltage: DC 12V * Working water pressure: 0 bar to 12 bar (0 PSI-180PSI) * Flow rate: 0.5L/min to 30L/min (0.13GAL/min to 7.92GAL/min) * Waterproof rating: IPX6 * Operating temperature: 1°C to 50°C (33.8°F to 122°F) * Storage temperature: -20°C to 60°C (-4°F to 140°F)

  • Page 5: Installation

    * Must be installed after water meter, water shut-off , and pressure regulating valve (if applicable) * Do not use the RHINO and adapter when the operating temperature is exceeded. * AC power (100-240VAC-50/60 Hz) is required when connecting with WiFi The installation requires a professional plumber to complete or have it installed under the guidance of a professional.
  • Page 6 (Recommened Horizontal Placement...

  • Page 7: App Installation

    2. App Installation * Download the RhinoH App Search for RhinoH on Google Play or App Store or scan the QR code to download. * Register your RhinoH account Open the APP, select Set Up Follow the prompts to register an account with your email .
  • Page 8 3. Connect the RHINO The device supports two distinct networking modes for configuration. 1.EZ Mode Step1: Power the Rhino Step2: Open the App and tap Add device or + to add a new device Step3: Y choose Add Step4: Or tap the icon circled for...
  • Page 9 Step5: Wait few seconds when connecting, and you will get it connected.
  • Page 10 2.AP Mode Step1: Power the Rhino Step2: Open the App and tap Add device or + to add a new device Step3: Tap the icon circled for connection...
  • Page 11 Step4: Select 2.4GHz Wi-Fi Network. Step5: Reset the device. * Hold the RESET button for 5s. * Hold the RESET button for 5s again until the indicator is blinking slowly.
  • Page 12 Step6: Connect your mobile phone to the device’s hotspot. Step7: Wait few seconds when connecting, and you will get it connected.

  • Page 13: Device Parameter

    4. Device Parameter Tap to check more info Historical water consumption Total water usage Water Temperature Real time water pressure Adjustable water Three modes: Home/ Away/Disarm and Settings...

  • Page 14: Device Programming

    1) Press the button to open the valve, the button icon will switch to ON when it’s completed. Simultaneously, the indicator dial on the RHINO apparatus will also rotate to the ON position. 2) Press the button to close the valve, the button icon will switch to OFF when it’s completed.
  • Page 16 * Historical water consumption 1) Click the icon to enter this section. You may check the water consumption and the remaining water( activate it by setting up a water consumption limit on Settings page) in current day/week/month. need and type in the email adress, click save .
  • Page 17 C. SETTINGS Press Settings icon to enter into the setting mode...
  • Page 18 1) Unit Settings You have the option to change the water measurement unit (L/GAL), temperature unit (℃/℉), and water pressure unit(KPa/PSI). You have the option to enable/disable the notifications within the current status. (Home/Away/Disarm)
  • Page 19 3) Mode Settings There are three mode settings of RHINO - Home, Away,Disarm. The default settings of Three modes:...
  • Page 21 4) Water consumption limit You may set up the water consumption limit per current day/week/month, click save for saving settings. save for saving settings.
  • Page 22 RHINO. 7) Plumbing health check This Function is dedicated to identifying potential leaks within your household. Initiate the process by pressing “Start Checking” and confirming the test. The Drip Leak Test will operate for a duration of 15 minutes.

  • Page 23: Reset The Device

    D. RESET THE DEVICE Option 1 Remove the device on the App Press the Remove Device Select the Disconnect and wipe data Option 2...

  • Page 24: Led Light Indication

    E. LED LIGHT INDICATION * White LED light is always on: the connection succeeded and valve is open * Red LED light is always on: the connection succeeded and valve is closed F. TROUBLESHOOTING Problem Possible Cause Possible Solution Valve can not close * anything stuck inside the pipe? * Clean the pipe * the temperature is lower than 1℃...
  • Page 25 G. CERTIFICATE AND STANDARDS NSF/ANSI/CAN 61 Drinking Water System Components - Health Effects. Products certified to NSF/ANSI/CAN 61 comply with the health effects criteria in NSF/ANSI/CAN 600. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 26 the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna.
  • Page 27 ISED Warning This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 28: Warranty

    H. WARRANTY Rhino Smart Water Valve Last Updated and Effective as of: January 1,2024 LIMITED WARRANTY GoVeriified Secure Solutions Limited Warranty THIS LIMITED WARRANTY CONTAINS IMPORTANT INFORMATION ABOUT YOUR RIGHTS AND OBLIGATIONS, AS WELL AS LIMITATIONS AND EXCLUSIONS THAT MAY APPLY TO YOU.
  • Page 29 Limited Warranty at any time, so please review the Limited Warranty each time prior to placing an order or otherwise acquiring any Rhino Water Valve by GoVeriified Secure Solutions Every time you place an order or otherwise acquire Products from GoVeriified, the Limited Warranty in force at that time will apply between you and GoVeriified.
  • Page 30 (1)TOTAL SATISFACTION RETURN POLICY If you are the original purchaser of the Product and you are not satisfied with this Product for any reason, you may return it in its original condition within thirty (30) days of the original purchase and receive a full refund. You will be solely responsible for (and GoVerii- fied disclaims) any and all loss, liability, or damages, including to your wiring, plumbing, fixtures, electricity, water, Wi-Fi, home, product, product peripherals, computer, mobile device, and all other items, people, and pets in your home, resulting from the removal of the...
  • Page 31 (3)WHAT THIS LIMITED WARRANTY DOES NOT COVER This Limited Warranty does not cover and is void with respect to the following (collectively “Ineligible Products”): (i) Products marked as “sample”, "engineering sample" or “Not for Sale”, or sold “AS IS”; (ii) Products that have been subject to: (a) modifications, alterations, tampering, or improper or lack of maintenance or repairs;...
  • Page 32 (4)DISCLAIMER OF WARRANTIES EXCEPT AS STATED ABOVE IN THIS LIMITED WARRANTY, GOVERIIFIED DOES NOT EXTEND ANY EXPRESS WARRANTIES, REPRESENTATIONS, CONDITIONS OR GUARANTEES REGARDING GOVERIIFIED’S PRODUCT OR ONLINE SERVICES (“SERVICES”) OR ANY RESULTS THEREOF. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, GOVERIIFIED DISCLAIMS ALL EXPRESS, IMPLIED, AND STATUTORY WARRANTIES AND CONDITIONS WITH RESPECT TO THE PRODUCT AND SERVICES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A (5)LIMITATION OF DAMAGES...
  • Page 33 (6)LIMITATION OF LIABILITY THE SERVICES PROVIDE YOU INFORMATION (“PRODUCT INFORMATION”) REGARDING YOUR GOVERIIFIED PRODUCTS OR OTHER PERIPHERALS CONNECTED TO YOUR PROD- UCTS (“PRODUCT PERIPHERALS”). THE TYPE OF PRODUCT PERIPHERALS THAT MAY BE CONNECTED TO YOUR PRODUCT MAY CHANGE FROM TIME TO TIME. WITHOUT LIMITING THE GENERALITY OF THE DISCLAIMERS ABOVE, ALL PRODUCT INFORMATION IS PROVID- ED FOR YOUR CONVENIENCE, “AS IS,”...
  • Page 34 (7)YOUR RIGHTS AND THIS LIMITED WARRANTY This Limited Warranty gives you specific legal rights. You may also have other legal rights that vary by state, province, nation or jurisdiction. Likewise, some of the limitations in this Limited Warranty may not apply in certain states, provinces, nations or jurisdictions. The terms of this Limited Warranty will apply to the extent permitted by applicable law.
