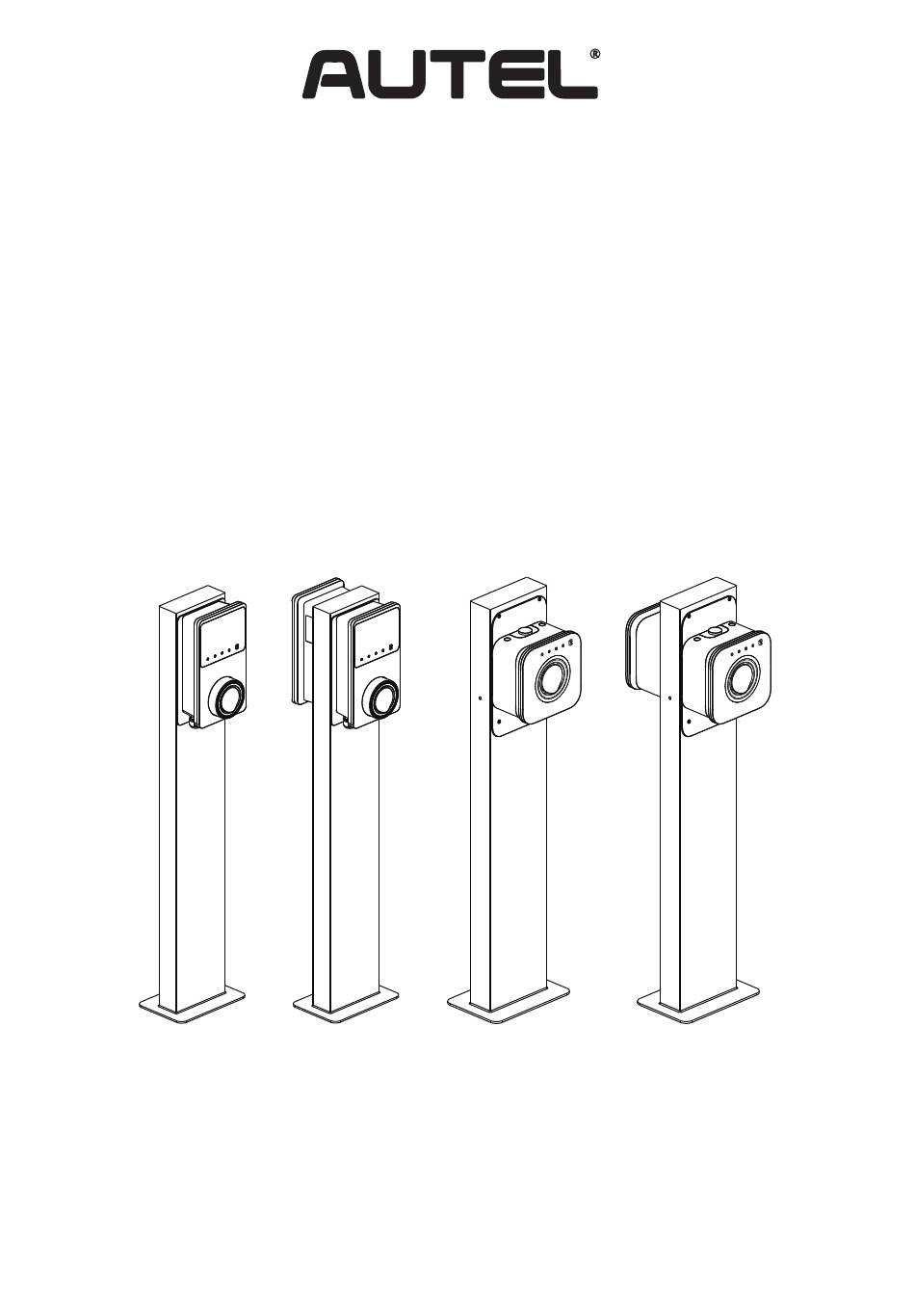

Quick Reference Guide
Pedestal ASP102
(For AC Compact and AC Wallbox)
www.autelenergy.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pedestal ASP102 and is the answer not in the manual?

Questions and answers

Related Manuals for Autel Pedestal ASP102

Summary of Contents for Autel Pedestal ASP102

  • Page 1 Quick Reference Guide Pedestal ASP102 (For AC Compact and AC Wallbox) www.autelenergy.com...

  • Page 2: Installation

    Safety Thank you for purchasing this Autel equipment. Our equipment is manufactured to a high standard and — when used according to these instructions and properly maintained — will provide years of trouble-free performance. IMPORTANT: • Before operating or maintaining the equipment, please read these instructions carefully, paying extra attention to the safety warnings and precautions.

  • Page 3: Preparing For Installation

    Preparing for Installation Installation Tools (Not Included) Marker Drill bit (12 mm) Wrench (17 mm) Wire stripper Step bit (30 mm) Phillips screwdriver For AC Compact only Scissors Flathead screwdriver For AC Compact only Power Drill Foundation Considerations IMPORTANT: • A flat, concrete, and stable surface is required for installation. To ensure safe and permanent anchoring, the concrete strength level should be above C30/C37.

  • Page 4: Installing The Pedestal

    Installing the Pedestal 1. Place the pedestal on the concrete surface, aligning the central hole of the pedestal base with the conduit stub-up. 2. Mark the four holes using the base plate of the pedestal as a guide. Remove the pedestal temporarily. 3.

  • Page 5: Installing The Charger

    3. Place the pedestal onto the designated mounting location, ensuring that the central hole and four mounting holes are properly aligned. Tap the four M10 x 60 bolts into the mounting holes, then tighten the nuts using a 17 mm wrench until they are securely in place. Verify that the pedestal is level before proceeding.
  • Page 6 For AC Compact Refer to AC Compact’s manual for detailed instructions. 30 mm *Scan the QR code to access additional installation details for the chargers. NOTE: The illustrations in this document are for reference only. Please refer to the actual products.
