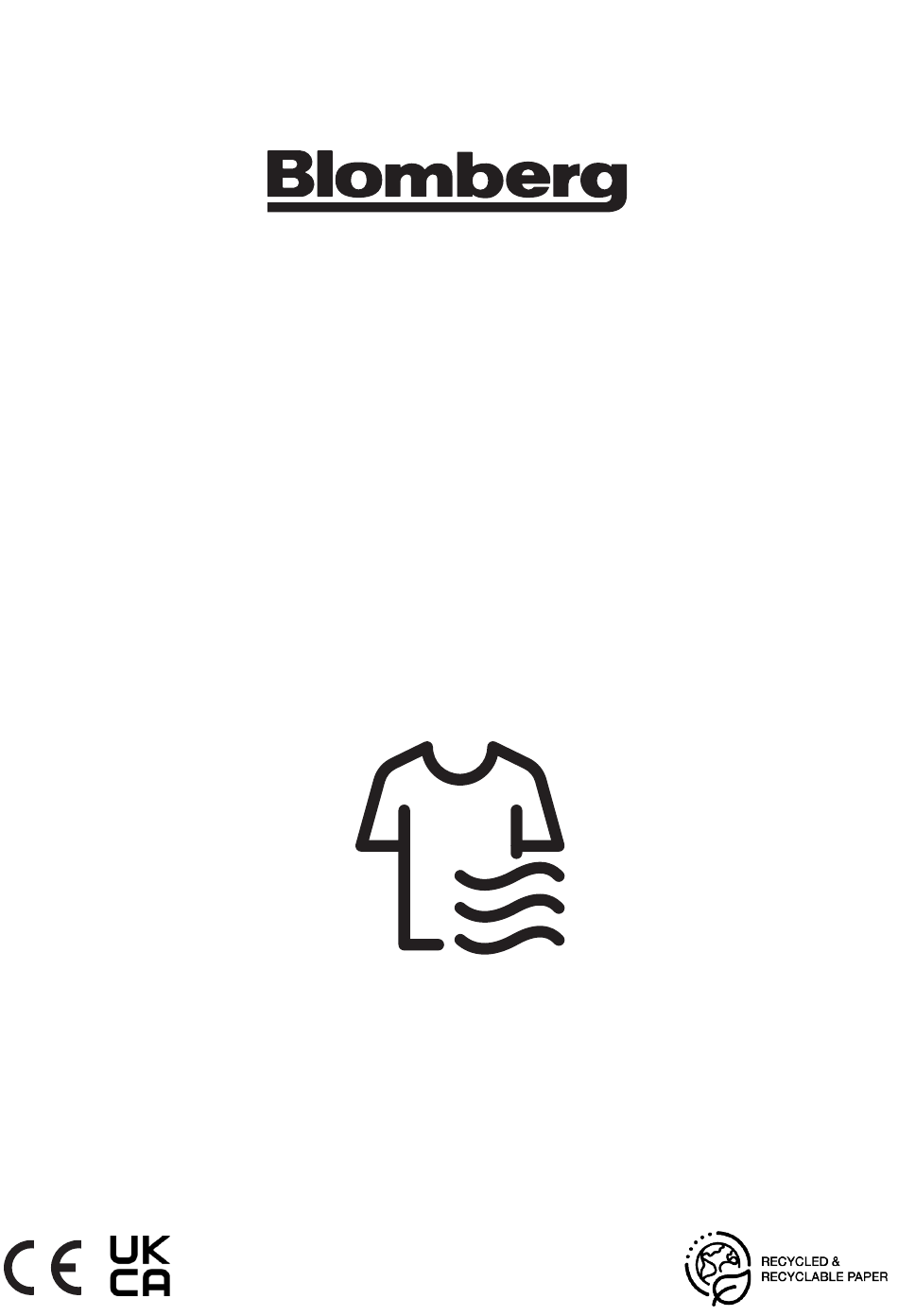

- Page 1 Dryer User Manual LTA18321W LTA18321G 2960314535_EN/ 04-04-25.(11:59)
- Page 2 Please read these instructions first before using your appliance Thank you for choosing a Blomberg appliance. Please take some time to read this user manual before using your appliance, to ensure you know how to safely operate the controls and functions.
-
Page 3: Table Of Contents
Table Of Contents 1 Safety Instructions ................5 1.1 Intended use .....................5 1.2 Safety of children, vulnerable persons and pets ..........5 1.3 Electrical Safety ....................6 1.4 Transporting safety ....................7 1.5 Installing safety ....................7 1.6 Usage safety .....................9 1.7 Maintenance and cleaning safety ..............11 1.8 Lighting safety ....................11 2 Environmental instructions.............. - Page 4 6 Running the product ................19 6.1 Control Panel ....................19 6.2 Symbols ......................19 6.3. Preparation of drying machine ................20 6.4 Program selection and consumption chart ............21 6.5 Auxiliary functions ....................23 6.6 Warning indicators ...................23 6.7 Starting the program ..................24 6.8 Child Lock .......................24 6.9 Changing the program after it is started ............24 6.10 Cancelling the program ..................25 6.11 End of program .....................25...
-
Page 5: Safety Instructions
1 Safety Instructions This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. • Our company shall not be held responsible for damages that may occur if these instructions are not observed. • Installation and repair operations shall always be performed by Authorized Service. -
Page 6: Electrical Safety
• Electrical products are dangerous for children and pets. Children and pets shall not play with the product, climb on or get inside the product. • Keep the product door closed even when not operated. Children or pets could be locked inside the product and suffocate. •... -
Page 7: Transporting Safety
1.4 Transporting safety • Unplug the product prior to transport, empty the water tank and if any, remove the water drain connections. • This product is heavy, do not handle it by yourself. • Take required precautions for the product against falling and tipping. Do not crash or drop the product when transporting. - Page 8 • The product shall not be installed against a door, sliding door where the product loading door cannot be completely opened, or behind a hinged door where the product hinge is faced against the door’s hinges. • Install the product where periodic maintenance and cleaning can be done with ease.
-
Page 9: Usage Safety
• Washing machine cannot be placed on top of the drying machine. Installation Table for Washing Machine and Tumble Dryer Stacking Kit Type Depth Size (TD=Tumble Dryer, WM: Washing Machine) Plastic - 54/60cm w or w/o belt 60cm TD --> WM≥50cm / 54cm TD --> WM>45cm Plastic - 46cm w or w/o belt 46cm TD -->... - Page 10 • Do not use the drying machine without the fibre filter. • Do not allow fibre accumulation around the drying machine. • To prevent back draft of gas in the room from the devices that consume other fuels, including open fire, appropriate ventilation shall be provided (for models with flue).
-
Page 11: Maintenance And Cleaning Safety
1.7 Maintenance and cleaning safety • Do not wash the product by spraying or pouring water on it. Do not use a pressure cleaner, steam cleaner, hose or pressurised gun to clean the product. • Do not use sharp or abrasive tools to clean the product. •... -
Page 12: Environmental Instructions
2 Environmental instructions 2.1 Compliance with the WEEE Regulations and Waste Disposal This product does not contain the dangerous and prohibited materials indicated in the “Regulation on The Control of Waste Electrical and Electronic Equipment” published by Ministry of Environment and Urbanisation of Republic of Turkey. Complies WEEE Regulations. -
Page 13: Your Drying Machine
3 Your drying machine 3.1 Technical specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,8 cm Depth 54,6 cm Capacity (max.) 8 kg** Net weight (± %10) 42 kg Voltage Rated power input See type label*** Model code * Min. -
Page 14: General Appearance
3.2 General appearance 3.3 Scope of delivery 1. Water 6. Water discharge filling cap* hose* 2. Filter drawer 7. Pure spare Water* sponge* 8. Odour 3. User Capsule Manual Group* 4. Drying 9. Brush* basket* 5. Drying 10. Filter 1. Top panel basket user cloth* manual*... -
Page 15: Installation
4 Installation • Once the drying machine is installed, the connections must stay stable. After Read the “Safety Instructions” first! placing the drying machine, ensure that the back wall does not come in contact Before consulting the nearest Authorized with any extrusion (a water tap, electrical Service for installing the drying machine, see outlet etc.). -
Page 16: Water Connection
4.3 Water connection 4.4 Adjusting the stands Instead of periodically draining the water Until the drying accumulated in the water tank, you can machine stands level discharge via the water discharge hose and sturdy, adjust supplied with the drying machine. the stands by turning them left and right. -
Page 17: Preparation
5.3 Preparing the laundry to be dried 5 Preparation Items such as coins, metal parts, needles, nails, screws, stones etc. may damage the drum group of the product or may cause functional Read the “Safety Instructions” first! operation issues. Therefore check all laundry that will be loaded to the product. -
Page 18: Correct Load Capacity
• The Eco program is the most energy- The weights below are provided as examples. efficient program for drying wet cotton Approx. Approx. laundry and is used to assess compliance Laundry weight Laundry weight with environmentally conscious design (g)* (g)* regulations. -
Page 19: Running The Product
6 Running the product 6.1 Control Panel 6. Audible warning and child lock selection 1. On/Off/Program Selection button. button. 2. Start / Stand-by button. 7. Wrinkle prevention selection button/ Drum light button. 3. End time selection button. 8. Dryness level selection button. 4. -
Page 20: Preparation Of Drying Machine
6.3. Preparation of drying machine • Plug the drying machine. • Open the loading door. • Remove any foreign material inside it. • Place the laundry to the drying machine without jamming them. • Push and close the loading door. NOTICE Ensure that no laundry is jammed to... -
Page 21: Program Selection And Consumption Chart
6.4 Program selection and consumption chart Programmes Programme Description You can dry your heat-resistant cotton textiles with this programme. A drying setting suitable for Cottons 1000 the thickness of the products to be dried and the desired level of dryness should be selected. It dries single layer, casual cotton textiles in the Cottons Eco 1000... - Page 22 It is the programme that you can dry your washed products you want to provide with extra Hygienic Drying hygiene (baby clothes, underwear, towels, etc.). It provides high hygiene for your textiles via heat effect. You can dry both cotton and synthetic laundry 1000 with this programme.
-
Page 23: Auxiliary Functions
6.5 Auxiliary functions You can add or remove laundry Dryness level within end time. Displayed time is the sum of normal drying time and Dryness level button is used for adjusting to end time. End Time LED turns off at desired dryness. -
Page 24: Starting The Program
Cleaning of filter drawer/ 6.9 Changing the program after it is started heat exchanger You can change the program you selected to Warning symbol flashes periodically to remind dry your laundry with a different program after that filter drawer must be cleaned. the drying machine starts running. -
Page 25: Cancelling The Program
Do not touch the inner surface of the drum while adding or removing clothes during a continuing program. The drum surface is hot. 6.10 Cancelling the program If you want to cancel the program and terminate the drying operation for any reason after the drying machine starts running, Pause the program and turn the On/Off/Program Selection button;... -
Page 26: Maintenance And Cleaning
• Remove the second part (outer filter) by 7 Maintenance and cleaning pulling it upwards. Read the “Safety Instructions” first! 7.1 Lint filters (internal and external filters) / Cleaning of the Interior Surface of the Loading Door Ensure that hair, fibre and cotton The hair and fibres that are separated from balls do not fall into the slot where the laundry during drying process is collected... -
Page 27: Cleaning The Sensor
7.2 Cleaning the sensor • Insert the lint filters on one another and place it back in its place. • There are temperature sensor in the • Clean the inner surface of the loading door dryer that detect whether the laundry is and the gasket with a soft damp cloth or the dry or not. -
Page 28: Emptying The Water Tank
7.3 Emptying the water tank During drying, the moisture is removed from Open the toe board the laundry and condensed, then the water by pulling its button. is accumulated in the water tank. Empty the water tank after each drying session. Condensed water is not potable water! Move the latches to... - Page 29 After cleaning the When the air deflector cover is filter, door and the removed, it is normal to have water condenser, drag the at the plastic section in front of the brush to the right and condenser. lock it in its place. If you see fibre After the cleaning accumulation on the...
-
Page 30: Troubleshooting
8 Troubleshooting The drying takes too long. Lint filter (interior and exterior filters) pores may be clogged. >>> Can be cleaned with vacuum cleaner. The front side of the condenser may be clogged. >>> Clean the front of the condenser. The ventilation grills in front of the machine might be closed. - Page 31 Anti-Wrinkle icon or light is lit. An anti-wrinkle program that prevents the laundry in the dryer from creasing may be activated. >>> Turn the drier off and remove the laundry. Fiber filter cleaning icon is lit Lint filters (interior and exterior filters) may be unclean. >>> Can be cleaned with vacuum cleaner. A layer may be formed in the lint filter pores, leading to clogging.
- Page 32 Accidental damage, misuse or abuse of a product. An attempted repair of a product by anyone other than a Blomberg Approved Engineer (the “Engineer”). Installation or use of a product where such installation or use fails to meet the requirements contained in this guarantee or the User Instructions Booklet.
- Page 33 11. Optional extras, where available (i.e. extendable feet) are supplied on a chargeable basis only. Does Blomberg offer replacements? This is a repair-only guarantee. On occasion, the Manufacturer may at its sole discretion, replace your product with a new product instead of carrying out a repair. Where a replacement is offered, this would normally be an identical model but when this is not possible, a model of similar specification will be provided.
- Page 34 You can register by first visiting blomberguk.com/register and by following the online instructions. All Blomberg appliances come with a 3 year parts and labour guarantee as standard. When you register your appliance for the Optima Inverter Motor 10 year guarantee, you are also registering your appliance for the standard 3 year parts and labour guarantee.
- Page 35 HOW TO OBTAIN SERVICE FOR YOUR APPLIANCE Please keep your purchase receipt or other proof of purchase details in a safe place; you will need to have this documentation available should the product require attention under guarantee. Please take a few moments to complete the details below, as you will need this information when you call us, or to use our online services.
- Page 36 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 BLOMBERG Supplier name or trademark LTA18321W/ 7188305170 Model name LTA18321G / 7188305180 Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class Annual Energy Consumption (kWh) 236,0 Automatic...
