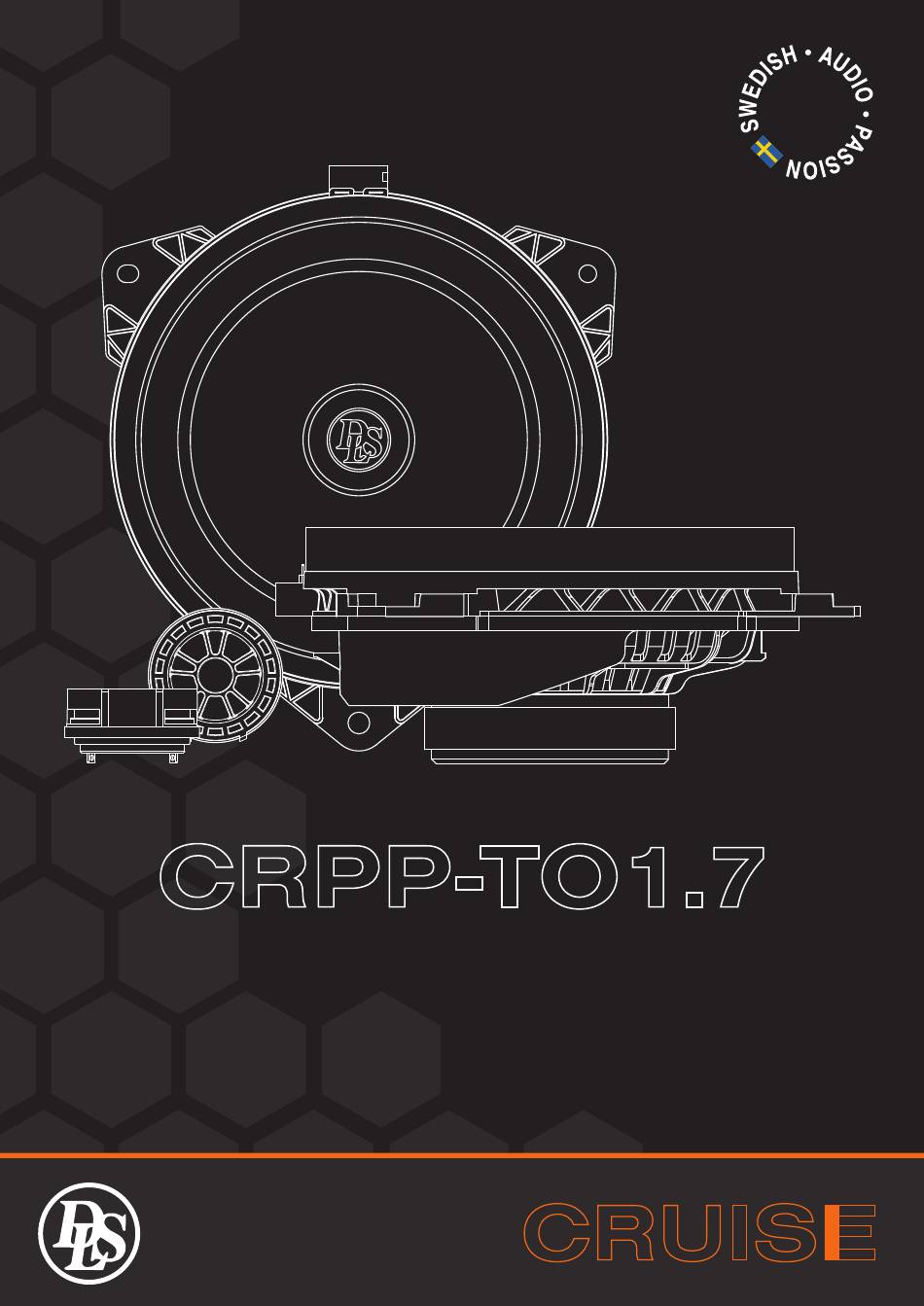

- Page 1 User Manual Toyota / Lexus...
-
Page 2: Table Of Contents
Content Welcome Parts Included Pre-installation Welcome to DLS! Thank you for purchasing the DLS Cruise CRPP-TO1.7 General Info component kit. For us, it’s all about the sound experience. We care deeply about sound and construction quality. In Installation order for your experience to be as optimal as possible, it is... -
Page 3: Parts Included
Parts Included Installation Tools needed Included products: 2pcs Woofers 2pcs Tweeters • Bit screwdriver 2pcs Crossovers • Bit socket M10 wrench size • Small flat head screwdriver Included accessories: • Plastic pry tool (included) 2pcs Stainless steel Cruise logo badges •... -
Page 4: Remove Speaker
Remove Speaker To remove the door panel, all clips need to be released. Loosen the door panel by inserting the pry tool between the panel and the door. Pry the Release the speaker connector. door panel gently, but firm, outward to release the clips. -
Page 5: Mount Dls Speaker
Hint! Take care when installing the door panel, to make sure no wires get squeezed and/or pressed against the midrange speaker when it’s installed in the door frame. Reconnect the speaker connector in the new DLS speaker. -
Page 6: Remove Tweeter
Remove Tweeter Locate the tweeter – Either in the A-pillar, dashboard or side mirror. A-pillar Dashboard Side mirror Start by removing the tweeter covers. Use plastic pry tools and be careful. The clips can be hard to remove. Take it easy and use minimal force. The instructions below show how to remove the dashboard tweeter. Un-clip the speaker connector from tweeter. -
Page 7: Mount Dls Tweeter
Mount DLS Tweeter Install the new DLS tweeter in the same way as the OEM tweeter. Make sure that the DLS tweeter is properly seated. For extra stability of the tweeter installation, the adhesive four-leaf clover foam pad can be used. -
Page 8: Crossover Settings
Crossover Settings Connect the crossover using the factory connector. Use the remaining wrapping foam to secure the crossover and cables. Tweeter Level The yellow cable loop is a tweeter level selection, enabling fine tuning of the high-frequency sound. • Closed loop = -4dB (Shown in the picture below) •... -
Page 9: Run-In Period
For technical assistance, ask your car audio dealer where the product was sold or the distributor in your country. You can always contact the DLS Support in Sweden via e-mail: info@dls.se. For more information regarding DLS and our products, visit our website: www.dls.se. We follow a policy of continuous advancement in development. -
Page 10: Specifications
Specifications DLS Cruise CRPP-TO1.7 Component Kit Technical Specifications Size 7” / 178 mm woofer and 1” / 25 mm tweeter RMS Power 100 W MAX Power 200 W Impedance 4 Ohm Sensitivity 91 dB 1W/1m Freq. range 55 Hz - 25 kHz... - Page 11 Dimensions 52mm 48mm 6x8mm Ø6mm Ø8mm 85mm 165mm 39mm 30mm...
-
Page 12: Compatible Car Models
Compatible Car Models DLS Cruise CRPP-TO1.7 & CRPP-TO1.7CX Make Model Year Front speaker Rear speaker Toyota Alphard AH20 2008-2015 CRPP-TO1.7 Toyota Alphard AH30 2015-2022 CRPP-TO1.7 Toyota Altis 2013-2018 CRPP-TO1.7 CRPP-TO1.7CX Toyota Aqua 2012-2022 CRPP-TO1.7 CRPP-TO1.7CX Toyota Auris 2006-2021 CRPP-TO1.7 CRPP-TO1.7CX... - Page 13 Make Model Year Front speaker Rear speaker Toyota Prius IV 2016-2022 CRPP-TO1.7 CRPP-TO1.7CX Toyota Raize 2021-2023 CRPP-TO1.7 CRPP-TO1.7CX Toyota Rav 4 2001-2018 CRPP-TO1.7 CRPP-TO1.7CX Toyota Rav 4 2019-2023 CRPP-TO1.7 CRPP-TO1.7CX Toyota Sequoia I 2001-2007 CRPP-TO1.7 CRPP-TO1.7CX Toyota Sienna 1998-2004 CRPP-TO1.7 CRPP-TO1.7CX Toyota Sienta...
-
Page 14: Disclaimer
If the factory speaker is below 2 Ohm or above 6 Ohm impedance, you should be cautious before installing your new speakers. The new speakers may not function properly, and can cause harm to the factory amplifier. For more information, visit www.dls.se or consult your local DLS dealer. -
Page 15: Product Markings
European Economic Area (EEA). DLS products comply with the relevant provisions of the RoHS Directive for the European Union. In common with all Electrical and Electronic Equipment (EEE) the product should not be disposed of as household waste.
