Summary of Contents for Extreme Tools PWS4124RCTXBK

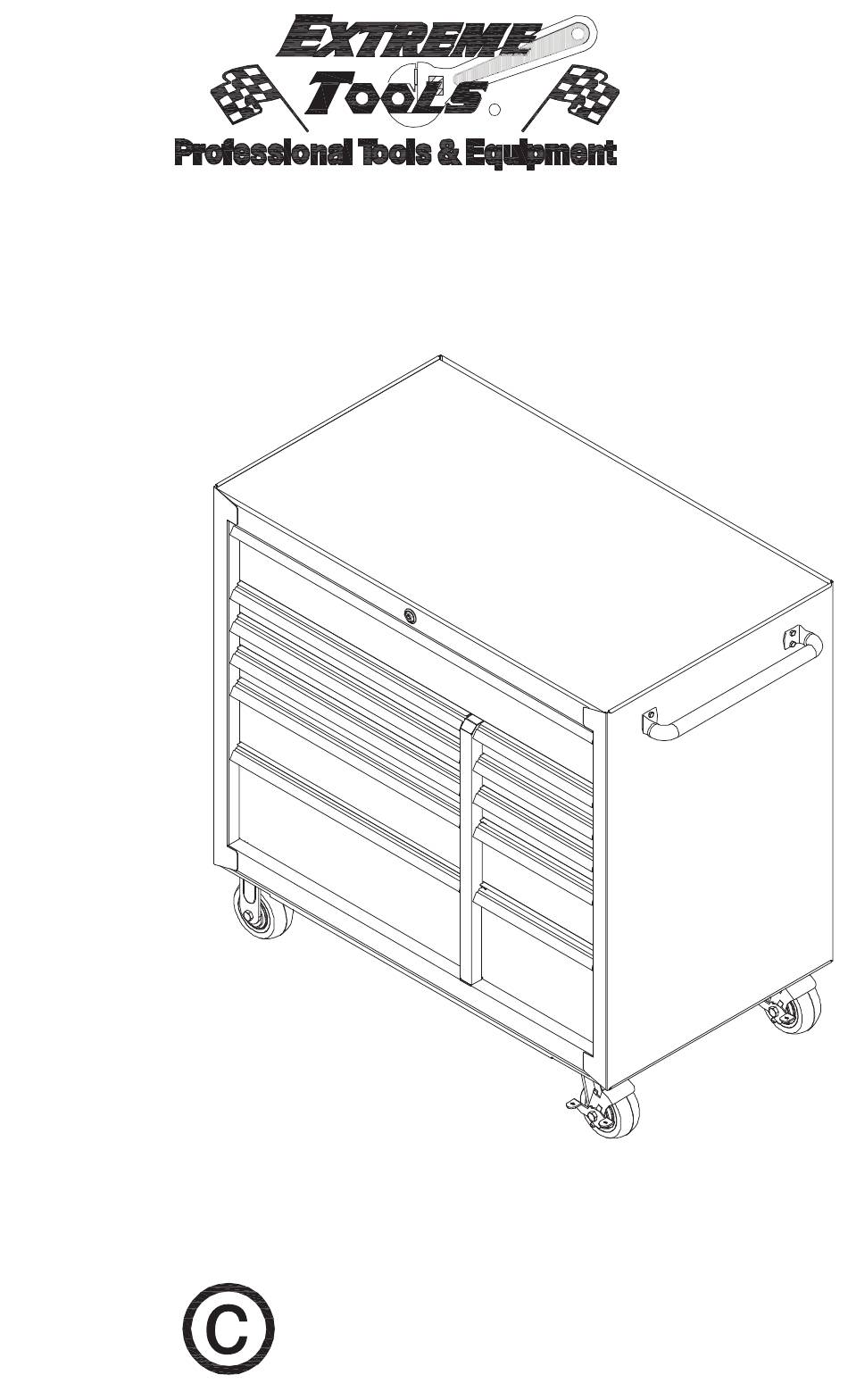

- Page 1 Painted Steel Cabinet Manual PWS4124RCTXBK PWS4124RCTXRD Extreme Tools Inc. 740 Frontenac Road Naperville, IL 60563 630-369-9303...
-
Page 2: Parts List
Parts List Ref # Description Part # Cabinet Handle 306046 The keys are taped M6 x 12 Hex Bolt 321051 to the top of the caster Slide Set (1) 300207–300208 carton, which is placed Swivel Caster 302000 in the bottom drawer of the cabinet. - Page 3 Assembly Handle Installation NOTE: Assemble the handle first to make it easier to move the tool cabinet. Simply position the handle over the holes in the cabinet and attach with the provided M6 x 12 hex bolts. Tighten securely. Caster Installation NOTE: You may require the assistance of another person to complete this step.
-
Page 4: Operation
Operation Raise and Release Drawer Fronts This unit is equipped with raise and release drawer fronts. To open, lift up on the drawer front while pulling towards you. To close, shut the Lift drawer firmly until the latch engages. If the drawer does not stay closed, the hook may be bent, or it may be rubbing against the drawer slides. - Page 5 Safety WARNING Do not attempt to lift the unit by its side handles using chains, ropes or lifting devices, if two people cannot lift the unit. Use a forklift placed under the bottom of the unit if this situation occurs. The side handle may fail, which may cause personal injury or damage to the product.
