Introduction
This document provides instructions for the 55XXA Portability Kit (the Kit).
Use the Kit to replace the original 5560A, 5550A, 5540A, and 5530A Calibrator handles. The
Kit replacement handles provide greater product protection and add more hand holds to
make the Product easier to lift. The display cover/pouch protects the front panel and can hold
assorted test leads or other items.
*5310593*
PN 5310593
April 2022 Rev. 1, 3/25
© 2022-2025 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.

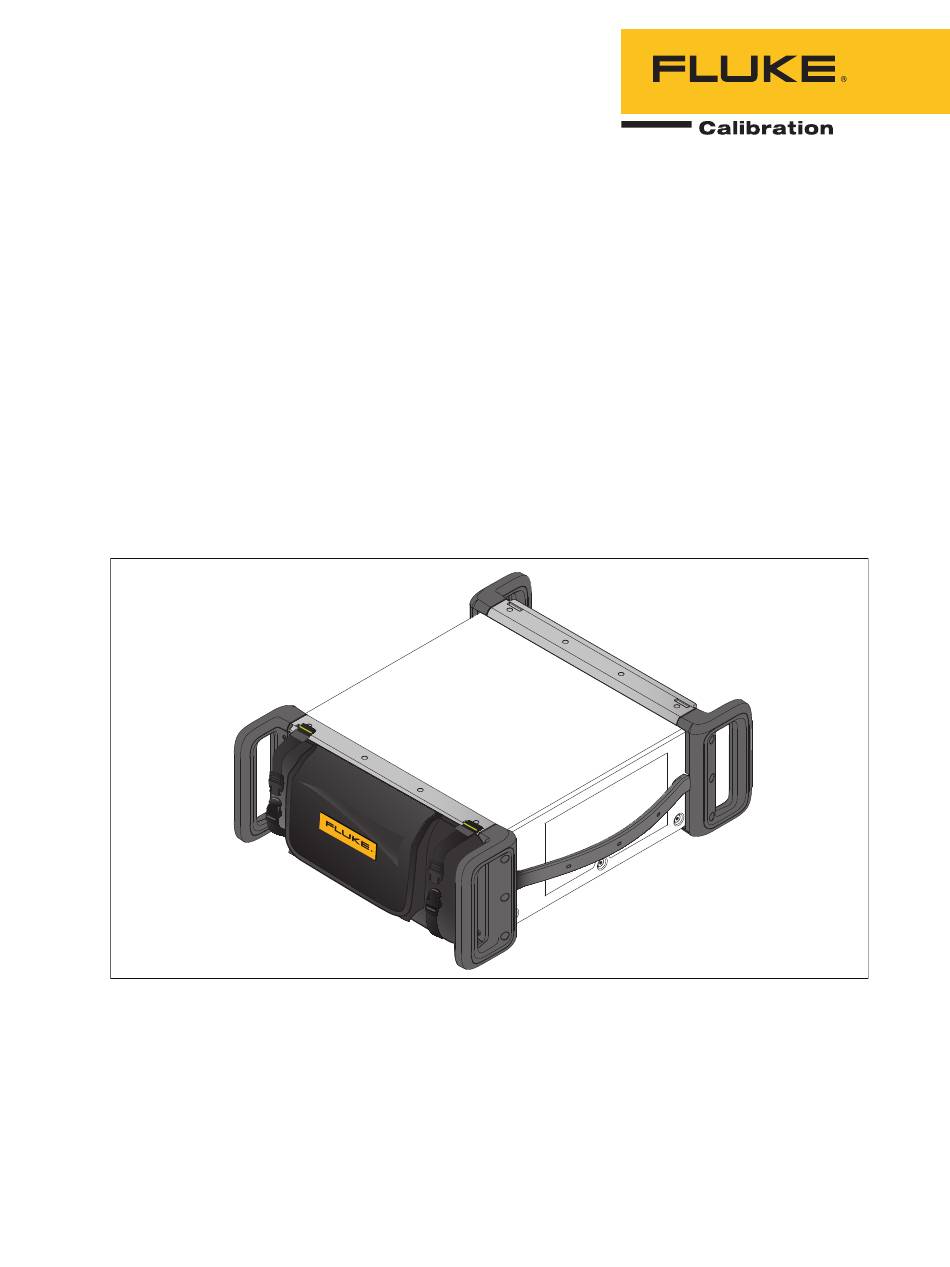

Figure 1. 55XXA Portability Kit (Installed)
55XXA
Portability Kit
Instructions
1
Advertisement
Related Manuals for Fluke 55 A Series
Summary of Contents for Fluke 55 A Series
- Page 1 Figure 1. 55XXA Portability Kit (Installed) *5310593* PN 5310593 April 2022 Rev. 1, 3/25 © 2022-2025 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
- Page 2 55XXA Instructions Contact Fluke Calibration Fluke Corporation operates worldwide. For local contact information, go to our website: www.fluke.com To register your product, view, print, or download the latest Users Manual or manual supplement, go to our website. Fluke Corporation 6920 Seaway Blvd.
- Page 3 Portability Kit Installation Installation When you install the Kit on the Product, do not remove too many screws from the Product at once. To do so can cause the Product covers to shift and make the Product come apart. To install the Kit on the Product, See Figure 1.
- Page 4 However, it is easier to attach the cover/pouch to the cross bar first. See Figure a. With the Fluke logo on the display cover/pouch facing you and right-side up, thread the ends of the two top straps through the top slots at of the cross bar.
