ASTA AS-P1022NW User Manual

Mono laser printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

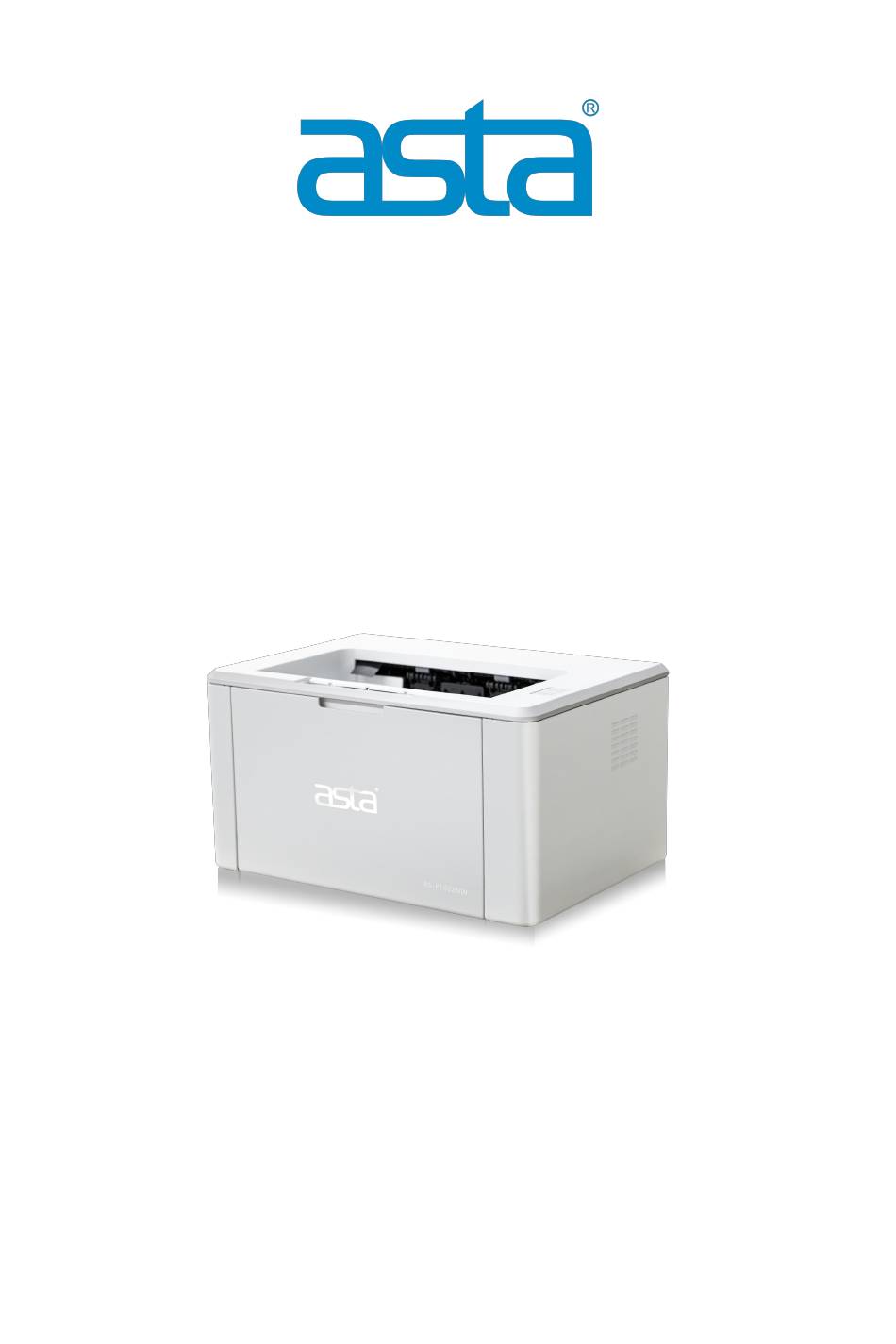

AS-P1022NW Mono Laser Printer
User manual
Before installation and using this product，please read this
manual。
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-P1022NW and is the answer not in the manual?

Questions and answers

Related Manuals for ASTA AS-P1022NW

Summary of Contents for ASTA AS-P1022NW

  • Page 1 AS-P1022NW Mono Laser Printer User manual Before installation and using this product，please read this manual。...
  • Page 2 Statement Welcome to use ASTA products. Before installing and using this product for the first time, please make sure to carefully read all the materials provided randomly, which will help you better understand and use this product. If you fail to...
  • Page 3 The purpose of this manual is to help you correctly understand and use ASTA products, and does not represent any explanation of the software and hardware configuration of this product. For product configuration information, please refer to the relevant contract with this product (if any) or consult the seller who sells the product to you.

  • Page 4: Table Of Contents

    目 录 1、Safety Instruction ..............1 1.1 Electrical Safety ............2 1.2 Installation Safety ............5 1.3 Operaion Safety .............7 1.4 Consumables Safety ............9 1.5 Harzardous substances ..........11 1.6 China Environmental Labeling Tips ......12 2、Normal Information ............13 2.1 Operation Panel Overview ..........
  • Page 5 4.3.3 Install the hotspot-mode wireless network printer driver ................. 42 4.3.4 Printer wired network configuration ....49 4.3.5 Printer hotspot configuration ......53 4.3.6 Printer wireless network configuration .... 54 4.3.7 Uninstall the printer driver ....... 56 4.3.8 Troubleshooting and support ......59 4.4 Installation instructions for the MAC driver ....63 4.4.1 Drive installation ..........63 4.4.2 Add a printer ............
  • Page 6 6.3 Print Settings ............. 110 6.3.1 Printer Properties-Layout ....... 110 6.3.2 Printer Properties-Paper / Quality ....112 6.3.3 Printer Properties-User table ......113 6.3.4 Printer Properties-Other settings ....114 6.3.5 Advanced Document Settings ......116 6.4 Cancel the print job ........... 117 7.

  • Page 7: 1、Safety Instruction

    1、Safety Instruction Before using this product, please carefully read the "Safety Instructions" to ensure safe use. This product and recommended consumables have been tested and can meet strict safety requirements, including safety agency approval and compliance with environmental standards. Failure to follow these instructions may increase the risk of fire, electric shock, burns, or suffocation.

  • Page 8: Electrical Safety

    If you are unable to connect the plug to the socket, please contact the local ASTA representative and replace the socket. Do not discard the function of the grounded plug.
  • Page 9 power cord. If the power cord is damaged or the insulated wire is exposed, please request replacement from the local photovoltaic representative. Caution Before cleaning this product, please turn off the machine  power and unplug the power plug. Working with the machine power on may cause electric shock.
  • Page 10 After turning off the power switch of this product, zero energy  consumption can only be achieved by unplugging the power plug.

  • Page 11: Installation Safety

    1.2 Installation Safety Warning Do not place this product in areas where the power cord may be stepped on or crossed by people. Friction and excessive pressure may cause heating and ultimately lead to electric shock or fire. Caution Do not place this product in the following places:： ...
  • Page 12 To maintain the good performance of this product, it should be used  under the following environmental conditions： (1) temperature：10-32℃ (2) temperature：20-80% When the product is placed in a low-temperature room and the room temperature rapidly rises through the heater, water droplets will form inside the product, causing partial loss of printed data.

  • Page 13: Operaion Safety

    1.3 Operation Safety Warning This product has a safety design and does not allow the operator to  contact the dangerous parts. Install cover or baffle with tools to limit operator contact. To avoid electric shock and injury, do not remove these covers or shields.
  • Page 14 Do not use conductive paper, such as origami paper, carbon paper or  coated with conductive layer. When paper occurs, the paper can cause a short circuit and eventually cause a fire. When cleaning this product, please use the special cleaning materials. The use of other materials may cause decreased performance.

  • Page 15: Consumables Safety

    Do not put the toner cartridge into the open flame. The remaining toner in the cartridge may catch fire, causing burns or explosions. If there is any toner cartridges no longer in use, please contact the local ASTA communication representative for processing.
  • Page 16 be careful not to let the toner touch the clothes, skin, eyes, mouth and other parts, and do not inhale the toner. If a toner is attached to your skin or clothes, wash it with soapy  water.

  • Page 17: Harzardous Substances

    1.5 Harzardous substances Harzardous substances Parts name Cr(VI) PBDE Plastic ○ ○ ○ ○ ○ ○ Metal ○ ○ ○ ○ ○ ○ Electrical Part × ○ ○ ○ ○ ○ PCBA × ○ ○ ○ ○ ○ Cable ○ ○...

  • Page 18: China Environmental Labeling Tips

    1.6 China Environmental Labeling Tips 1. It is recommended to place devices with noise levels greater than 63dB in relatively independent areas. 2. Recycled paper can be used. 3. When using or printing a large number of documents for a long time in a poorly ventilated room, ventilation should be done in a timely manner.

  • Page 19: 2、Normal Information

    2、Normal Information This chapter will introduce operation panel status information.

  • Page 20: Operation Panel Overview

    2.1 Operation Panel Overview 1、WLAN key WLAN Light： (1) The green light interval flashes for 1 second, indicating the device WLAN routing mode connection; (2) The green light is always on, indicating that the WLAN routing mode is normally connected; (3) The blue light flashes for 1 second interval, indicating the device WLAN hotspot mode connection;...
  • Page 21 (4) The blue light is always on, indicating that the WLAN hotspot mode is normally connected; (5) The indicator light is off, indicating that the device WLAN function is not on or the device is not on. The WLAN key function: (1) When the WLAN function is off, hold the key for more than 3 seconds to open the device WLAN function.(WLAN mode defaults to WLAN mode last closed)
  • Page 22 (4) When the red light is always on, indicating the equipment failure; (5) When the red light flashes for 1 second, the device is in the top cover open state, in the state of uninstalled or unrecognized toner, and in the state of stuck or missing paper; (6) When the red light flashes for 2 seconds, the device is in the state of insufficient toner;...
  • Page 23 (1) Press the "Recovery / Cancel key" for more than 3 seconds, and the device prints the configuration page. (2) Hold down the "WLAN key" and "Recovery / Cancel key" for more than 10 seconds to restore the factory setting of the device.

  • Page 24: Status Information

    2.2 Status Information Device status meaning information The device is cooling down. Cooling Please wait a few seconds or until the inside of the device has cooled completely. Canceling Device is canceling the job. Waiting The device is warming up. Printing The device is printing.

  • Page 25: 3、Product Specification

    3、Product Specification 3.1 General Specification Printer Model AS-P1022NW Printing Method Laser Printing AC 220 （ 1±10% ） V ， Power Supply 50Hz±1HZ Size Unit：mm * 330 ** 178 *** 220 Weight(Including Consumables) About 4.5kg Noise Work ≤58dB（A） Work 10℃ ～ 32℃...

  • Page 26: Media Specification

    3.2 Media Specification Plain、 Thin、 Thick、 Card、 Lable Paper Type 、Envelope A4，A5，A6，B5，B6，Letter Paper Size ，32k，16k，Custom：width： Paper Cassette 100-216mm； length： 148-356mm Input (standard) Paper Weight 60 ～ 163 g/m Maximum max 150 sheet of 70 g/m plain Paper papers Capacity Paper Paper Up to 100 sheets of 70 g/m plain paper (output...

  • Page 27: Print Specifications

    Print Specifications Automatic Duplex Printing Simulation Language Resolving Power Up to 600 dpi Printing Speed Single-Sided Printing 20 ppm First Page Printing Time No more than 8 seconds...

  • Page 28: 4、Quick Installation Instructions

    4、 Quick Installation Instructions 4.1 Installation Instruction 1、Remove the packagingand install the toner cartridge unit. Open the top cover Close the top cover remove the drum block...
  • Page 29 ！Attention： ☆No used packaging, in order to be recycled again, please deliver to the relevant local recycling company for processing. 2、Put the paper into the tray. Open the front cover adjust the paper baffle Load paper 3、Connect the power cord and press the equipment power key. ①connect the power cord ②press the power switch...

  • Page 30: Equipment Connnection

    4.2 Equipment Connnection 4.2.1 USB device connection When you select the USB connection mode, make sure to connect the computer to the device via the USB cable. 4.2.2 Wired network connection Connect the printer wired to the wireless router through the following steps.

  • Page 31: Wireless Network Connection

    4.2.3 Wireless network connection To connect the printer wirelessly to the wireless router through the following steps. 1. Wirelessly connect the printer to the wireless router; 2. Connect a computer or a mobile phone to a wireless router; 3. Use the printer assistant to add the printer on the computer, and add the printer through the software on the smartphone.

  • Page 32: Installation Instructions Of The Windows Driver

    1. Open the hot spots of the printer; 2. Connect a wireless network called "P1022NW_xxxx" on a computer or smartphone; 3. Use the printer assistant to add the printer on the computer, and add the printer through the software on the smartphone. 4.3 Installation instructions of the Windows driver This model printer applies to most Windows operating...
  • Page 33 Before installing, use the USB cable, connect the printer and the computer, and then power on the printer. When installation, if the Locate New Hardware Wizard dialog box, click Cancel. Turning off the prompt message " A problem occurred during the hardware installation. Your new hardware may not work properly ".
  • Page 34 2. One-click installation drive: select "Installing USB devic e" to realize the one-click installation drive. After the follo wing warning box appears, select Always Install this Driver Software.
  • Page 35 Wait for a while, prompt the installation is complete, click Install the local print driver successfully.
  • Page 36 3. Custom installation driver: if you use one-button installation, after installing the drive, you can skip this section. If you do not use one-click installation and want to try to customize the installation drive, you can click "Custom Installation". The following interface appears:...
  • Page 37 Check OEP2010NW, click Install, and after the following warning box, select Always Install this Driver Software.
  • Page 38 Wait for a while, prompt the installation is complete, click OK.
  • Page 39 Install the local print driver successfully. See below.
  • Page 40 Click the exit button to complete the installation of the local print driver.

  • Page 41: Install The Wired Network Or The Routing Mode

    4.3.2 Install the wired network or the routing mode wireless network printer driver The wired network mode is not available for all models, but only P1022NW models are supported. Please determine the product model before use. Before installing the wired network driver, connect the network interface between the computer and the printer with the network cable to power the printer and power it on to ensure that the printer network is under the same LAN as the computer.
  • Page 42 3、 One-click installation driver: select "Install Net / STA Equipment" to realize the one-click installation drive. After the following warning box appears, select Always Install this Driver Software.
  • Page 43 Wait for a while, prompt the installation is complete, click The Network printer driver was successfully installed.
  • Page 44 4、 Custom installation driver: If you use one-click installation, install the drive, you can skip this section. If you do not use one-click installation, if you want to try to customize the installation drive, you can click "Custom Installation". The following interface appears:...
  • Page 45 Failed to get the printer IP address! Please check your network connection, or consult with your network administrator. If you know the printer network IP address, you can enter it manually. Check P1022NW _ NET, click Install, and select "Always install this Driver Software".
  • Page 46 Successfully installed the network print driver, see the figure below.
  • Page 47 Click the exit button to complete the installation of the network print driver. If the drive installation fails, check that the cable is  connected properly, or try to replace a new cable.  After installing the printer driver, try not to change the name of the printer, otherwise it is easy to cause the drive unloading and reinstallation problems.

  • Page 48: Install The Hotspot-Mode Wireless Network Printer Driver

    4.3.3 Install the hotspot-mode wireless network printer driver Before installing the driver, install the local driver under "4.3.1" (if the local print driver is installed, you can skip this step). Use a USB cable to connect the computer to the USB interface of the printer and power it on.
  • Page 49 seconds to switch the printer wireless mode. When the WLAN button indicator is blue, the printer is in hot mode. 2. Connect the computer to the printer hotspot: The initial hotspot name is: P1022NW _ plus " MAC address The initial hot spot password is: 12345678 (To modify the printer hotspot, refer to "4.3.5 Printer hotspot configuration") 4.3.3.2 Hot-spot mode installation...
  • Page 50 2. One-click installation driver: select "Installing Wlan device" to realize the one-click installation drive. After the following warning box appears, select Always Install this Driver Software.
  • Page 51 Wait for a while, prompt the installation is complete, click The Network printer driver was successfully installed.
  • Page 52 3. Custom installation driver: if you use one-button installation, after installing the drive, you can skip this section. If you do not use one-click installation, if you want to try to customize the installation drive, you can click "Custom Installation". The following interface appears:...
  • Page 53 Failed to get the printer IP address! Please check your network connection, or consult with your network administrator. If you know the network IP address, you can manually. Check OEP2010NW _ WLAN, click Install, and after the warning box, select "Always install this driver software". Wait for a while, prompt the installation is complete, click OK.
  • Page 54 Click the exit button to complete the installation of the network print driver. [Special note]: 1. If the driver installation fails, please try to temporarily turn off the anti-virus software and related computer protection, and then restart the driver after the installation is completed.

  • Page 55: Printer Wired Network Configuration

    2. After the installation of the printer drive, try not to change the name of the printer, otherwise it is easy to cause the drive unloading and reinstallation problems. 4.3.4 Printer wired network configuration Before configthe printer wired network, make sure the printer is on the same network to build a WLAN connection.
  • Page 56 （2）If the wired mode DHCP in the information page is closed, set the IPV 4 in the computer network to manual input, and configure the computer network information according to the printer wired network information in the information page to make the computer and the same network segment of the printer.in compliance with: The printer wired network information in the information...
  • Page 57 The network address of the computer network IP should be the same network segment, and the IP of other PCs in the LAN should not conflict with the printer IP. 4、Enter the printer IP address in the computer browser to visit the Printer Management website.
  • Page 58 Administrator account number: admin Default password: 000000 6、 After successfully logging in to the administrator account, click the "Settings" button in the left navigation bar to enter the "Network Settings". 7、 Modify the printer wired network settings as required, and click Submit.

  • Page 59: Printer Hotspot Configuration

    ensure that the computer is under the same LAN connection, or you cannot continue access to the printer management website. 4.3.5 Printer hotspot configuration After the local printer driver has been installed correctly, you can configure and modify the printer hotspot information, such as modifying the hotspot name, hotspot password and encryption method, through the P1022NW WLAN Set Tool program in the Start menu.

  • Page 60: Printer Wireless Network Configuration

    4、Modify the hotspot name, the encryption method, and the hotspot password according to the usage needs. 5、Rule ine device IP address information, such as: IP 192.168.137.2 subnet mask 255.255.255.0 gateway 192.168.137.1 6、Click on OK to complete the printer hotspot configuration. 4.3.6 Printer wireless network configuration After the local printer driver is installed correctly, you can modify the printer wireless network information, connect the...
  • Page 61 the computer side web page, enter the printer management website into the wireless network information modification. (Note: The printer management website cannot switch the wireless network to which the printer is connected. If you need to modify the wireless network to which the printer is connected, please follow the following steps.）...

  • Page 62: Uninstall The Printer Driver

    following IP address" and define the printer IP address information according to the rules, such as: IP 192.167.17.100 subnet mask 255.255.255.0 gateway 192.167.17.1 5、Click "Settings" to complete the printer wireless network configuration. 4.3.7 Uninstall the printer driver Uninstalling the driver requires administrator permission, Please use the administrator account to log on to the computer.
  • Page 63 In the interface, check the printer driver to be unloaded, and click the uninstall button. The following prompts are displayed:...
  • Page 64 Click the "Yes" button and wait for a while, the uninstall will be completed:...

  • Page 65: Troubleshooting And Support

    Click the exit button, and the driver is unloaded. 4.3.8 Troubleshooting and support 4.3.8.1 Installing the network print driver cannot automatically obtain the IP problem...
  • Page 66 Some versions of Windows systems may cause the network printer to be unable to automatically obtain the printer IP address, which may be caused by the following aspects: The network connection between the printer and the  computer is abnormal. Check the cable connection status and try again.
  • Page 67 4.3.8.2 Drive installation failed problem If the driver installation fails, try to temporarily turn off the antivirus software and related computer protection, and then reopen after the driver is successfully installed. After the driver, do not change the name of the printer, otherwise drive uninstall or reinstall exception.
  • Page 68 4.3.8.3 Inconformity of the operation process The Windows system used in this section is Windows7 system, which is different from the system or system versions. For example, the Windows8 and the IP are different from the computer network, but the custom IP addresses are defined in the network attribute IPV 4.

  • Page 69: Installation Instructions For The Mac Driver

    4.4 Installation instructions for the MAC driver This model of printer is adapted to most Mac OS operating systems on the market. This chapter takes MAC OS 12.1 as an example to introduce the installation and uninstallation of P1022NW. 4.4.1 Drive installation Under the Mac OS system, double-click the driver package "astaprintdriver"...
  • Page 70 2. Click Continue to view the software license agreement. 3. If the software license agreement is popped up, please click "Agree". 4. Use the default installation location or manually select the installation location.
  • Page 71 5, input the computer installation device password, generally for the computer boot password. 6. When the installation is complete, click Close.

  • Page 73: Add A Printer

    4.4.2 Add a printer This model of printer supports USB connection, wired network connection, hotspot connection, and unwired routing connection. In the actual adding process, you can select the corresponding connection mode and add the printer according to the usage scenario. 4.4.2.1 Add a USB printer 1.
  • Page 74 4. Select "P1022NW" in the device list, and click "Select Software" in the "Use" option at the bottom of the add printer interface to select "ASTA P1022NW Laser Printer". 5. Click "Add" to complete the printer addition. 4.4.2.2 Add a wired network printer The default DHCP switch is turned on when the printer leaves the factory.
  • Page 75 3. Go down to find the "printer and scanner" and click "Add". 4. Select "P1022NW" in the device list, and click "Select Software" in the "Use" option at the bottom of the add printer interface to select "ASTA P1022NW Laser Printer". 5. Click "Add" to complete the printer addition.
  • Page 76 4.4.2.3 Add hot mode printer 1. Turn on the printer wireless switch: press the printer WLAN button for 3 seconds until the indicator light on the WLAN button starts. 2. Switch the printer to hot mode: Short press the printer WLAN button for 0.5 seconds to switch the printer wireless mode.
  • Page 77 6. Select "P1022NW" in the device list, and click "Select Software" in the "Use" option at the bottom of the add printer interface to select "ASTAP1022NW Laser Printer". 7. Click "Add" to complete the printer addition.
  • Page 78 4.4.2.4 Add a route-mode printer 1. Turn on the printer wireless switch: press the printer WLAN button for 3 seconds until the indicator light on the WLAN button starts. 2. Switch the printer to routing mode: Short press the printer WLAN button for 0.5 seconds to switch the printer wireless mode.
  • Page 79 6. Select "P1022NW" in the device list, and click "Select Software" in the "Use" option at the bottom of the add printer interface to select "ASTA P1022NW Laser Printer". 7. Click "Add" to complete the printer addition.

  • Page 80: Printer Wired Network Configuration

    4.4.3 Printer wired network configuration Before configthe printer wired network, make sure the printer is on the same network to build a WLAN connection. Access the IP address of the printer and enter the printer management website for configuration. 1、 The network cable connects the computer to the network interface of the printer, and the printer powers on and power 2、At the same time, press the printer wireless switch and power button for more than 2s, print the information page, and...
  • Page 81 （4）If the wired mode DHCP in the information page is closed, set the IPV 4 in the computer network to manual input, and configure the computer network information according to the printer wired network information in the information page to make the computer and the same network segment of the printer.in compliance with: The printer wired network information in the information page is as follows:...
  • Page 82 The network address of the computer network IP should be the same network segment, and the IP of other PCs in the LAN should not conflict with the printer IP. 4、Enter the printer IP address in the computer browser to visit the Printer Management website.
  • Page 83 5、Click the "Login" button in the upper right corner to log in Administrator account number: admin Default password: 000000 6、 After successfully logging in to the administrator account, click the "Settings" button in the left navigation bar to enter the "Network Settings".

  • Page 84: Printer Hotspot Configuration

    7、 Modify the printer wired network settings as required, and click Submit. 8、After the printer wired network information is modified, you need to reconfigure the computer network IPV 4 information to ensure that the computer is under the same LAN connection, or you cannot continue access to the printer management website.
  • Page 85 1. Use the matching USB cable, connect the printer and the computer, and then turn on the printer power supply. 2. Find and open the "ASTA status Monitoring" in the computer application list. 3. Find and select the USB-connected device in the list of status monitoring printers.

  • Page 86: Printer Wireless Network Configuration

    After the printer driver is installed correctly, you can connect the printer to an available wireless network or switch to the wireless network through the ASTA Status Monitoring application. You can also access the printer IP address through the computer side web page, enter the printer management website into the wireless network information modification.
  • Page 87 1. Use the matching USB cable, connect the printer and the computer, and then turn on the printer power supply. 2. Find and open the "ASTA status Monitoring" in the computer application list. 3. Find and select the USB-connected device in the list of status monitoring printers.
  • Page 88 5. Select the wireless network to join in the hot spot list and enter the password. 6. When the IP acquisition mode is "DHCP", there is no need to configure the IP address manually. If you need to manually configure, select "Manual setting" and define the device IP address information according to the rules, such as: IP 192.167.17.100 subnet mask 255.255.255.0...
  • Page 89 7. Click "OK" to complete the wireless network configuration of the printer.

  • Page 90: Troubleshooting And Support

    4.4.6 Troubleshooting and support 4.4.6.1 Inconformity of the operation process The system version used in this section is Mac OS 12.1. There will be some differences in the specific operation process and operation interface between different system versions. If users have any questions during the use process, please contact the system provider or the sales personnel or after-sales personnel.

  • Page 91: App Software Installation Instructions

    4.5 App software installation instructions 4.5.1 App installation Android phone users can search for "ASTA Printing" through the Android App Market (Tencent App Bao) to download and install it. IOS mobile phone users can download and install it by searching for "ASTAPrint" in "App Store".

  • Page 92: App Quick Start Instructions

    4.5.2 App Quick Start Instructions 4.5.2.1 Home page The home page of the APP is the device management interface, which can quickly add a printer, view the status of the device, edit and delete the device. Add a printer and refer to "4.5.3 Add a printer".
  • Page 93 The printing module is mainly divided into single photos, photos, documents, photos, web pages and ID card printing. 1. A single photo...
  • Page 94 It allows a single photo to be rotated, cut, color value adjustment, filter and other editing operations, and print the edited photo. 2. Photos Multiple photos can be printed, and up to nine photos can be selected. 3. Documents You can print the word, excel,, ppt, txt, and pdf documents in the phone.
  • Page 95 5. Web pages You can type in the website to print the web page. 6, ID card printing You can take the front and back of the ID card and print the ID card. App printing instructions can refer to the "eight, App printing job"...

  • Page 96: 3, To Add A Printer

    You can jump to the official website of ASTA, and provide some common fault handling methods. 2. Service and support Provide official service WeChat and official service hotline of ASTA. 3. Configure the network (1) Printer hotspot setting When the printer is in hotspot mode, you can set the hotspot name, hotspot password, and encryption mode.
  • Page 97 1. Turn on the printer wireless switch: press the printer WLAN button for 3 seconds until the indicator light on the WLAN button starts. 2. Switch the printer to hot mode: Short press the printer WLAN button for 0.5 seconds to switch the printer wireless mode.
  • Page 98 4.5.3.2 Add a WLAN router-mode printer Before adding a WLAN router mode printer, make sure that the phone and the printer are connected to the same wireless network to build a LAN connection. To setting the printer wireless network, refer to 4.5.4 Printer Network Settings.

  • Page 99: Printer Network Settings

    network first.(To setting the printer wireless network, refer to "4.5.4 Printer network setting") 4. Click "Quick Add" - "WLAN mode" on the home page of the App. 5. Select the available devices in the equipment list. 6. When the addition is completed, the App homepage will display the device information.
  • Page 100 consult the "4.5.3.1 Add WLAN hotspot printer" before adding the printer network setting. If the printer is connected to the wireless network, the current wireless network information is displayed by default when entering this page. 1. After successfully adding the printer, click "Settings" in the navigation bar at the bottom of the App to enter the Settings page.
  • Page 101 3. Click the network name, the App will enter the network search interface, select the wireless network to be connected to in the network list, and enter the password. 4. If you need to manually configure the printer IP address, you can click Advanced Settings and manually input the printer IP address, default gateway and subnet mask.

  • Page 102: Paper Conditioning

    5. paper conditioning This chapter will introduce a series of settings including the paper type and paper loading method supported by this product.

  • Page 103: Load The Paper

    5.1 Load the paper 5.1.1 Load into the tray When loading other paper sizes in the tray, you must also change the paper size settings on the computer. 1. Open the front cover. 2. Press and slide the paper baffle to adjust the size of the paper used.
  • Page 104 3. Expand the stacked paper fully. 4. Install the paper and make the print face up. Note: Please make sure that the four corners of the paper in the tray are flat. Be careful not to load too much paper. Too much paper will lead to paper jam.
  • Page 105 8. Send the print jobs to the device.

  • Page 106: Paper Setting

    5.2 Paper setting 5.2.1 Change the paper size and paper type When loading other sizes and types of paper in the tray, you must change both the paper size and paper type settings of the software.

  • Page 107: Use Of Special Paper

    5.2.2 Use of special paper Samples must be tested to ensure desired printing. Do not use inkjet paper as it may cause paper jamming or damage to the equipment. Using coated paper, rough paper, wrinkled paper, or crease paper, the printing quality may be reduced. Store the paper in the original package and seal it.
  • Page 108 If any of the above papers is used, the equipment may be damaged. The damage caused by this is not within the scope of the warranty service of Shenzhen ASTA Co., LTD.

  • Page 109: Windows Printing Job

    6. Windows printing job Before printing the document, you should read the first five chapters and install the printer driver. The Word document in Microsoft Office 2013 under the Windows 7 operating system, shown below, describes how to print a document using a printer. 6.1 Start the printer 1.
  • Page 110 2. In the Print dialog box, click the Printer drop-down list box and select P1022NW. 3. Make sure you have the right size of paper in the tray. 4. Select the desired print page in the page range. 5. Enter the number of pages required in the page number segment.
  • Page 112 7. Select the source and paper type of the paper in the [Paper / Quality] of [Printer Properties]. 8. Set the custom paper size in the [User Table] of the [Printer Properties].
  • Page 113 The user sets and adds the custom size according to the actual requirements, returns to the [print] option, and select the custom size in the paper type. 9. Select double-sided printing, zoom printing and add watermark printing in [Other Settings].
  • Page 114 [Special Note] If the user needs double-sided printing, you can only set "manual double-sided printing" in [Other Settings]. Remember to prohibit double-sided printing in [Printing] option [Settings].
  • Page 115 After the printer has completed all the single-sided printing, please take out the printed paper and put the printed side down on the paper tray, and click the [Start] button of the printer to complete the printing on the second side. 10.

  • Page 116: Print Settings

    11. Change other printer settings if necessary. 12. Click OK. 13. Complete the printing operation. 6.3 Print Settings 6.3.1 Printer Properties-Layout 1. Direction...
  • Page 117 Select the direction of the printout (vertical or horizontal). 2. Page order Select the print order of all the pages for each task, supporting front to back and Back to back. 3. Page format Set the number of pages required to print per paper.

  • Page 118: Printer Properties-Paper / Quality

    6.3.2 Printer Properties-Paper / Quality 1. Paper source Select the paper source settings based on the print condition or intent. 2. Media...

  • Page 119: Printer Properties-User Table

    Select the type of media that you want to use. For best printing, the device automatically adjusts the printing settings for the selected media type. 6.3.3 Printer Properties-User table 1. Customize the page The user sets and adds the custom size according to the actual requirements, returns to the [print] option, and select the custom size in the paper type.

  • Page 120: Printer Properties-Other Settings

    document, otherwise the new added paper size will not take effect immediately. [Special tip] Custom page size can be found in the "P1022NW" device in the system [Control Panel] - [Hardware and Sound] - [Device and Printer], right mouse click [Printer Properties], and do the same operation setting in the "User Table"...
  • Page 121 Set up double-sided printing, support "long side flip" and "short side flip". 2. Scaling options Size the page by adjusting the zoom ratio. 3. Watermark Here you can set up watermark printing.

  • Page 122: Advanced Document Settings

    6.3.5 Advanced Document Settings 1. Paper specifications Select the paper type. 2. Number of copies Set the number of printed copies. 3. Advanced printing function Turn advanced printing on or off. 4. The number of pages printed on each paper Support from right then Down, from Down then Right, From Left then Down, from Down then Think Left.

  • Page 123: Cancel The Print Job

    6. Turn it for 180 degrees Select this feature to rotate the print content by 180 degrees. 6.4 Cancel the print job Hold down the printer panel Recovery / Cancel key for more than 3 seconds to cancel the current print job.

  • Page 124: Mac Printing Job

    7. MAC printing job 7.1 Start the printer 1. Ensure that the power cord and USB cable are connected correctly. 2. Start up the computer. To install the printer driver, see the 4.4 MAC Driver Installation Instructions. 3. Turn on the printer power switch. Make sure to start the computer and then start the printer, otherwise it may cause the computer to recognize the printer.
  • Page 125 2. In the [Printer] column, you can select the printer "ASTA P1022NW". The lower option can set the printing parameters. [Number of copies] One column can adjust the number of printing jobs and the setting of double-sided printing. [Number of pages] One column can set the page number range of the printing job: you can print all the text, the current page, and you can also set the print range by yourself.

  • Page 126: Cancel The Print Job

    Check the double-sided printing, issue the printing task, when the printer queue appears: " Please put the printed paper into the tray, and click the restore / cancel button, please do not long press!"After being prompted, please manually remove the printed paper and put it back into the tray, and click the [Recovery / Cancel] button of the printer to complete the printing on the other side.

  • Page 127: App Printing Job

    8.1 Start the printer 1. Ensure that the printer power cord and network connection are normal. 2. Open the "ASTA Printing" software of the mobile phone, and add the printer correctly (please refer to the "4.5 App Software Installation Instructions").
  • Page 128 2. Choose the content to be printed as required. 3. Click the "Print" button in the upper right corner to enter the print preview interface.
  • Page 129 4. Click "Settings" in the lower left corner to set the printing parameters.

  • Page 130: Cancel The Print Job

    5. Enter the required number (1~999). 6. Choose whether to print part by copy. 7. Select the print color mode. 8. Select the number of pages per page in the page layout. 9. Select paper source, paper type and paper size. 10.

  • Page 131: Troubleshooting

    3. Whether the paper has been correctly put into the tray. 4. Whether the cable is correctly connected to the equipment and the computer. 5. Check the device status displayed in the ASTA status monitor on the computer.

  • Page 132: Jam

    9.2 Jam If paper jam occurs during printing, please follow the fault information displayed by the status monitor of the device. fault cause measure message When printing on the paper sent from Pick-up the tray, the printing sensor does not Check the tray to detect the passage of the paper or the level or place the...

  • Page 133: Jam In The Tray

    paper sensor is still in the state of the remove card paper passing paper The machine did not detect the toner toner No drum cartridge cartridge The machine detects a cartridge life Replace Toner out exhaustion toner cartridge 9.2.1 Tray Jam 1.
  • Page 134 3. Remove the paper. Pull out the stuck paper with both hands, can easily remove the paper. 4. Install the toner cartridge and close the front cover.

  • Page 135: Internal Jam

    9.2.2 Internal Jam If the status monitor of the device shows the jam position inside the device, perform the following steps: 1. Open the top cover. 2. Remove the toner cartridge unit. 3. Slowly pull out the stuck paper.
  • Page 136 4. Install the toner cartridge unit into the equipment. 5. Close the front cover.

  • Page 137: Daily Maintenance

    10.Daily maintenance This chapter solves your daily maintenance problems during use and helps to extend the service life of the printer. When product maintenance or repair needs to replace parts, there are unnecessary circuit boards and electronic parts, and when products are discarded, please be treated as electronic waste.
  • Page 138 3. Remove the toner cartridge unit from the equipment. 4. Open the packaging of the new toner cartridge. 5. Put the new toner cartridge into the machine.

  • Page 139: Clean The Equipment

    6. Close the top cover of the machine. 10.3 Clean the equipment Please use soft dry cloth to regularly clean the exterior and interior of the equipment. Make sure you clean the inside of the unit. If the printed page is stained with toner, clean the inside of the device. Warning No flammable articles, any type of spray or organic solvent / liquid containing alcohol or ammonia to clean the inside or...

  • Page 140: Clean The Toner Cartridge Unit

    ！Attention： Do not wipe the dust from the operating panel as it may break the panel. To avoid printing quality issues, do not touch the shadows shown in the figure below. 10.3.1 Clean the toner cartridge unit 1. Turn off the equipment power. 2.
  • Page 141 4. Flip the toner cartridge to the other side as shown in the figure below. Make sure that the gear of the cartridge unit is located on the left. 5. Please gently wipe the surface of the toner cartridge with a dry cotton swab until the mark is completely removed.
  • Page 142 Do not clean the photosensitive toner surface with sharp objects or any liquid. 6. Install the toner cartridge unit back into the equipment. 7. Close the device top cover.

  • Page 143: Clean The Paper Rubbing Roll

    10.3.2 Clean the pick-up roller 1. Turn off the equipment power supply. 2. Open the front cover. 3. Open the top cover. If there is paper or something stuck in the tray, remove it. 4. Remove the toner cartridge.
  • Page 144 5. Twist dry the non-free cloth soaked in warm water and wipe the dust on the paper roll and the paper and the separation pad inside the equipment.
  • Page 145 6. Reload the toner cartridge and close the top cover. 7. Power on the device...

Table of Contents
