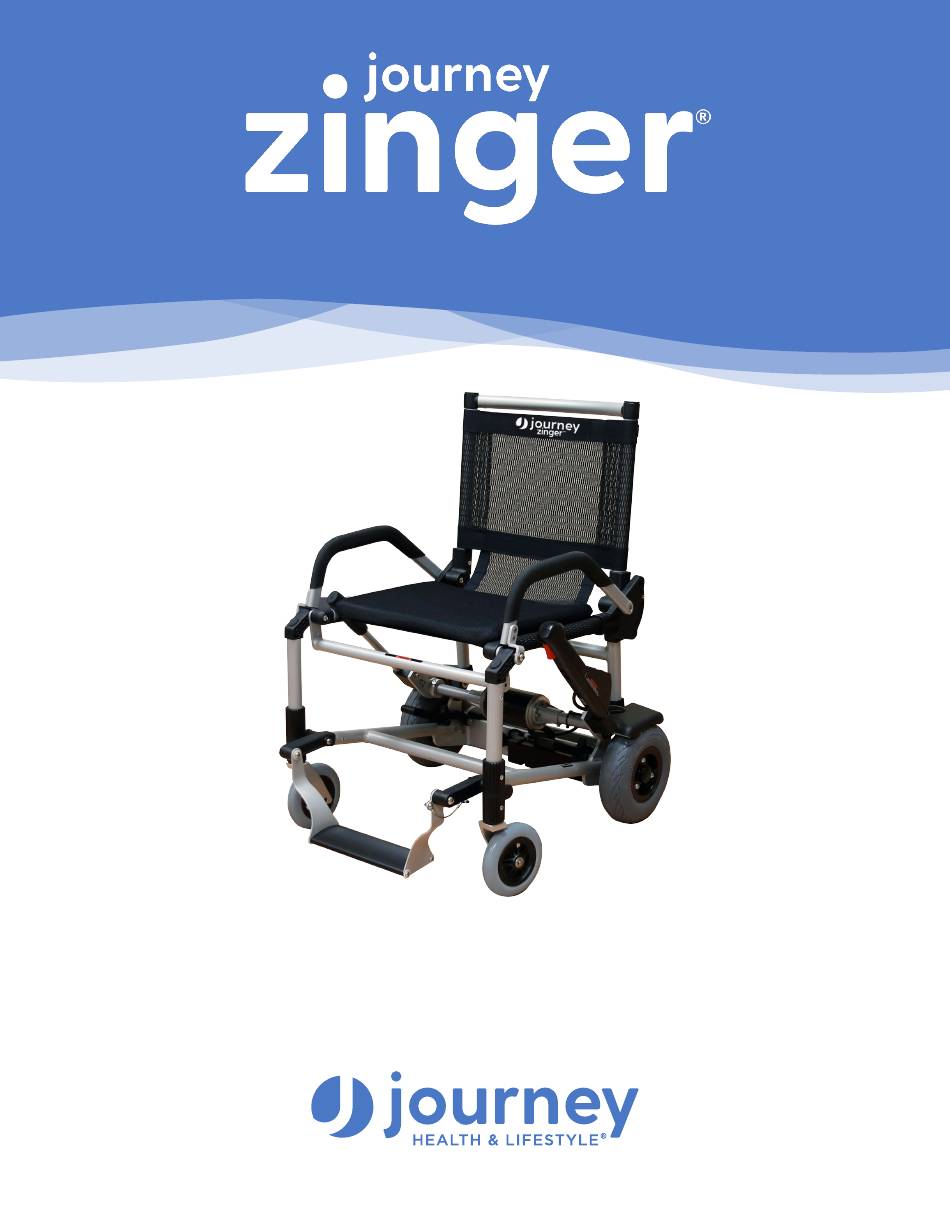

PRODUCT MANUAL
Z I N G E R
Attention: The Zinger operates by a two lever traction control system which behaves very differently
than front wheel steered vehicles. For this reason it is imperative that all users read this entire manual
before operating a Zinger. Pay close attention to all WARNING sections in this manual as well as labels
on the Zinger itself. Available exclusively from Journey Health & Lifestyle.
www.shopjourney.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Journey ZINGER
Summary of Contents for Journey ZINGER
- Page 1 For this reason it is imperative that all users read this entire manual before operating a Zinger. Pay close attention to all WARNING sections in this manual as well as labels on the Zinger itself. Available exclusively from Journey Health & Lifestyle.
-
Page 2: Table Of Contents
Getting In and Out of the Zinger � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �... - Page 3 Zinger Chair Limited 12 Month Warranty � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �...
-
Page 4: Introduction
See callout 19 on page 10� It is also printed on one end of your Zinger box� You will need this number if your Zinger ever requires service or replacement parts� Please keep a record of your serial number by writing it and your date of purchase in the space provided below�... -
Page 5: Safety Messages & Warnings
This symbol identifies special instructions or procedures which, if not strictly observed, could result in damage to, or compromised performance of the Zinger� For your safety and the wellness of your Zinger it is important that you read each Caution carefully�... -
Page 6: Safety Warnings
W A R N I N G The Zinger may be fun to drive, but it is not a toy� The Zinger is NOT intended for sports, stunts, or tricks of any kind� Always operate in a mature, cautious manner keeping in mind that the Zinger is an adult mobility vehicle, not a toy�... - Page 7 Do not attempt to haul cumbersome or heavy items� Do not attempt to walk a dog or any animal on a leash while riding a Zinger� The animal can easily cause loss of control by even a slight tug on the leash�...
- Page 8 Do not smoke (including vapor products)� Smoking, presents cause to remove hands from the Control Levers among other dangers� Never modify your Zinger or install parts or accessories not provided by the Manufacturer� Do not operate if the rear anti-tip wheels are removed or broken�...
-
Page 9: Location Of Parts & Labels
Charge Port: Charge though this port with the battery in or out of the chair� Motor: No maintenance Seat Back Bar: Use this to push the Zinger manually with the parking brakes off� Seat Front Cross Tube Parking Brake Levers... - Page 10 3. LOCATION OF PARTS & LABELS...
-
Page 11: Operating Surfaces And Conditions
Avoid unnecessary stopping or turning on any non-level surface� If you must exit the Zinger on a grade, set both parking brakes, turn the Power to Off (Pg� 20), exit the seat and push the Zinger past the grade� The Zinger provides light resistance to rolling backwards when the motor is off but always set the parking brakes before exiting�... -
Page 12: Wet Conditions
W A R N I N G Do not drive the Zinger close to a sidewalk edge, street curb, stairs, or drop off of any kind� Do not attempt to cross over curbs or gaps greater than two inches�... -
Page 13: Before You Ride
Before You Ride First inspect the carton for damage� Next slide the Zinger out of the carton and remove all wrapping and packaging materials from the Zinger� Again check for damage� If damage is evident, report to your carrier immediately�... -
Page 14: Battery Installation, Removal, And The Battery Lock
The Battery Lock Key can be removed to lock the battery into the chair for theft prevention of the Battery, but the Zinger has no key to lock the power off� To prevent unwanted riders from zinging off on your Zinger, either remove the battery, or when leaving it unattended in a public place, lock it to a fixed object by wrapping a bicycle lock through the lower frame tubes�... -
Page 15: Unfolding For Riding
(which works fine if you prefer), the following method of unfolding and folding is designed to minimize the need for you to bend to the floor. If the Zinger is already lying on the floor, first lift it by the Seat Back Bar then grab the seat front cross tube with your other hand as described here�... -
Page 16: Folding From The Open Condition
Notice the Front Caster Wheel circled in this photo� Your Zinger is now ready to be toted by rolling it along on the Anti-Tip Wheels or laid down as described in the next section� To carry it, refer to the section Carrying and Standing the Zinger on page 25�... -
Page 17: Laying The Zinger Down
You will hear the have lifted far enough on There are many occasions in which you will need to lay the Zinger on the floor. First fold the Zinger as described on the previous page� Next lower the Seat Back There are many occasions in which you will need to lay the Bar until the Front Caster Wheels begin to contact the ground�... -
Page 18: Getting In And Out Of The Zinger
First ensure that both parking brakes are set and the power is OFF (Pg� 20)� While the Zinger resists rearward rolling, it can still roll if the Parking Brakes are not set� For this reason avoid leaning back on the chair as you enter and exit it�... -
Page 19: Control Panel
Indicators below will light when Power Butto NOTE: It's helpful to sit in the Zinger while reading this Power Button It's helpful to sit in the Zinger while reading this (Press and w (Press and wait three seconds. -
Page 20: Power Button
NOTE: If the critical low warning occurs while driving (red light on, other three flashing) do not panic. Stop when it is safe, turn the Zinger off and back on, and wait 20 seconds to make a reading. A long hill climb or driving in grass... -
Page 21: Variable Speed Trigger
Speed Range Selection Referring back to the Control Panel photo: Every time the Zinger is turned on it will be in the Forward Low Speed Range� Pressing the Speed Range Selector Button (turtle / rabbit) steps the speed range from LOW (indoor use) to MEDIUM (walking pace) to HIGH (up to 6 MPH) and back to LOW again�... -
Page 22: To Stop Or Slow Down
This will disengage the drive rollers from down. Then gently squeeze the Var disengage the drive rollers from the wheels while slowing the Zinger in a straight the wheels while slowing the Zinger in a straight line until start the motor and vary the speed. -
Page 23: To Turn Left
Practice turning and braking in LOW speed through the turn� range until controlling the Zinger power through the turn. range until controlling the Zinger becomes reflexive. power through the turn. range until controlling the Zinger becomes reflexive. becomes reflexive. -
Page 24: Backing Up
5. BEFORE YOU RIDE Once you feel confident in your ability to start, stop and steer your Zinger, find an open space to try Medium Speed Range as described in the section entitled Speed Range Selection on Page 21� W A R N I N G Do not skid the wheels�... -
Page 25: Storing And Handling The Zinger
To move your Zinger without riding in it, it is usually easiest to roll it in front of you with the Zinger in its unfolded position by pushing on the Seat Back Bar. But to carry your Zinger up steps or for other reasons, your Zinger can be conveniently carried in one hand like a suitcase. -
Page 26: Loading Into A Car
See Laying the Zinger the open trunk and lay it down with the seat back bar nearest the car bumper. See Laying the Zinger Down on page 14. Follow the open trunk and lay it down with the seat back bar nearest the car bumper. -
Page 27: Adjusting The Lever Reach
If you feel that you are straining to reach down to operate the levers you can adjust them up. Or if you feel that you’d prefer the levers further away, you can adjust them down. You will need the 5mm Hex Key that came with your Zinger to do this. See photos Adjusting the Lever Reach below. -
Page 28: Care And Maintenance
Keep your Zinger clean by wiping dust and grime off with a clean damp or dry cloth� Do not wash your Zinger with a hose or a sponge and soapy water as you might do to a bicycle� The Control Handle, Battery and Motor area should be kept dry at all times�... -
Page 29: Specifications
9. SPECIFICATIONS Overall Weight 42 lbs (19 Kg) (38 lbs with battery removed) Dimension L x W x H 31 (785) x 25 (645) x 35 (889) - in� (mm) Folded L x W x H 36 (921) x 25(645) x 10 (254) - in� (mm) Seat Bottom D x W x H 15 (380) x 16.5 (419) x 19 (485) measured from floor Maximum User Weight... -
Page 30: Airline Travel
(Watt Hours) for “passengers whose mobility is restricted by either disability, their health or age, or a temporary mobility problem (e�g� broken leg)”� The Zinger battery is 240 Wh and marked with a label on the outside of the case stating this�... -
Page 31: Troubleshooting
Press once, wait 3 seconds for the indicators to light, it they don’t press again and wait 3 seconds� The Zinger will shut Off automatically after 10 minutes of non-use� To turn back On, press the Power Button, wait three seconds, press it again� See Pg� 20 Auto Shut Off�... -
Page 32: Zinger Chair Limited 12 Month Warranty
(6) months from the original purchase date� If within such warranty period any such component or part shall be proven to Journey Health & Lifestyle’s satisfaction to be defective, the product shall, at Journey Health & Lifestyle’s option, be repaired or replaced with new or refurbished product components�... - Page 33 12. WARRANTY This warranty applies in North America only and is extended only to the original purchaser of the Zinger product when purchased directly from Journey Health & Lifestyle (USA) and is nontransferable. This warranty give you specific legal rights and you may also have other legal rights which vary from place to place�...
- Page 34 If you have any questions, call us at our toll free number: 1-800-958-8324...
