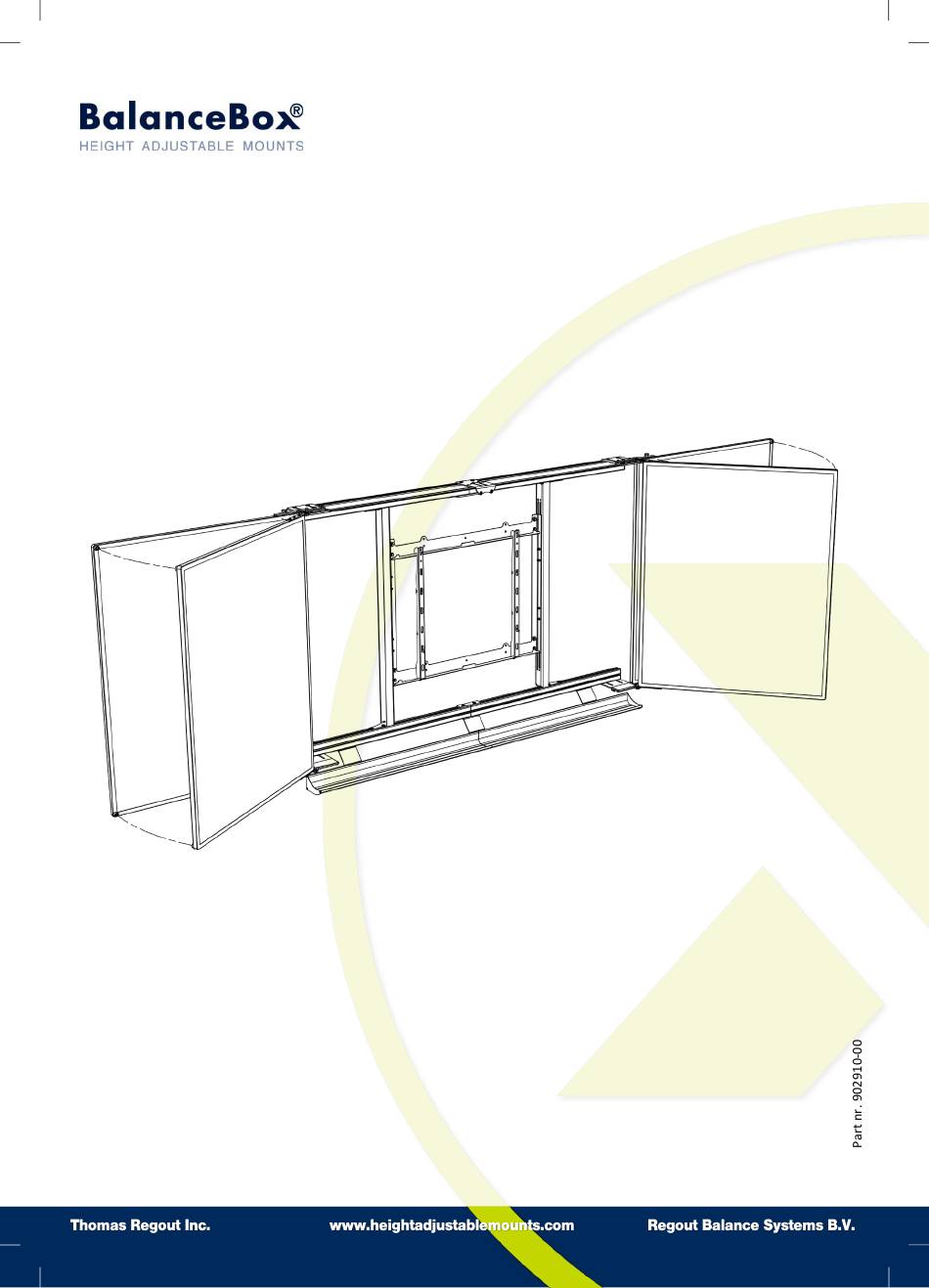

- Page 1 All manuals and user guides at all-guides.com order number: 481A7x Wings Whiteboard solution for the BalanceBox®650 Installation manual...
- Page 2 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Safety Instructions Tools needed Needed contents for VESA assembling (10x) Mount the VESA bracket onto the BalanceBox®650; Use the M6x16 bolts...
- Page 3 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Mount the VESA bracket onto the screen, you may need a spacer-set Select the type of screw specified by your screen, M6 or M8 or M10 Mount the screen onto the BalanceBox®650 and align in the middle...
- Page 4 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Mount the left and right profile brackets. Mount the straight side to the front, see detail B DETAIL B The top side of the profile brackets must Use the slot holes marked with “1”...
- Page 5 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Needed contents for pre-assembling the upper aluminum profile (* Only for Wings-6) Pre-assemble the upper aluminum profiles; Insert one hinge on top of each profile, Align the hinges with the end of the aluminum profile and tighten the screws (* Only for Wings-6)
- Page 6 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Insert one connector plate in both profiles at the underside of the profiles, insert one connector set and the the stop plate in the left profile...
- Page 7 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Assemble the aluminum profiles together with the dowel pin, they must align seamlessly, slide the connector set at the underside and the stop plate at the top to the middle of the two profiles and tighten the screws...
- Page 8 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Needed contents for pre-assembling the lower aluminum profile (* Only for Wings-6) Pre-assemble the lower aluminum profiles including the pen tray; Insert one hinge at the bottom of each profile, Align the hinges with the end of the aluminum profile and tighten the screws (* Only for Wings-6)
- Page 9 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Insert one connector plate in both profiles at the top side of the profile, Insert one connector set in the left profile at the top side of the profile...
- Page 10 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Insert two pen tray brackets in the left profile at the underside, Insert one pen tray bracket in the right profile at the underside...
- Page 11 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Assemble the aluminum profile together with the dowel pin, they must align seamlessly, slide the connector set at the top and the middle pen tray bracket to the middle of the two profiles and tighten the screws.
- Page 12 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Mount the pen tray; slide in the pen tray profiles, one form the left and one from the right, they must align seamlessly together. When aligned tighten the screws...
- Page 13 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Align the pen tray with the middle of the aluminum profile, when aligned tighten the screws...
- Page 14 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Put the pre-mounted upper aluminum profile on top of the profile brackets, make sure the hinges are on top. Slide the connector plates at the bottom of the aluminum profile in front of the holes of the profile brackets. Insert the screws and align the pre-mounted profile with the middle of the screen.
- Page 15 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Align the height of the profile carriers, make sure the hinges sitting on top of the screen. First loosen the screws, align, when aligned tighten the screws...
- Page 16 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Mount the pre-mounted lower aluminum profile underneath the profile brackets, make sure the hinges are at the bottom. Slide the connector plates at the top of the aluminum profile in front of the holes of the profile brackets. Insert the screws.
- Page 17 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Mount the whiteboards; Wings-4: go to step 20! Wings-6: go to step 21! Mount the 2 white boards, each with 6 screws and close the white boards; Go to step 23! (Both sides!)
- Page 18 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Mount the 2 front white boards, each with 6 screws and close the white boards. Go to step 22! (Both sides!)
- Page 19 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Turn the back hinges forward and mount the 2 white boards. Each with 4 screws, leave the middle hole free (Both sides!)
- Page 20 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Open the white boards. Mount the lock knobs in the middle holes of the back white boards (4x)
- Page 21 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Adjust the hinges so that the white boards align parallel with the screen Adjust the stop plate...
- Page 22 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Stick the rubber bumpers onto the white boards as shown Adjust the BalanceBox®650 according to the BalanceBox®650 manual...
-
Page 23: Contact Information
All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Notes Contact information: Regout Balance Systems B.V. Thomas Regout Inc. Industrieweg 40 1445 Londonderry Drive 6219 NR MAASTRICHT Woodstock 30188 GA The Netherlands United States of America... - Page 24 All manuals and user guides at all-guides.com Wings Whiteboard solution for the BalanceBox®650 Thomas Regout Inc 1445 Londonderry Drive Woodstock 30188 GA USA Regout Balance Systems B.V. Industrieweg 40 6219NR Maastricht The Netherlands...
