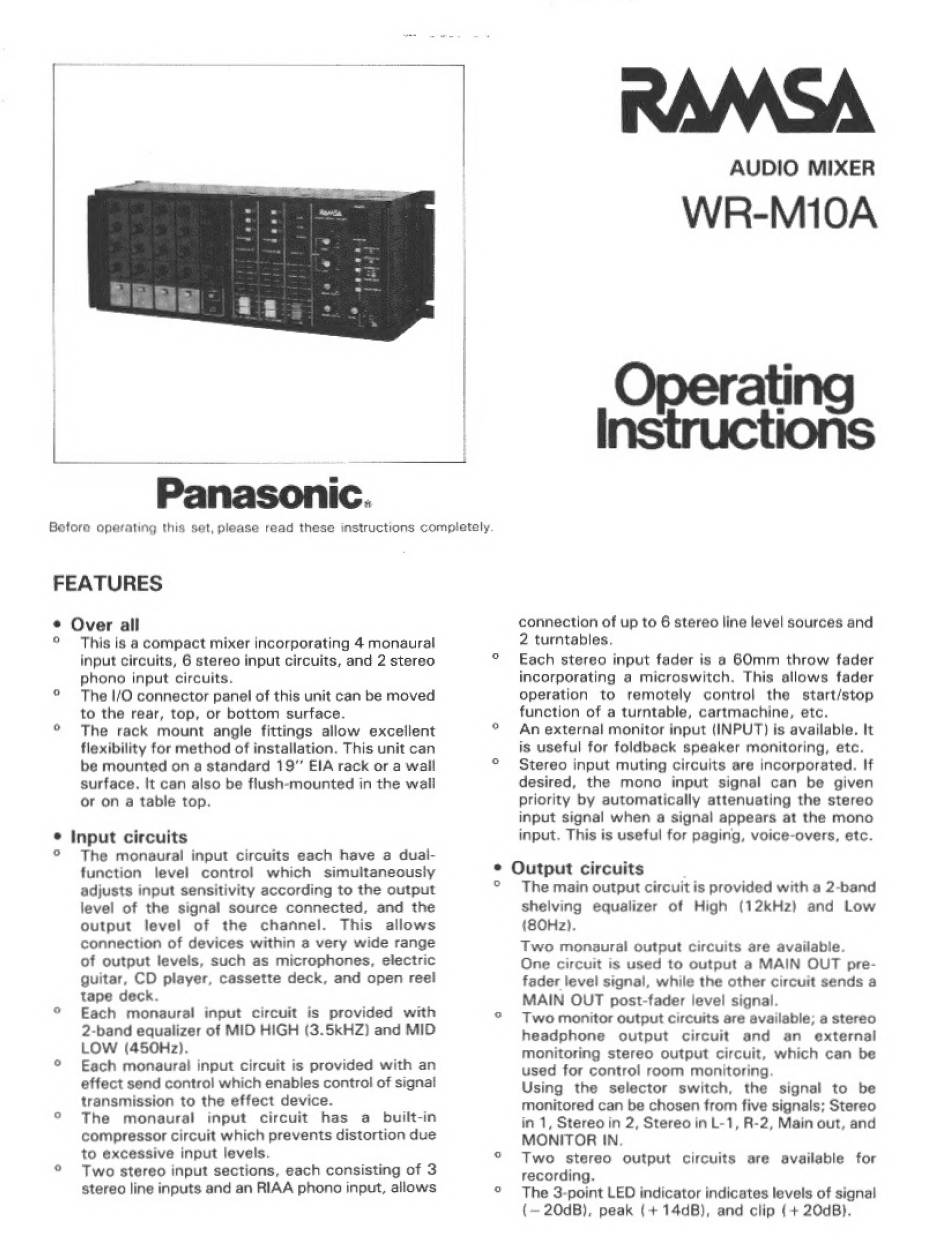

Panasonic RAMSA WR-M10A Operating Instructions Manual

Before operating this set, please read these instructions completely.
FEATURES
: Over all

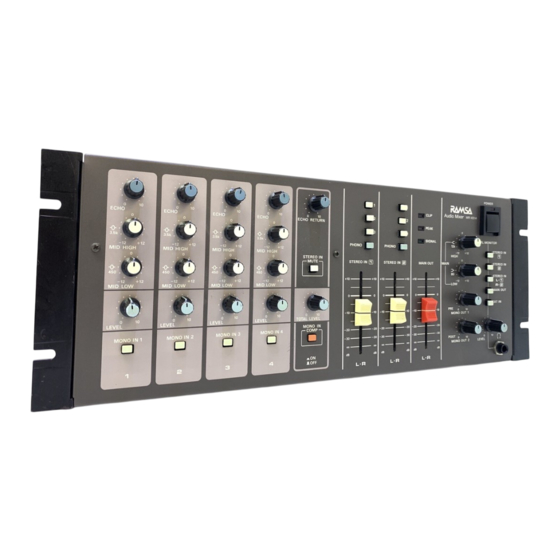

This ls a compact mixer incorporating 4 monaural
input circuits, 6 stereo input circuits, and 2 stereo
phono input circuits.
The I/O connector panel of this unit can be moved
to the rear, top, or bottom surface.
The rack mount angle fittings allow excellent
flexibility for method of installation. This unit can
be mounted on a standard 19" ElA rack or a wall
surface. It can also be flush-mounted in the wall
or on a table top.
* Input circuits
o
The monaural input circuits each have a dual-
function level control which simultaneously
adjusts input sensitivity according to the output
level of the signal source connected, and the
output level of the channel. This allows
connection of devices within a very wide range
of output levels, such as microphones, electric
guitar, CD player, cassette deck, and open reel
tape deck.
Each monaural input circuit is provided with
2-band equalizer of MID HIGH (3.5kHZ) and MID
LOW (450Hz).
Each monaural input circuit is provided with an
effect send control which enables control of signal
transmission to the effect device.
The monaural input circuit has a built-in
compressor circuit which prevents distortion due
to excessive input levels.
Two stereo input sections, each consisting of 3
stereo line inputs and an RIAA phono input, allows
AUDIO MIXER
WR-M10A
rating
connection of up to 6 stereo line level sources and
2 turntables.
Each stereo input fader is a 60mm throw fader
incorporating a microswitch. This allows fader
operation to remotely control the start/stop
function of a turntable, cartmachine, etc.
An external monitor input (INPUT) is available. It
is useful for foldback speaker monitoring, etc.
stereo input muting circuits are incorporated. If
desired, the mono input signal can be given
priority by automatically attenuating the stereo
input signal when a signal appears at the mono
input. This is useful for paging, voice-overs, etc.
Output circuits
The main output circuit is provided with a 2-band
shelving equalizer of High (12kHz) and Low
(B0Hz).
Two monaural output circuits are available.
One circuit is used to output a MAIN OUT pre-
fader level signal, while the other circuit sends a
MAIN OUT post-fader level signal.
Two monitor output circuits are available; a stereo
headphone output circuit and an external
monitoring stereo output circuit, which can be
used for control room monitoring.
Using the selector switch, the signal to be
monitored can be chosen from five signals; Stereo
in 1, Stereo in 2, Stereo in L-1, A-2, Main out, and
MONITOR IN.
Two stereo output circuits are available for
recording.
The 3-point LED indicator indicates levels of signal
(—20dB), peak (+ 14dB), and clip (+ 20dB).
