Ubiquiti LTU-Lite Quick Start Manual

Ubiquiti LTU-Lite Quick Start Manual

Hide thumbs Also See for LTU-Lite:

Advertisement

Table of Contents

Package content
LTU-Lite
Screw plugs (qty: 2)
Power cord
installation requirements
PtMP LTU access point (such as the LTU-Rocket model).
Phillips wall mount screwdriver Category 6
(or higher) shielded cabling and RJ45 shielded connectors are required for
all Ethernet cable connections.
LTU-Lite Quick Start Guide
wall mount bracket
Flange
Screws (qty: 2)
Gigabit PoE (24 Vdc, 0.5
A) with mounting bracket

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTU-Lite and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti LTU-Lite

Summary of Contents for Ubiquiti LTU-Lite

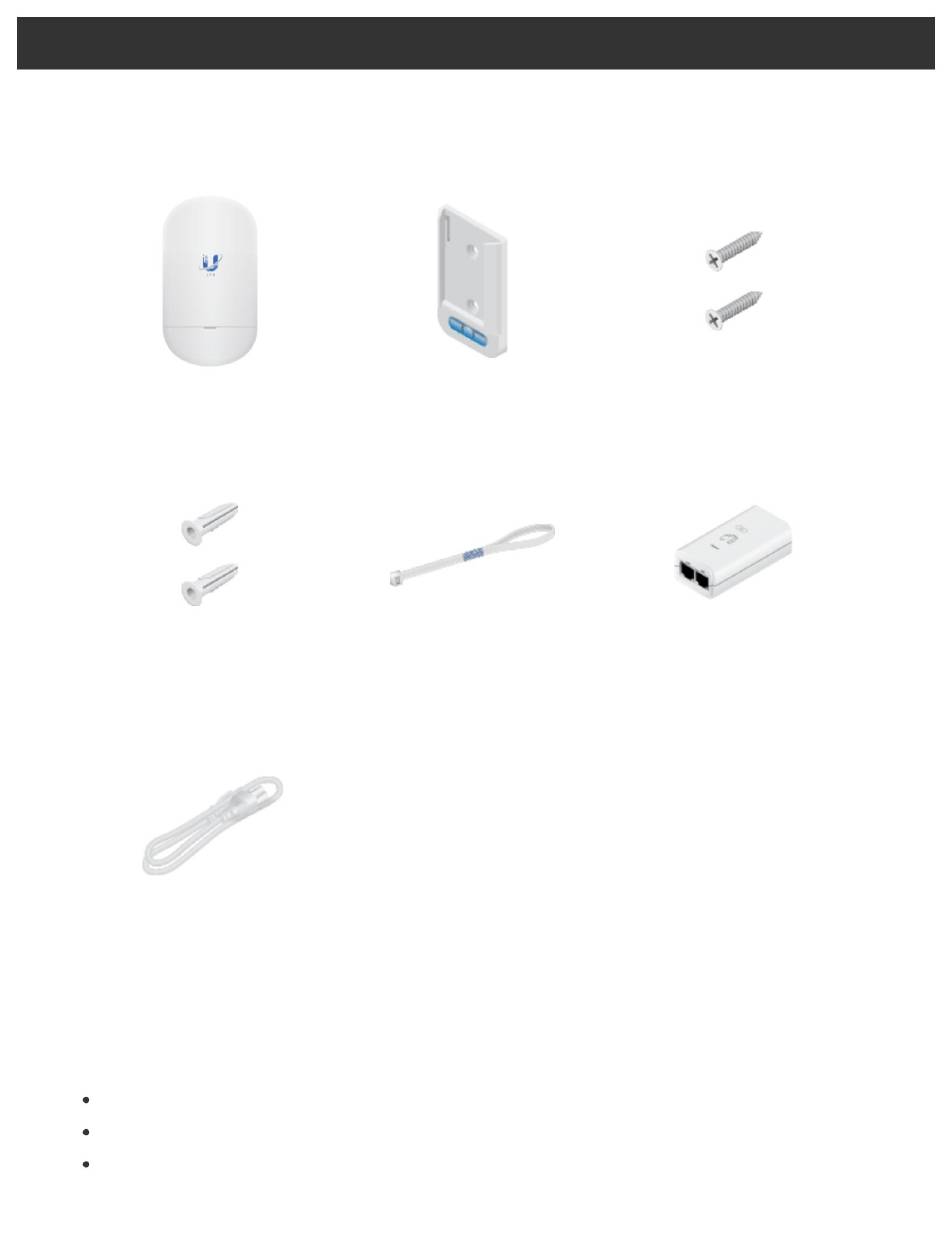

  • Page 1 LTU-Lite Quick Start Guide Package content LTU-Lite wall mount bracket Screws (qty: 2) Flange Screw plugs (qty: 2) Gigabit PoE (24 Vdc, 0.5 A) with mounting bracket Power cord installation requirements PtMP LTU access point (such as the LTU-Rocket model).

  • Page 2: Device Overview

    Surge protection must be used in all outdoor installations LTU-Lite Quick Start Guide . We recommend that you use two Ethernet surge protectors (model ETH-SP-G2), one near the device and the other at the building entry point. The ETH-SP-G2 will absorb surge voltages and safely discharge them to the ground.

  • Page 3: Device Installation

    System LEDs Blue Initial power up. Startup in progress. flashing white White Ready for use. Alternation between Firmware update in progress. blue and white Puerto Ethernet The 10/100/1000 Ethernet port is used to connect power and must be connected to the LAN and DHCP server.
  • Page 4 LTU-Lite Quick Start Guide...

  • Page 5: Wall Mount

    LTU-Lite Quick Start Guide wall mount...
  • Page 6 LTU-Lite Quick Start Guide...
  • Page 7 LTU-Lite Quick Start Guide pole mount...
  • Page 8 LTU-Lite Quick Start Guide Power connection WARNING: The port switch must meet the power specifications listed in the "Specifications" section.
  • Page 9 LTU-Lite Quick Start Guide Optional Access to the configuration interface 1. Check that your host is connected via Ethernet to the device. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
  • Page 10 4. Select your language and country. You must accept the Terms of Use to use the product. Click Continue. The LTU configuration interface will open allowing you to customize your settings as needed. UNMS Management You can manage the device through the UNMS, which allows you to configure, monitor, update and back up your devices through a single application.
  • Page 11 4. The device will search for nearby access points. Click Select (Select) on the appropriate access point. To scan again, click Scan. 5. Follow the instructions on the screen. Installer Compliance Responsibility Devices must be professionally installed and it is the responsibility of the professional installer to ensure that the device is operational in accordance with country specific regulatory requirements.

  • Page 12: Specifications

    LTU-Lite Quick Start Guide The Auto Output Power field assists the professional installer in meeting regulatory requirements. Specifications LTU-Lite Dimensions 153 x 84 x 39,5 mm (6.02 x 3.31 x 1.56") Weight 250 g (8.82 oz) network interface (1) puerto Ethernet 10/100/1 000...

  • Page 13: Safety Instructions

    operating humidity 5 to 95% non-condensing Certifications CE, FCC, IC Operating frequency range (MHz) All over the world 2 400 - 2 483.5* 4 800 - 6 200* EU / CA U-SO-1 5 150 - 5 250 U-NII-2A 5 250 - 5 350 U-NII-2C 5 470 - 5 725 U-SO-3...
  • Page 14 security. to. Do not substitute the power cord with one other than the approved type provided. Never use an adapter plug to connect to a two-wire outlet, as it will break the continuity of the ground wire. b. The equipment requires the use of the ground wire as part of the safety certification. Modification or misuse can create a shock hazard, which could cause serious injury or death.
  • Page 15 This transmitter must not be co-located or used in conjunction with any other antenna or transmitter. Australia and New Zealand Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment, this equipment may cause radio interference. Brazil Note: This equipment is not entitled to protection against harmful interference and...
  • Page 16 Operation in the 5.8 GHz frequency band is prohibited in member states with fixed broadband wireless access. The rest of the listed countries can use the 5.8 GHz frequency band. WEEE Compliance Statement Declaration of conformity online resources © 2019-2021 Ubiquiti Inc. All rights reserved.
