- Page 1 GTX series USER MANUAL V. 25.05...
- Page 2 Lynx Pro Audio S.L. shall not be liable to the purchaser of this product or to third parties for any damages, losses, costs, or expenses incurred by the purchaser or as a result of an accident, misuse, or abuse of this product, nor for any modifications, repairs, or alterations to it, or for failing to strictly adhere to the operating and maintenance instructions of Lynx Pro Audio S.L.
-
Page 3: Table Of Contents
Connections ......................9 Dual channel mode ....................10 Bridge mode......................10 2. OCS DSP CONTROL........................11 GTX_OCS DSP Control......................11 DSP management using OCS and amplifier display........11 DSP specifications....................11 Online Control System...................... 11 3. OPTIONS.............................16 4. TECHNICAL SPECIFICATIONS....................17 5. TROUBLESHOOTING.......................18 LYNX PRO AUDIO GUARANTE....................20... - Page 4 WELCOME Just contact the new generation of digital amplifiers, designed and manufactured by Lynx Pro Audio S.L. Before working with the amplifier we recommend that you read this manual, in its pages you will find instructions for use, programming examples and practical advice that will be of great help.
- Page 5 Before unpacking your new amplifier, verify that the box does not show any damage or deformation. If this happens, please claim the damage to your fordwarder. Once unpacked and verified its correct operation, keep the original box in case you need to ship it back to your provider. GTX Series | User Manual...
- Page 6 AES67 and AES3 compatibility, as well as GPIO connectivity to facilitate integration with third-party control systems. The GTX Series is engineered to meet the demands of professional fixed installations, offering superior sound quality and operational flexibility adaptable to a variety of installation environments.
-
Page 7: Description Of The Gtx Front Panel

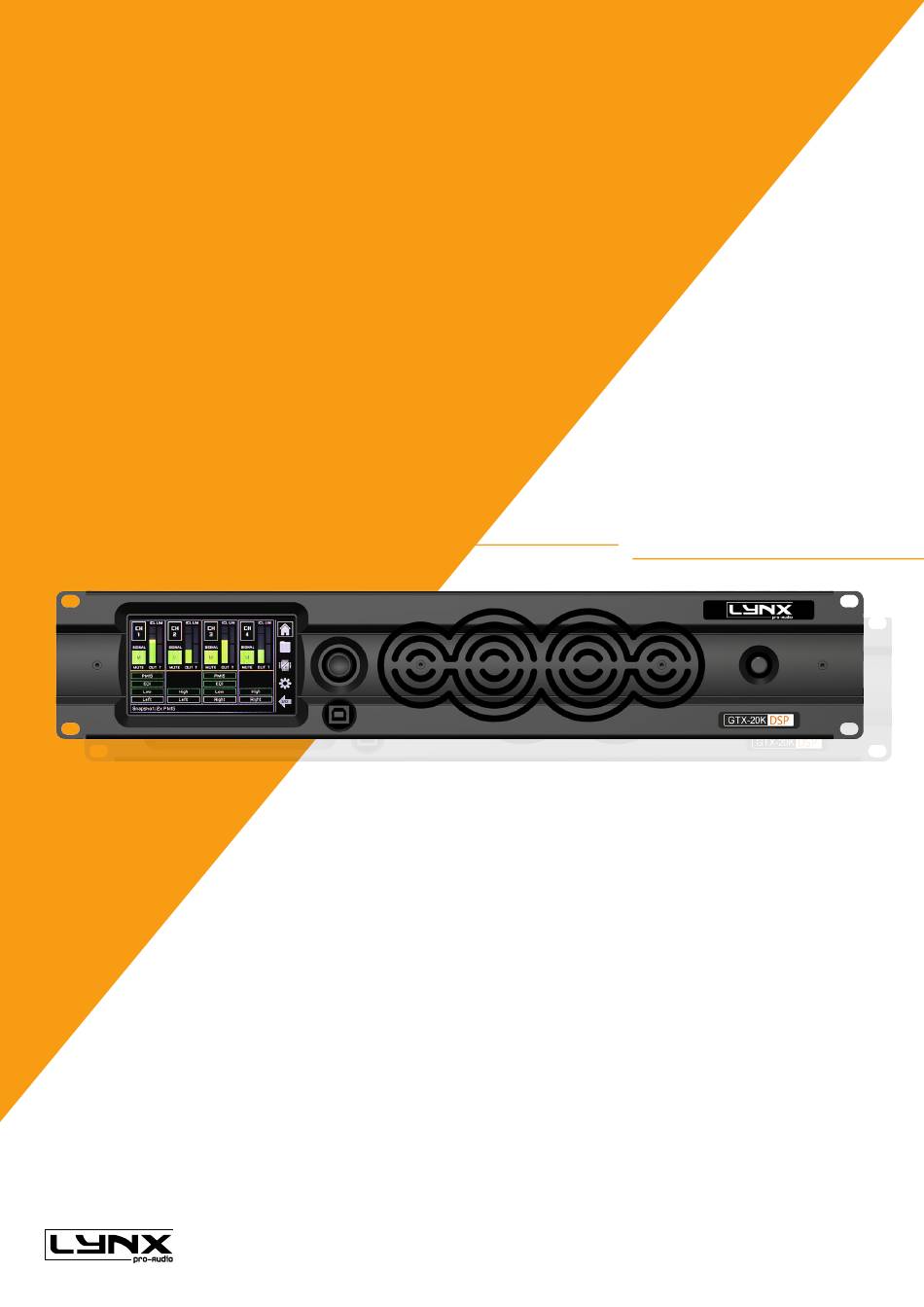

INTRODUCTION GTX frontal panel description 01. IPS Display Capacitive touch panel user interface. 02. ENCODER AND PUSH BUTTON This encoder allows you to control the interface and touch panel. 03. POWER ON SWITCH GTX Series | User Manual... -
Page 8: Introduction
1 x W 4 x 1250 W 4 x 2500 W 4 x W 4 x W Hi -Z 70 V 1 x 8000 W 1 x 2500 W 1 x W 1 x W GTX Series | User Manual... -
Page 9: Installation And Operation
If a connection is done with a un-balanced line and pin - on the Euro style is not connected to ground, a 6 dB loss occurs in the line and only a quarter of the amplifier power is produced. GTX Series | User Manual... -
Page 10: Dual Channel Mode
INSTALLATION & OPERATION The GTX Series can operate on two different configurations: DUAL or BRIDGE. The connections for the two modes are different. Dual channel mode By means of the display, set the Amplifier Mode to “DUAL”. - Connect the signal lines to the Phoenix type 3.5mm-pitch connectors. -
Page 11: Ocs Dsp Control
2. OCS DSP CONTROL GTX_OCS DSP Control GTX series DSP is a highly versatile amplifier suitable for any sound system and configurable for any possible application. This high-performance DSP features FIR filters at 96 kHz. The digital amplifier has Ethernet control and is managed via Lynx Pro Audio’s proprietary control software, GTX_OCS. - Page 12 3. OCS DSP CONTROL ONLINE CONTROL SYSTEM • Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. • What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time.
-
Page 13: Default Screen
- In: input level VU meter - GAIN IN: to adjust the input gain - DELAY: to adjust the input delay (ms) - MUTE: to mute the input - Rev: to change the input polarity GTX Series | User Manual... - Page 14 - Type: to assign the filter type to the selected equalisation - FREQ: to assign the frequency to the selected equalisation - GAIN: to assign the gain to the selected equalisation - Q: to assign the Q to the selected equalisation GTX Series | User Manual...
-
Page 15: Password Tab
To finish press the button APPLY IP. Reset Tab - FACTORY RESET: to reinstate initial factory parameters. Caution! All the amp configurations and loaded presets will be lost, libraries, snapshots, EQ presets stored will be retained. GTX Series | User Manual... -
Page 16: Options
AES67 Standalone Inputs AES67 digital audio inputs (compatible with ATMOS and RAVENNA) are available through two EtherCon connectors, which also serve as Ethernet control ports. GTX Series | User Manual... -
Page 17: Technical Specifications
Weight Net (kg - lbs) Soft-start, Turn-on Turn-off transients, Over-heating, DC, RF, Short-circuit, Open or mismatched Protections loads, Overloaded power supply, ICL™, PMS™ and SSP™ * IEC filtered pink noise signal (40Hz-5kHz, 12 dB crest factor). 230V AC mains. GTX Series | User Manual... -
Page 18: Troubleshooting
4 – One of the cabinets (with the same signal) sounds less than the others Check that the joining cable from the amplifier to the cabinet is well balanced otherwise the output signal will fall 6 dB. GTX Series | User Manual... - Page 19 DECLARATION OF CONFORMITY Lynx Pro Audio S.L. declares that GTX series are in conformity with the following EC directives: Low Voltage Directive 2014/35/UE Electromagnetic Compatibility EMC 2014/30/UE RoHS Directive 2011/65/UE RAEE (WEEE) 2012/19/UE In accordance with Harmonized European Norms: EN 60065:2014 Audio, video and similar electronic apparatus.
-
Page 20: Lynx Pro Audio Guarante
When products are under guarantee, the repairing and the free supplying of the device parts in order to correct any kind of defect are guaranteed by Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts. - Page 21 LYNX Pro Audio S.L. Calle 1. Pol. Ind. Picassent, Picassent, Valencia 46220 España +34 961 109 601 www.lynxproaudio.com...
