OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.'s
614H
624H
714H
724H
814H
824H
924H
(#030800001 AND UP)
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SINO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
1. Select an area for assembly that is clean and free of an y
debris which might cause persons w
assembly to trip.
2. Do not lift hea vy parts or assemb lies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assemb ly instructions in y our operator's
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capab le of handling the w eight of the
assembly to be b locked. Also insure that the b locking
material is on a clean, dr y surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
POST HOLE DIGGERS
Safety Instructions
Tractor Preparation
Operating Instructions
CAUTION
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
orking on the
614H & 624H
814H & 824H
HYDRAULIC
6. After completing assemb ly, thoroughly inspect the
machine to be sure that all n uts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine , thoroughly read the
operation section of your operator's manual.
8. Before operating, read the maintenance section of y our
operator's manual to be sure that an y parts requiring
lubrication, such as gearbo xes, are full, to a void any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
714H & 724H
924H
Assembly & Mounting
Maintenance
Repair Parts
Advertisement
Table of Contents
Related Manuals for Worksaver 614H
Summary of Contents for Worksaver 614H

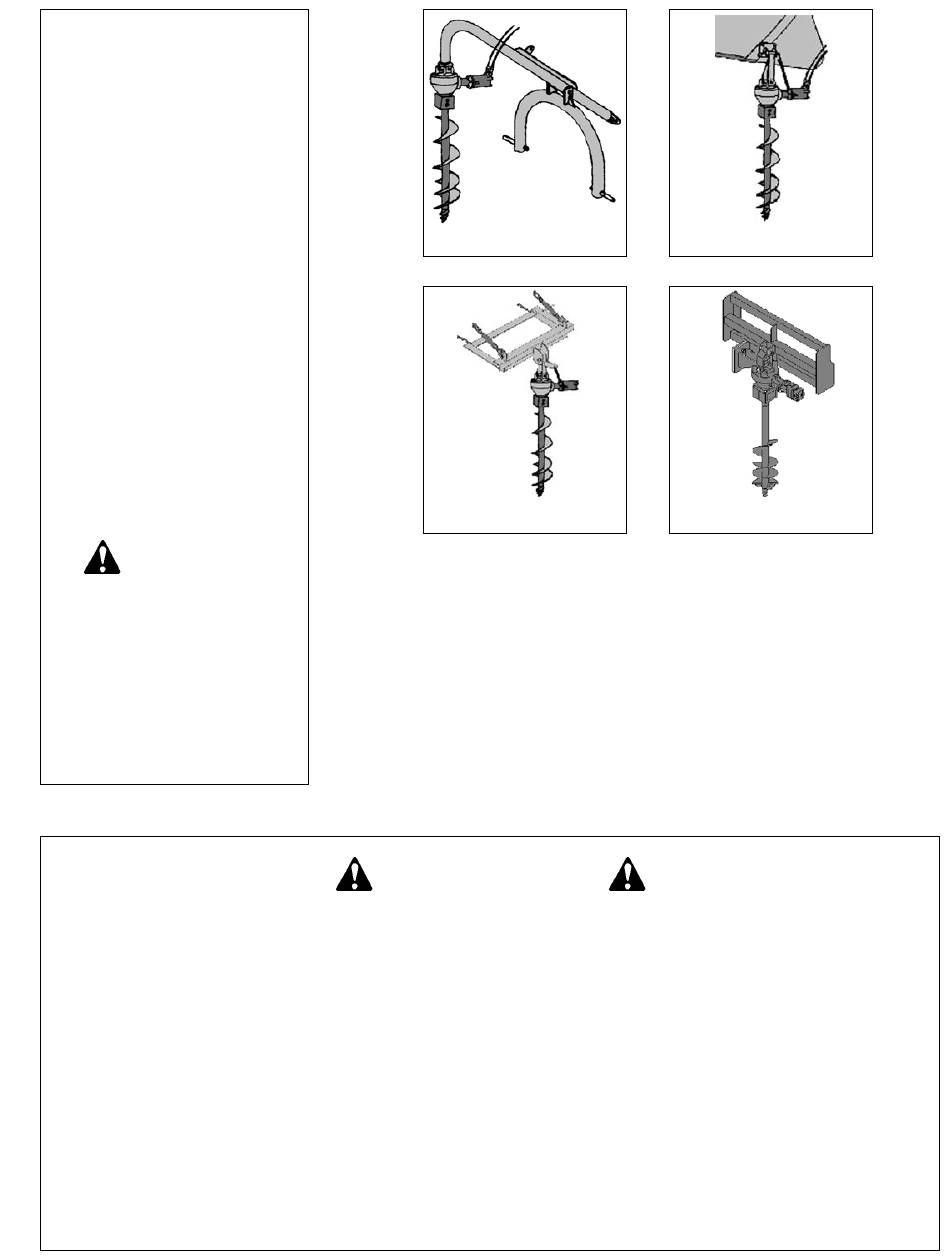

- Page 1 OWNER’S / OPERATOR’S MANUAL MODEL NO.’s 614H 614H & 624H 714H & 724H 624H 714H 724H 814H 824H 924H (#030800001 AND UP) 814H & 824H 924H CAUTION HYDRAULIC For Safe Operation Read Rules And POST HOLE DIGGERS Instructions Carefully SINO LEEINGLES, PIDA AYUDA Safety Instructions Assembly &...
-
Page 2: Table Of Contents
Like all mechanical products, it will require cleaning and upk eep. Lubricate the Digger as specified. Use only gen uine Worksaver, Inc. service parts. Substitute parts will v oid the w arranty and ma y not meet standards required for safe and satisfactory operation. Record the model and ser ial number of your Post Hole... -
Page 3: Warranty
3. If the unit has been subjected to misapplication, ab use, misuse, negligence, fire or other accident. 4. If parts not made or supplied by Worksaver have been used in connection with the unit, if , in sole judge- ment of Worksaver such use affects its performance, stability, or reliability. -
Page 4: Safety Information
To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its saf ety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS (continued) EQUIPMENT SAFETY GUIDELINES Safety of the oper ator is one of the main concer ns in designing and de veloping a new piece of equipment. Designers and man ufacturers build in as man y safety features as possib le. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment. -
Page 6: Safety Training
SAFETY INSTRUCTIONS (continued) SAFETY SIGNS Keep safety signs clean and legible at all times. Replace safety signs that are missing or ha ve become illegible. Replaced parts that displayed a safety sign should also display the current sign. Safety signs are available from your Distributor or Dealer Parts Department or the factory. How to Install Safety Signs: Be sure that the installation area is clean and dr y. -
Page 7: Operational Safety
SAFETY INSTRUCTIONS (continued) PREPARATION Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving the implement. Do not allow long hair, loose fitting clothing or jewelry to be around moving parts. PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS! Tractors with or without implements attached can often be noisy enough to cause per manent, partial hearing loss. - Page 8 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) The use of any loader attachment is NOT recommended on tractor with a tricycle wheel arrangement. Tricycle type tractors are unstable for front loader use. When the use of hand tools is required to perf orm any part of assembly, installation, adjustment, maintaining, repairing, removal, or moving the digger, be sure the tools used are designed and recommended b y the tool manufacturer for that specific task.
- Page 9 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) A heavy load can cause instability in dr iving a tractor. Make sure the front or rear of the tr actor is proper ly counter-balanced with weights. Always drive slowly – especially around tur ns. An unstable tractor could steer badly and possibly tip over, causing injury or death.
-
Page 10: Maintenance Safety
SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Inspect the entire machine periodically as indicated in the Maintenance Section of this manual. Look for loose fasteners, worn or broken parts, pinched hydraulic hoses, and leaky or loose fittings . Make sure all pins have cotter pins and washers. - Page 11 SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY Keep all persons away from operator control area while performing adjustments, service, or maintenance. Make sure there is plenty of v entilation. Never operate the engine of the to wing vehicle in a closed b uilding. The exhaust fumes may cause asphyxiation.
-
Page 12: Transport Safety
SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY (continued) Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving the digger. Do not allow long hair, loose fitting clothing or jewelry to be around moving parts. Where replacement parts are necessary for periodic maintenance and servicing, genuine factory replacement parts must be used to restore your equipment to original specifications. -
Page 13: Storage Safety
SAFETY INSTRUCTIONS (continued) STORAGE SAFETY Following operation or when unhooking, stop the tr actor, set the br akes, disengage the PT O, shut off the engine and remove the ignition keys. Store the unit in an area away from human activity. Do not permit children to play on or around the stored unit. Do not park equipment where it will be e xposed to livestock for long periods of time. - Page 14 SAFETY SIGNS (continued) LOCATED ON POST HOLE DIGGER BOOM LOCATED AT TOP OF AUGER CENTER TUBE REMEMBER: If Safety Signs have been damaged, remo ved, become illegible or par ts replaced without Signs , new Safety Signs must be applied. New Safety Signs are available from your authorized distributor or factory.
-
Page 15: All Models
Be sure your tractor or skid steer is in good condition. Read all the safety precautions and make MODELS 614H and 624H are 3-pt. mounted post hole sure all operators are familiar with the safety rules of diggers that will fit most Categor y I and Category II trac- operation. -
Page 16: Assembly And Mounting
With the gearbox in a level position, fill to the side inspection hole with a 3 PT. MODELS 614H and 624H good 90 wt. gear lubricant. Gearbox holds 86 fluid oz. - Page 17 INSTRUCTIONS (continued) ASSEMBLY AND MOUNTING CAUTION! CLAMP-ON MODELS 814H and 824H Do not operate this equipment without shields properly installed. This is for your protection, and the Check your loader to mak e sure it is in good w orking manufacturer recommends the use of these shields order.
- Page 18 FINAL ASSEMBLY – ALL UNITS Bolt the steel plate counterweights to the counterweight MODEL 924H (continued) bracket. The hoses and fittings are included on the Model 614H and 624H (3 pt. models). With these models, the length of hose can be predetermined. CAUTION! For the Models 714H, 724H, 814H and 824H, the length of hose required can vary and are not included.
-
Page 19: Operating Instructions
OPERATING INSTRUCTIONS IT IS ESSENTIAL THAT EVERYONE INVOLVED IN PREPARATION PROCEDURE THE ASSEMBLY, OPERATION, TRANSPORT, MAIN- • Thoroughly read and understand y our Operator’s TENANCE, AND STORAGE OF THIS EQUIPMENT BE Manuals. AWARE, CONCERNED, PRUDENT, AND PROPERLY TRAINED IN SAFETY. •... - Page 20 OPERATING INSTRUCTIONS (continued) The Hydraulic Post Hole Digger is designed to oper ate OPERATION (continued) in both forward and reverse rotation simply b y reversing the oil flow. This works to the operator’s advantage when • Use particular care when working on inclines and hill- encountering a root or rock and the auger stalls.
- Page 21 OPERATING INSTRUCTIONS (continued) OPERATION (continued) CAUTION! Beware of lift clearance when raising loader to max- imum height. WARNING! Remain on the tractor seat while operating the post hole digger. Assisting the machine by hand can result in possible injury or death. CAUTION! A free-swinging auger can be hazardous during transport.
-
Page 22: Routine Maintenance
Periodically check all bolts to make sure they are tight. MODELS MODELS Check hydraulic hoses. Make sure they are not chafed 614H / 714H / 814H 624H / 724H / 824H / 924H or pinched. Replace any damaged hose. FLOW GPM... -
Page 23: Trouble-Shooting Guide
TROUBLE-SHOOTING GUIDE PROBLEM: AUGER WILL NOT DIG PROBLEM: BENT AUGER FLIGHTING OR BENT AUGER Possible Solutions: Possible Solutions: • Teeth dull – sharpen or replace. • Tractor moved while auger was turning in hole – • Ground too dry and hard – order optional fishtail point always set brakes on tractor and make sure it is out (#170802) or optional down force kit, or w ait until it of gear. - Page 24 TROUBLE-SHOOTING GUIDE (continued) PROBLEM: 3 PT. POST HOLE DIGGER WON’T LIFT PROBLEM: GEARBOX FAILURE HIGH ENOUGH Possible Solutions: Possible Solution: • No oil in gearbox. • Tractor is a “low profile model” (one that is lo w to the • Oil not changed per instructions. ground).
- Page 25 AUGER TEETH MOUNTING PATTERNS HEAVY DUTY AUGER PARTS LIST...
-
Page 26: Parts Lists
HYDRAULIC GEARBOX PARTS LIST... - Page 27 614H & 624H PARTS LIST For Units Manufactured After S/N 030800001...
- Page 28 714H & 724H PARTS LIST For Units Manufactured After S/N 030800001...
- Page 29 814H & 824H PARTS LIST For Units Manufactured After S/N 030800001...
- Page 30 924H PARTS LIST For Units Manufactured After S/N 030800001...
-
Page 31: Safety Precautions
3. MODEL NUMBER 714H 4. NAME OF ITEM 724H 814H MAKE EVERY DAY 824H A HOLIDAY 924H FROM ACCIDENTS! (#030800001 AND UP) NOVEMBER 2003 WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973 WS-PH018-OG WEB: http:// www.worksaver.com E-MAIL: sales@worksaver.com...
