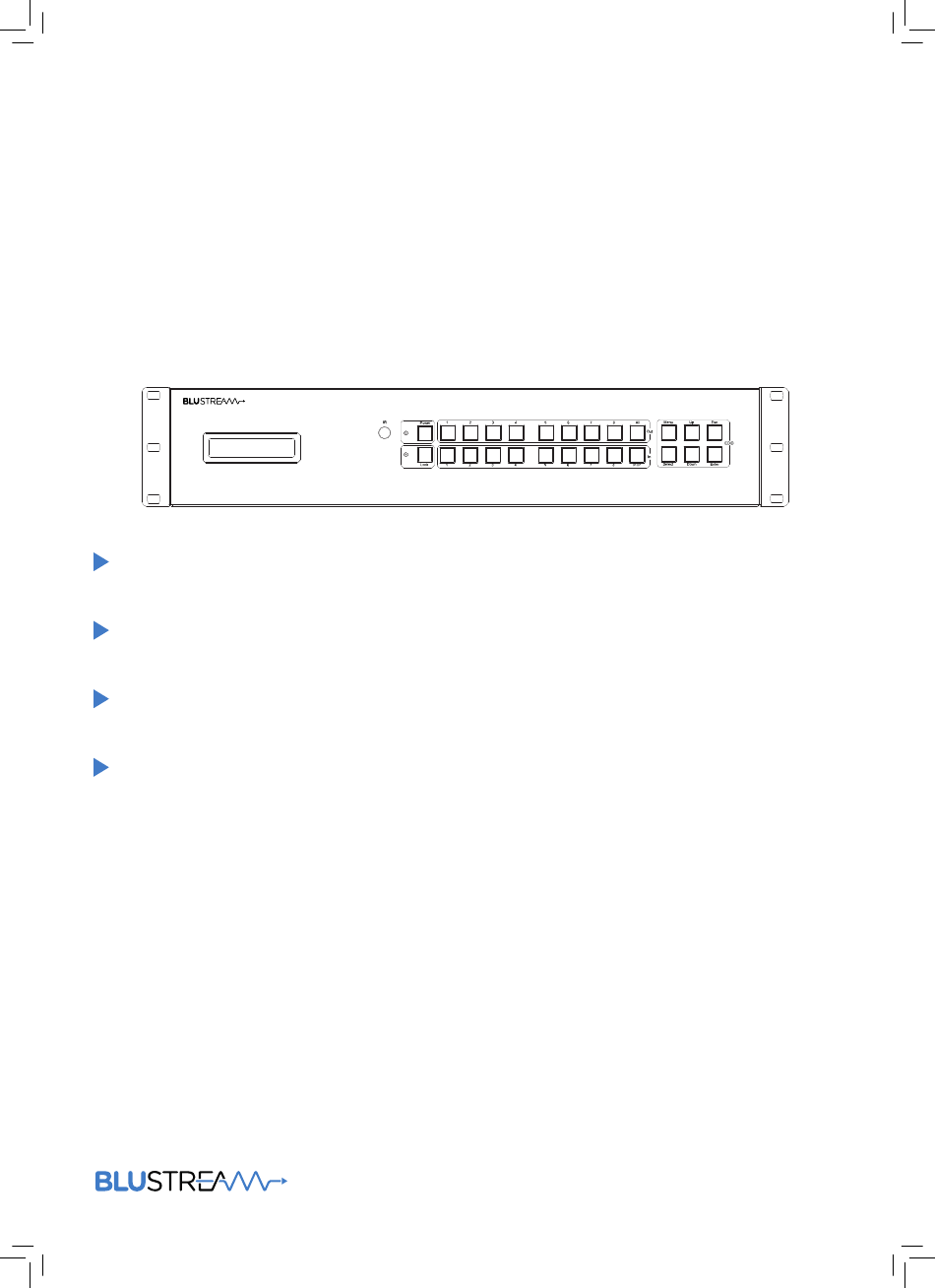

- Page 1 PLATINUM MATRIX SOLUTIONS PLA88ARC PLA88L PLA66ARC PLA66L User Manual...
- Page 2 Package Contents Do not substitute or use any other power supply other than the enclosed RS-232 and Telnet Commands unit, or a Blustream approved re- placement. Do not disassemble either the Trans- IR Commands 17-19 mitter or Receiver units for any reason.
- Page 3 4K 8x8 HDBaseT/HDMI matrix, delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable. The PLA88L/PLA66L also feature an embedded audio matrix, simultaneous HDBaseT/HDMI outputs, HDMI audio de-embedding/analogue audio embedding, RS-232 / IP & IR control and the option of adding Blustream HDBaseT transmitters to integrate remote sources. contact...
- Page 4 HDBT transmitters and receivers. HDMI inputs 1 to 8 - Connect HDMI IR Inputs 1 to 8 - 3.5mm stereo jack for sources (6x inputs on PLA66L/ARC IR distribution to Blustream HDBaseT RJ45 - TCP/IP control. models). receivers. Power switch.
- Page 5 Coaxial Digital Output (RCA) • Lip-sync Audio Adjustment for Ana- • Support of ARC (Audio Return Channel) logue and Digital Audio Outputs from compatible Blustream Receiver • IR Input 3.5mm Mono Jack • Support of ethernet distribution when used with compatible Blustream Receiver •...
- Page 6 A ‘Straight-through’ RJ45 patch lead should be used RS-232 2-Way The Blustream matrix can be controlled via supplied 3-pin Phoenix to 9-pin serial cable. For full list of protocols please see ‘Matrix Control Protocols’ located at the rear of this manual.
-
Page 7: Matrix Hdbaset Receiver Options
PLATINUM MATRIX USER MANUAL Matrix HDBaseT Receiver Options There are four HDBaseT receiver options that are compatible with the Output cards supplied with the Blustream Platinum Matrix:- HEX70B-RX HEX70ED-RX Basic HDBaset Receiver with 2-way IR pass-through. Supports Mid-Level HDBaseT receiver which has the same features as the display distances up to 70m. -
Page 8: Matrix Hdbaset Transmitter Options
Matrix HDBaseT Transmitter Options When it is a requirement that source equipment is to be located away from the central Blustream Matrix there are four Blustream HDBaseT Transmitters that that can be partnered with the MODINH Input board and allow source equipment to be located at... - Page 9 - HDBaseT priority input The input signal type can be changed by using the Blustream Matrix PC software or by using the front panel selection buttons. To change the input signal type using the Matrix front panel buttons press the following:- Select the input you wish to change using ‘INPUT’...
-
Page 10: Edid Control
Select audio format required (2.0, 5.1, 7.1). Use UP/DOWN buttons to toggle selection and SELECT button to confirm Using Supplied Blustream Matrix IR Remote Control a. Fixed EDID to INPUT / ALL INPUTS: To select video resolution - Press 1080I/1080P/3D/4K To select Audio resolution - Press 2.0CH/5.1CH/7.1CH... - Page 11 USER MANUAL Infrared (IR) Distribution The Blustream Platinum range of matrix products include multiple options for control and routing of IR. Configuration of routed IR is via the Blustream Matrix PC software. IMPORTANT: Blustream Infrared products are all 5v and NOT compatible with alternate manufacturers Infrared solu- tions.
-
Page 12: Infrared (Ir) Control
USER MANUAL Infrared (IR) Control The Blustream Platinum matrix units are supplied with an IR Remote Control for source selection and general setup. As well as controlling matrix solutions using the original Blustream remote the Blustream products can be controlled using the original Infrared codes shown at the rear of this manual. - Page 13 PLATINUM MATRIX USER MANUAL contact support@blustream.co.uk / support@blustream.com.au...
-
Page 14: Specifications
-4°F to 140°F (-20°C to 60°C) TCP/IP Control: Power Supply: 1x RJ-45 100V-240V IR Input ports: 7x 3.5mm stereo jack IR Output ports: 7x 3.5mm mono jack NOTE: Specifications are subject to change without notice. Weight details are approximate and will alter per model. www.blustream.co.uk... -
Page 15: Package Contents
• 2x Serial cable – 9-pin DB9 to 3-pin phoenix connector • 1x Rack mounting kit • 1x Rack mounting kit Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit. contact support@blustream.co.uk / support@blustream.com.au... -
Page 16: Rs-232 And Telnet Commands
Output UART:yy MXSTA Print Matrix IR And UART Connect State Set OUTPUT:xx Use HDMI/HDBT EDID xx=[00]: All OUTPUT Port, [01...08]: OUT- OUT xx EH/ET AUD TX xx STE Output Port:xx Audio From Input Port:yy PUT Port Stereo yy=[01...08]: INPUT Port www.blustream.co.uk... - Page 17 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 05d3 contact support@blustream.co.uk / support@blustream.com.au...
- Page 18 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 05d3 www.blustream.co.uk...
- Page 19 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 003F 0016 0689 contact support@blustream.co.uk / support@blustream.com.au...
- Page 20 PLATINUM MATRIX USER MANUAL Blustream PC Configuration Software The Blustream Platinum matrix units can be configured using the Blustream matrix PC configuration software. Please download the specific software and PC software manual at the following link: http://www.blustream.co.uk/pla88arc www.blustream.co.uk...
- Page 21 www.blustream.com.au...
