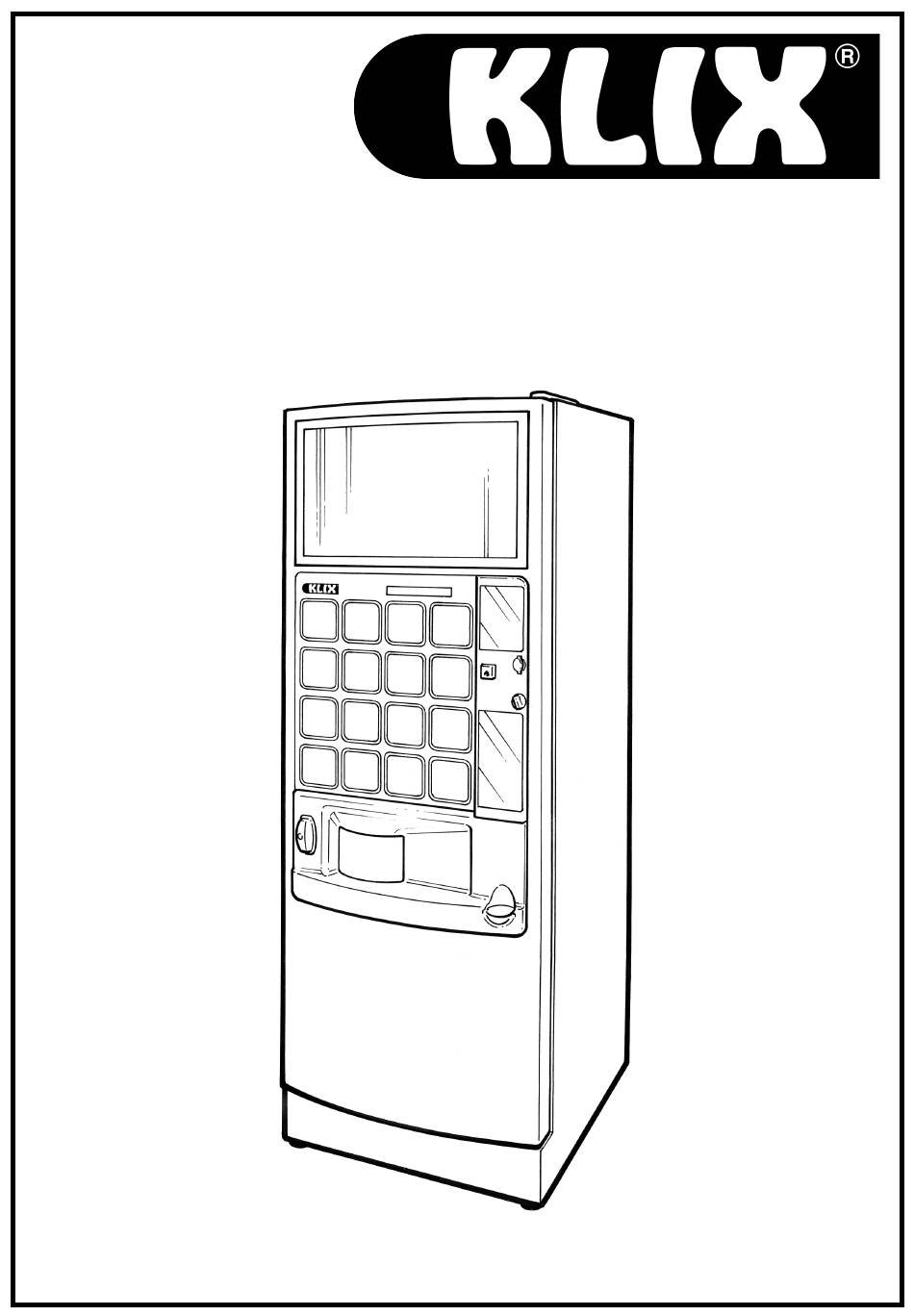

- Page 1 OUTLOOK ™ OPERATOR’S GUIDE...
-
Page 2: Table Of Contents
Table of Contents Getting started Viewing the machine audits Setting the machine to ‘Free Vend’ or ‘Pay Vend’ Changing a drink’s price Changing a drink Linking stacks ® BRITA Filter Electrical connection Safety Moving the machine Help with machine faults... -
Page 3: Getting Started
‘Operator Menu’. This menu is designed to give an easy to use interface for your KLIX® machine. The operator menu is controlled using the buttons on either side of the display, as shown in the illustration below. -
Page 4: Viewing The Machine Audits
2. Viewing the Machine Audits The machine shows two different types of audits, Interim Audits – these can be reset to zero Running Audits – total number since the vending machine installation and these cannot be reset. To view the number of drinks sold on each button With the door of the machine open, press the drink label for the selection for which you require audit information, then choose the ‘Sales’... - Page 5 Viewing the Machine Audits To view other machine audits With the door of the machine open, press the i button; you then have the choice to view either the Running or interim audits. Follow the onscreen instructions to view the audit information. The interim audits can be reset to zero (if no other audit device is enabled).
- Page 6 The machine keeps an audit of the following information Total number of vends Total number of drinks sold Vends per week Average number of vends per week Vends per year Number of vends per year, (E) Estimated Value of all vends Value of all drink sales Number of Free Vends Number of vends while switched to free vend...
-
Page 7: Changing A Drink's Price
4. Changing a Drink’s Price Changing an individual drinks price With the door of the machine open, press the selection label of the drink price you want to change. Select the price option and follow the onscreen instructions. If at any stage you need help press the ? button. Single machine price Once you have confirmed the price change to a drink, you will be asked if you want to set ‘Single machine price’... -
Page 8: Changing A Drink
5. Changing a Drink Step 1 With the door open press the label of the drink you want to change. Step 2 Select the ‘Drink Type’ option. The display will show the current ‘Drink Type’. When you press the ‘Change Button’ you will be asked if you would like help with the ‘Changing a drink’... -
Page 9: Linking Stacks
6. Linking Stacks The advantage of linking stacks that have the same drinks is that the machine will alternate vends between the stacks irrespective of which linked button is pressed. This means that all the linked stacks are used at the same rate so the freshness of the drinks is maximised. -
Page 10: Brita® Filter
7. BRITA® Filter If your machine is fitted with a BRITA® filter, it will need to be replaced every 6 months. Replacement filters should be ordered through your normal service provider. Filters MUST be replaced or removed and discarded before they are a year old. -
Page 11: Electrical Connection
8. Electrical Connection WARNING: THIS SYSTEM MUST BE EARTHED If the plug is damaged it should be removed from the voltage supply, cut off and disposed of safely. NEVER ATTEMPT TO RE-USE. If the mains cord is damaged, never attempt to replace; contact Mars Drinks Customer Services or your Service Agent. - Page 12 U.K. Specific Requirements Your system is supplied with a moulded 13 Ampere fused plug. If the fuse needs replacing only use an ASTA approved BS1362 13 Ampere cartridge fuse. Always re-fit the fuse cover. If the fuse cover is lost or damaged fit a new plug, as previously described.
-
Page 13: Safety
9. Safety These warnings are provided in the interests of safety. Please read them carefully and ensure anyone who is involved with routine cleaning and loading also reads them. WARNING This is a class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. - Page 14 This system contains electronic circuits. Do not flash test. Observe recommendations relating to regular inspection and testing of system under the “U.K. Electricity at Work” section. An ambient temperature range of +5°C to +30°C is recommended for system location. Warnings & Guidance Do not adjust the water volume.
-
Page 15: Moving The Machine
10. Moving the Machine Should you wish to move the machine to another location please contact Mars Drinks Customer Services for the requirements the new location must meet (electrical and water supply) and to arrange the actual move and re-installation. This MUST be carried out by qualified personnel. - Page 16 The following fault messages may be displayed on the front of the machine and you can remedy these. If after following the remedial action, the problem is not resolved, call Mars Drinks Customer Services for further advice and assistance. If any error message not listed here is displayed, call your Customer Services for advice, it is likely you will be able to correct the problem.
- Page 17 Part number: 70-41-2499 Version 5 Mars Drinks Division of Mars U.K Limited Armstrong Road Daneshill East Industrial Estate Basingstoke Hampshire ® ‘KLIX’, ‘OUTLOOK’ and designs ©/™/® Mars 2007 RG24 8NU...
