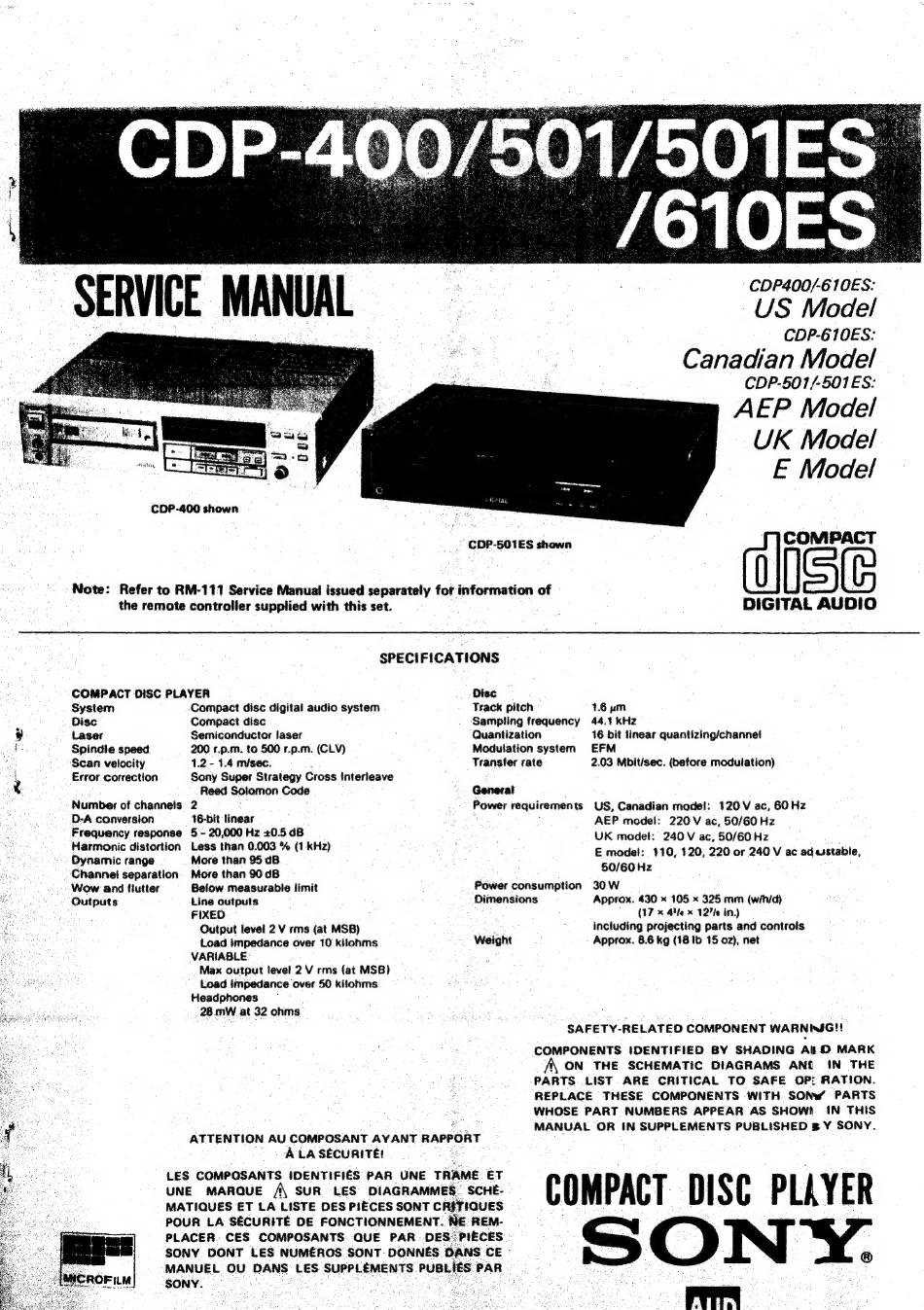

Sony CDP-400 Service Manual

CDP400/-610ES:
US Model
CDP-610ES:
Canadian Model
CDP-501/-501ES:
AEP Model
UK Model
E Model
the remote controller supplied with this set. DIGITAL AUDIO
SPECIFICATIONS
COMPACT DISC PLAYER Disc
System Compact disc digital audio system Track pitch 1.6 um
Disc Compact disc Sampling frequency 44.1 kHz
y Laser Semiconductor faser Quantization 16 bit linear quantizing/channe!
"A Spindle speed 200 ¢.p.m. to 500 r.p.m. (CLV) Modulation system EFM
; 'Scan velocity 1.2 - 1.4 misec. Transfer rate 2.03 Mbit/sec. (before modulation)
\ Error correction Sony Super Strategy Cross interleave
4 Reed Solomon Code General
Number of channels 2 Power requirements US, Canadian model: 120V ac, 60 Hz
D-A conversion 16-bit linear See AEP model: 220V ac, 50/60 Hz
Frequency response 6 - 20,000 Hz 20.5 dB UK model: 240 V ac, 50/60 Hz
Cenk con al pep a ad E model: 110, 120, 220 or 240 V ac adustable,
"Channel separation More than 90.dB 50/60 Hz
Wow and flutter Below measurable limit Power consumption 30.W
Outputs Line outputs Dimensions Approx. 430 x 105 x 325 mm (wihid)
; FIXED
:
(17 « 434 x 1277/2 in.)
Output level 2 V rms (at MSB) ; including projecting parts and controls
Load impedance over 10 kilohms "Weight Approx. 8.6 kg (18 Ib 15 02), net
VARIABLE
Max output level 2 V rms {at MSB)
Load impedance over 50 kilohms
Headphones
. 28 mW at 32 ohms
v i 7
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING Al DO MARK
A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS. LIST ARE CRITICAL TO SAFE OP: RATION.
REPLACE THESE COMPONENTS WITH. SONW PARTS
WHOSE PART NUMBERS APPEAR AS SHOW! IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED & Y SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT ;
ALASECURITE! . . s :
LES COMPOSANTS. IDENTIFIES PAR UNE TRAME ET
UNE MARQUE A\ SUR LES DIAGRAMMES. SCHE- COMPACT DISC PLAYER
MATIQUES ET LA LISTE DES PIECES SONT CRITIQUES ie
POUR LA SECURITE DE FONCTIONNEMENT. NE gay :
PLACER: CES COMPOSANTS. QUE PAR DES:
SONY DONT LES NUMEROS SONT DONNES : : ®
MANUEL OU DANS: Les SUPELEMEN TS. PUB
SONY.
