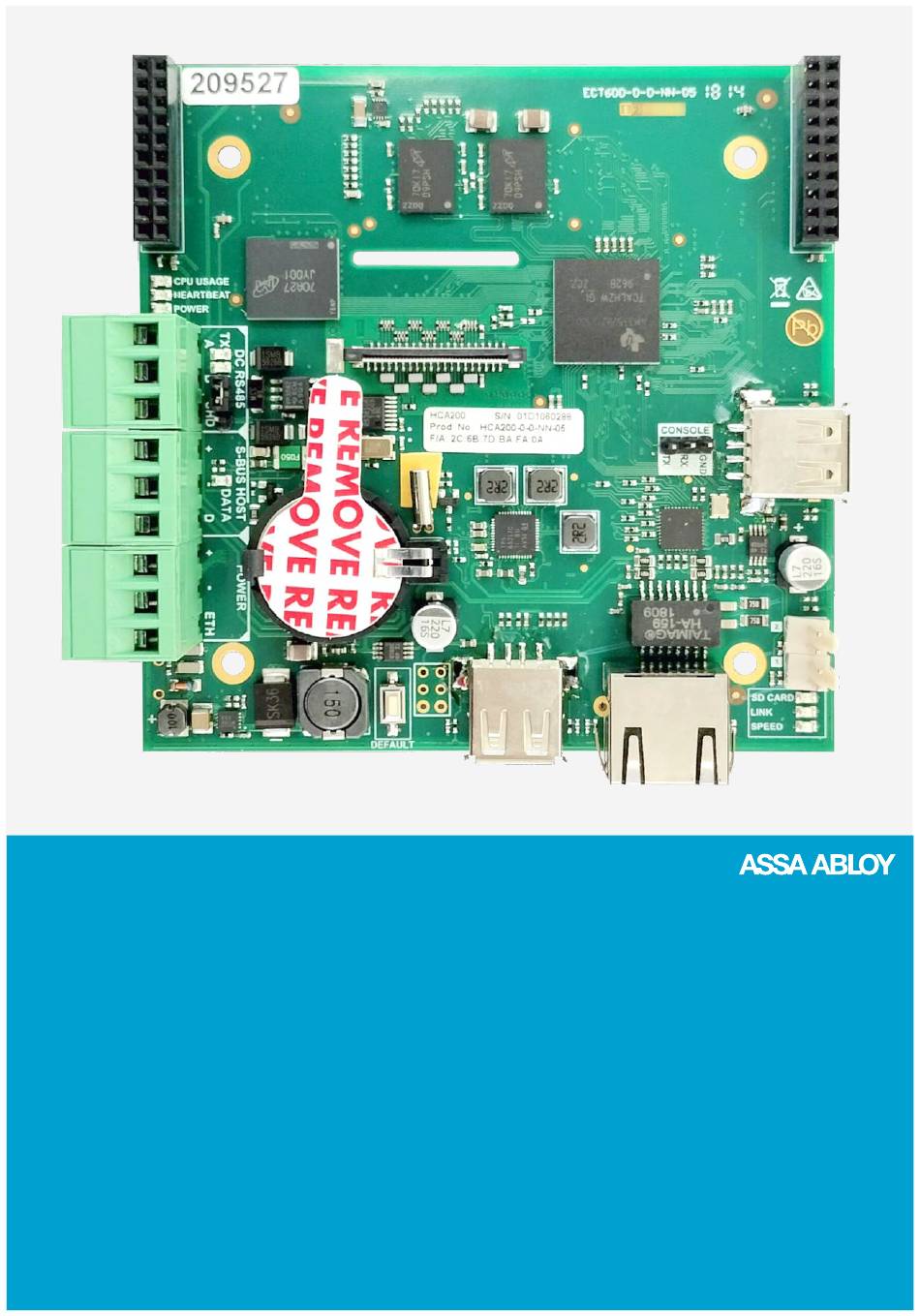

- Page 1 Application controller EAC-AP5 / EAC-AM5 Installation guide...
-
Page 2: Table Of Contents
INTRODUCTION ............................3 Overview ..........................................3 Guarantee or warranty ....................................3 WHAT IS IN THE BOX ............................4 EAC-AP5 – carton contents .................................... 4 EAC-AM5 – carton contents ................................... 5 MOUNTING ..............................6 Mounting the EAC-AP5 ....................................6 Mounting the EAC-AM5 ....................................7 SITE MAPPING ..............................8... -
Page 3: Introduction
The application controller is a Linux-based system controller that can keep track of up to one million registered tag holders and 64 fixed addresses, even when the system server is offline. The EAC-AP5 unit comes in a tough, compact ABS plastic housing. -
Page 4: What Is In The Box
12 V DC 750 mA DC power supply to power this controller • Category 5 or 6 network cable • Shielded twisted pair 100Ω cable for any downstream RS485 device controllers • Mounting hardware: Fasteners suitable for the mounting surface What is in the box Application controller EAC-AP5 / EAC-AM5... -
Page 5: Eac-Am5 - Carton Contents
An AC supply cable to wire into the AC terminals on the factory installed DC/mains power adaptor • Recommended 12 V, 7 Ah SLA battery • Category 5 or 6 network cable • Shielded twisted pair 100Ω cable for any downstream RS485 device controllers What is in the box Application controller EAC-AP5 / EAC-AM5... -
Page 6: Mounting
2. Secure the controller (on its base) to the mounting surface 3. Note the relevant door location and the fixed address of the controller – see Site mapping Mounting Application controller EAC-AP5 / EAC-AM5... -
Page 7: Mounting The Eac-Am5
5. Unhook the door hinge lugs and remove the cabinet door 6. Secure the cabinet to the mounting surface 7. Note the relevant door location and the fixed address of the controller – see Site mapping Mounting Application controller EAC-AP5 / EAC-AM5... -
Page 8: Site Mapping
Keep this site mapping material safe and available for use during the configuration of the access control software – it will also be useful for locating hardware when performing maintenance, or system upgrades Site mapping Application controller EAC-AP5 / EAC-AM5... -
Page 9: Pinout Configuration
The on-board real-time clock is synchronised with the network through the access control software applications. The RTC is powered by a CR2032 3 V lithium button cell (indicated above), ensuring correct time is kept if DC power to the controller is interrupted. Pinout configuration Application controller EAC-AP5 / EAC-AM5... -
Page 10: Networking
The device controllers should be daisy-chained, with the end-of-line jumper installed on the device controller that is most distant from the master. In this example the EAC-AP5 / EAC-AM5 is networked to a string of EAC-TPTs, controlling downstream doors. Device controller MODE... -
Page 11: Commissioning
Always double-check your connection to ensure correct polarity on the controller’s power terminals. If any part of the self-test fails, the red status LED will keep flashing. AC supply 5. The access control software can now be configured Commissioning Application controller EAC-AP5 / EAC-AM5... -
Page 12: Powering Up The Eac-Am5
If any part of the self-test fails, the red status LED will keep flashing. 6. Hang the cabinet door back on its hinges and plug the door earth strap back onto its lug 7. The access control software can now be configured Commissioning Application controller EAC-AP5 / EAC-AM5... -
Page 13: Specifications
Meaning of the indication Red TX LED on Sending data Green RX LED on Receiving data Power and status indicators LED indication Meaning of the indication Continuous red Power is on Flashing red controller fault Specifications Application controller EAC-AP5 / EAC-AM5... -
Page 14: Copyright And Trademarks
9. Copyright and trademarks Copyright © 2025 ASSA ABLOY. All rights reserved. This document may not be reproduced, disseminated, or republished in any form without the prior written permission of ASSA ABLOY. Support Visit www.assaabloy.com or contact your regional ASSA ABLOY office. - Page 15 The ASSA ABLOY Group is the global leader in access solutions. Every day, we help billions of people experience a more open world. ASSA ABLOY Opening Solutions leads the development within door openings and products for access solutions in homes, businesses and institutions. Our offering includes doors, door and window hardware, locks, access control and service.
