Autonomous SmartDesk 5 Assembly Manual

Hide thumbs Also See for SmartDesk 5:

Advertisement

Quick Links

Download this manual
5
Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the SmartDesk 5 and is the answer not in the manual?

Questions and answers

Related Manuals for Autonomous SmartDesk 5

Summary of Contents for Autonomous SmartDesk 5

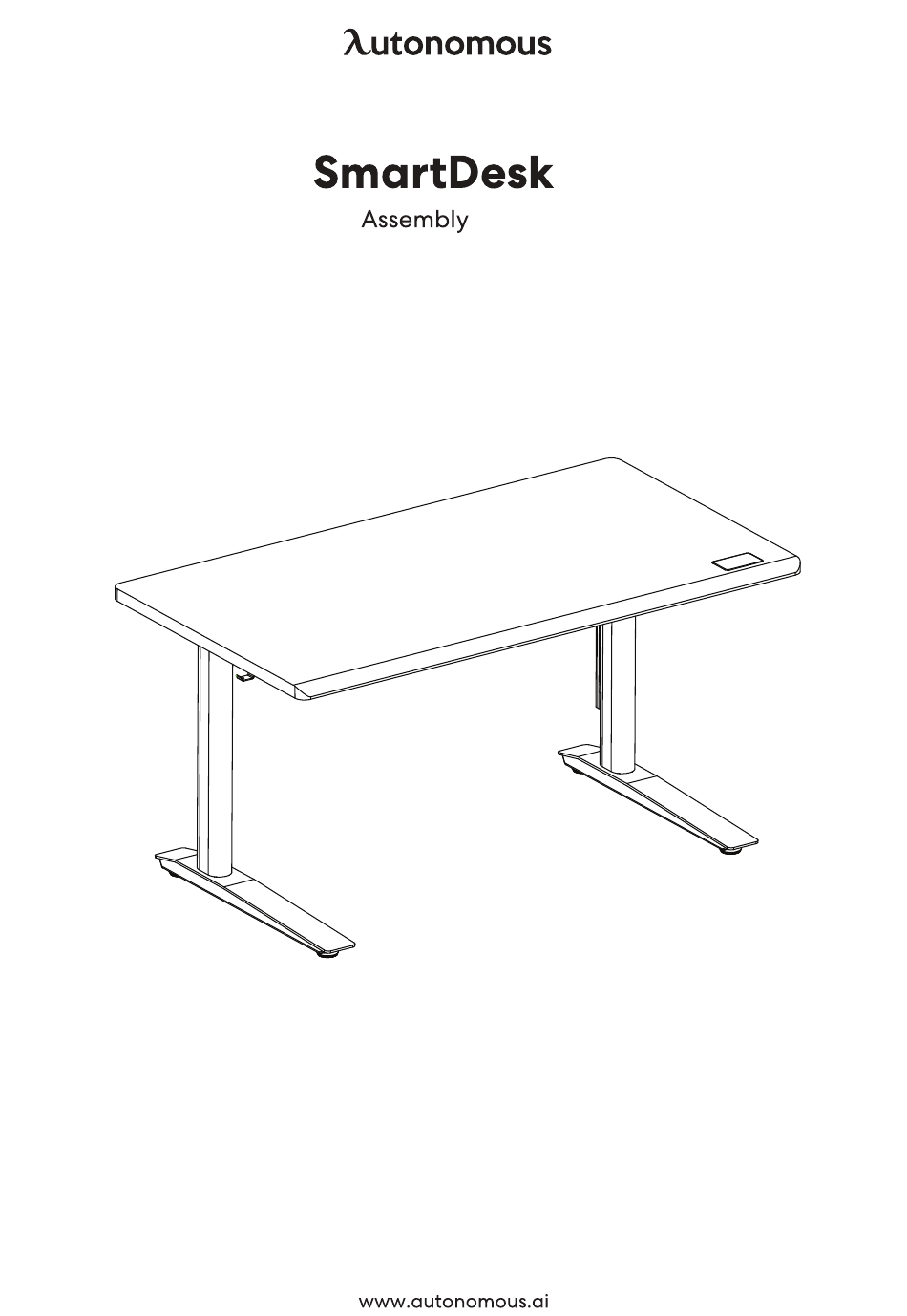

  • Page 1 Guide...
  • Page 2 Caution Safety reminders To ensure everyone's safety, please keep children, pets, and others away from the product while in use. Powering down When not using the product for long periods of time or during a lightning storm, please unplug the power supply to avoid any accidents. Setting up your space Place your desktop at a safe distance from walls to ensure proper ventilation and to prevent any damage.

  • Page 3: Parts Included

    Parts included...
  • Page 4 Instructions Put the Columns (5) and the Frame (1) together with the wrench and the 8 (A&C) screws. Put the Feet (6) and the Columns together (5) with the wrench and 8 (B) screws. Put the center rail (4) and the frame (1) together. Do not place the screw in yet.
  • Page 5 Attach Side Bracket A (2) and Side Bracket B (3) to the frame (1) with the wrench and 2 (C) screws. Assemble the Center Rail (4) to the frame (1) with the wrench and 8 (A) screws. Align the holes in the side bracket of the leg assembly with the holes shown on the desktop.
  • Page 6 Plug the motor cords , keypad cord (13), and power cord (14) to the control box (12). Then, wrap the cords around the cable winder for optimal organization. Use the Wrench and the 4x(B) and 2x (E) hand screws to assemble the cable tray to the desktop.
  • Page 7 Attach the Upper Tube (10) to one of the columns (5) and then attach the cable organizer (11) to the back edge of the desktop. Take a moment to double check that all screws are tight. Then carefully flip up.
  • Page 8 Disconnect the keypad cable (13), route it through the desk top, and reconnect it to the control box. Put 2 hooks (7) onto Side Bracket A and Side Bracket B.
  • Page 9 Prepare Your Desk Press and hold the up and down buttons for 3 seconds. The column will move down. Release when 'E00' flashes, indicating the reset is complete. Set Your Anti-Collision Level (*) 1. Press I + II together for 5 seconds to enter setting mode. Then, press up and down to adjust sensitivity: 0 (off), 1 (Setting 1, HIGHLY recommended), 9 (max).

  • Page 10: Adjust The Height

    I, II, or III that you’d like to save. 3. Click the digital button that is already set to the memory position and the desk will automatically move to the saved height position. Any questions? Chat with our Customer Support team at www.autonomous.ai/help-center. We're here to help!
