Goobay 51276, 55538, 55539, 55540 Manual

Safety instructions

The user manual is part of the product and contains important information for correct use.

• Read the user manual completely and carefully before use. The user manual must be available for uncertainties and passing the product.
• Keep this user manual.
• Use product, product parts and accessories only in perfect condition.
• Compare the specifications of all used devices to ensure compatibility.
• In case of questions, defects, mechanical damage, trouble and other problems, non-recoverable by the documentation, contact your dealer or producer.

Notes for network separation
The product has no power switch and may be used only in easily accessible outlets to quickly remove it in an emergency and after use.

• Voltage-free only with pulled plug.
• In case of emergency, during thunderstorms and after use, pull the product on its plug housing!

Overload

• Do not plug in a row.
• Never operate devices such as irons, radiant heaters, kettles, coffee machines, toasters, etc., which are subject to supervision during operation, with a timer, as there is a risk of fire.

Risk of electric shock

• Do not open the housing.
• Do not modify product and accessories.
• Installation, assembly, maintenance and repair work must be carried out only by trained electrical specialists.
• Do not short connectors and circuits.

Target group information
Not meant for children. The product is not a toy!

• Secure packaging, small parts and insulation against accidental use.

Operation and storage conditions

• Do not rotate, bend or mechanically strain otherwise In inserted state.
• For large temperature differences, wait a few minutes after transport, to take the unit into operation.
• Avoid stresses such as heat and cold, moisture and direct sunlight, vibration and mechanical pressure.

Description and Function

Products

These analogue timers are used for precise and easy control of electronic devices.

• Easy-to-use analogue timers
• Turns devices on or off in 15-minute intervals up to 96 times a day
• Switch offers the possibility of continuous operation
• With control LED

Scope of Delivery

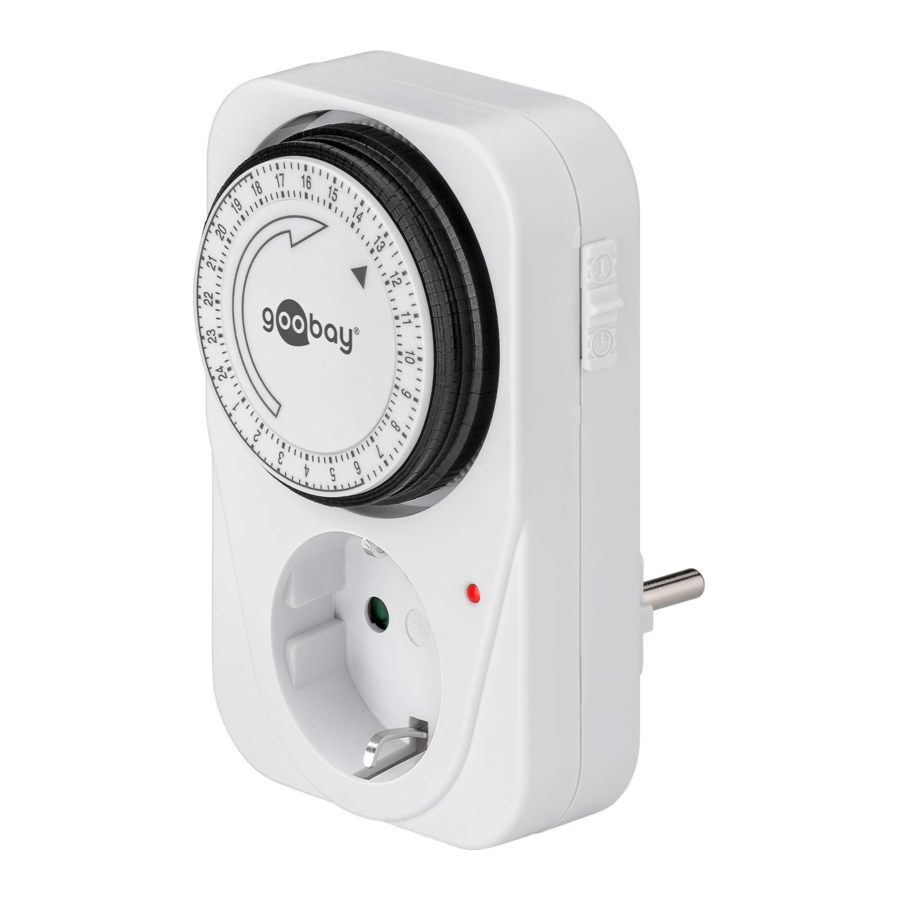

Operating Elements and parts

1. Housing
2. Dial
3. Rocker arm
4. Selector switch ON/time
5. Safety plug
6. Indicator LED
7. Safety socket

Specifications

Article numbers	51276_55538_55539_55540
Input	Safety plug CEE 7/4
Output	Grounding contact socket CEE 7/3
Nominal voltage (V@ 50 Hz)	220-240
Stand-by power consumption (W)	< 1.5
Max. Power (W) / Current (A)	3500 / 16 (2)
Dimensions (mm)	120 x 80 x 74
Weight (g)	145
Min. time interval (minutes)	15
Operating temperature (°C)	-0 ~ + 55
Accuracy (minutes/day)	+/- 6
Protection class / level	I / IP20

Intended Use

We do not permit using the device in other ways like described We do not permit using the device in other ways like described in chapter „Description and Function" or in the „Safety Instructions". Use the product only in dry interior rooms. Not attending to these regulations and safety instructions might cause fatal accidents, injuries, and damages to persons and property.

IP20: This product is protected against medium sized foreign objects, but not against water ingress. Use the product only in dry interior rooms.

Connecting

• Plug the time switch into a well reachable safety mains socket.

Settings

Setting the time

• Turn the dial clockwise until the arrow shows the required time.

The product displays 24 hrs.
The smallest possible step to set is 1/4 hour.
(15 minutes).

Setting switching times

1. Click the the preferred rocker arms back wards in plan view.
2. Make sure proper locking of the rocker arms.

You will hear a clicking sound.
The smallest possible step to set is 1/4 hour (15 minutes).
Within the set ON-switching times and permanently switched switch the control LED lights.

Set the operation mode

• Switch the time switch permanently on. is visible.

The time switch is permanently on.
Switching times are inactive.
The control LED lights is on.

• Switch the time switch in the time switching mode. is visible.

The time switch is on to the set ON-times.
Switching times are active.
The control LED lights during the set ON-times.

Summer and winter time

The summer and winter time must be set manually by the user.

• Therefore read chapter Setting the time.

Maintenance, Care, Storage and Transport

The products are maintenance-free.

NOTICE! Material damage

• Only, use a dry and soft cloth for cleaning.
• Do not use detergents or chemicals.
• Store cool and dry.
• Store the product out the reach of children and in a dry and dust protected ambience when not in use.
• Keep and use the original packaging for transport.

Symbols used

For indoor use only	IEC 60417- 5957
Recycling	ISO 7001 - PI PF 066
Alternating current	IEC 60417- 5032
