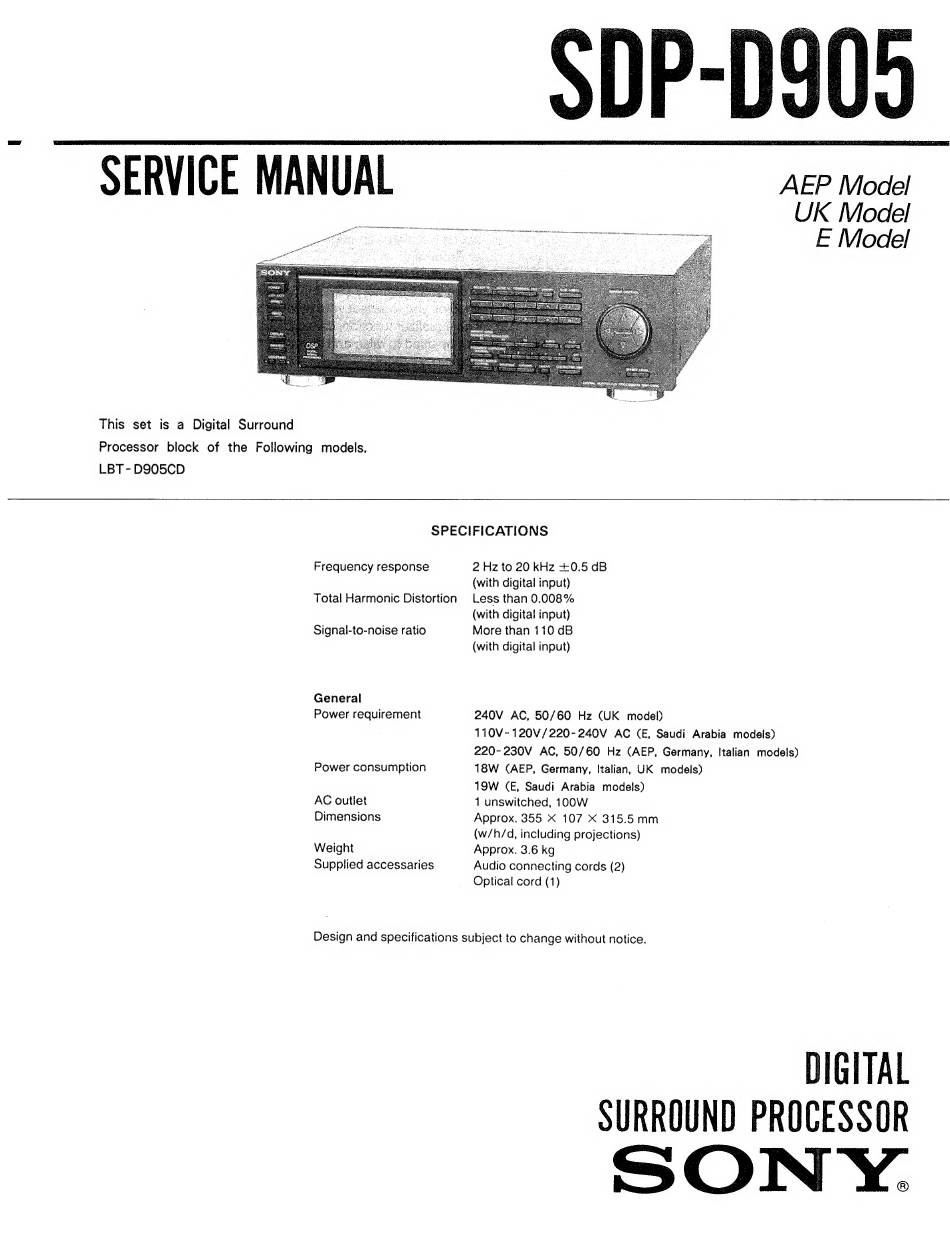

Sony SDP-D905 Service Manual

This set is a Digital Surround
Processor block of the Following models.
LBT-D905CD
AEP Model
UK Model
E Model
SPECIFICATIONS
Frequency response
Total Harmonic Distortion
Signal-to-noise ratio
General
Power requirement
Power consumption
AC outlet
Dimensions
Weight
Supplied accessaries
2 Hz to 20 kHz 0.5 dB
(with digital input)
Less than 0.008%
(with digital input)
More than 110 dB
(with digital input)
240V AC, 50/60 Hz (UK model)
110V-120V/220-240V AC CE, Saudi Arabia models)
220-230V AC, 50/60 Hz (AEP, Germany, Italian models)
18W (AEP, Germany, Italian, UK models)
19W (CE, Saudi Arabia models)
1 unswitched, 100W
Approx. 355 X 107 X 315.5mm
(w/h/d, including projections)
Approx. 3.6 kg
Audio connecting cords (2)
Optical cord (1)
Design and specifications subject to change without notice.
DIGITAL
SURROUND PROCESSOR
ON Y.
