Storage 4 Crafts Knightshayes Edition 3.0 Assembly Instructions Manual

Hide thumbs

Advertisement

Table of Contents

store
Knightshayes
away
Edition 3.0
Assembly Instructions
revised 0425 - 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Knightshayes Edition 3.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Storage 4 Crafts Knightshayes Edition 3.0

Summary of Contents for Storage 4 Crafts Knightshayes Edition 3.0

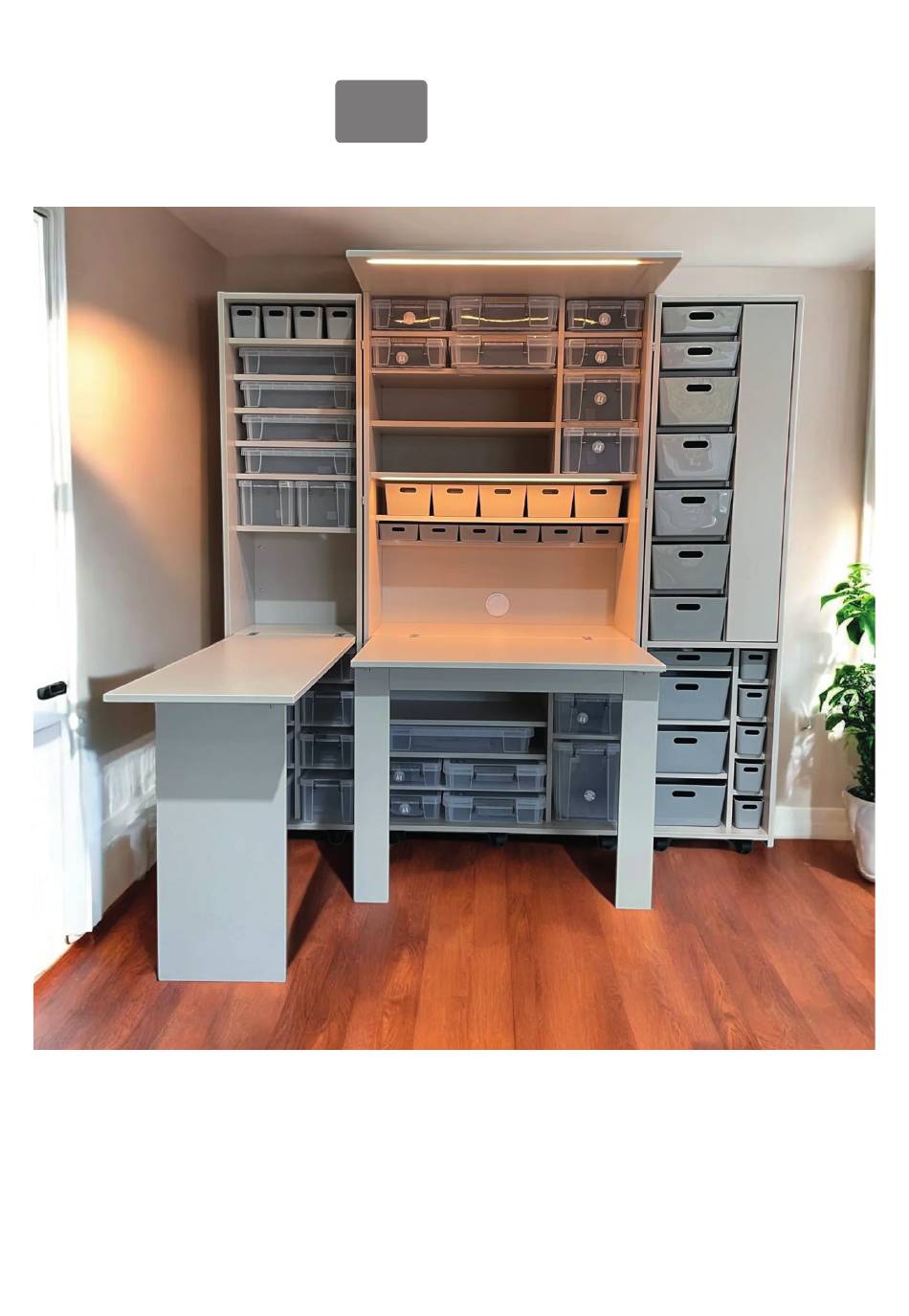

  • Page 1 store Knightshayes away Edition 3.0 Assembly Instructions revised 0425 - 1.2...
  • Page 2 It is strongly recommended to have two persons present when assembling this item. We advise that you unpack the boxes in the order shown in these instructions and follow the assembly instructions carefully. Please be careful during construction as section of the cupboard may be unstable until construction is complete.
  • Page 3 Your hardware pack should contain the following: IF LIGHTING ORDERED CONNECTING FOLDING LEG TRANSFORMER BOLT (CB1) (TRANS1) BRACKET (FLB1) X 92 PLUG CONNECTING (PLUG1) HANDLE & SCREW LOCK (CL1) (K1) X 2 X 92 -- OR -- MINI CABLE KNOB & SCREW CONNECTING OUTLET (K1) X 2...
  • Page 4 STEP 1 You will need all Knightshayes 3.0 of the panels from this You will need to open box - BOX 1 Insert CL1 Locks into the holes as indicated Screw CB2 Bolts into all KH3 M LHS KH3 M RHS the holes marked with a red circle screw in to...

  • Page 5: Table Of Contents

    STEP 2 You will require panel Knightshayes 3.0 KH3 M BASE from this You will need to open box - box keep the other BOX 5 panels to one side Insert CL1 Locks into the holes as indicated with a blue circle KH3 M BASE Front Edge Attach castors C2...
  • Page 6 STEP 4 With the KH3 M SIDE laying on the solid flat clean surface (we recommend the floor) attach the two back panels and the base. Secure by turning all of the connecting locks in the backs and the base approx one half turn.
  • Page 7 STEP 5 With the unit still laying on the floor place the other KH3 M RHS onto the top and secure all the connecting locks and angle brackets. Then carefully stand the unit onto its wheels. IT IS HIGHLY RECOMMENDED TO HAVE TWO PEOPLE TO COMPLETE THIS STEP TO AVOID INJURY OR DAMAGE TO THE PRODUCT.

  • Page 8: Knightshayes 3.0

    STEP 6 You will require Knightshayes 3.0 panels KH3 M FIX SH from You will need panels from box - BOX 5 this already opened Fit the KH3 M FIX SH into the unit as indicated. Then secure by tightening the locks which are fitted into the panel KH3 M FIX SH screw in to...

  • Page 9: Knightshayes 3.0

    STEP 7 Knightshayes 3.0 You will require the nal panel from You will need panels from box - BOX 10 this box KH3 M TOP BACK Fit KH3 M TOP BACK and tighten the locks which are pre-fitted to the panel. BACK EDGE S A 4 3 3 S A 4 3...

  • Page 10: Box 6

    STEP 8 Knightshayes 3.0 You will need panels You will need to open box - KH3 M BCD and KH3 M TCD BOX 6 from this box Ensure the centre dividers are the correct way up with the label indicating the top of the panel at the top. If in doubt there is also a small 3mm drilled hole in the upper rear corner of the panels to indicate the top.

  • Page 11: You Will Require Panel

    STEP 9 You will require panel Knightshayes 3.0 KH3 M TOP from this You will need to open box - box keep the other BOX 11 panel to one side screw in to this point Screw CB1 Bolts into all the holes marked with a blue circle Place the KH3 M TOP onto the top of the section you have already constructed and tighten the...
  • Page 12 You will require STEP 10 Knightshayes 3.0 panels KH3 M SSH, You will need panels from box - KH3 M SH and KH3 M DS BOX 5 from this box Fit KH3 M SH and KH3 M SSH onto shelf pegs SP3 as indicated.
  • Page 13 STEP 11 Knightshayes 3.0 Knightshayes 3.0 You will need panels from boxes - BOX 5 BOX 11 Attach Bolts DB1 with Screws 35-15S KH3 M DESK KH3 M LBAR KH3 M LBAR Attach the KH3 M LBAR to the KH3 M TLEGs by pushing the panels together and attaching with the dowels that are already inserted...

  • Page 14: Important Message

    STEP 12 Attach the complete desk to the main section using hinge H3 and screws 35-15S as supplied. Once in place ensure it is secured with bolts supplied. The hinges may require a small amount of lubrication on the hinge bar to allow proper free movement.
  • Page 15 STEP 13 Knightshayes 3.0 You will need to open box - BOX 3 In the following steps you will be constructing the Left Hand Door Section of your Knigthshayes with the integrated desk. KH3 D1 RHS KH3 D1 LHS Insert CL1 Locks into the holes as indicated Screw CB2 Bolts into all the holes marked with...
  • Page 16 STEP 14 Knightshayes 3.0 You will need to open box - BOX 7 Insert CL1 connecting locks into the KH3 D1 TOP and the KH3 D1 BASE as shown below. Then attach the C2 casters to the BASE using screws 35-17D as shown below. Insert CL1 Locks into the holes as indicated KH3 D1 TOP...
  • Page 17 STEP 15 With the KH3 D1 LHS laying on the solid flat clean surface (we recommend the floor). Attach both KH D SIDES to the KH D BASE and KH D TOP and secure by tightening the locks you have already fitted. Then fix the angle brackets to the base using screw 35-17D.
  • Page 18 STEP 16 Knightshayes 3.0 You will need to open box - BOX 2 With the Door Fascia Panel KH D FASCIA laying on the solid flat clean surface (we recommend the floor). Attach the section that you have already assembled and secure by tightening the locks which you have already inserted into the panels.
  • Page 19 STEP 17 Using Hinge H2 and Screws 30-15S attach the completed door section to the centre section you have already constructed. Fit the SA-BCD and SA190-TCD Panels as indicated and secure by tightening the locks which are fitted into the panels SA433-DS BACK EDGE...
  • Page 20 STEP 18 Knightshayes 3.0 You will need to open box - BOX 9 Attach Bolts DB1 with Screws 35-15S KH3 D1 DESK Attach the KH D DLEG to the KH D DESK using the Folding Leg Bracket (FLB1) and screws V13 as supplied...
  • Page 21 STEP 19 Knightshayes 3.0 Knightshayes 3.0 You will need a panels from boxes - BOX 3 BOX 6 screw in to KH3 D1 BCD KH3 D DS Screw CB1 Bolts into all the holes marked with a blue circle Insert CL1 Locks into the holes as indicated Fit the KH3 D1 BCD to the bolts you have tted to the base of the door section then t the KH3 D DS panel on the BCD and the the CB2 bolts you tted earlier.
  • Page 22 STEP 20 Attach the complete desk to the door section using hinge H3 and screws 35-15S as supplied. Once in place ensure it is secured with bolts supplied. The hinges may require a small amount of lubrication on the hinge bar to allow proper free movement.
  • Page 23 STEP 21 Knightshayes 3.0 You will need panels from box - BOX 4 In the following steps you will be constructing the Right Hand Door Section of your Knigthshayes. BACK BACK Separate each runner into two parts by opening the runner and releasing the small black latch at the front.
  • Page 24 STEP 22 Knightshayes 3.0 You will need panels from box - BOX 7 Insert CL1 connecting locks into the KH3 D2 TOP and the KH3 D2 BASE as shown below. Then attach the C2 casters to the BASE using screws 35-17D as shown below. Insert CL1 Locks into the holes as indicated KH3 D2 TOP...
  • Page 25 STEP 23...
  • Page 26 STEP 24 Knightshayes 3.0 You will need panels from box - BOX 2 To fit to the RIGHT HAND SIDE (DOOR 2) screw in to Screw CB1 Bolts into all the holes marked with a blue circle Door knob or handle holes...
  • Page 27 STEP 25 Using Hinge H2 and Screws 30-15S attach the completed door section to the centre section you have already constructed. Fit the SA-BCD and SA190-TCD Panels as indicated and secure by tightening the locks which are fitted into the panels SA433-DS BACK EDGE...
  • Page 28 STEP 26 Knightshayes 3.0 Knightshayes 3.0 You will need panels from boxes - BOX 4 BOX 7 Insert the large dowels into the four holes in the ends of the KH3 D2 BCD. Ensure they are fully inserted KH3 D2 BCD Fit the KH3 D2 BCD to the base of the door section by inserting the dowels into the pre-drilled holes.
  • Page 29 STEP 27 Knightshayes 3.0 You will need panels from boxes - BOX 4 Fit CB2 bolts as indicated below and then... Fit the KH3 D2 TCD to the door section and tighten the pre tted connecting locks Screw CB2 Bolts into all the holes marked with a red circle Fit the SA-BCD and SA190-TCD Panels as indicated and...
  • Page 30 STEP 28 Knightshayes 3.0 Knightshayes 3.0 You will need panels from boxes - BOX 3 BOX 12 Insert CL1 Locks into the holes as indicated KH3 D2 RACK TOP Attach the Top, Base and two bars to the Rack Back and screw in to tighten the connecting locks.
  • Page 31 STEP 29 You will need all remaining panels - A standard layout of boxes is shown below. The best way to fit the boxes is to start at the bottom of each section, insert a box then add shelf pegs (SP3) and a shelf above then continue until the section is full. Use shelves and boxes as indicated below.
  • Page 32 store Knightshayes away Edition 3.0 The Storeaway Knightshayes 3.0 unit is designed and manufactured in the UK by: storage C R A F T S www.storage4crafts.co.uk...
