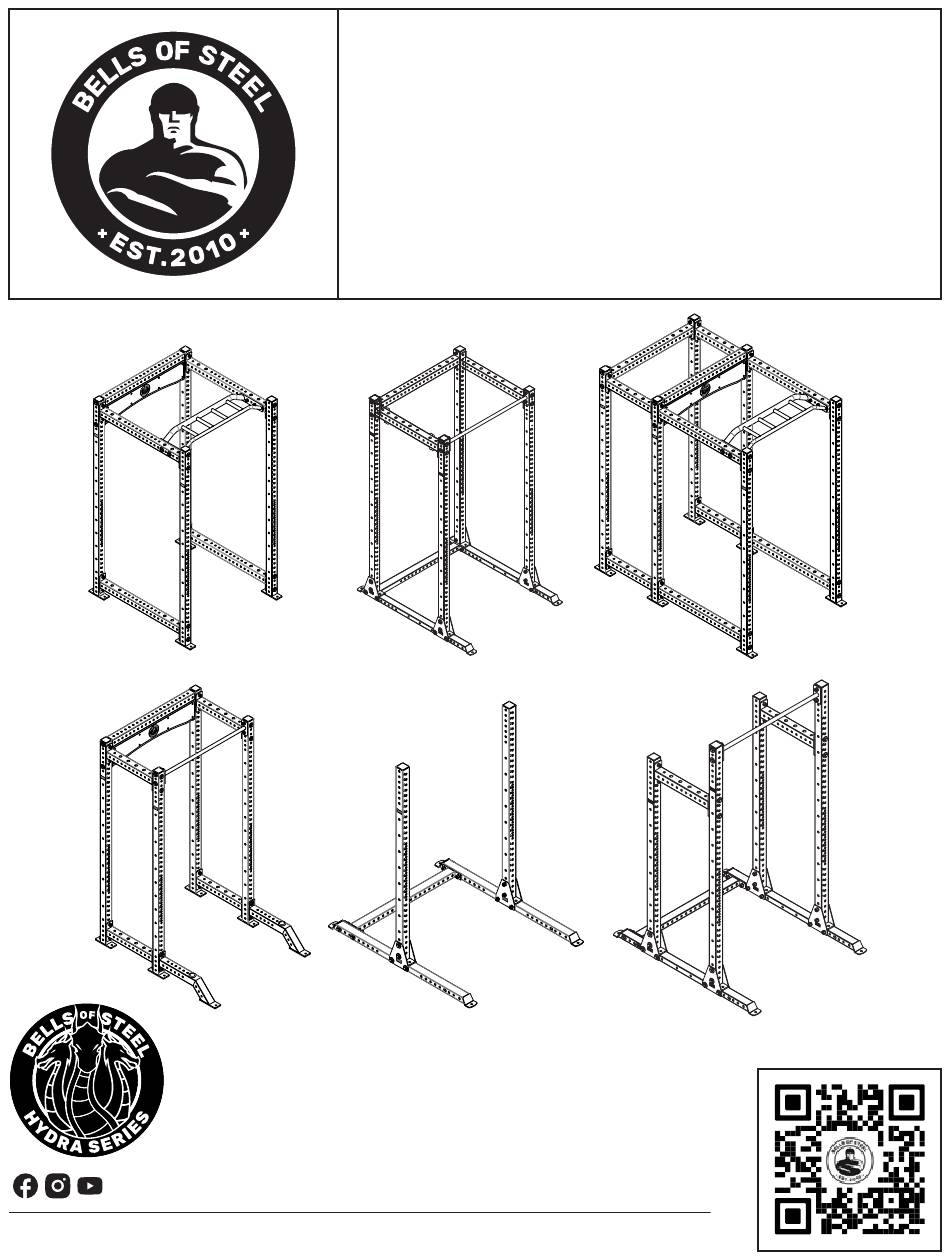

HYDRA
ASSEMBLY GUIDE
ASSEMBLY INSTRUCTIONS
BELLSOFSTEEL
Stuck? Scan the QR code for the assembly video
www.bellsofsteel.com | www.bellsofsteel.us | Telephone: 1-888-718-7997

Advertisement

loading
Need help?

Need help?

Do you have a question about the HYDRA and is the answer not in the manual?

Questions and answers

Related Manuals for Bells Of Steel HYDRA

Summary of Contents for Bells Of Steel HYDRA

  • Page 1 HYDRA ASSEMBLY GUIDE ASSEMBLY INSTRUCTIONS BELLSOFSTEEL Stuck? Scan the QR code for the assembly video www.bellsofsteel.com | www.bellsofsteel.us | Telephone: 1-888-718-7997...
  • Page 2 STRENGTH, ONE BOLT AT A TIME. Welcome to Bells of Steel, you’ve made an excellent choice. I’ve done my best to keep the setup of your new gear First off I want to say thank you for supporting my small business.
  • Page 3 A GUIDE TO SAFETY We know you are excited to use your new Bells of Steel gear, but please read through this Guide to Safety to ensure you do not hurt yourself or others while exercising. It is your responsibility to ensure that all users of the equipment are informed of all warnings and instructions in this manual.
  • Page 4 Choose the type of Hydra rack you have from the diagrams below. Refer to the pages indicated for the assembly instruction. B. HYDRA 3 X 3 Inch C. HYDRA 3 X 3 Inch Flat Foot Power Six Post Power (page 2-4)

  • Page 5: Assembly Tips

    Assembly Tips Choose an appropriate location: Ensure you have sufficient space around the rack before starting assembly. Assemble the rack in the location where it will be used to avoid unnecessary movement after setup. - Two-person assembly recommended: Due to the size and weight of the components, having two people for assembly is strongly recommended to ensure safety and ease of installation.

  • Page 6: Tools Required

    A. HYDRA 3 X 3 Inch Four Post Power Rack TOOLS REQUIRED PARTS LIST 24mm M16x110mm bolt, M16 washer, Wrench M16 spring washer, M16 nut x22 M16x110mm bolt, 12x75- 14 M16 washer x2 anchor bolt x8 included PAGE 6 OF 29...
  • Page 7 Assemble the uprights. Fix with M16x110mm bolt, M16 washer, M16 spring washerM16 nut (1). Connect uprights by attaching rear crossmember. Fix with M16x110mm bolt, M16 washer, M16 spring washerM16 nut (1). And M16x110mm bolt, M16 washer set (2). Tighten as shown. PAGE 7 OF 29...
  • Page 8 Attach side crossmembers. Fix with M16x110mm bolt, M16 washer, M16 spring washerM16 nut (1). Attach front support. Fix with M16x110mm bolt, M16 washer, M16 spring washer and M16 nut (1). If anchoring to the ground install anchor bolts. Level uprights and beams before fully tigthening.
  • Page 9 B. HYDRA 3 X 3 Inch Flat Foot Power Rack TOOLS REQUIRED PARTS LIST 24mm M16x110mm bolt, Wrench M16 washer, M16 spring washer M16 nut x32 12x75- 14 anchor bolt x4 included PAGE 9 OF 29...
  • Page 10 B. ASSEMBLY Assemble the base. Fix with M16x110mm bolt, M16 washer, M16 spring washerM16 nut (1). Install the uprights. Fix with M16x110mm bolt, M16 washer, M16 spring washerM16 nut (1). PAGE 10 OF 29...
  • Page 11 B. ASSEMBLY Attach rear crossmember and front support. Fix with M16x110mm bolt, M16 washer, M16 spring washerM16 nut (1). Attach side crossmembers. Fix with M16x110mm bolt, M16 washer, M16 spring washerM16 nut (1). If anchoring to the ground install anchor bolts. PAGE 11 OF 29...
  • Page 12 C. HYDRA 3 X 3 Inch Six Post Power Rack TOOLS REQUIRED PARTS LIST 24mm M16x120mm bolt, Wrench M16 washer, M16 spring washer M16 nut x8 included M16x110mm bolt, M16 washer, 12x75- 14 M16 spring washer anchor bolt x12 M16 nut x28...
  • Page 13 C. ASSEMBLY For steps please follow HYDRA 3 X 3 Inch Four Post Power Rack on Page 3 & Page 4. Remove M16x110 bolt set (2) and replace with M16 x 120 both set (1) but do not install M10 washer and M10 nut.
  • Page 14 C. ASSEMBLY Attach rear side crossmembers and fix with M16 washer and M16 nut you removed in previous step. Attach 2 rear uprights, Fix with M16x110mm bolt, M16 washer, M16 spring washerM16 nut (1). PAGE 14 OF 29...
  • Page 15 C. ASSEMBLY Attach rear crossmembers, Fix with M16x110mm bolt, M16 washer, M16 spring washerM16 nut (1). If anchoring to the ground install anchor bolts. PAGE 15 OF 29...
  • Page 16 D. HYDRA 3 X 3 Inch Four Post Collegiate Rack TOOLS REQUIRED PARTS LIST 24mm M16x120mm bolt, M16x110mm bolt, Wrench M16 washer, M16 washer, M16 spring washer M16 spring washer M16 nut x4 M16 nut x18 M16x110mm bolt, 12x75- 14...
  • Page 17 D. ASSEMBLY Assemble rear uprights. Fix with M16x110mm bolt, M16 washer, M16 spring washerM16 nut (2) and M16x110mm bolt, M16 washer (3). Attach crossmembers and fix with M16x110mm bolt, M16 washer, M16 spring washer, M16 nut (2) Attach front upright, fix top holes with M16x110mm bolt, M16 washer, M16 spring washer, M16 nut (2).
  • Page 18 D. ASSEMBLY Attach front support, fix with M16x110mm bolt, M16 washer, M16 spring washer and M16 nut (2). Attach front base, fix with M16x120mm bolt, M16 washer, M16 spring washer and M16 nut (1). If anchoring to the ground install anchor bolts.
  • Page 19 E. HYDRA 3 X 3 Inch Squat Stand TOOLS REQUIRED PARTS LIST 24mm M16x110mm bolt, Wrench included M16 washer, M16 spring washer 12x75- 14 M16 nut x12 anchor bolt x10 PAGE 19 OF 29...
  • Page 20 E. ASSEMBLY Assemble the base. Fix with M16x110mm bolt, M16 washer, M16 spring washer and M16 nut (1). Attach upright brackets. Fix with M16x110mm bolt, M16 washer, M16 spring washer and M16 nut (1). Attach uprights. Fix with M16x110mm bolt, M16 washer, M16 spring washer and M16 nut (1).
  • Page 21 F. HYDRA 3 X 3 Inch Half Rack TOOLS REQUIRED PARTS LIST 24mm M16x110mm bolt, Wrench included M16 washer, M16 spring washer 12x75- 14 M16 nut x32 anchor bolt x4 PAGE 21 OF 29...
  • Page 22 F. ASSEMBLY Assemble the base. Fix with M16x110mm bolt, M16 washer, M16 spring washer and M16 nut (1). Attach upright brackets. Fix with M16x110mm bolt, M16 washer, M16 spring washer and M16 nut (1). Attach uprights. Fix with M16x110mm bolt, M16 washer, M16 spring washer and M16 nut (1).
  • Page 23 F. ASSEMBLY Attach front support, fix with M16x110mm bolt, M16 washer, M16 spring washer and M16 nut (1). If anchoring to the ground install anchor bolts. PAGE 23 OF 29...
  • Page 24 G. Roc Foldable Cage TOOLS REQUIRED 24mm Wrench PARTS LIST M16x130mm bolt, M16 washer, M16 spring washer 15.8 M16 nut x4 Pinball pin x6 M16x110mm bolt, M16 washer, M16 spring washer M16 nut x8 PAGE 24 OF 29...
  • Page 25 G. ASSEMBLY Assemble 4 crossmembers, fix with M16x130mm bolt, M16 washer, M16 spring washer and M16 nut (1). Attach the beams to the upright, fix with M16x110mm bolt, M16 washer, M16 spring washer and M16 nut (1). Make 2 sets. Attach (5), then attach front support and fix with (6).
  • Page 26 H. Roc Foldable 4 Post Cage TOOLS REQUIRED PARTS LIST 24mm Wrench PARTS LIST M16x110mm bolt, M16 washer, M16 spring washer M16x130mm bolt, M16 nut x8 M16 washer, M16 spring washer M16 nut x4 M16x120mm bolt, M16 washer, 15.8 M16 spring washer Pinball pin x6 M16 nut x8 PAGE 26 OF 29...
  • Page 27 H. ASSEMBLY Attach 2 beams to upright, fix with Install other upright and short M16x110mm bolt, M16 washer, beam, fix with M16x120mm bolt, M16 spring washer and M16 nut (3). M16 washer, M16 spring washer M16 nut (1). Make 2 sets. Attach front support, lock it with (7).
  • Page 28 H. ASSEMBLY Attach 4 crossmembers, fix with M16x130mm bolt, M16 washer, M16 spring washerM16 nut (1). Slide in pin (5) on each brackets. PAGE 28 OF 29...
  • Page 29 YOU’RE FINISHED! WANT TO LEARN MORE ABOUT THE HYDRA RACK? CHECK OUT THE OVERVIEW VIDEO: VISIT OUR SHOWROOMS Calgary - HQ Toronto - Showroom Indianapolis - Showroom Corporate Headquarters 7880 66 St SE, Calgary, AB, Canada U.S.A. Headquarters 5925 W 71st St, Indianapolis, IN, U.S.A.
