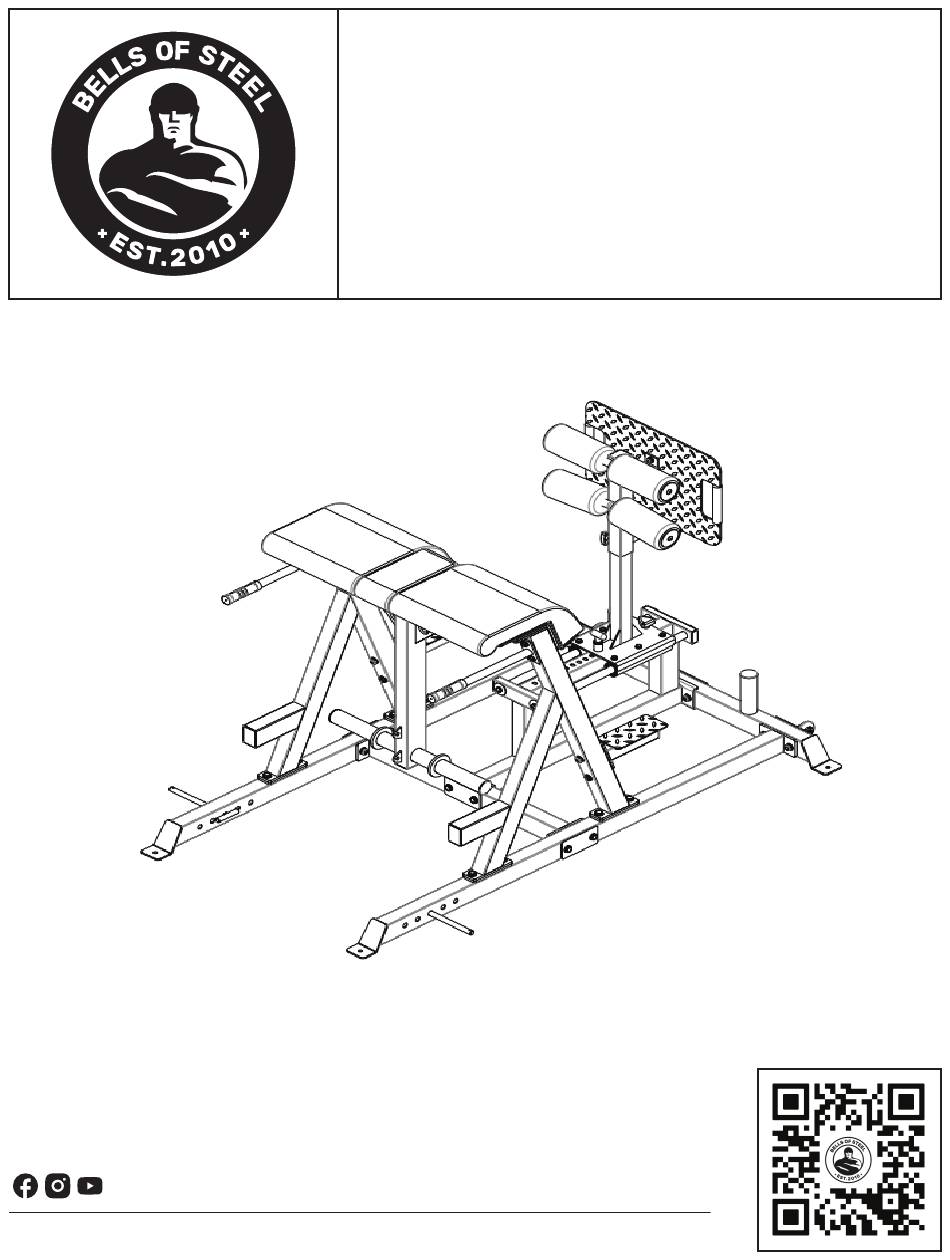

- Page 1 REVERSE HAMMER SKU: RHAM-MA ASSEMBLY INSTRUCTIONS BELLSOFSTEEL Stuck? Scan the QR code for the assembly video www.bellsofsteel.com | www.bellsofsteel.us | Telephone: 1-888-718-7997...
- Page 2 STRENGTH, ONE BOLT AT A TIME. Welcome to Bells of Steel, you’ve made an excellent choice. I’ve done my best to keep the setup of your new gear First off I want to say thank you for supporting my small business.
- Page 3 A GUIDE TO SAFETY We know you are excited to use your new Bells of Steel gear, but please read through this Guide to Safety to ensure you do not hurt yourself or others while exercising. It is your responsibility to ensure that all users of the equipment are informed of all warnings and instructions in this manual.
-
Page 4: Tools Required
PARTS LIST M12 x 90mm bolt M12 x 85mm bolt M12 nut, M12 Washer M10 Washer 12 x 90 12 x 85 M12 x 80mm bolt M12 x 75mm bolt M12 nut, M12 Washer M12 nut, M12 Washer 12 x 80 12 x 75 10 x 25 12 x 20... - Page 5 ASSEMBLY Assemble base. Fix using M12 x 80mm bolt, M20 washer and M20 nut (3). M12 x 80 bolt M12 Nut, M12 washer Attach uprights. Fix using M12 x 20mm bolt and M12 washer (6). M12 x 20 bolt M12 washer PAGE 5 OF 8...
- Page 6 ASSEMBLY Attach top supports. Fix upper part with M12 x 85mm bolt and M12 washer (2) and M12 x 20 bolt and M10 washer (6). Fix lower parts with M12 x 90mm bolt M12 nut and M12 washer (1). M12 x 85 mm bolt M12 x 20 mm bolt M12 x 90 mm bolt Attach handle.
- Page 7 ASSEMBLY Attach top parts, Fix with M10 x 20 hex socket bolts and M10 washer (9). Assemble parts. Fix lower part with M10 x 16mm bolt and big washer (8). Fix upper part with M8 x 16mm bolt, SP washer and M8 washers (11).
- Page 8 ASSEMBLY Attach parts as shown. Fix each side with M10 x 25 hex socket bolt and big washer (10). Attach other smaller part. Fix with M10 x 25mm bolt, M10 nut amd M10 washer (7). Add part (12) to lock. PAGE 7 OF 8...
- Page 9 YOU’RE FINISHED! WANT TO LEARN MORE ABOUT THE REVERSE HAMMER? CHECK OUT THE OVERVIEW VIDEO: VISIT OUR SHOWROOMS Calgary - HQ Toronto - Showroom Indianapolis - Showroom Corporate Headquarters 7880 66 St SE, Calgary, AB, Canada U.S.A. Headquarters 5925 W 71st St, Indianapolis, IN, U.S.A. Toronto Store 39 Haist Ave # 2, Woodbridge, ON, Canada support@bellsofsteel.com | 1-888-718-7997...
