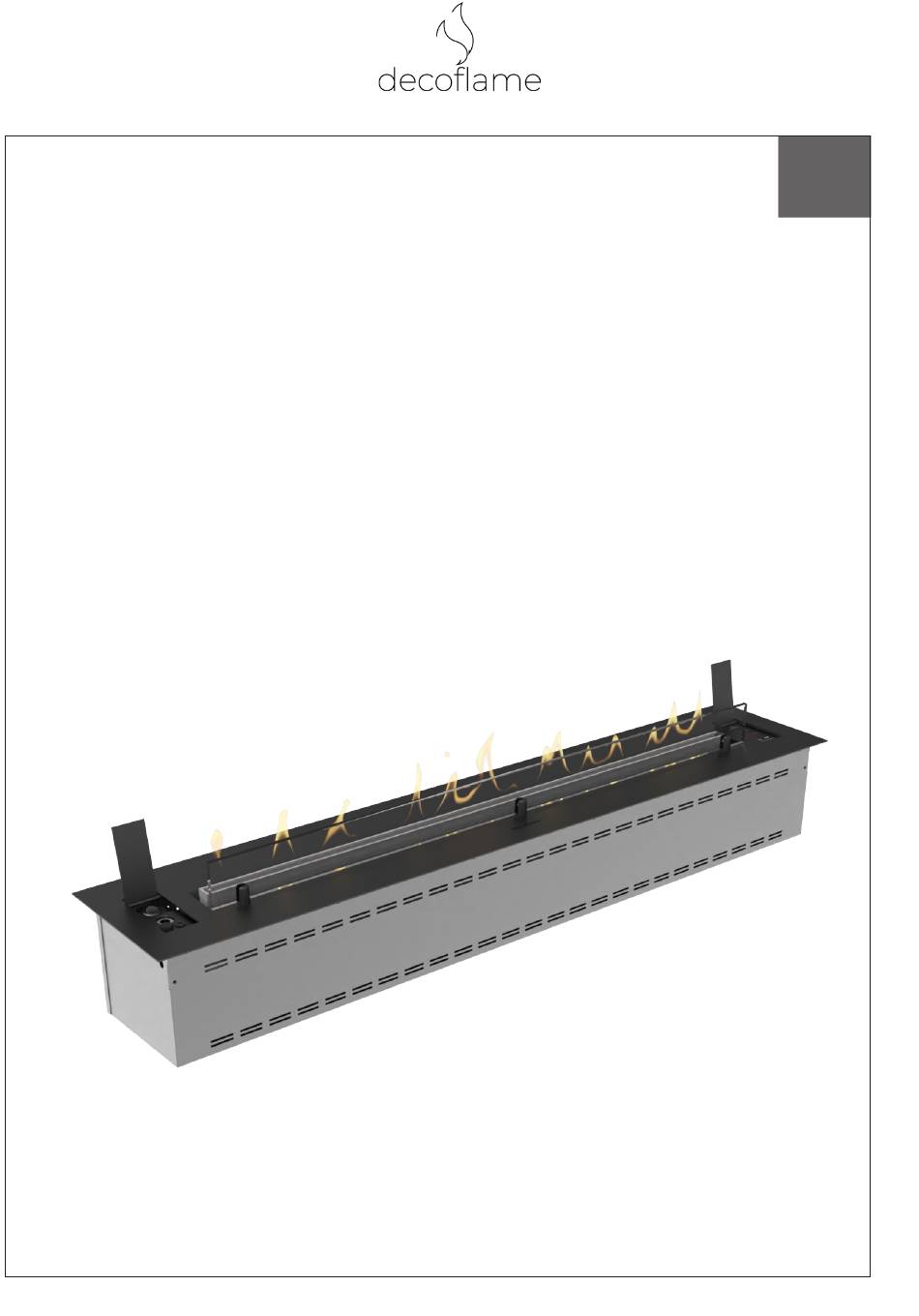

- Page 1 USER MANUAL DENVER F3™ NEW PANEL...
-
Page 2: Table Of Contents
IT IS IMPERATIVE THAT YOU READ THE ENTIRE INSTALLATION AND OPERATING INSTRUCTIONS AND ADHERE TO THE SAFETY MEASURES DESCRIBED IN THIS DOCUMENT. DECOFLAME CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE CAUSED AS A RESULT OF NON-ADHERANCE TO THESE INSTRUCTIONS. KEEP THE MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. -
Page 3: Packaging
If any questions or doubts please contact Decoflame or local retailer. It is very IMPORTANT to keep the wooden crate or the cardboard, in case the fireplace will need to be returned to Decoflame for service DO NOT DO NOT open the box or wooden crate with sharp objects. -
Page 4: Content Of The Box
Electronical Filling Pump 3. GENERAL INFORMATION All Decoflame fireplaces are designed, manufactured and quality-tested in Denmark with the highest product safety and user- friendliness in mind. Denver e-Ribbon Basic™ with CEVB Technology (Controlled Ethanol Vapour Burning Technology) can be ope- rated via control panel. -
Page 5: Installation
Please read and follow the detailed installation instructions on your technical drawing, which have been compiled for your Decoflame bio fireplace. In here you will find all dimensions and a step-by-step installation guide. It is only advisable to install your Decoflame bio fireplace, after all craft work in the room has been completed, to avoid damages to the bio fireplace, casing or glass. -
Page 6: Preperation Of Wall
5.2. PREPERATION OF WALL The fireplace hole must be constructed in a The fireplace hole must be hermetically Decoflame recommends that you do NOT non-flammable material with regard to DS sealed in both top and sides, so that false joint around the casing of the fireplace. -
Page 7: Recess In Cavity Wall
IN GENERAL Make sure the notches in the wall and the support of the left and right sides under the base plate of your Denver F3™ burner, is level and all corners of cutouts are at a 90 degree angle. - Page 8 The minimum height is always 400mm with the casing heat migration becomes too solution. high. 500 mm DENVER F3 CAN BE USED IN VARIOUS CONSTRUCTIONS, E.G.: Open to front Open to front and back Open to front and 1 side (Left or right)
-
Page 9: Placement Under Tv Screen
TV screens or valuable paintings above the fireplace as the upwards drifting warm air might damage those. Should you still want to create a setting incorporating a TV screens above the fireplace, please follow the instructions below or ask Decoflame for further advice. ↕ Min. 800mm Min. -
Page 10: Burner Installation Process
When the biofireplace is positioned as desired, turn on the power connection using the button that unlocks the fuel cover. > STEP 4: Carefully fit the glass screen(s) by inserting the glass holders into the holes in the top plate. Avoid scratching the top plate. Copyright Decoflame ApS. -
Page 11: Operating Instructions
NOTE: The glowing filament must not be touched when it is lit as it is hot. convenience and safety. During cleaning - do not touch it as it is extremely fragile ONLY ADULTS MAY OPERATE THE ELECTRONICS OF THE DECOFLAME DENVER F6™. > TURN ON Turn on the power connection to your Denver F3 by pressing the button. - Page 12 DO NOT USE other fuel, other materials, lower quality bioethanol, or bioethanol containing oils and fragrances, as this will void your warranty. Bioethanol can be bought in specialist shops or on the internet - feel free to ask Decoflame for advice and recom- mendations.
-
Page 13: Operating Control Panel
6.1 OPERATING CONTROL PANEL Ready The fireplace is ready to be lit Pump on The filling pump is active and can fill the fireplace Fire on There is a flame in the fireplace and it has completed its start-up process. State Error There is an active error. -
Page 14: Button Functions
6.2 BUTTON FUNCTIONS This device features four buttons that control various functions: Increase Flame Level / Decrease Flame Level / Power / Play. Here is a detailed description of each button's function: > POWER BUTTON ( • Short Press: Turns the device on or off. •... -
Page 15: Troubleshooting
A fault in one or more sensors, which can affect the Contact your nearest dealer to get the issue system's ability to monitor and control safety and repaired. Sensor Error operation. For further information, refer to the SUPPORT page at www.decoflame.com... -
Page 16: Operating Remote Control
A: Up with 1/2 hour B: Down with 1/2 hour Regulate the flame intensity between levels 1-3 ATTENTION: If you want to turn off all the electronics, press the button on the control panel. Copyright Decoflame ApS. -
Page 17: Maintenance
Before starting to clean the fireplace, make sure it has cooled down and it is switched off completely. The glass components of your Decoflame fireplace are made of tempered heat-resistant glass. Those glass parts as well as any metal parts which are exposed to the heat of the fire might slightly change color or structure. This is to be considered normal wear and tear and does not constitute a product flaw or fault. -
Page 18: Emptying The Fuel Tank
10. EMPTYING THE FUEL TANK It is very important that the fuel tank is empty if the biofireplace has to be moved or if it has to be sent to Decoflame ApS for additional technical assistance. To empty the tank, reverse the coupling on the pump and follow the filling instructions. -
Page 19: Symbols
13. DISPOSAL AND RECYCLING The made to measure Decoflame bioethanol fireplace is made of aluminium, stainless steel, glass(es), copper, plastic and electronic components. If you wish to dispose of the appliance, please adhere to the regional rules and regulations. - Page 20 Follow the Fire Authorities and national and local requirements regarding bioethanol fireplaces. Subject to product tolerances, typographical errors and technical errors. Decoflame ApS reserves the right to make changes without notice. We refer to Decoflame’s General Terms of Sale and Delivery.
