Assa Abloy RIXSON SMOK-CHEK V Installation Instructions

Model 0601K
SMOK-CHEK V
®
Push Side Installation Instructions
A Fire/Life Safety Holder/Closer Product
WARNING
This product can expose you to lead which is known to the state of
California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65warnings.ca.gov.

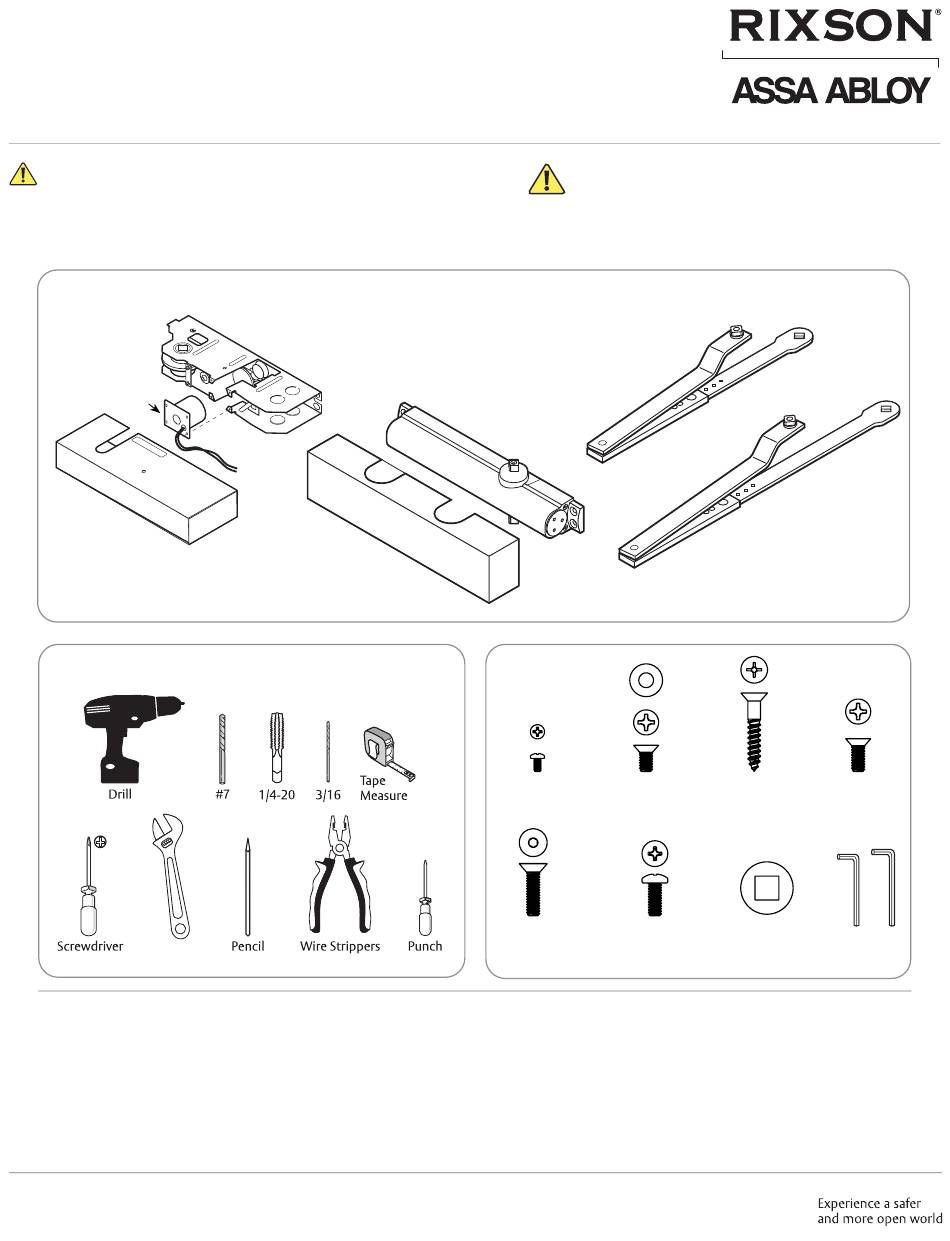

85° - 105° Hold Open
Magnet
930105 120VAC
930106 24VAC/DC
Holder Cover
550106
(non-detectored)
Tools Needed
Wrench
General Information:
Non Handed
Door Hanging Means:
•
Standard 4", 4-1/2", or 5" Butt Hinges
•
3/4" Offset Pivot
• For other means, contact factory
Copyright © 2005, 2009, 2020, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in
whole or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
ISFM0601 08/20
Holder Assembly (includes magnet)
550100 120VAC
550101 24VAC/DC
Closer Cover
233069K
Not For Use On Doors That Will Be
Manually Closed On A Daily Basis
Closer Body
85010163-
Supplied Fasteners
2x 1x
Closer Cover Closer Arm
6-32x1/4 PHPMS 1/4-20x1/2 FUHPMS
1x 6x
Holder Arm Holder and Cover
1/4-20x1 FHHX 1/4-20 x 5/8 PPHMS
2" Minimum head frame
• For frame face less than 2", contact factory
Maximum reveal 3-1/2"
•
For reveals 3-1/2" - 5-1/2", use arm 550789.
This arm allows for 150° hold open on 3-1/2" reveals
and 135° hold open on 5-1/2" reveals.
Push Side Arm
550136K
Deep Reveal
Push Side Arm
550789
OR
4x 4x
Closer Closer
14x1-1/2 FHWS 1/4-20x5/8 FHMS
2x
5/32" and 1/8"
SPDL Spacer
Hex Wrenches
