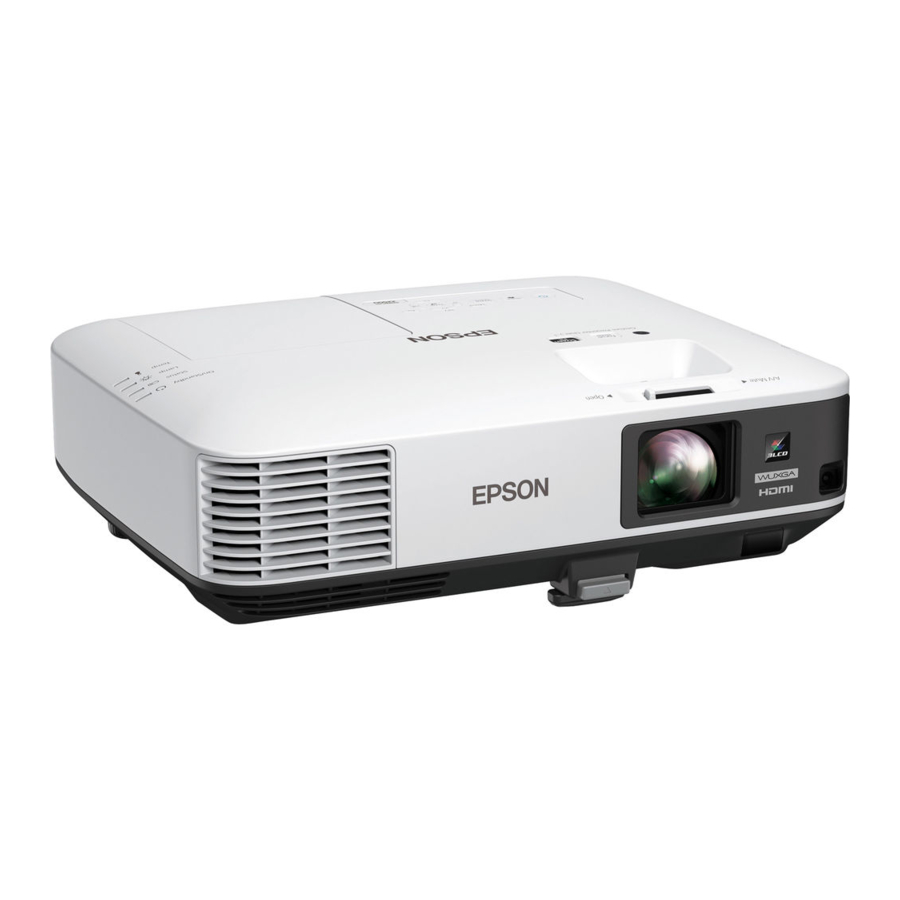

Epson 2250U Connection Manual

Wireless Connection

On Your Device

1. Connect to "Juneau Yacht Club" wireless network
   using password: jacksparrow
2. Download "Epson iProjection" app as follows
   Windows Computer: https://ftp.epson.com/drivers/iProj_4.01.exe
   Mac Computer: https://ftp.epson.com/drivers/iProj_4.01.dmg
   For iPhone/iPad or Android phone, scan QR code below

IOS QR Code

Android QR Code

3. Install and Open "Epson iProjection" app On Projector

On Projector

1. Plug in Power Cord to Projector
2. Open Shutter (A)
3. Press "On/Off" button (B)
4. Adjust Focus & Tele (C) & center image on screen
5. Change Source (if necessary) to LAN

On Your COMPUTER (View on projected image)

1. If not already on "Advanced Connection Mode", click on that option
2. Click box by "JYCProjector" and then "Connect" at bottom of window
3. Screen should be mirrored. Use your device to manipulate presentation

-OR-

On Your PHONE/PAD

1. In Epson iProjection, click on "JYCProjector" if it appears
2. If it doesn't appear, click "QR Code Connection" & aim camera at screen image
3. Click on "Mirror device screen", "Start mirroring", "Start Broadcast"
4. Screen should be mirrored. Use your device to manipulate presentation

To Stop

1. On COMPUTER, in Epson iProjection app, click on "Stop" , then click on "Leave"
2. On PHONE/PAD, in Epson iProjection app, click on
3. On PROJECTOR or Remote, Click "On/Off" button (B) gain
4. Close lens Shutter (A)
5. Unplug power cord, let projector cool. Place projector, remote, & cord in bag.

Cable Connection

On Projector

1. Plug in Power Cord to Projector
2. If your Device has a HDMI output, use an HDMI data cable to HDMI1 port on the projector.
   - OR -
3. If your Device has a Lightning, USB-C, or Mini USB input used on phones or pads, plug in Red-Ended Data Cable to HDMI1 on projector and other end to your device using
   1. Built-in Mini USB cable end, or
   2. Lightning, or
   3. USB-C removable adapters which can be plugged onto Mini USB cable end.
4. Plug in White Power Block to A/C power and Red USB-A Cable into Power Block. (Ignore "Download App" QR Code for DGKDH340DR006HP8MV001)
5. Turn on your Device such as phone/pad/computer
6. Open Shutter (A) on Projector
7. Press "On/Off" button (B) on Projector
8. Adjust Focus & Tele (C) & center image on screen
9. Change Source on Remote or Projector (if necessary) to HDMI1 (or another appropriate input option if you use your own cable such as RS-232 or RCA)

On Your Device

1. Screen should be mirrored. Use your device to manipulate presentation

To Stop

1. Unplug Data Cable
2. On Projector or Remote, Click twice on "On/Off" button (B)
3. Close lens Shutter (A)
4. Unplug cables, let projector cool. Place projector, remote, & cables in bag.
