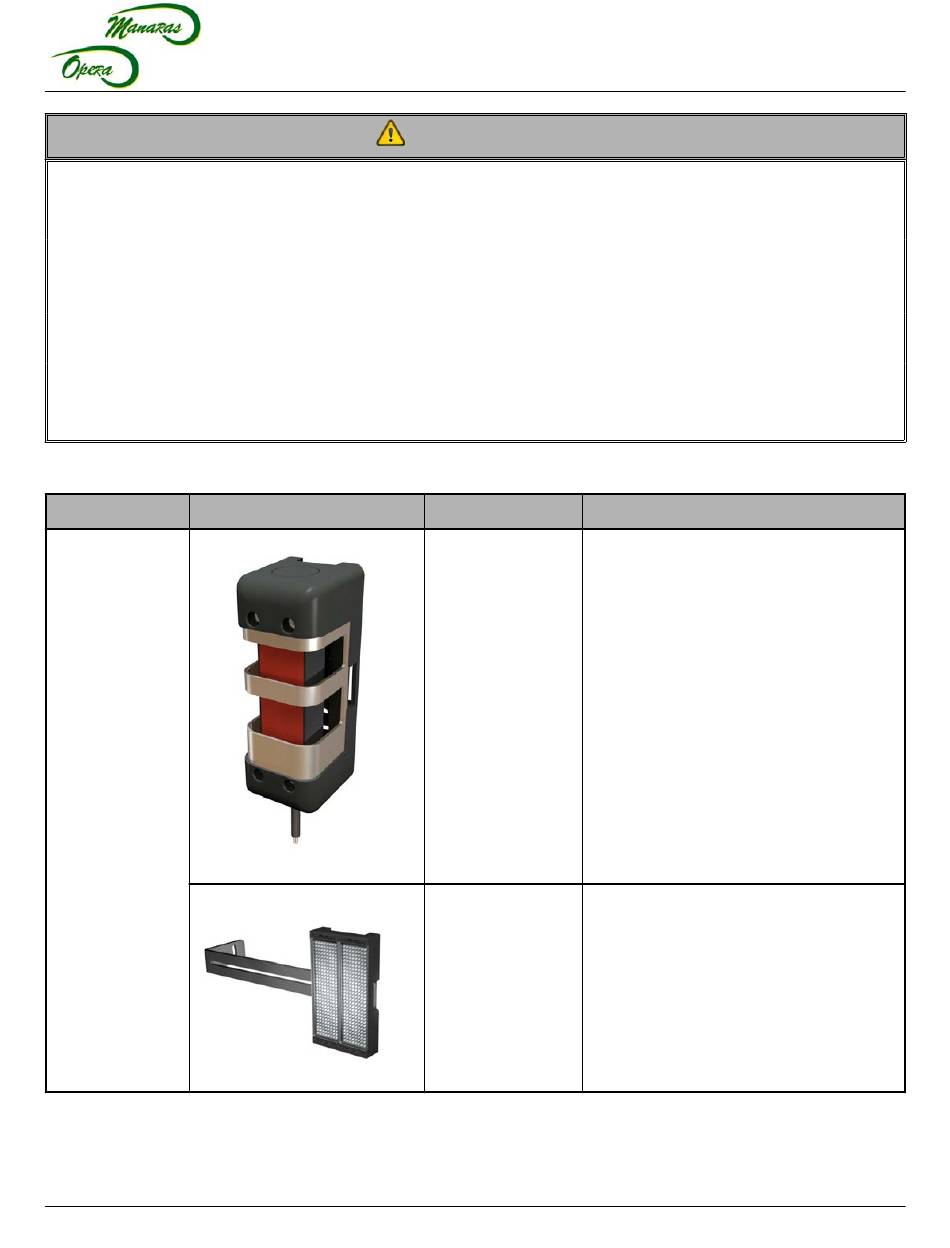

Manaras Opera PHOTO065 Installation Instructions

TO REDUCE THE RISK OF SEVERE INJURY OR
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Always shut OFF the main power before performing any electrical intervention.
3. Do NOT connect more than one (1) monitored entrapment protection device
simultaneously on the MONIT terminals without the use of an interface module.
4. Photoelectric cells and reflector must be installed facing each other across the door's
path within 6" (15 cm) of the plane of the door and the beam no more than
5-3/4" (14,6 cm) above the floor.
PHOTO 065 Specifications
Article No.
PHOTO 065
Monitored
External
Entrapment
Protection
Device
Retro-Reflective Photo Cell
Used to
safeguard doors
according to the
requirements of
UL325
For more information please visit www.devancocanada.com or call toll free at 1-855-931-3334
PHOTO065 - Reflective Photo Cells
PHOTO065 - Reflective Photo Cells
Specifications and Installation Instructions
Specifications and Installation Instructions
WARNING
DEATH TO PERSONS:
Components
 Retro-Reflective
 3" x 2" Reflector
Reflector
Description
➔ Polarized beam for maximum reliability.
➔ Red-light technology improves resiliency to
ambient light and infrared sensors.
➔ Retro-Reflective Technology.
➔ Single-sided photo eye design which
requires less wires to run and therefore
significantly reduced installation time.
Photo Cell for
➔ No batteries needed.
use as monitored
➔ Nema 4X rated for Harsh Environments.
entrapment
➔ Heavy-duty housing, increasing it's ability
protection device.
to withstand impact.
➔ Connects to specific MONIT terminal on
electronic control board (BOARD 070M).
➔ High range.
➔ Includes L-shape metal mounting brackets
and hardware.
➔ Includes L-shape metal mounting brackets
and hardware.
Specifications
