TB-BOSE-IPS Installation Instructions
244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: 973.785.4347 - Fax: 973.785.4207

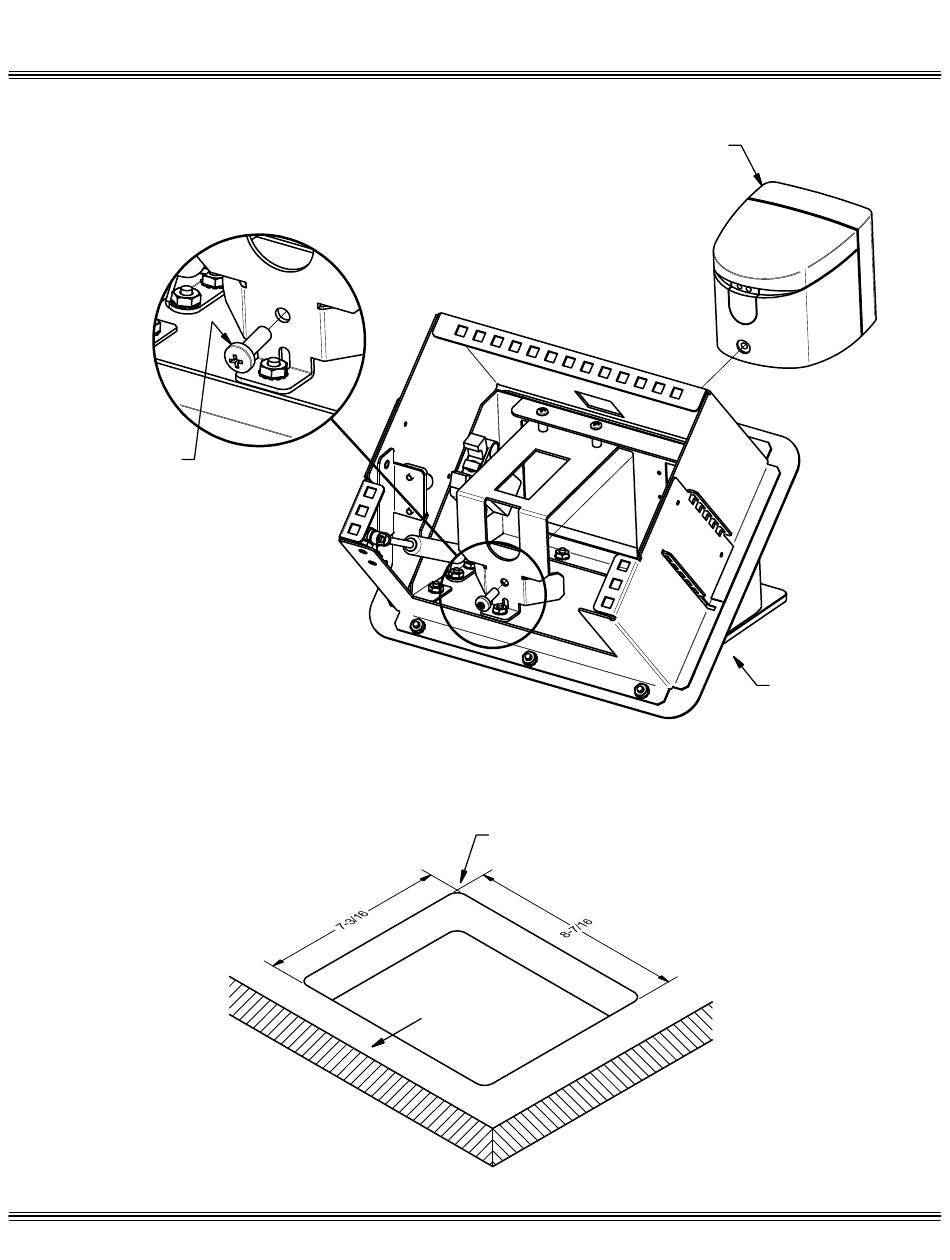

1. INSTALL BOSE SPEAKER (SUPPLIED BY CUSTOMER) INTO
CHASSIS AND SECURE WITH FSR-SUPPLIED SCREW.
SECURE SPEAKER
WITH SUPPLIED SCREW
2. DETERMINE LOCATION AND CUT 8-7/16 x 7-3/16 HOLE WITH
3/8 MIN - 5/8 MAX RADIUS CORNERS IN TABLE TOP.
43066
BOSE SPEAKER MODEL 040144
(SUPPLIED BY CUSTOMER)
3/8 MIN - 5/8 MAX R.
SPEAKER / IPS PANEL
DIRECTION
NOTE ORIENTATION
LAY CHASSIS ON SOFT
NON-MARRING SURFACE
(TO PREVENT DAMAGE
TO COVER/RIM)
LIT1512
Advertisement
Summary of Contents for FSR TB-BOSE-IPS
- Page 1 TB-BOSE-IPS Installation Instructions 244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: 973.785.4347 - Fax: 973.785.4207 1. INSTALL BOSE SPEAKER (SUPPLIED BY CUSTOMER) INTO BOSE SPEAKER MODEL 040144 CHASSIS AND SECURE WITH FSR-SUPPLIED SCREW. (SUPPLIED BY CUSTOMER) NOTE ORIENTATION SECURE SPEAKER...
- Page 2 3. INSTALL MOUNTING BRACKETS TO ASSEMBLY AND SECURE TO TABLE BY SCREWING MOUNTING SCREWS TO UNDERSIDE OF TABLE. CUSTOMER TO PROVIDE KO SLUG/PENNY/OTHER TB-BOSE-IPS ASSEMBLY HARD FLAT PIECE FOR SCREW END, WITH SOFT TABLE WOOD MOUNTING BRACKET AND MOUNTING SCREW INSTALLED...
