Summary of Contents for Etac molift Air 200

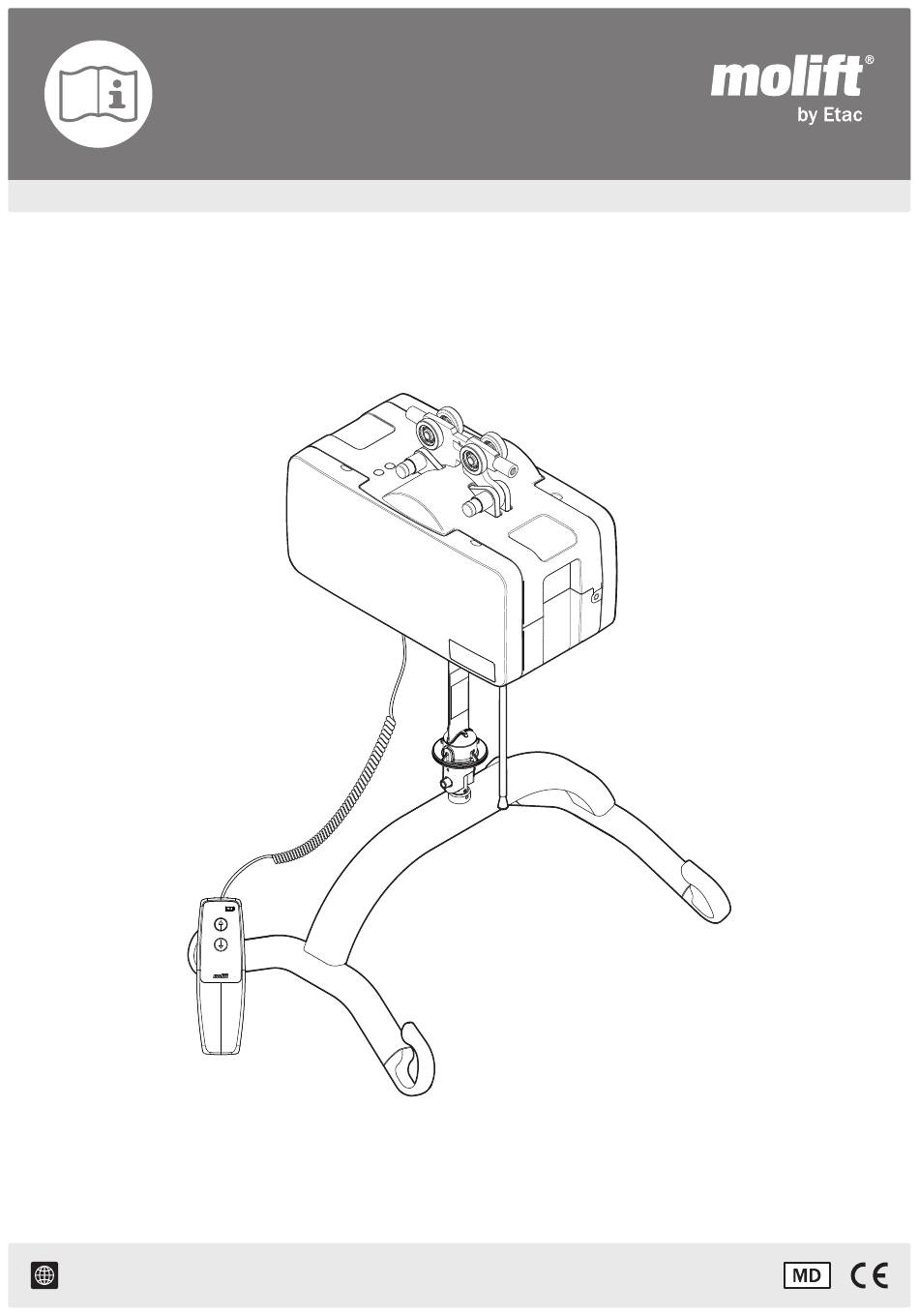

- Page 1 User manual Molift Air 200 / 350 BM16199 - 2024-09-12 - Rev. 13.0 www.etac.com...
- Page 2 Molift Air 200/350 | BM16199 Rev 13.0 | www.etac.com...
- Page 3 Molift Air 200/350 | BM16199 Rev 13.0 | www.etac.com Contents User manual - English - 1 Gebrauchsanweisung - Deutsch - 13 Brukermanual - Norsk - 27 Bruksanvisning - Svenska - 39 Käyttöohje - Suomi - 51 Manual utente - Italiano - 63 Manual d`utilisation - Francais - 75 Manual de usuarioo - Español - 87...
- Page 4 Modifications and use of components made by other manufacturers. We recommend only using Molift components and spare parts. Declaration of conformity is not valid and Etac is not responsible for warranty if any modifications are made to the product. Etac shall not be liable for faults or accidents that can occur when using components made by other manufacturers.
- Page 5 Molift Air 200/350 | BM16199 Rev 13.0 | www.etac.com Definitions Warning labels and Symbols The person described as “the user” in this Instruction for Use Symbols used on the product, explained in more detail: is the person who is sitting in the product. “The carer” is the person who manoeuvres the product.
- Page 6 Molift Air 200/350 | BM16199 Rev 13.0 | www.etac.com Technical data Safe Working Load (SWL) Lifting speed Molift Air 200: SWL = 205 kg (450 lbs) 60mm/second (2,36 inches/second) Optional SWL range (setting) 160-205 kg with 75kg (165,35 lbs) load...
- Page 7 Etac offers trolley for mounting Working pause ratio/ Duty Cycle. Molift’s lifts in rail systems from other Molift Air 200 / 350 should not be run constantly manufacturers. Contact your local for more than 2 minutes (with maximum Etac representative for more informa- load), and rest for minimum 18 minutes.
- Page 8 Molift Air 200/350 | BM16199 Rev 13.0 | www.etac.com Hand control The Hand control has 2 buttons for lifting and lowering, or 4 but- tons if the hoist is equipped with propulsion. The Hand control Push with finger or use tube...
-
Page 9: Service Indicator
Batteries Service indicator / Periodic inspection Molift Air 200/350 is available with 2 x 12V SLA battery or a The hoist’s electronics record the weight lifted and number 25.6V LiFePO4 battery. of lifts. After a certain period of operation a signal is given to The SLA battery has a life expectancy of approx. -
Page 10: Charger Indicator
The IRC trolley is connected to the battery charger Contact Etac or your local dealer or visit etac.com to find an inside the Molift Air IRC. The IRC trolley is always in contact with approved service partner. - Page 11 The hoist has a directional safety feature that prevents lifting if angle on lifting strap is to steep. Slings made by other manufacturers We recommend using Etac or Molift slings. The hoist can be combined with slings from other manufacturers with similar sus- pension loops. Visit www.etac.com for compatibility statements between lifts and slings from other manufacturers.
- Page 12 Cord UK, art.no 1140106 Slings Cord US, art.no 1140104 Etac supplies a wide selection of slings for different types of trans- Cord AUS, art.no 1140107 fers. The Molift RgoSling sling series is developed to be combined Wall bracket for charger, art. no. 2610123 with a 4-point sling bar with loop connections.
