Thank you for purchasing your new ORBIS bathroom heater, Please take the time to read and understand the instruction sheet below.
Failure to do so may void warranty.
Specifications
Voltage:
240V AC
Heat Wattage: 2150W
IP Rating:
IPX2
Fascia Size:
390x390mm Duct Size: 100mm
Accessories: 6-Switch Digital Wall Controller, 3M Flexible Duct, Exterior Grille.
Lumen Output
3000K
4000K
5000K
1000lm
1150lm
1100lm
Included In The Box:
• 1 x 4 in 1 Retrofit Bathroom Unit
• 1 x Instruction Manual
• 1 x 3M Duct
• 1 x Outlet Grille
• 1 x Cutout Template
• 1 x 6-Switch Digital Wall Controller
• 2 x Horizontal And Vertical Switch decals
(Colour, Black and White Options)
• After installation, electricians must tick off all items on the quick checklist and fill out their details towards the back of this Installation and
User Manual.
• The electric mains must be equipped with an automatic circuit breaker with a rated current not less than 10A.
Warranty Procedure*
• For online warranty bookings visit: www.domuslighting.com.au/warranty
• For technical advice call: 1300 236 687 (Monday to Friday from 9am to 5pm EST)
• *Warranty only available within Australia
THE ELECTRIC MAINS MUST BE EQUIPPED WITH AN AUTOMATIC CIRCUIT BREAKER WITH A
RATED CURRENT NOT LESS THAN 10A. MUST BE INSTALLED BY A LICENSED ELECTRICIAN.
To protect your customer's WARRANTY please refer to the Manufacturer's warranty page.
Power:
2250W
Heat Type: PTC Heating Element Air Extraction:
CRI:
≥80
29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
enquiries@domuslighting.com.au | www.domuslighting.com.au
Motor Wattage: 60W
300m
Decibel Rating: ≤46dB
Cutout:
330x330mm - 350x350mm
Phone: 1300 236 687
Installation Manual
Date: April 4, 2025 2:50 pm
Fan Size:
60W
/h Light Wattage: 12W LED
3
1
Advertisement
Related Manuals for Domus ORBIS
Summary of Contents for Domus ORBIS

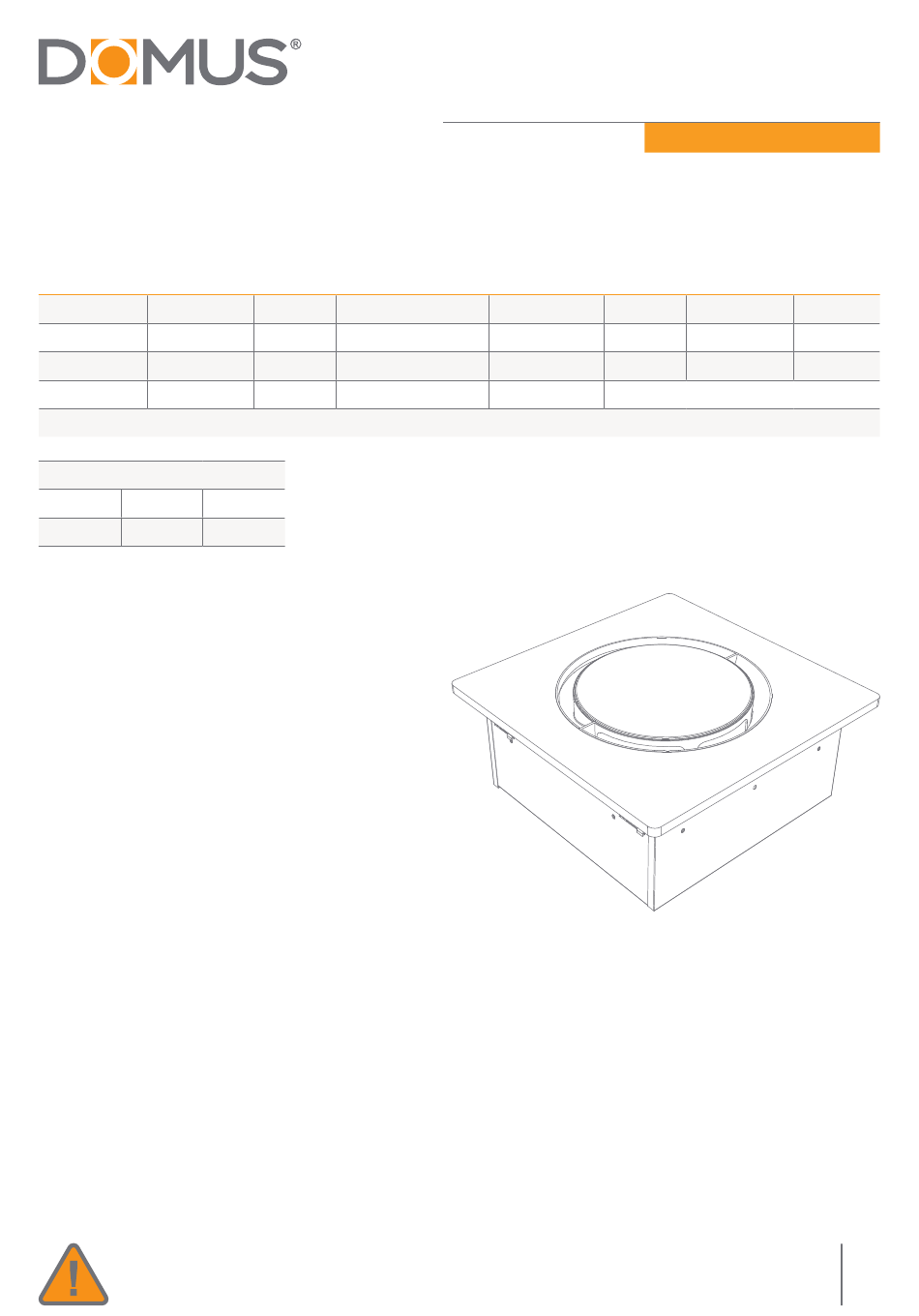

- Page 1 | www.domuslighting.com.au Installation Manual ORBIS Date: April 4, 2025 2:50 pm Thank you for purchasing your new ORBIS bathroom heater, Please take the time to read and understand the instruction sheet below. Failure to do so may void warranty. Specifications Voltage:...
