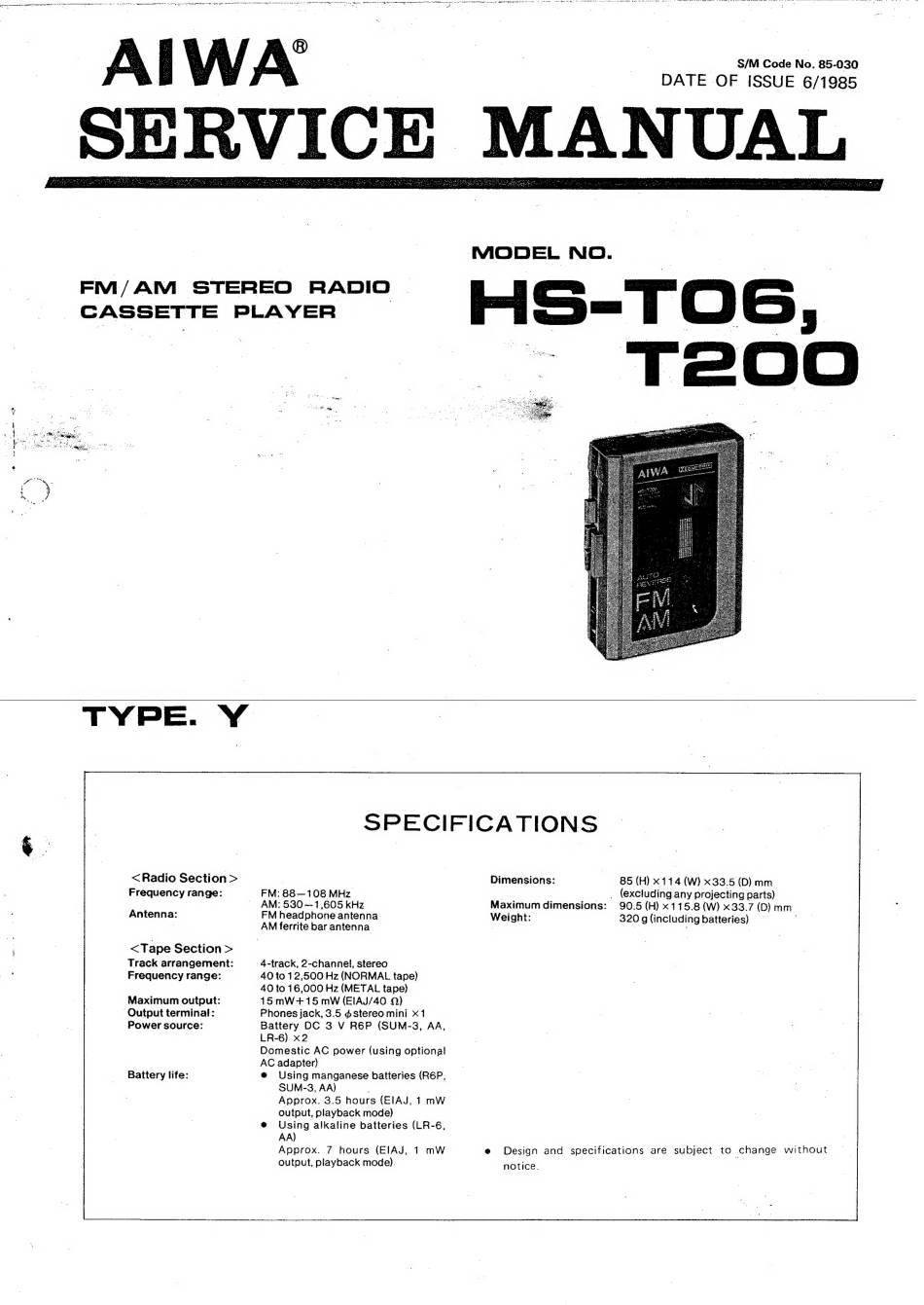

Aiwa HS-T06 Service Manual

ete fee rrcer
»
<a eo ted
re gt tn tt em ne e o n a pe beg pce Fg ee
ee
_ S/M Code No. 85-030
DATE OF ISSUE 6/1985
FM/AM STEREO RADIO
CASSETTE PLAYER
MODEL NO.
-O0O0
TYPE. VY
<Radio Section >
Frequency range:
Antenna:
<Tape Section >
Track arrangement:
Frequency range:
Maximum output:
Output terminal:
Power source:
Battery life:
AM ferrite bar antenna
SPECIFICATIONS
FM headphone antenna Weight:
-4-track, 2-channel, stereo
40 to 12,500 Hz (NORMAL tape)
40 to 16,000 Hz (METAL tape)
15. mW+15 mW (EIAJd/40 )
Phones jack, 3.5 @stereo mini x1
Battery DC 3 V R6P (SUM-S, AA,
LR-6) x2
Domestic AC power (using optional
AC adapter)
@ Using manganese batteries (R6P,
SUN-S, AA) ;
Approx. 3.5 hours (ElAJ, 1 mW
output, playback mode)
@ Using alkaline batteries (LR-6,
AA)
Approx. 7 hours (ElAJ, 1 mW @
Maximum dimensions:
85 (H) x 114 (W) 33.5 (D) mm
(excluding any projecting parts)
90.5 (H) x 115.8 (W) 33.7 (D} mm
320 g (including batteries) — ,
Design and specifications are subject to change without
