Summary of Contents for Pixii PowerShaper 2.0 Indoor

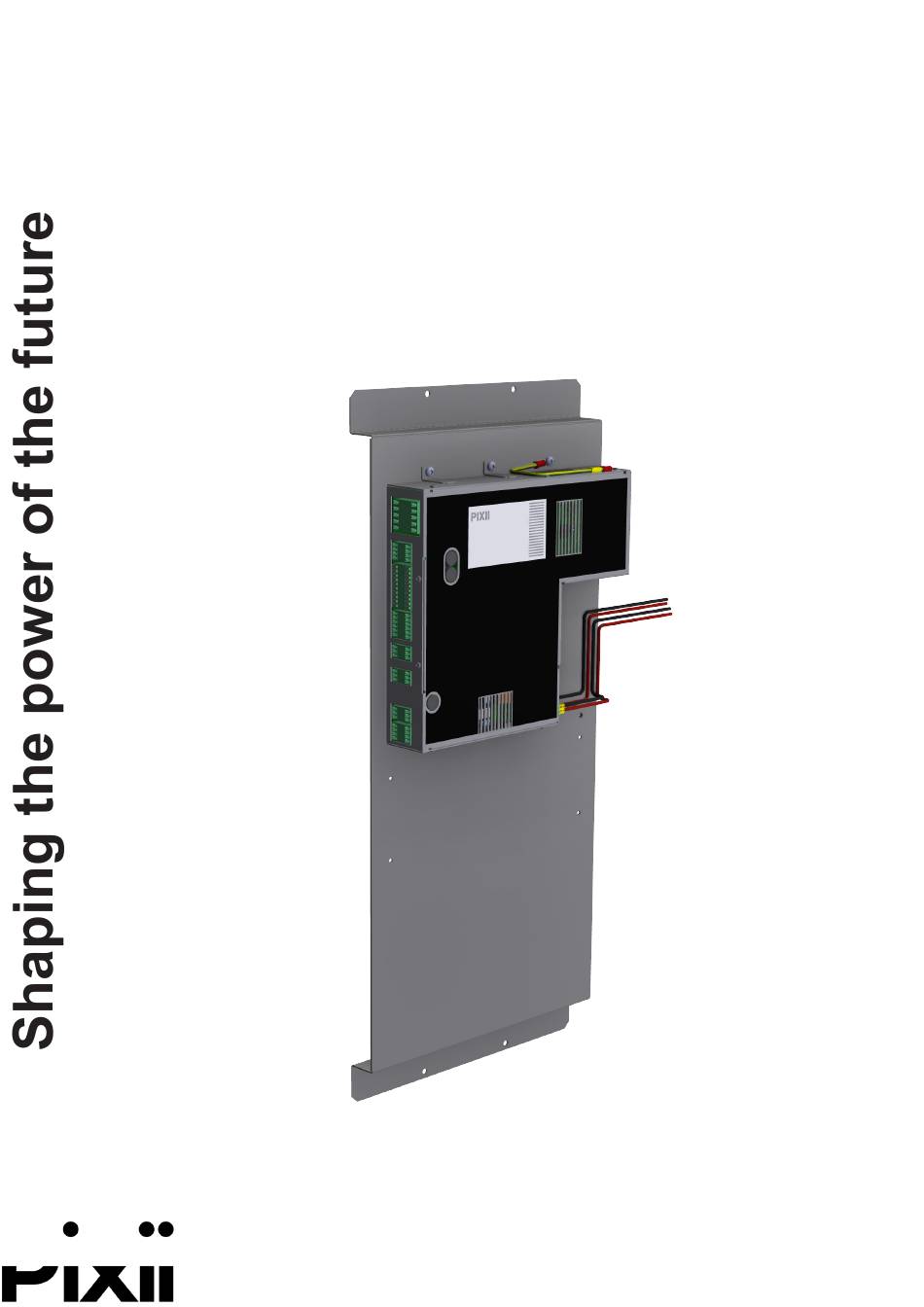

  • Page 1 Installation Guide Master Gateway Controller PowerShaper 2.0 Indoor Document number: 16030, rev. 1.0 Public Author: Peter Bino Issue date: 28.06.2024...
  • Page 2: Table Of Contents

    7 Finalization � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15 Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
  • Page 3 No part of this document may be reproduced, copied or transmitted (electronic or mechanic, including photocopying and recording) for any purpose to 3 party without the explicit written permission of Pixii. Copyright © Pixii 2024 Revision Date Comment 28.06.2024 Initial Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
  • Page 4: Introduction

    This document describes the step by step installation of Master Gateway controller kit (PN 12611) into the Powershaper 2.0 Indoor energy storage system. Read it carefully and follow all recommendations to be sure system is running in correct environment under good conditions and installation reached all safety requirements.
  • Page 5: Description

    This is a Gateway that does not have active converters and batteries connected to it. This is suitable for larger multicabinet systems from 6 – 20 cabinets. Figure 3.1 Front view Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
  • Page 6 WiFi activation button USB slot Ethernet Module CAN connection 2x USB Serial COM2, 3 Serial COM4, CAN 2 Inputs and outputs Relay outputs Power In Earthing screw Figure 3.3 Right side view Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
  • Page 7: Preparation

    Figure 4.1 Removing top covers 4.2  Side wall Remove left side wall by releasing 8x M6x8 Torx and 4x M6x12 serrated Torx screws. Special M6x12 serrated Torx screw Figure 4.2 Removing the side wall Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
  • Page 8: Fan Covers

    (top nuts and washers) from the cover above the bottom fan. Detail of the top fan cover Detail of the bottom fan cover Figure 4.3 Fan covers adjustments NOTE: Keep the fixings on the safe place as you need them later! Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
  • Page 9: Mechanical Installation

    5 Mechanical installation Insert pre-assembled mounting bracket with the Master Gateway controller (A1) to the studs and fix with  the 4x M4 nuts and 4x M4 washers from the chapter “4.3 Fan covers” on page Figure 5.1 Installation of mounting bracket with Master Gateway controller Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
  • Page 10: Electrical Installation

    Protective earth cable is already connected from Gateway to the mounting bracket (A1) from factory. Check if the connection is accurate and the screws on the both ends are not loose. Figure 6.1 Protective earth cable Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
  • Page 11: Power Cables

    1. Route cables to the opening in the middle of the cabinet and then to the top. Figure 6.2 Routing of power cables Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
  • Page 12 Figure 6.3 Cable -AF2:J201:1 - FC20:2 3. Connect attached cable (-AF2:J201:3 - FC21:2, 2.5mm , black) to the existing cable from terminal -FC21:2 using splice connector (A4). Figure 6.4 Cable -AF2:J201:3 - FC21:2 Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
  • Page 13 Figure 6.5 Cable -AF2:J201:4 - TB1:+V 5. Connect attached cable (-AF2:J201:5 - TB1:-V, 2.5mm , black) to the existing cable from terminal -TB1:-V using splice connector (A4). Figure 6.6 Cable -AF2:J201:5 - TB1:-V Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
  • Page 14: Ethernet

    2. Plug the second end of the cable into the switch (not supplied). 3. Use 5x sticky cable holder (A2) to fix all cables in the position. Sticky cable holder Switch Figure 6.7 Ethernet cable from additional Gateway Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
  • Page 15: From Existing Gateway

    After successful installation of the kit, mount back top covers and side wall. For more information, see the chapter “4 Preparation” on page 7. For proper function of 2  Gateway, see configuration guides or contact Pixii for detailed information. Installation Guide ● Master Gateway Controller ● PowerShaper 2.0 Indoor...
