4. Disassembly and Assembly
4-1. Disassembly
4-1-1. Exterior Components and PCB Disassembly

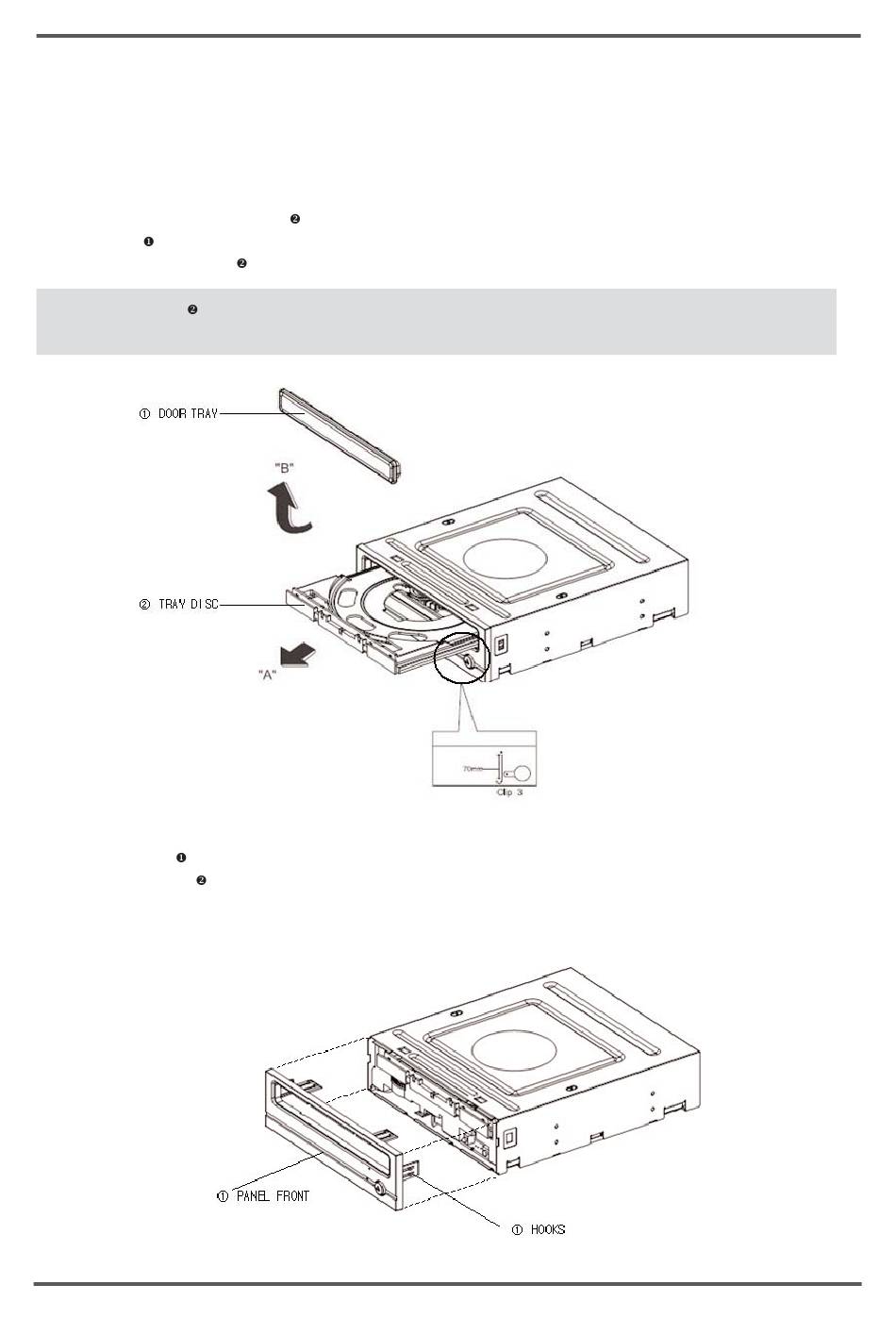

Door-Tray
(a) Apply power, and open tray
(b) Lift door
in "B" direction.
(c) After closing the tray , turn the power OFF.
Note:
If the tray
does not open, then force the tray open manually by pushing the pin Clip 3
into the emergency hole on the unit.
Pannel Front
(a) Press hooks
in 6 places.
(b) Pull front panel
in "A" direction.
toward the front.
5
