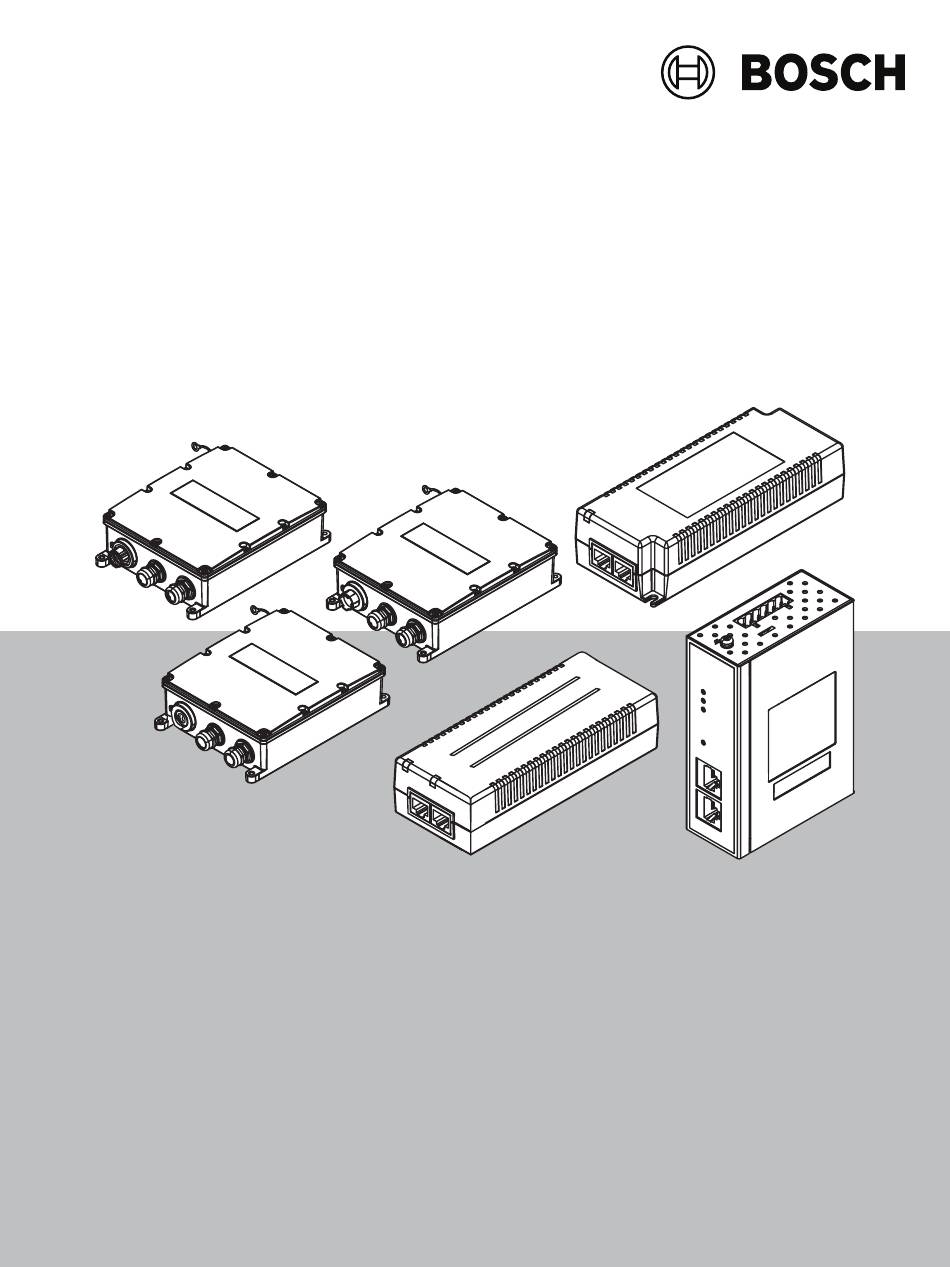

- Page 1 Bosch Midspans NPD‑6001B│NPD‑9501A │NPD‑9501‑E | NPD‑6001C | NPD‑6001C‑BT | NPD‑6001C‑E | NPD‑6001C‑EBT | NPD‑6001‑I | NPD‑6001‑IBT | NPD‑9001‑E | NPD‑9001‑EBT | NPD‑9501A‑G Installation Manual...
-
Page 3: Table Of Contents
Additional Parts Recommended But Not Required System overview Installation (Indoor models) Install the NPD-6001B │ NPD-6001C │ NPD-9501A │ NPD-9501A-G Install the NPD-6001-I │ NPD-6001-IBT directly to a wall Install the NPD-6001-I │ NPD-6001-IBT to a DIN rail Installation (Outdoor models) -
Page 4: Safety
Legal Information Copyright This manual is the intellectual property of Bosch Security Systems, and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. -
Page 5: Important Safety Instructions
Important safety information EMC compliance – FCC Part 15 class A/B and EN 55032 class A/B – EN55035 – VCCI – ICES-003 Safety compliance – UL/cUL per 62368-1 Bosch Security Systems, B.V. 2025-04 | V03 | F.01U.409.631 Installation Manual... -
Page 6: Unpacking
| Unpacking Bosch Midspans Unpacking Parts List The package containing the midspan should include the following items: NPD-6001B, NPD-9501A, NPD-9501A-G Quantity Component PoE midspan 120 VAC power plug 230 VAC power plug Quick Installation Guide NPD-9501-E Quantity Component High PoE Midspan 95 W, outdoor model... -
Page 7: Additional Parts Required
Bosch Midspans Unpacking | en Additional Parts Required The following table lists additional parts (not supplied by Bosch) required to install the midspan: NPD-6001B, NPD-9501A, NPD-9501A-G Quantity Part Size Notes Mounting screws; Head diameter: 1.5 mm (0.059 in.) clearance from Select either size 5.8 mm... -
Page 8: System Overview
NPD-9001-E, NPD-9001-EBT The PoE Midspan for outdoor installations enables remote PoE power for compatible IP PTZ cameras from Bosch. The PoE Midspan generates a maximum of 90 W and complies to the IEEE 802.3bt type 4 standard. Compatibility Note: Refer to the product page of the camera on the online catalog to identify the midspans compatible with your camera. -
Page 9: Installation (Indoor Models)
® National Electrical Code (NEC)), Canadian Electrical Code, Part I (also called CE Code or CSA C22.1), and all applicable local codes. Bosch Security Systems accepts no liability for any damages or losses caused by incorrect or improper installation. Warning! - Page 10 Stack One Unit on Top or on the Side of Another Unit (95 W models only) Slide the rail on the right side (when facing the ports) of one unit to the left side (when facing the ports) of a second unit. 2025-04 | V03 | F.01U.409.631 Bosch Security Systems, B.V. Installation Manual...
-
Page 11: Install The Npd-6001-I │ Npd-6001-Ibt Directly To A Wall
Install the NPD-6001-I │ NPD-6001-IBT to a DIN rail Attach the DIN rail bracket to the side of the midspan, as in the graphic that follows. Install the bracket to the DIN rail. Bosch Security Systems, B.V. 2025-04 | V03 | F.01U.409.631 Installation Manual... -
Page 12: Installation (Outdoor Models)
® National Electrical Code (NEC)), Canadian Electrical Code, Part I (also called CE Code or CSA C22.1), and all applicable local codes. Bosch Security Systems accepts no liability for any damages or losses caused by incorrect or improper installation. Caution! Risk of electrostatic discharge Connect the Earth ground screw to Earth ground in all types of installations. -
Page 13: Connect The Outdoor Midspan To Ground
Tighten the screw to 1.1 N m to 1.7 N m (0.83 lbf ft to 1.25 lbf ft/10 lbf in. to 15 lbf in.) to prevent water ingress. Connect the other end of the ground wire to Earth ground at your installation point. 1.1 Nm - 1.7 Nm (10 - 15 Lb-in.) Bosch Security Systems, B.V. 2025-04 | V03 | F.01U.409.631 Installation Manual... -
Page 14: Install The Outdoor Midspan Directly To A Wall
Insert four mounting screws (not supplied) into the screw holes (items 1 through 4 in the figure that follows). Tighten each screw until the midspan is attached safely to the mounting surface. 2025-04 | V03 | F.01U.409.631 Bosch Security Systems, B.V. Installation Manual... -
Page 15: Install The Outdoor Midspan To A Pole Mount Adapter
Before you start installation, make sure that all the parts listed in the Parts List below are included. If any items are missing, notify your Sales or Customer Service Representative from Bosch Security Systems. Parts List, NDA-9501-E pole mount adapter... - Page 16 To use with the Screw with hex head Spring lock washer, To use with the Screw with hex head Hex nut, M6 To use with the Screw with hex head 2025-04 | V03 | F.01U.409.631 Bosch Security Systems, B.V. Installation Manual...
- Page 17 Screw with pan head, To connect the ground wire M5 mm x 16 mm Flat washer, M5 To use with the pan head screw Washer lock tooth, To use with the pan head screw Bosch Security Systems, B.V. 2025-04 | V03 | F.01U.409.631 Installation Manual...
- Page 18 Figure 5.1: Midspan on pole mount adapter installed on pole with small diameter Figure 5.2: Midspan on pole mount adapter installed on pole with large diameter Figure 5.3: Midspan on pole mount adapter NDA-6090-PMA installed on pole 2025-04 | V03 | F.01U.409.631 Bosch Security Systems, B.V. Installation Manual...
-
Page 19: Connect The Ac Cable
Assemble the AC cable, using the figure that follows as a guide. 1 Use the AC outer ring cap to open the AC cable connector. 2 Verify that the slots are parallel. Bosch Security Systems, B.V. 2025-04 | V03 | F.01U.409.631 Installation Manual... -
Page 20: Connect The Rj45 Cable
Bosch Midspans Connect the RJ45 cable Assemble the RJ45 cable, using the figure that follows as a guide. Make sure that the rubber gasket is closed tightly around the cable. 2025-04 | V03 | F.01U.409.631 Bosch Security Systems, B.V. Installation Manual... -
Page 21: Connection
Voltage” (SELV) circuits according to IEC 60950-1. These interfaces can be connected only to SELV interfaces on other equipment. Connect the NPD-6001B │ NPD-6001C │ NPD-9501A │ NPD-9501A-G Connect the midspan to an AC power outlet (100 - 240 VAC) using one of the two power cords supplied or a power cord that has the appropriate ratings and specifications. -
Page 22: Connect The Npd-6001C-E │ Npd-6001C-Ebt │ Npd-9001-E │ Npd-9001-Ebt │Npd-9501-E
Make sure you don't mix up inlet power pins with alarm pins (see figure 2 for reference). For improved EMI performance, connect chassis ground connection to "Earth/Ground" connection at the working area. 2025-04 | V03 | F.01U.409.631 Bosch Security Systems, B.V. Installation Manual... - Page 23 Note: Do NOT use cross-over cable! Figure 6.3: NPD-6001-I │ NPD-6001-IBT connections 1 Power input (24-48 VDC) 2 Data and power to the Ethernet port of the camera 3 Data to the network switch Bosch Security Systems, B.V. 2025-04 | V03 | F.01U.409.631 Installation Manual...
-
Page 24: Troubleshooting
AC (Main) LED Indicator (95 W) AC (Main) LED Green Green Power off indicator Power on indicator (power is active) Port LED Indicator (NPD-6001B, NPD-6001C) Port LED Behavior – – No detection or disconnected or no load is connected. –... - Page 25 (328 ft) from the Ethernet source to the camera. 5. Try to reconnect the camera to a different midspan. If the camera works, then there is probably a faulty port or RJ45 connection on the midspan. Bosch Security Systems, B.V. 2025-04 | V03 | F.01U.409.631 Installation Manual...
- Page 26 (328 ft) from the Ethernet source to the camera. 5. Try to reconnect the camera to a different midspan. If the camera works, then there is probably a faulty port or RJ45 connection on the midspan. 2025-04 | V03 | F.01U.409.631 Bosch Security Systems, B.V. Installation Manual...
-
Page 27: Disposal
Dispose such equipment according to local laws and regulations, to allow their reuse and/or recycling. This will help in conserving resources, and in protecting human health and the environment. Bosch Security Systems, B.V. 2025-04 | V03 | F.01U.409.631 Installation Manual... -
Page 28: Support Services And Bosch Academy
Support services and Bosch Academy Support Access our support services at www.boschsecurity.com/xc/en/support/. Bosch Building Technologies Academy Visit the Bosch Building Technologies Academy website and have access to training courses, video tutorials and documents: www.boschsecurity.com/xc/en/support/training/ 2025-04 | V03 | F.01U.409.631 Bosch Security Systems, B.V. - Page 29 Bosch Midspans Support services and Bosch Academy | Bosch Security Systems, B.V. 2025-04 | V03 | F.01U.409.631 Installation Manual...
- Page 30 | Support services and Bosch Academy Bosch Midspans 2025-04 | V03 | F.01U.409.631 Bosch Security Systems, B.V. Installation Manual...
- Page 32 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2025 Building solutions for a better life 202504080818...
