Haltech HT-061010 Quick Start Manual

Gaugeart can gauge
Hide thumbs

Advertisement

Quick Links

Download this manual
gaugeART CAN Gauge
(HT-061010)
QUICK START GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the HT-061010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haltech HT-061010

Summary of Contents for Haltech HT-061010

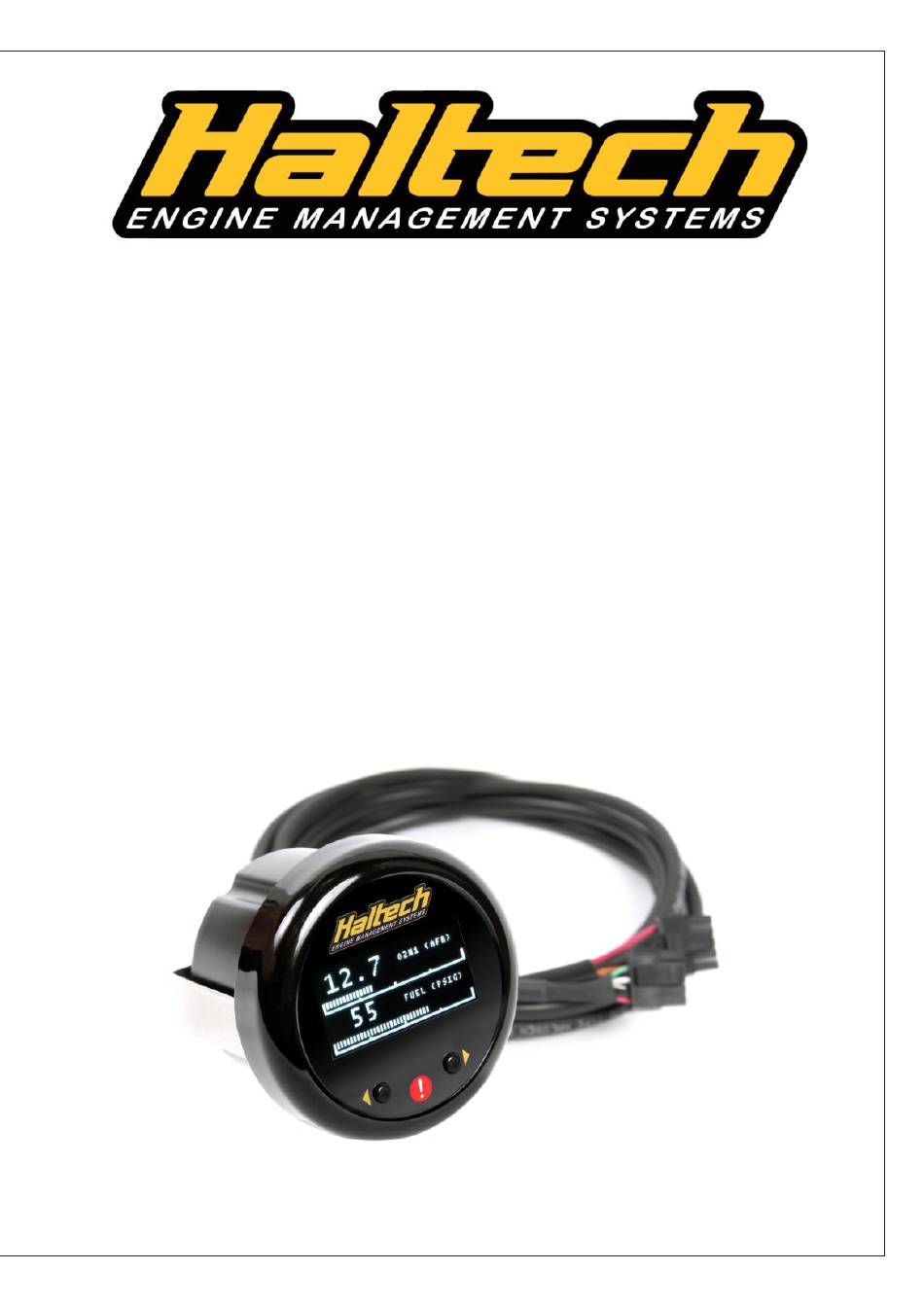

  • Page 1 CAN Gauge (HT-061010) QUICK START GUIDE...
  • Page 2 Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only. Using Haltech products for street/road use on public highways is prohibited by law. It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations.

  • Page 3: Need Help

    Quick Start Guide The gaugeART CAN Gauge is a compact 52mm OLED gauge that connects to compa ble Haltech ECUs to display real- me data from CAN broadcasts. The gauge is wirelessly configurable using an Android (version 4.4 or later) mobile device through wifi.
  • Page 4 Requirements Compa ble ECU: Pla num Sprint 500/RE Pla num Sport 1000/2000/GM Pla num Pro Plugin Elite series Android Device: An Android device (version 4.4 or later required), including mobile phones and tablets. Gauge Moun ng & Cable Installa on Remove the supplied moun ng bracket from the rear of the gauge by unscrewing the two thumb screws from the rear of the gauge.
  • Page 5 Termina ng Resistor Configura on The gaugeART CAN Gauge includes a user-configurable termina ng resistor jumper. The resistor is enabled when the jumper is in place. If using mul ple devices, only fit terminator when gauge is the last device in the chain.
  • Page 6 Depending on access to the wire – use a wire tap or splice the factory wire to connect the gaugeART CAN Gauge orange wire. Enable ECU Telemetry: On Elite ECU's, go to Main Setup > Devices, and ensure 'Haltech CAN Support Dash' is selected. Apply and reboot ECU. Connect to gaugeART CAN Gauge App: Download the gaugeART CAN Gauge App from the Play Store.
  • Page 7 Create Configura on: Tap “Create Configura on”. Select Haltech for ECU type. The gaugeART CAN Gauge allows you to create up to 10 pages of gauge layouts – in 1, 2, or 4 gauge layouts. Tap to select channel, configure bar graph range, warnings, and custom gauge labels (rename “MAP”...
  • Page 8 Save & Send Configura on: Tap the More Selec on icon in the top right and tap Save. Enter a name under “Enter Save File Name” and tap Save.  To program, tap Send Configura on. The gauge will be programmed and will show your configura on.
  • Page 9 Load Configura on: Select the ECU you are working with. Previously saved files will be shown in the second drop down. Click load to open the file. To Edit your saved configura on, click edit once loaded. To program, tap Send Configura on.
  • Page 10 Notes...
  • Page 11 Notes...
  • Page 12 Need more help? support@haltech.com Intl: +61 2 9729 0999 Intl: usasupport@haltech.com USA: +1 888 298 8116 USA: www.haltech.com /Haltechecu /HaltechEngineManagement...
