- Page 1 Premium 200Mbps Powerline AC Pass-Through AV+ Adapter RPLC-200P User Manual Download from Www.Somanuals.com. All Manuals Search And Download.
-
Page 2: Table Of Contents
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual Contents PACKAGE CONTENTS .................. 3 CHAPTER 1 INTRODUCTION TO HARDWARE ..........4 1.1 E RPLC-200P.......... 4 XPANDING YOUR ETWORK WITH 1.2 K ..................4 EATURES 1.3 A .................... 5 PPLICATION 1.4 S ................ -
Page 3: Package Contents

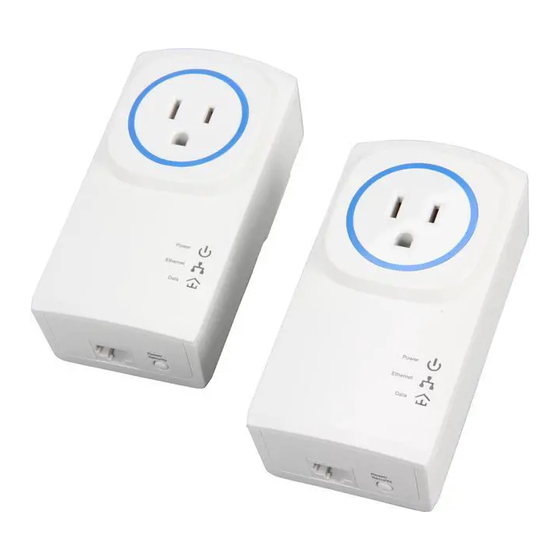

Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual Package Contents The following items should be found in your package: 2x Rosewill RPLC-200P Premium 200Mbps Powerline AC Pass-Through AV+ Adapter 2x RJ45 Ethernet Cable 1x Quick Installation Guide ... -
Page 4: Chapter 1 Introduction To Hardware
- RPLC-200PKIT- User’s Manual Chapter 1 Introduction to Hardware Thank you for purchasing Rosewill‟s RPLC-200P Premium 200mbps Powerline AC Pass-Through AV+ Adapter. The RPLC-200P adapter can transmit data at least 30% above regular 200mbps Powerline adapter via household‟s power outlet. -
Page 5: Application
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual Plug-and-play to your routers, computers and other network devices. Enjoy Stable HD Videos and Gaming With a pair of plug-and-play RPLC-200P installed, you can easily extend your home network through any electrical outlet for Internet access by HDTVs, Blu-ray™... -
Page 6: System Requirement
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual 1.4 System Requirement If need to use Powerline Utility: Operating system: Windows 98SE, 2000, ME, XP 32/64 bit, Vista 32/64bit, and Win7 32/64 bit otherwise, no OS require ... -
Page 7: Hardware Diagram Of Rplc-200P
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual 1.5 Hardware Diagram of RPLC-200P 1.5.1 LED Color Behavior Description Green System runs normally. System is resetting. Green Blink System is in the process of (Power) password synchronization. ... -
Page 8: Powerline Adapter"S Button And Connector
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual The PLC adapter is powered off. Green Ethernet connection has established. Blink Data is being transmitted. (Ethernet) No Ethernet connection. Green/Orange/Red The PLC adapter has connected to the powerline network. The Data LED color (Data) may vary according to the Data Transmit Quality. -
Page 9: Chapter 2 Introduction To Utility
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual Chapter 2 Introduction to Utility Note: Before installing the PLC utility software, make sure that there is no any other powerline utility installed on your computer. If there is another utility installed, please uninstall it and restart your computer. - Page 10 Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual 3. Select I Agree, and then Next to continue. 4. You can choose your own destination folder to install or click Browse… to select the installation folder, and then click Next to continue.. -10- Download from Www.Somanuals.com.
- Page 11 Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual 5. You can choose your own destination folder to install or click Browse… to select the installation folder, and then click Next to continue. -11- Download from Www.Somanuals.com. All Manuals Search And Download.
-
Page 12: Utility Introduction
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual 2.2 Utility Introduction Click the desktop icon below to enter the configuration page. 2.2.1 Main Tab The Main screen provides a list of all powerline devices logically connected to the computer when the utility is running. - Page 13 Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual same network is displayed above the remote device panel. Network type (Public or Private) depends on the network status of the local device. Autoscan shows whether the autoscan function is on. The following information is displayed for all the devices that appear in the lower panel.
- Page 14 Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual A confirmation box appears if the password is entered correctly. If a device is not found, a message appears, providing suggestions to solve the common problems. This process might take a few seconds to get completed. This button is used to add a remote device to the existing network by entering the device password of the device.
-
Page 15: Privacy Tab
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual every a few seconds and updates the displayed information. 2.2.2 Privacy Tab In the Privacy screen, you can maintain security for the logical network and select the device included in the network. All HomePlugAV devices are loaded using a default logical network (network name), which is normally “HomePlugAV”. -
Page 16: Diagnostics Tab
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual making the local devices not to communicate to the devices which are in the old logical network. Click Set Local Device Only, the devices previously set up with the same logical network (same network name) appears in the device list. Set All Devices This button is used to change the logical network of all devices that appear in the main panel. - Page 17 Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual The Lower panel displays the history of all remote devices appeared on the computer over a certain period of time. All the devices and the parameters of the devices on the powerline network are listed. Devices that are active on the current logical network show a transfer rate in the rate column.
-
Page 18: About Tab
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual message if the user wants to delete a device whose password has been entered. 2.2.4 About Tab The About screen shows the software version and provides a html link to a website, such as http://www.qua.qualcomm.com. -
Page 19: Chapter 3 Forming A Powerline Network
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual Chapter 3 Forming a Powerline Network This chapter describes how to form a HomePlug AV logical network (AVLN) using the Security pushbutton and using the Utility. Operation progress and outcome can be monitored by observing the behavior of the power LED. - Page 20 Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual Devices A and B are located in different networks. Users want to use them to form a logical network. In this case, using the Security pushbutton cannot pair Devices A and B. Users can only use the Utility to form a logical network.
- Page 21 Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual Network name setting success Repeat the procedures above to configure Device B. Configure Device B with the same Private Network Name as Device A. After the operation success, Devices A and B form a new logical network. -21- Download from Www.Somanuals.com.
-
Page 22: Chapter 4 Joining A Network
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual Chapter 4 Joining a Network This chapter describes how to add a device to an existing HomePlug AV logical network (AVLN) using the Security/Reset pushbutton and using the Utility. Operation progress and outcome can be monitored by observing the behavior of the power LED. -
Page 23: Using The Utility
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual 4.2 Using the Utility Scenario: Devices A and B are located in Network N. Device C (the joiner) that is located in another network attempts to join Network N. See Do as follows to add Device C to Network N using the Utility: Connect Device C to the network card of a PC. -
Page 24: Appendix A: Improving The Transmission
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual Appendix A: Improving the Transmission Quality It is important to use the PLC product complying with the following "rule of thumb", because it can significantly improve the transmission capacity of the network. PLC device is recommended to plug the device directly into a wall socket, not to power stripe. -
Page 25: Appendix B: Specifications
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual Appendix B: Specifications Specification IEEE 1901 and HomePlug AV compliant Standards Co-existence with HomePlug 1.0 Nodes IEEE802.3, IEEE802.3u Encryption 128-bit AES Encryption 10/100Mbps Ethernet port Ports LEDs Power, Ethernet, Data Powerline Speeds Up to 200Mbps, Peak PHY Rate 500Mbps Powerline Range... - Page 26 Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual - Devices with 10/100 or 10/100/1000 Mbps Ethernet port - Operates system not require for uses without Utility - Utility software OS support: - Microsoft Windows 2000/XP/Vista/7 Dimensions 4.61 x 2.36 x 2.09in (117 x 60 x 53 mm) (1 Powerline adapter) Weight 0.41 lb (180 g) (1 Powerline adapter) 0°C~40°C Operation...
-
Page 27: Appendix C: Acronyms And Abbreviations
Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual Appendix C: Acronyms and Abbreviations AVLN AV In-home Logical Network, the AVLAN is the set of STAs that possess the same network membership key. Every AVLN is managed by a single CCo. Central Coordinator CSMA/CA Carrier Sense Multiple Access / Collision... -
Page 28: Appendix D: Rplc-200P Qos Support
2nd: Video and Music Streaming 3rd: Data Streaming Thank you for purchasing a quality Rosewill Product. Please register your product at: www.rosewill.com for complete warranty information and future support for your product. Rosewill Customer Service Hotline: 1-800-575-9885 Rosewill Customer Service Support: techsupport@rosewill.com... - Page 29 Specifications are subject to change without notice. is a registered trademark of Rosewill Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Rosewill Inc.
- Page 30 Premium 200Mbps Powerline AC Pass-Through AV+ Adapter - RPLC-200PKIT- User’s Manual Federal Communication Commission (FCC) Interference Statement The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference ...
