5 .3 Remove the range selector switches

5.3.1 Applicability

This section applies to:
• AK101
• AK102
• AK103
For AK104, go to: Section "5.4 Remove the 4600 displays" on
page 11.

5.3.2 Requirements

Table 3 Tools required
Part number Description
10 mm spanner
—
— 14 mm spanner

5.3.3 Procedure

1 Turn the panel over.

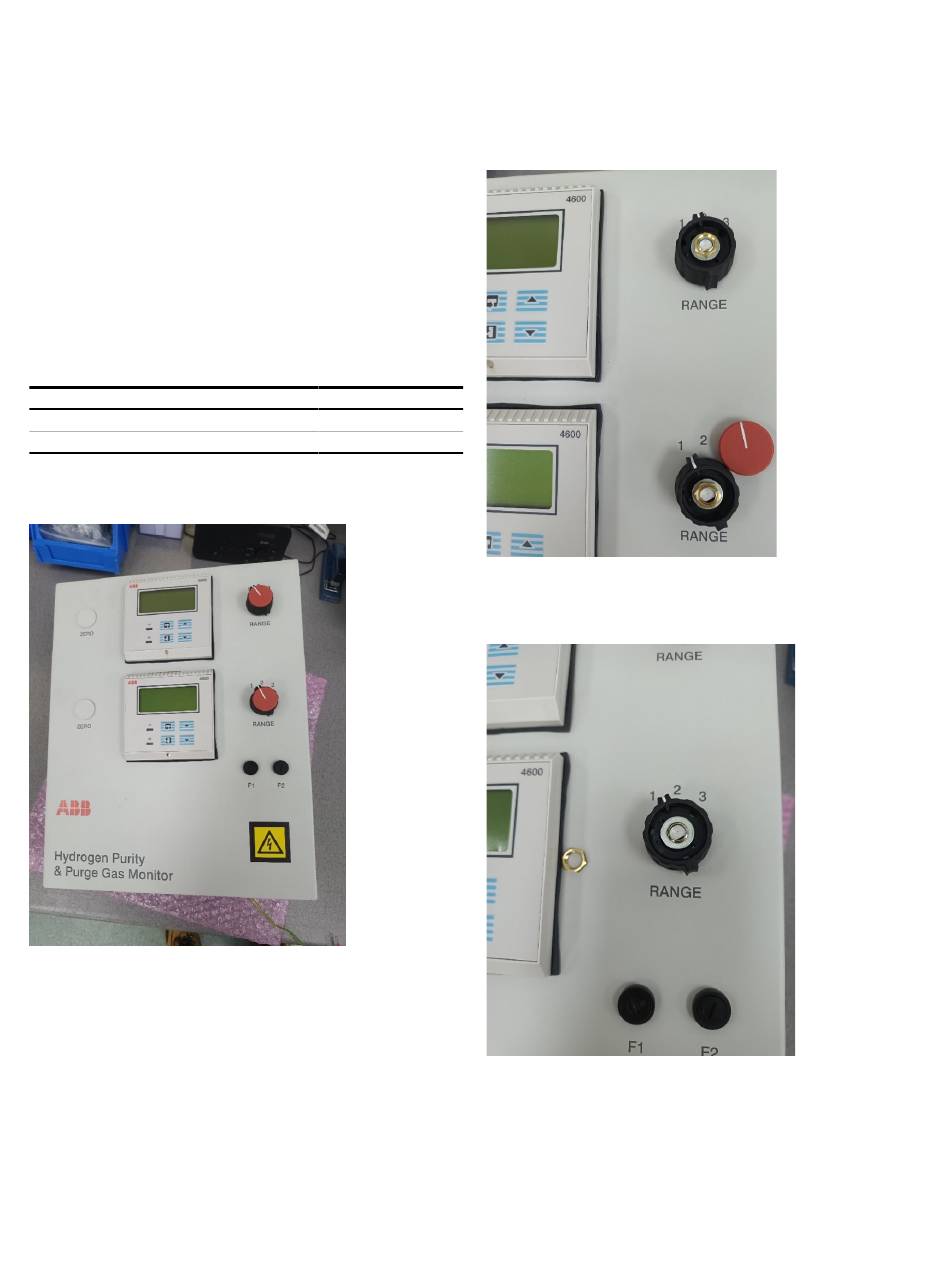

Figure 11 Panel
2 Use a sharp tool to prise and remove the red front cover of
the switch.
Quantity
1
1
Figure 12 Red switch cover removed
3 Use a 10 mm spanner to remove the brass nut.
Figure 13 Brass nut removed
