A K 1 0 T O G A H | U P G R A D E I N S T R U C T I O N | I N/A K 1 0 -TO - G A H - E N R E V. A
5 AK102 and AK103 only:
a Make connections 13-16 on TB3 from the upper switch.
b Start from the left side and across. AK102 shown in Figure
56. On AK103, TB3 will be in a lower position.

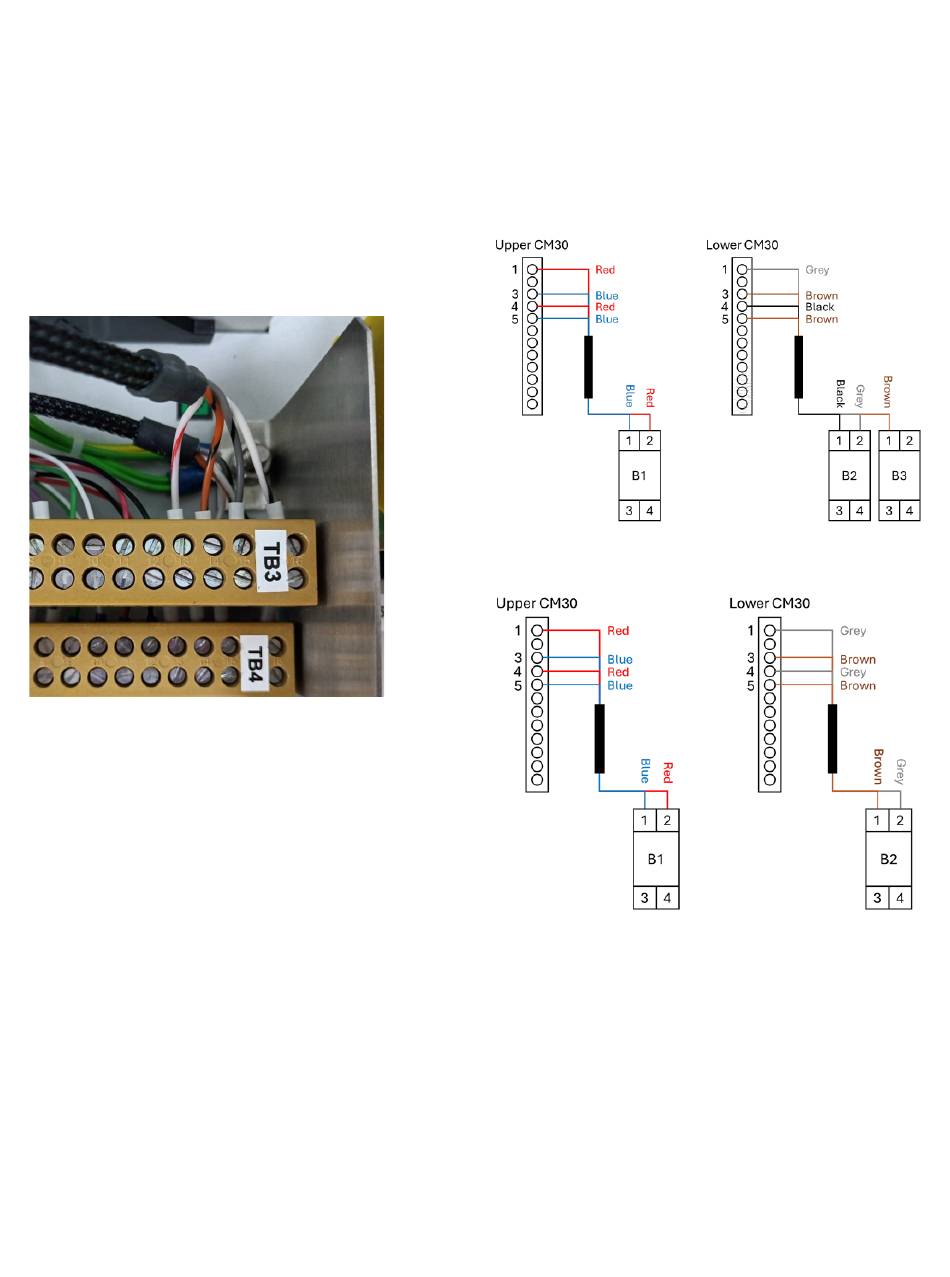

Figure 56 TB3 connections
5.9.12

Safety barrier wiring

Wiring diagrams
Figure 57 Wiring diagram AK101
Figure 58 Wiring diagram AK102
23
