...5 Upgrade procedure
...5 .9 Rewiring
5.9.11

Procedure

1 AK101 only:
a Locate the switch link.
b Connect one end to the switch, connecting the black/
orange wire to terminal 1 and the red/white to terminal 2.
It may be easier to remove the switch prior to this step,
using the red lever.
c Make sure that the existing black/orange and red/white
wires in terminals 1 and 2 are still connected to the
terminal and then refit the switch, ensuring that the red
lever clicks into place.
d Connect the other end of the Switch Link to connections
40 (red/white) and 36 (black/orange) on the upper CM30.
2 AK101 and AK102 only:
a Make connection 40, 38, 37 and 36 on the lower CM30
using wires from the lower switch, starting from the
bottom terminal (40).
b Make sure to skip connection 39. Do not use the wires
encased in the black braiding. These wires are to be
connected to the terminal rail.

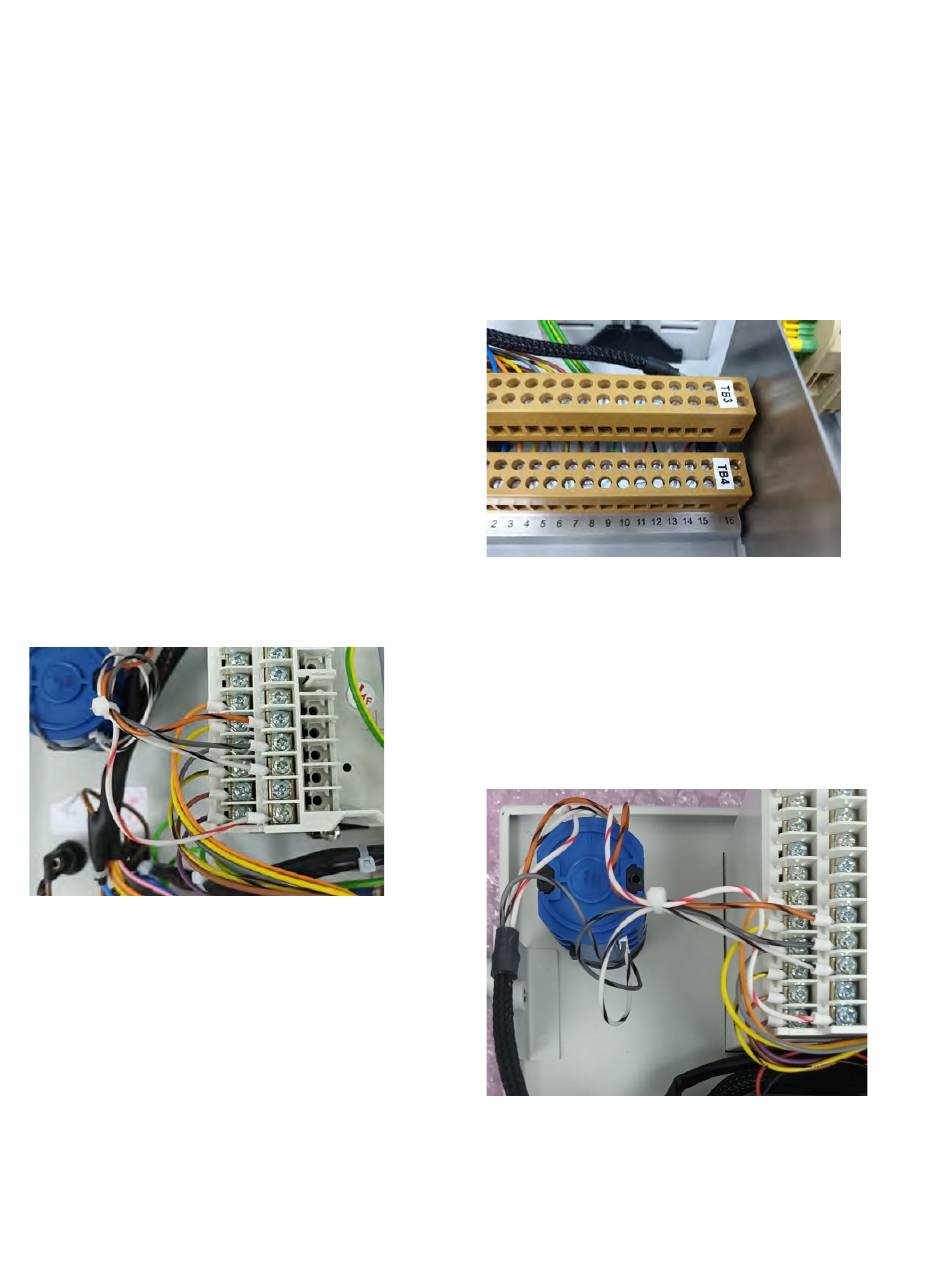

Figure 53 Switch wiring
3 AK101 and AK102 only:
a Make connection 13 – 16 on TB4 from the lower switch
using the wires in the black braiding.
b Start from the left-hand side (12). For connection 16, route
the black/white wire around the supporting pillar.
Figure 54 Connection 13-16
4 AK102 and AK103 only:
a Make connection 40, 38, 37 and 36 on the upper CM30
using wires from the upper switch, starting from the
bottom terminal (40).
b Make sure to skip connection 39. Do not use the wires
encased in the black braiding. These wires are to be
connected to the terminal rail.
Figure 55 Upper CM30 connections
