5.9.9 Switch wiring

5.9.10

Applicability

This section applies to:
• AK101
• AK102
• AK103
For AK104, go to: Section "5.9.12 Safety barrier wiring" on page
23.

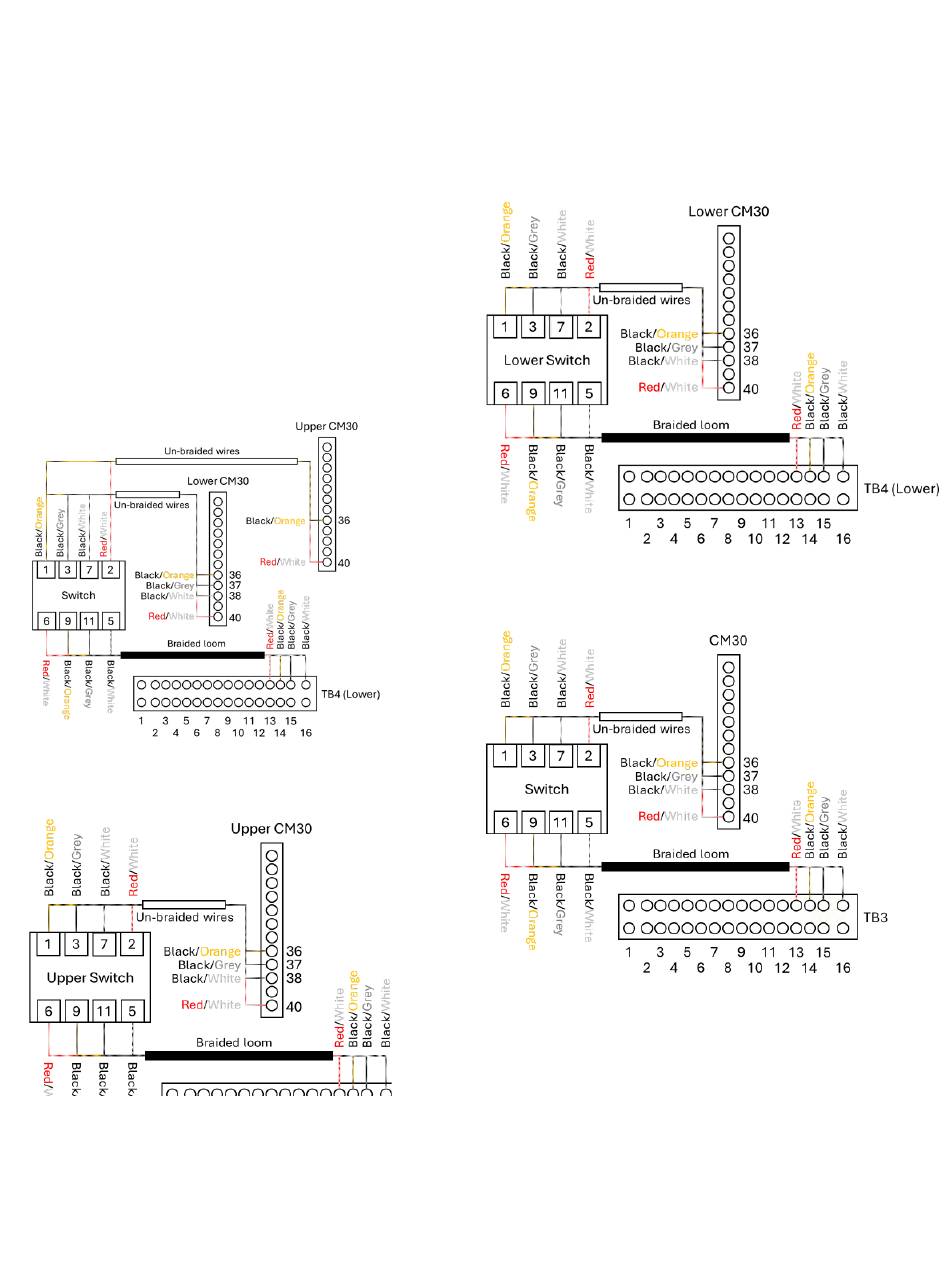

Wiring diagrams
Figure 49 Wiring diagram AK101
Figure 50 Wiring diagram AK102
Figure 51 Wiring diagram AK102
Figure 52 Wiring diagram AK103
